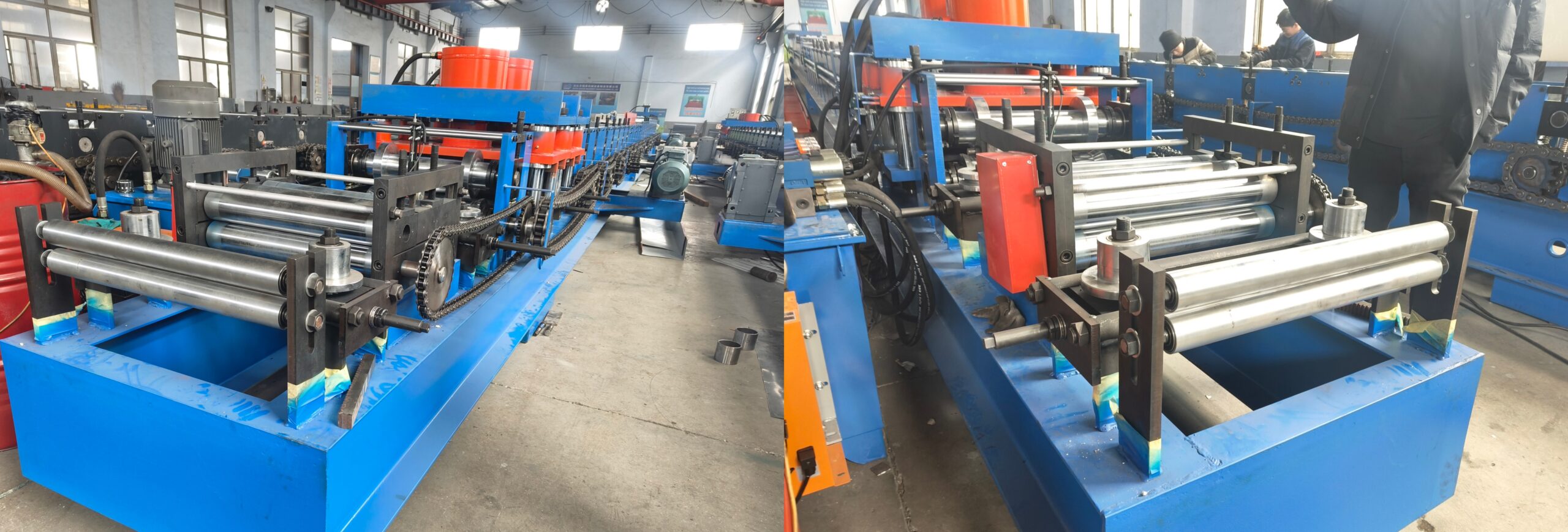

Automatic Container Column Roll Forming Machine is an automated mechanical equipment dedicated to producing key structural components of containers – columns. It continuously forms metal coils into high-strength and high-precision columns through cold bending and rolling processes, and is widely used in container manufacturing, storage shelves, modular buildings and other fields.
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI,GL
|
Thickness:1.5-3.0mm Width:1220mm(As per profile drawing)
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
26rows(As your requirement)
|
||
|
Diameter of shaft
|
95mm solid shaft
|
|||
|
Material of rollers
|
Gcr 15 with quenched teeatment
|
|||
|
Machine body frame
|
400 H steel
|
|||
|
Drive
|

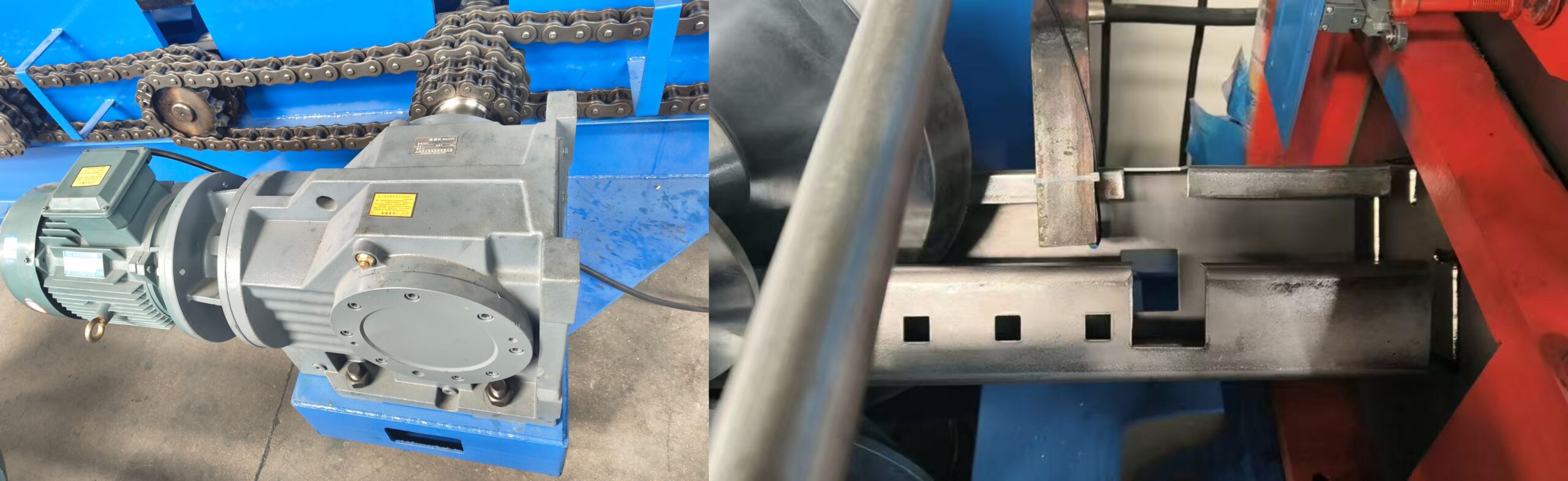

Gearbox transmission
|
|||
|
Dimension(L*W*H)
|
10500*1600*1600(customize)
|
|||
|
Weight
|
About 7T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
11KW
|
||
|
Hydraulic system power
|
7.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
15-20m/min
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
Core Features
1.High precision and stability
The equipment adopts a 400H steel frame structure, a 20mm thick middle plate, and an 95mm central axis design to ensure strong rigidity, smooth operation, and small forming errors of the whole machine, meeting the strict requirements of container structural strength.
2.Automated control
Equipped with PLC programmable control system and touch screen operation interface, it realizes full computer control, supports fixed pressure and fixed range pressing, adjustable molding speed (such as 8-12 m/min), pressing pressure and stroke, and adapts to various specifications of production.
3.Strong customization ability
Support customized processing, with raw material thickness adapted to 3mm, adjustable feeding width, and the ability to customize columns of different lengths and cross-sectional shapes according to customer needs, meeting the production needs of non-standard parts.
4.Efficient and energy-saving
The main motor power is generally between 11kW. The hydraulic system adopts plug-in valve technology, which has high transmission efficiency and low energy consumption. At the same time, it is equipped with a mobile worktable for easy mold replacement and improves production efficiency.
Typical application scenarios
• Container manufacturing:
used to produce load-bearing components such as corner columns and side beams for standard sea freight containers, ensuring the overall structural strength and stacking safety of the container body.
• Storage and logistics system:
producing shelf columns, suitable for large warehouses, logistics centers, and household storage shelves, with the characteristics of easy disassembly and assembly, good load-bearing performance, etc.
• Modular architecture:
serving prefabricated construction projects such as quick consolidation houses and movable board houses, achieving rapid on-site assembly and shortening construction cycles.
• Industrial equipment support:
Provide core forming equipment support for various metal structural component production lines.
