The 1.5-3.0mm Galvanized Racking Box Beam Roll Forming Machine is a cutting-edge and precise solution for manufacturing galvanized box beams for heavy-duty racking systems. This state-of-the-art machine is specifically designed to produce high-quality box beams with a material thickness ranging from 1.5mm to 3.0mm, ensuring strength and durability. With automated controls and precision engineering, it ensures seamless and accurate roll forming, resulting in consistent and precise galvanized box beams. The machine is ideal for heavy-duty storage applications, providing reliable and sturdy box beam production. Elevate your racking systems with this reliable and high-performance 1.5-3.0mm Galvanized Racking Box Beam Roll Forming Machine, ensuring efficient and robust storage solutions.

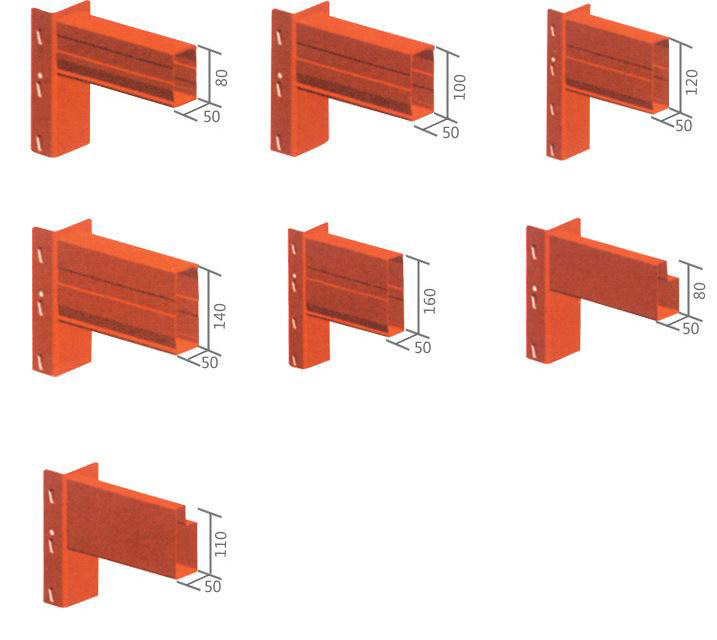

1.5-3.0mm Galvanized Racking Box Beam Roll Forming Machine is designed to make the box beam in batch fully automatically. It has two sets machine, one is the C purline machine and another sets is box beam interlocking machine. Box beams have no inset step, instead of having four flat sides like a box. All load beams typically mount onto an upright frame column with integral rivets or hooks. Some systems utilize an extra clip or bolt to lock the beam to the upright. Nowadays, the box beams usually made up from two identical c channels nested together to form into a box. Box Beam is the most strong compare with other types of beams. Here I share some drawing profile for your reference:

Box Beam Roll Forming Machine Design:

The following part, we share some pictures about the fully automatic box beam rolling forming. From the C purline to box beam, just by one machine.

The half automatic type box beam machine is composed by C purline rolling machine like the normal C purline.

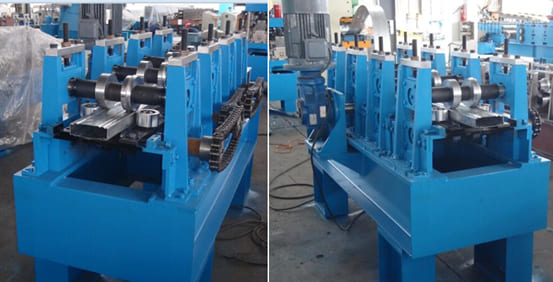

And then to box beam locking machine:

C purline machine:

Box beam locking machine parameters for your reference:

Galvanized Racking Box Beam where to use:

We also supply machines of shelf panel rolling machine, upright rack machine and others. If you need to know more information, please contact us at any time.
