Standing Seam Roof Sheet Roll Forming Machine – the perfect solution for high-quality standing seam roof sheet production. This cutting-edge equipment boasts precision and efficiency, ensuring seamless and accurate forming of roofing panels. Its user-friendly controls and advanced technology guarantee smooth operation and consistent output. The machine’s versatility accommodates various panel widths and lengths, catering to diverse roofing needs. Elevate your roofing production with this reliable and robust machine, bringing speed, precision, and durability to your manufacturing process. Experience top-notch standing seam roof sheets and elevate your roofing projects to new heights of excellence.
Full Automatic Smi 1.75″ Snaplock Standing Seam Roof Standing Panel Roll Forming Machine For America
Design Idea:
Full Automatic Easy Operation:Whole producing line just need one person for operation.

Before Wave Shearing Design:For making sure the wave shape is perfect good, we design the machine with before wave shearing. As hydraulic cutting after rolling will destroy the shape.
Color Steel Standing Seam Roll Forming Machine
Machine Weight
8.2 Tons
Machine Dimension
7800*1200*1400 mm
Total Power
9 kw

Profile drawing for reference:

this type 1.75″ SnapLock Standing Seam panel very hot sale in US.As we sold many machines to America,we have rich experience on it to confirm the finished product good and suit for market.
Color Steel Standing Seam Roll Forming Machine Color Steel Standing Seam Roll Forming Machine

Processing Flow

Uncoiling → Feeding Material Into Machine →Roll Forming → Auto Cutting →Products Receiving
Color Steel Standing Seam Roll Forming Machine
1.75″ Snaplock Standing Seam Roof Standing Panel Roll Forming Machine For America

Raw Material
GI&PPGI&G550 GI и PPGI и G550
Material thickness:22-24 gauge (0.3-0.8 mm)
Coil width :545 to 600mm
Effective width:430 mm
Machine Frame
350# H steel welded,Steel plate welded structure
Material Of Rollers
45# Steel,Chromed treatment, improve the hardness and prevent abrasion, anti corrosion increase of service life
Rolling station
Roller stations :16 rows
Diameter of shafts
Φ75mm solid
Material of shafts
45# STEEL,Tempering treatment to prevent deformed and improve hardness
Forming speed
20 m/min
Voltage
380V/50HZ/3P (as requested)
Transmission way
By Chains with cover
Main motor
5.5 KW



PRODUCT DISPLAY

Color Steel Standing Seam Roll Forming Machine5t Manual Decolier For Free
Work type: passive type
Structure: Steel channel welded for the basic frame
Usage:To support the coil and make the uncoiling
Loading capacity: 5 tons
Inner diameter: 450-550mm (manual adjustment)
Coil width: 1250mm
Brake system: manual brake
Color Steel Standing Seam Roll Forming MachineFeeding Device
One set guiding roller
Steel plate welded platform to carry the sheet and feed into roll forming system
Feeding width is adjustable with the handle wheels

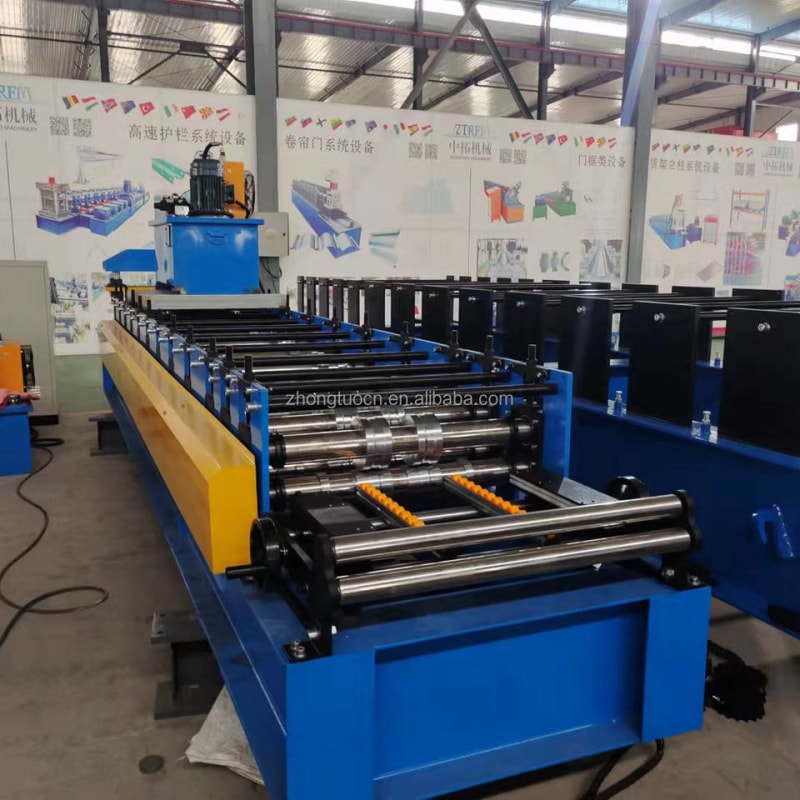

Color Steel Standing Seam Roll Forming MachineRoll Forming And Transmission Device
1.rollers:after thick chromed good hardness for long service time;Each roller has number and with keynotes, it can fix on the shaft stablely
2..gear and double chain,This design will make machine more strong, to prolong the machine using life.
3.We make grooves to inset two nuts and cushion on the shaft. To avoid shafts loosing when machine works. Due to this design, shafts will be fixed more and more firm when it is working
Color Steel Standing Seam Roll Forming MachineHydraulic Cutting Device
Work type :Hydraulic cutting
Driving method :By pillar type Cylinder
Hydraulic motor power :3 kw
Cutter material :GB-Cr12 with heat treatment
Cutting length tolerance :±1mm/3m
Cutting feature :Steady and safe working condition
Color Steel Standing Seam Roll Forming Machine

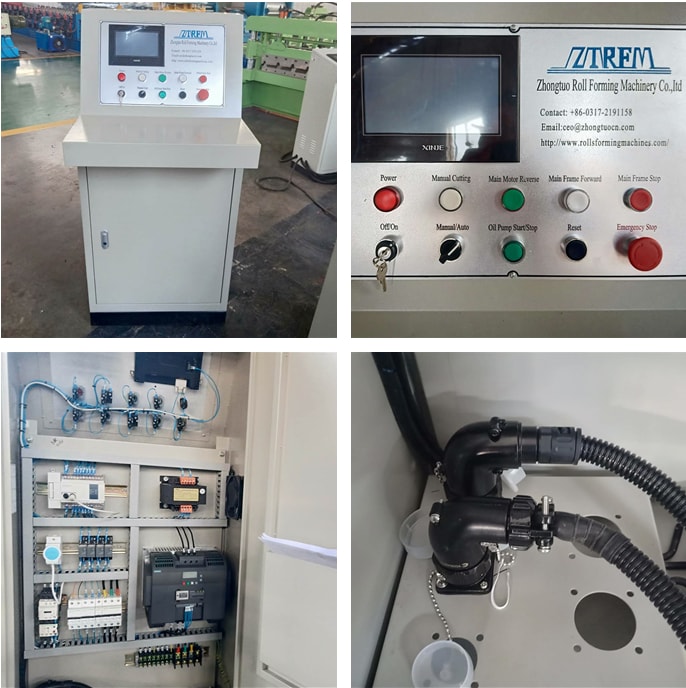

PLC control system
Frequency brand :Delta (original)
PLC brand :Delta (original)
Frequency brand :Delta (original)
Screen type :Touch screen, also have buttons on the panel
Screen language: English/Chinese
Cut command :Yes
Profile length set-up :Yes
Batch quantity program :Yes
Low pressure electric part :Schneider brand
Encode :Omron brand
Remark :Support multi orders input,ensure the machine can work continuously
according to different request without stop ;All the electrical parts are branded with a high quality, it can be fixed easily if damaged. Because you can find these again in any area of the country and it’s a standard parts.
Color Steel Standing Seam Roll Forming MachineHydraulic station
Advantage: with air-cooling system to prolong the service life.
Oil tube and wires connection: All wires will be marked by numbers or letters,So very easy to connect.
Power:4.5kw

Color Steel Standing Seam Roll Forming Machine Color Steel Standing Seam Roll Forming Machine
