In the external wall enclosure system of industrial plants, commercial buildings, and agricultural facilities, metal wall panels have become the preferred material for modern building enclosure structures due to their comprehensive advantages such as light weight, high strength, fast construction, and clean appearance. The Wall Panel Roll Forming Machine, as the core equipment for producing metal wall panels, is helping building material manufacturers achieve dual improvement in production capacity and quality with its high-precision molding, fully automated production, and flexible material adaptation capabilities.
What is a metal wall panel forming machine?
The metal wall panel forming machine is a fully automatic cold bending equipment designed to gradually roll metal coils such as color coated steel plates (PPGI), galvanized steel plates (GI), or aluminum plates into building wall panels with corrugated or trapezoidal features through multiple precision arranged rollers.
The equipment usually consists of an uncoiler, a feed guide device, a forming host, a hydraulic cutting system, and a PLC control system. The standard production process is: uncoiling → feeding → roll forming → cutting to length → finished product output. The entire production line is coordinated by a PLC control system, and operators can set parameters such as board length and production quantity through a touch screen.
Product Attributes :
| Machine Parameter | Typical Specification |
|---|---|
| Machine Type | Automatic Wall Panel Roll Forming Machine |
| Suitable Material | PPGI / PPGL Coil |
| Material Thickness | 0.3–0.7 mm |
| Coil Width | 600–610 mm |
| Material Yield Strength | Approx. 235 MPa |
| Forming Stations | About 20 |
| Shaft Diameter | 75 mm solid shaft |
| Forming Speed | Up to 20 m/min |
| Main Motor | 7.5 kW |
| Hydraulic Motor | 3 kW |
| Forming Roll Material | No. 45 steel with chrome treatment |
| Cutter Material | CR12 mold steel with quenched treatment |
| Control System | Mitsubishi or Siemens PLC + converter + touchscreen |
| Machine Weight | About 5,000 kg |
| Machine Dimensions | About 10 × 1.0 × 1.5 m |
| Typical Loading | Two machines can be arranged for one 40 GP container |
Core Advantages：
1.High precision molding, smooth surface
The equipment adopts 45 # high-quality steel rollers, which are coated with hard chromium on the surface after heat treatment. Combined with precision machining and assembly processes, it ensures the accuracy of the cross-sectional dimensions and surface quality of the finished wall panels. The typical number of molding passes is around 20, which gradually deforms the board and evenly distributes stress, resulting in a smooth and scratch free surface of the finished product with high flatness.
2. Fully automatic PLC control, easy to operate
The equipment is equipped with a PLC control system and a touch screen human-machine interface, supporting automatic counting and fixed length setting functions. Operators only need to input parameters such as sheet length and production quantity, and the system can automatically complete the full process control of forming and cutting. In fully automatic operation mode, only 1-2 operators are needed to complete production line management, significantly reducing labor costs.
3. Flexible adaptation to multiple materials
The equipment supports processing metal coils such as color coated steel plates (PPGI), galvanized steel plates (GI), and aluminum plates with a thickness of 0.3-0.7mm. The feed width is compatible with various specifications such as 600-610mm, and the roll mold can be customized according to the customer's plate drawing to produce wall panels with different waveforms and cross-sectional sizes.

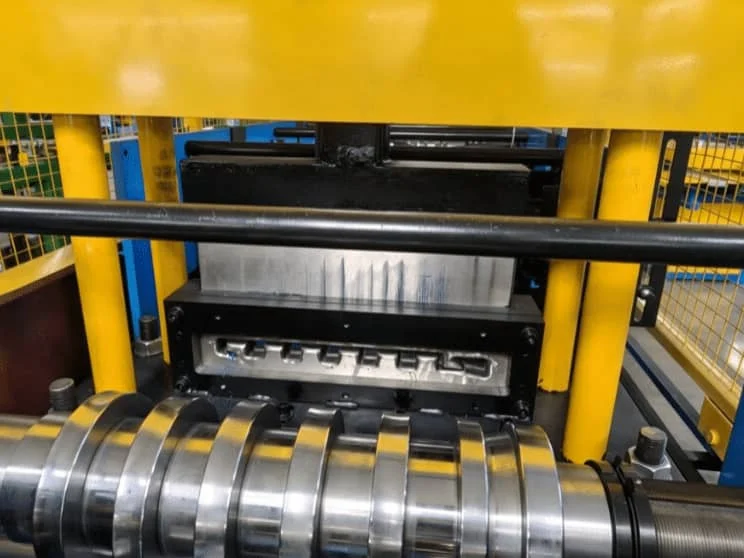

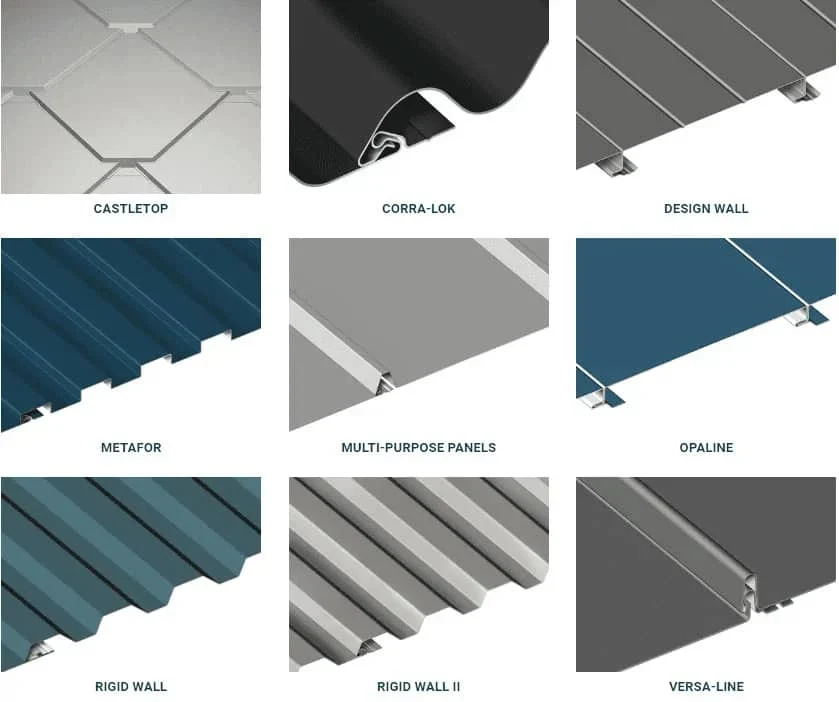

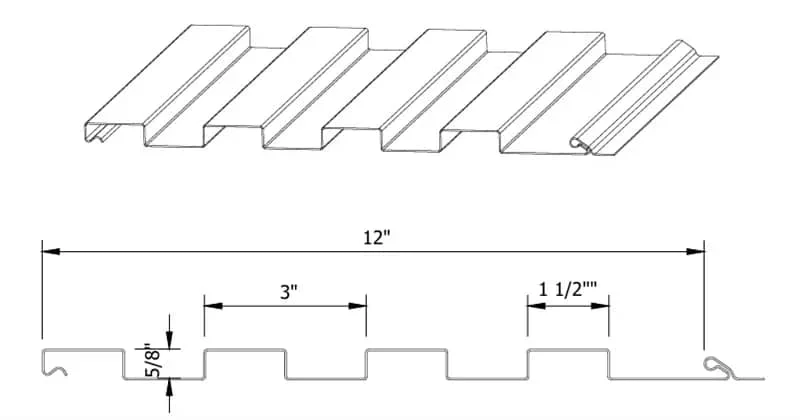

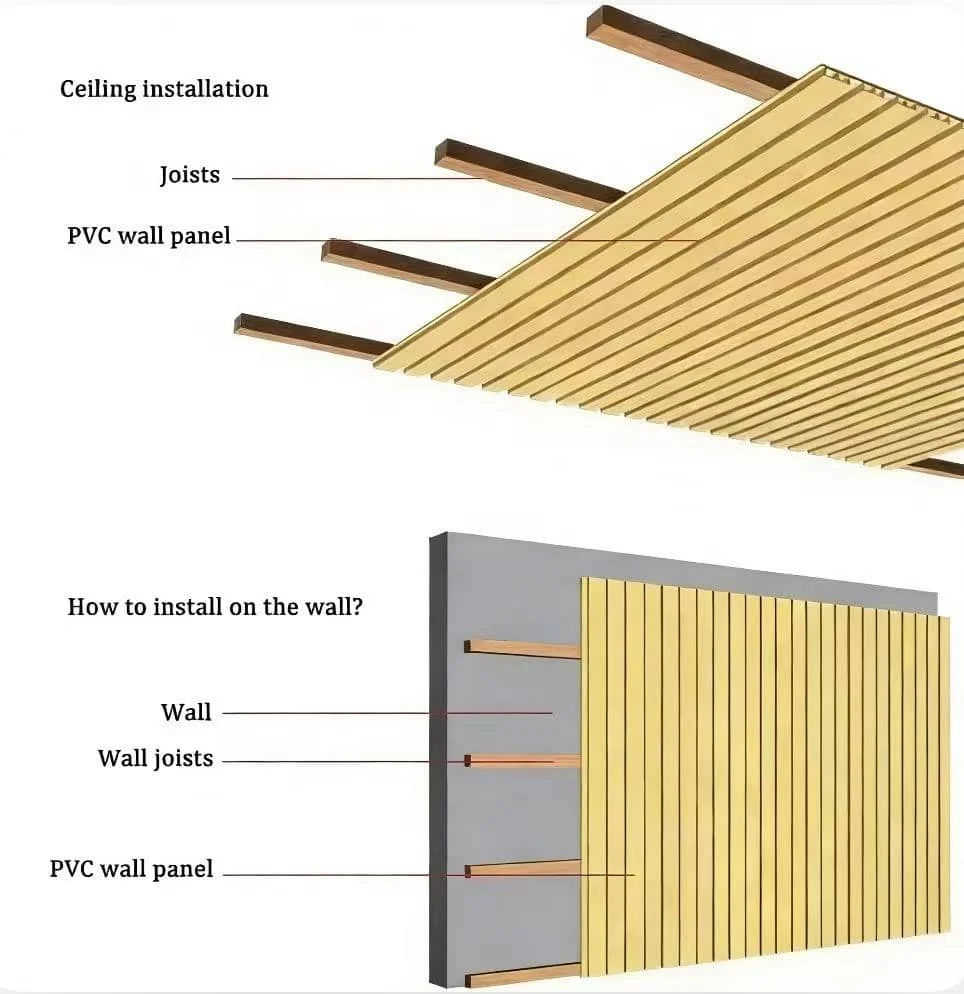

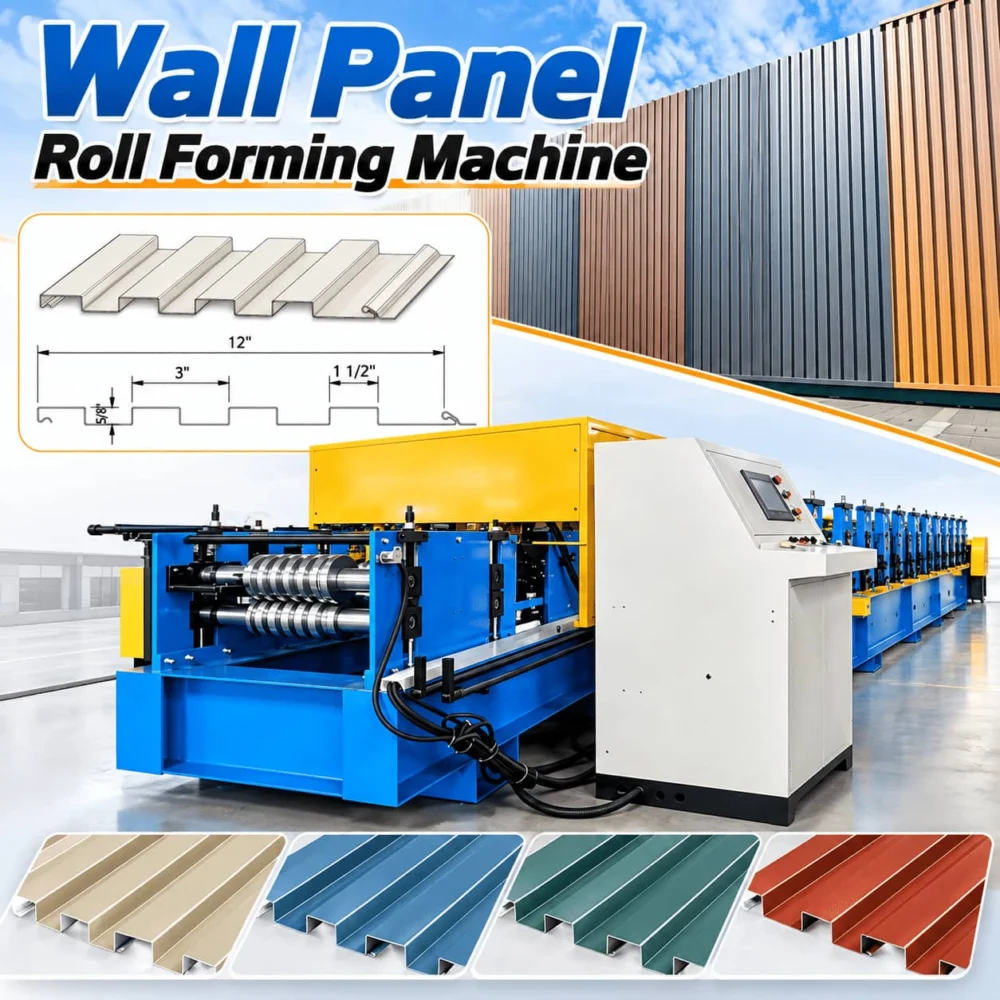

Pattern diagram:

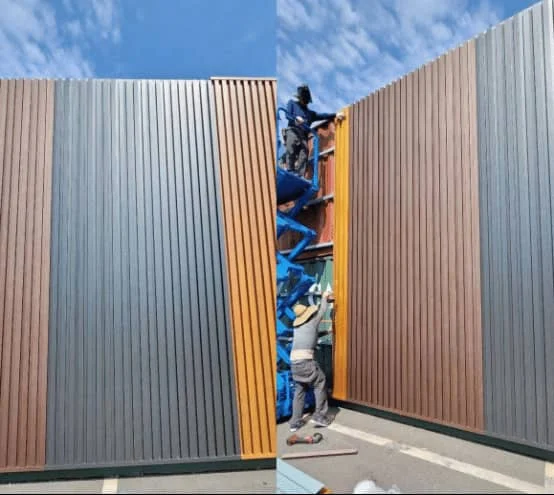

Application Areas：
The sheet produced by the metal wall panel forming machine is widely used in various building scenarios:
• Industrial buildings: External wall enclosure systems for steel structure factories, manufacturing workshops, and logistics warehouses
• Commercial buildings: wall decoration and enclosure for supermarkets, exhibition halls, and simple venues
• Agricultural buildings: wall coverings for livestock farms, greenhouses, and grain warehouses
• Civil buildings: residential exterior wall decoration, garage, canopy, movable board house
• Other uses: indoor decorative wall panels, sound barriers
In practical applications, wall panels and roof panels often use similar cold bending forming processes, and some equipment can achieve compatible production of roof panels and wall panels by replacing the rolling mill molds.

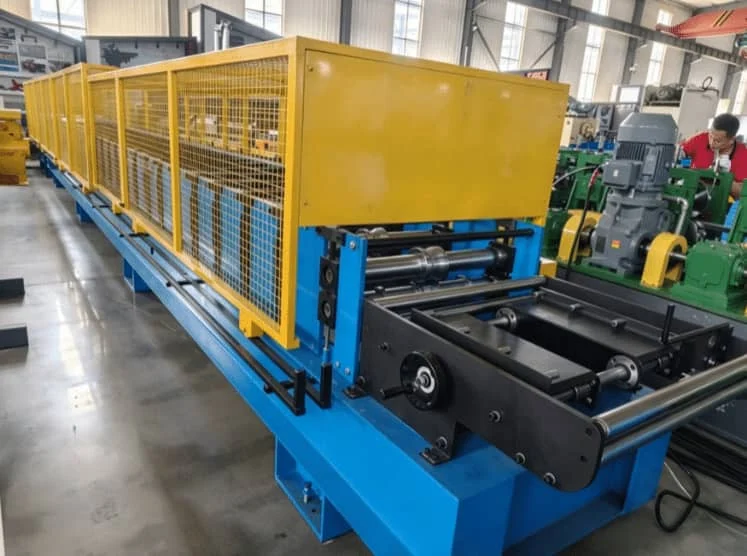

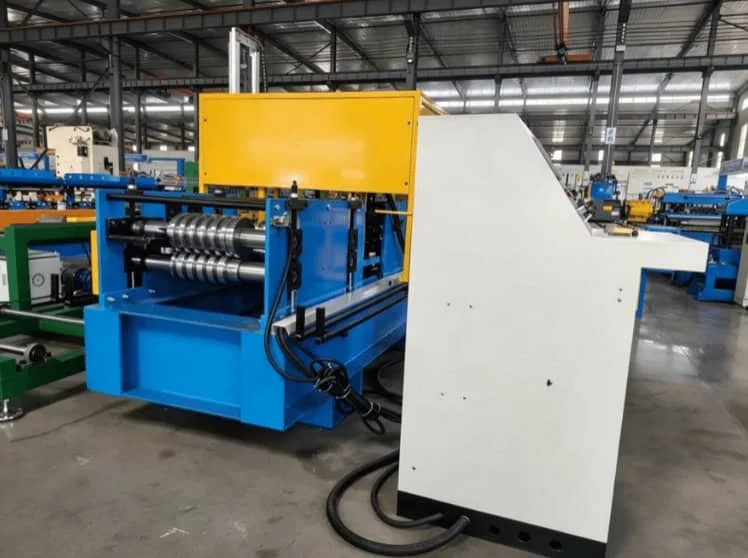

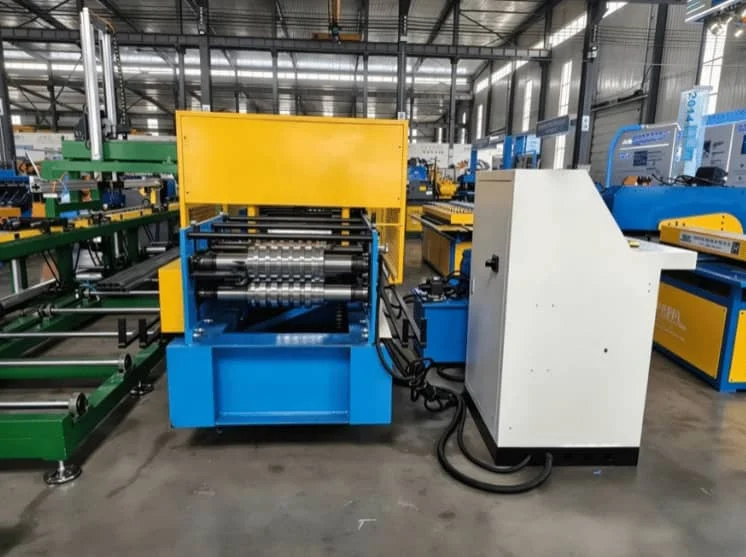

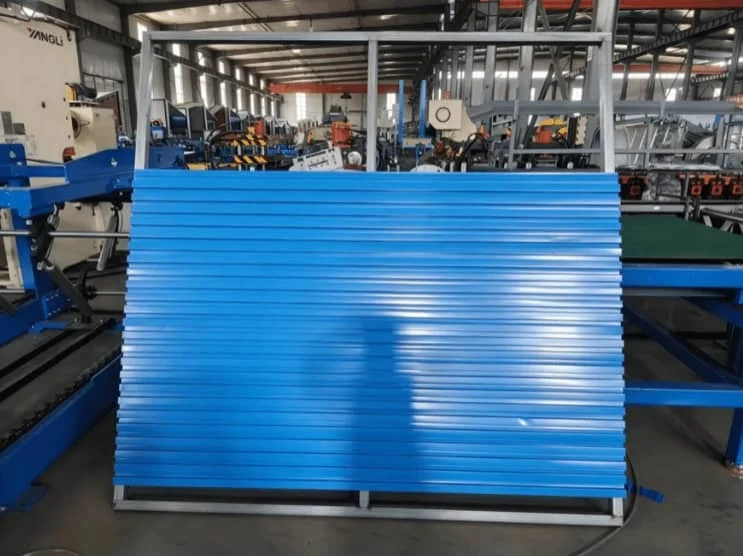

Machine photo:
Frequently Asked Questions (FAQ)：
Q1: What wall panel types can this device produce?
The equipment can produce wall panels with various cross-sections such as corrugated and trapezoidal. Corrugated plates have a classic circular arc appearance, while trapezoidal plates provide higher structural strength. We can design customized rolling mill molds for customers by providing plate drawings or samples.
Q2: How to ensure the forming accuracy of the equipment?
Accuracy assurance comes from three aspects: the rolling mill is made of high-quality 45 # steel, which has undergone heat treatment and hard chrome plating to ensure accurate forming contours; PLC control system cooperates with encoder to monitor production parameters in real time; The hydraulic shearing system achieves a cutting tolerance of ± 1mm.
Q3: Does the device support online punching?
Support. The equipment can be equipped with an online punching system, which synchronously completes the hole processing on the wall panel during the forming process, reducing secondary processing steps and improving overall production efficiency.
Q4: What voltage and power standards does the device support?
The equipment can be customized with voltage configuration according to the power grid standards of the customer's country, supporting different voltages such as 220V, 380V, 415V, 440V, etc. The frequency can be selected as 50Hz or 60Hz, and it is a three-phase power supply. The control system supports multiple language operation interfaces such as English and Chinese.
Contact Us：
From the wall enclosure of industrial plants to the covering materials of agricultural buildings, from the decorative wall panels of commercial buildings to the exterior wall decorations of residential buildings, metal wall panels are serving an increasing number of construction projects worldwide with their excellent structural performance and economic benefits. A Wall Panel Roll Forming Machine with reliable performance and stable accuracy is the core equipment for building materials manufacturers to seize opportunities in the construction industrialization market and enhance competitiveness. If you need equipment solutions and quotations tailored to your specific needs, please feel free to contact us at any time.
