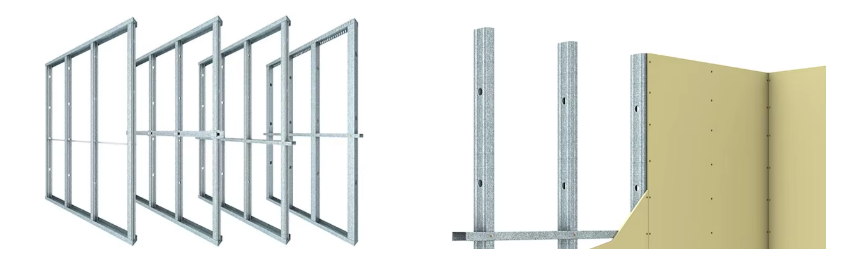

The C Channel Steel Profile Drywall Track Roll Forming Machine is a specialized cold bending equipment mainly used for producing C Channel Steel Profile Drywall Track skeletons in building partition systems. This equipment uses continuous cold rolling technology to process metal strip (usually 0.3-2.0mm thick) into C Channel Steel Profile Drywall Track, forming a vertical support skeleton for non load bearing partition walls. The production process is highly automated, using a PLC control system to achieve precise positioning, drilling, and fixed length cutting. The C Channel Steel Profile Drywall Track produced serves as the vertical main skeleton, combined with the U-shaped keel (used for peripheral fixation) to construct a lightweight, fire-resistant, and earthquake resistant non load bearing partition wall. Widely used in office buildings, hotels, clean rooms, and modular buildings to replace traditional wooden structures and achieve rapid assembly.
Machine advantages:
The advantages of the C Channel Steel Profile Drywall Track Roll Forming Machine mainly include efficient production, high degree of automation, and wide applicability.
Firstly, the C Channel Steel Profile Drywall Track Roll Forming Machine adopts a PLC control system, which makes its production process efficient and highly automated. This equipment produces metal cross-sectional profiles through cold rolling forming technology, and can produce various types of keels such as C-shaped keels, U-shaped keels, T-shaped keels, and L-shaped keels. Its production speed can reach 6-13 meters per minute, greatly improving production efficiency.
Secondly, the C Channel Steel Profile Drywall Track Roll Forming Machinehas a wide range of applications. It can produce light steel keel, painted keel, card keel and other products, widely used in the manufacturing of non load bearing partition wall systems and ceiling keel frames in the construction field. The flexibility of this machine enables it to meet different building needs, from home decoration to commercial space renovation, and can play an important role.
In addition, the C Channel Steel Profile Drywall Track Roll Forming Machine also has the following specific advantages:
1.Lightweight design:
The main keel can be freely extended and retracted to adapt to different room sizes, with strong versatility.
2.High strength and corrosion resistance:
Made of cold-rolled steel plates, the surface has undergone special treatment, resulting in high strength and corrosion resistance.
3.High reuse rate:
The secondary keel can be directly overlapped on the main keel, with a theoretical turnover of over 300 times, reducing the cost of use.
Product Attributes ：
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:0.8-1.2 mm (As your requirement)
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
will give you as free
|
||
|
3.Main body
|
Roller station
|
10-20rows(As your requirement)
|
||
|
Diameter of shaft
|
50mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
gearbox transmission
|
|||
|
Dimension(L*W*H)
|
5500*800*1200(customize)
|
|||
|
Weight
|
About 3.5T
|
|||
|

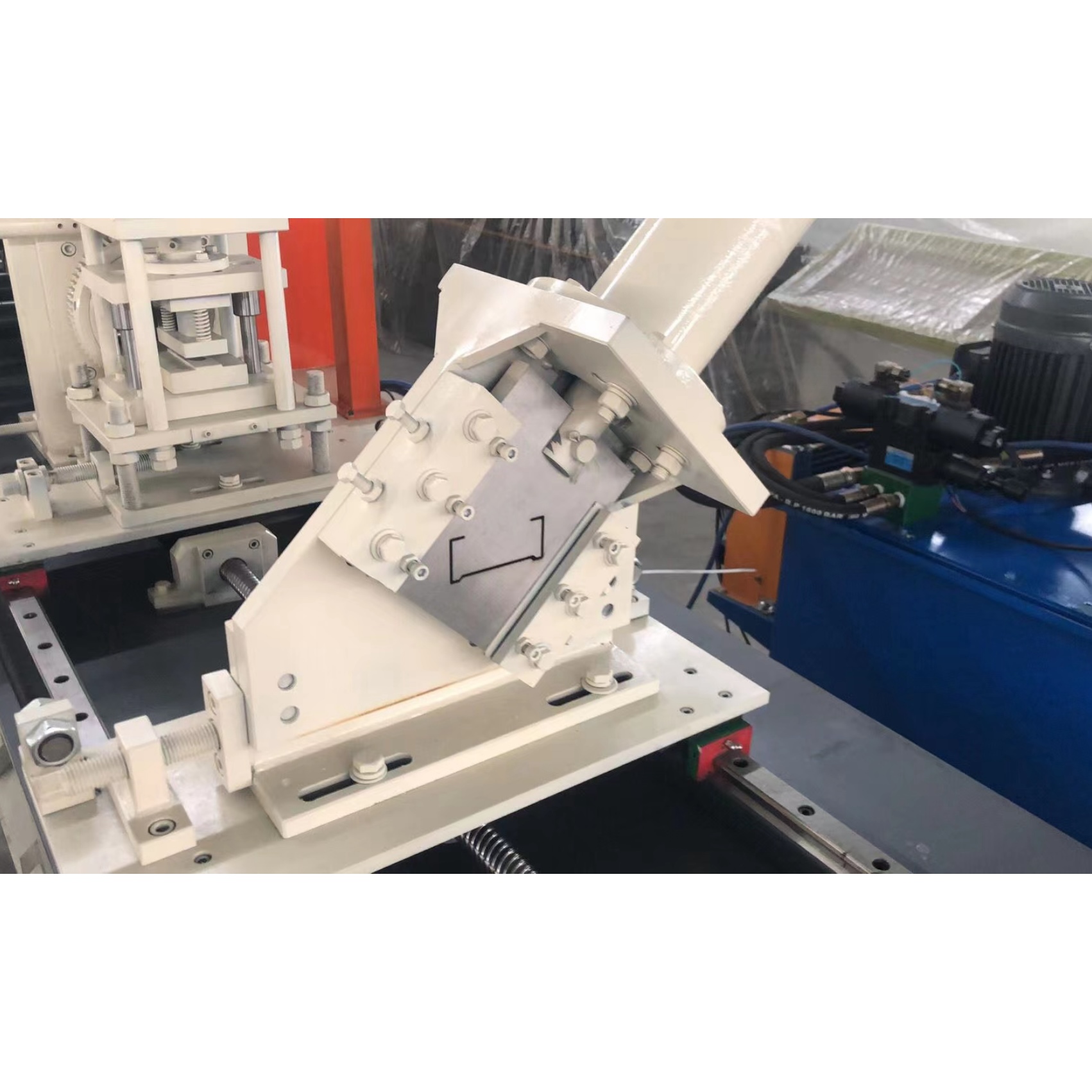

4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
5.5KW
|
||
|
Hydraulic system power
|
4KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
customized
|
The speed depends on the shape of the tile and the thickness of the material.
|
||

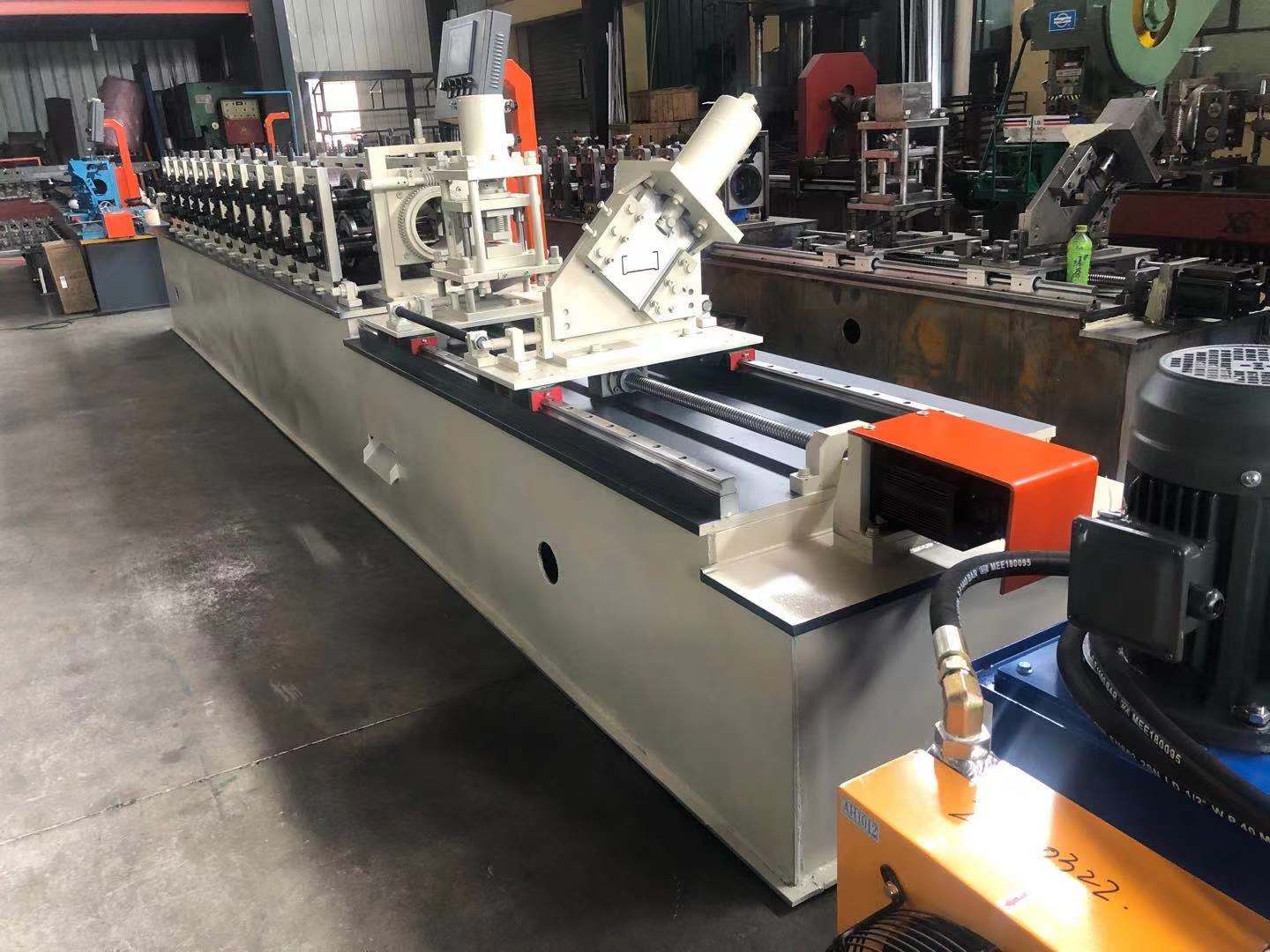

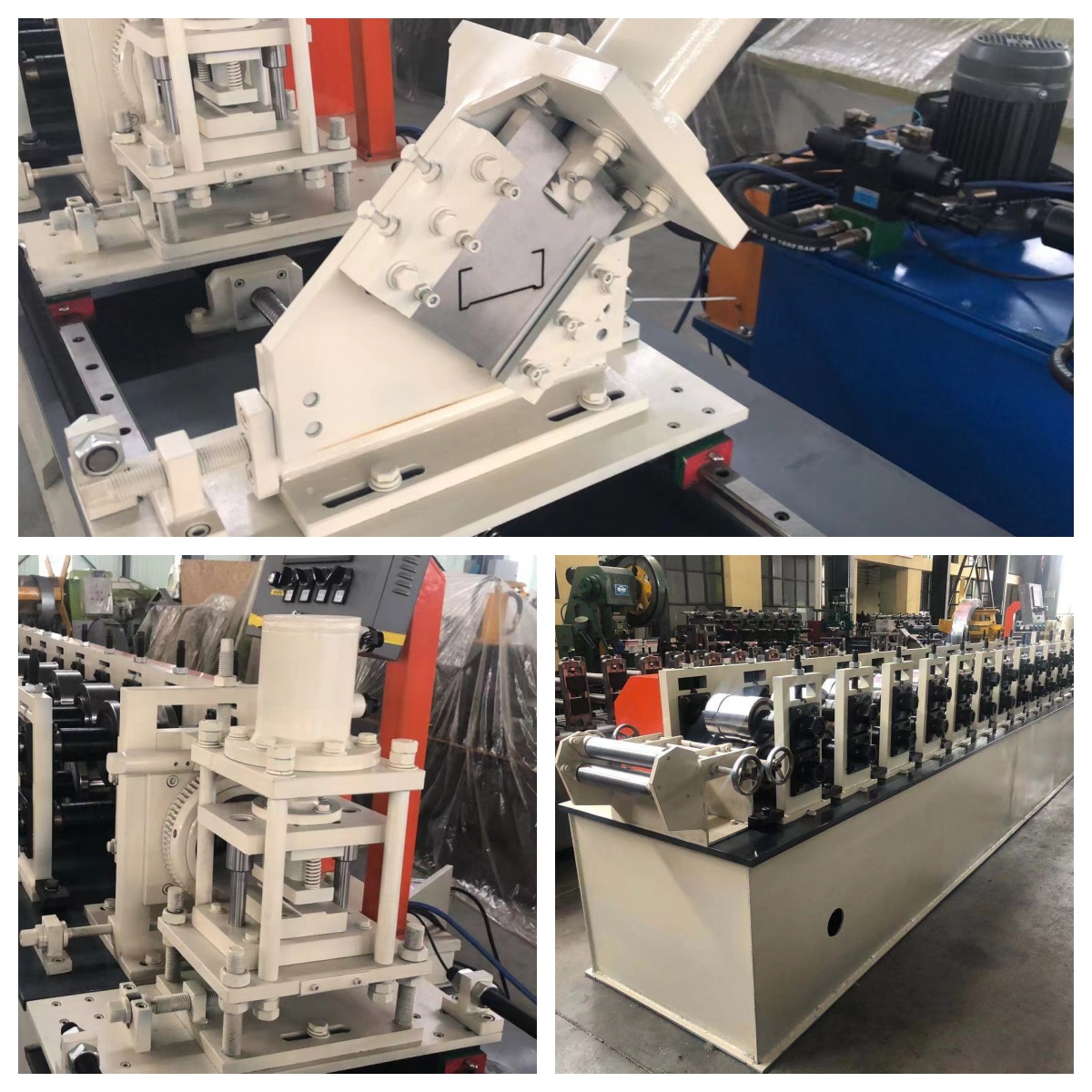

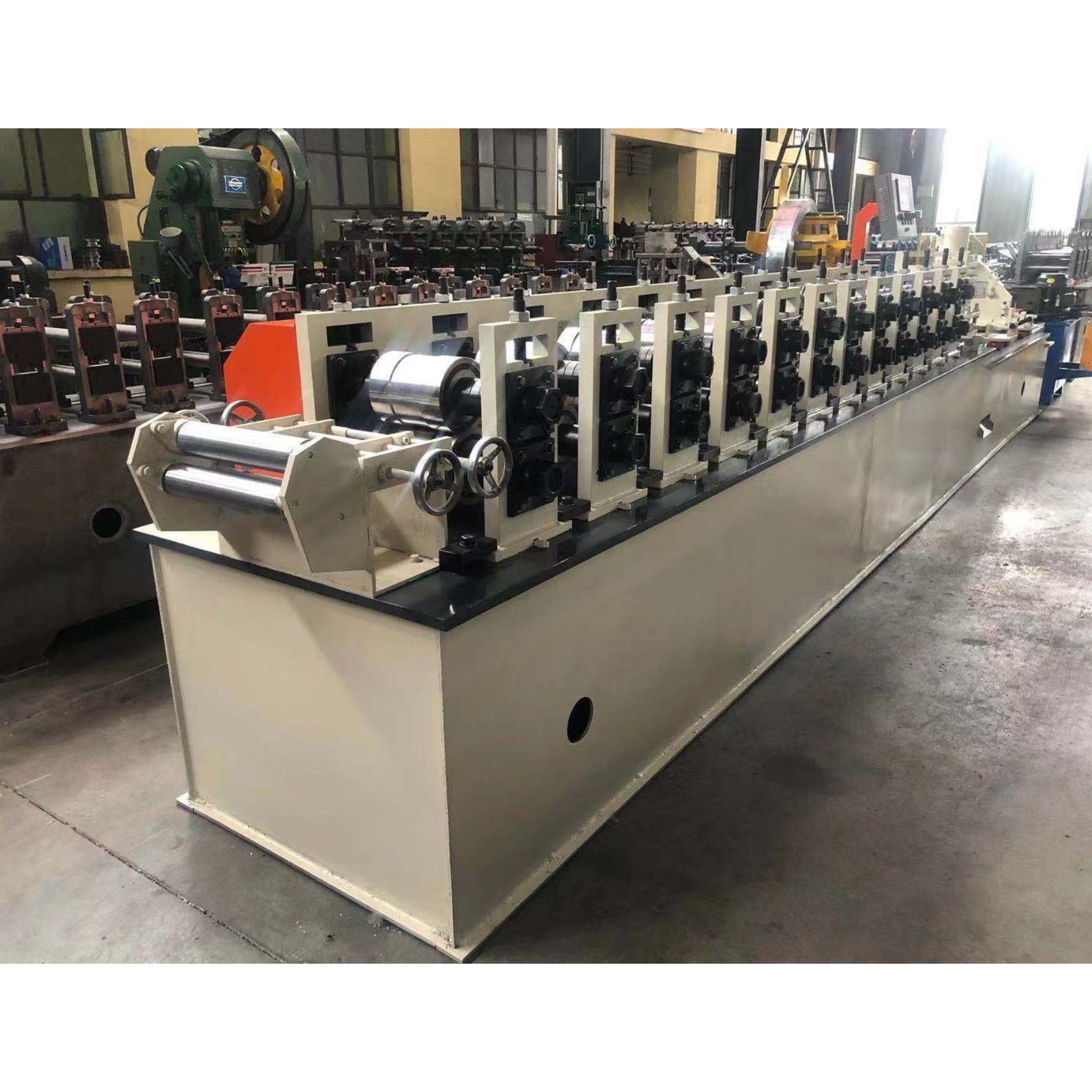

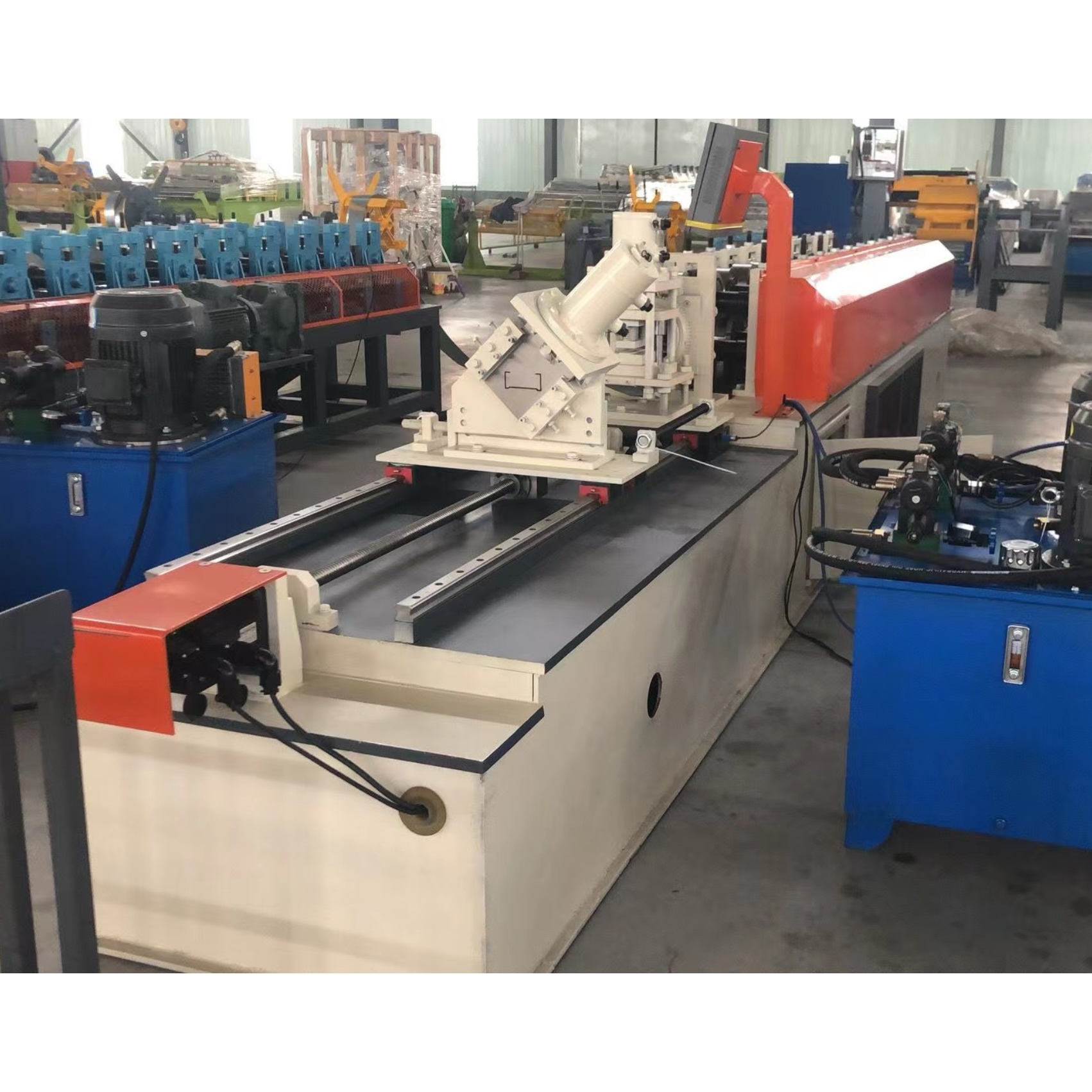

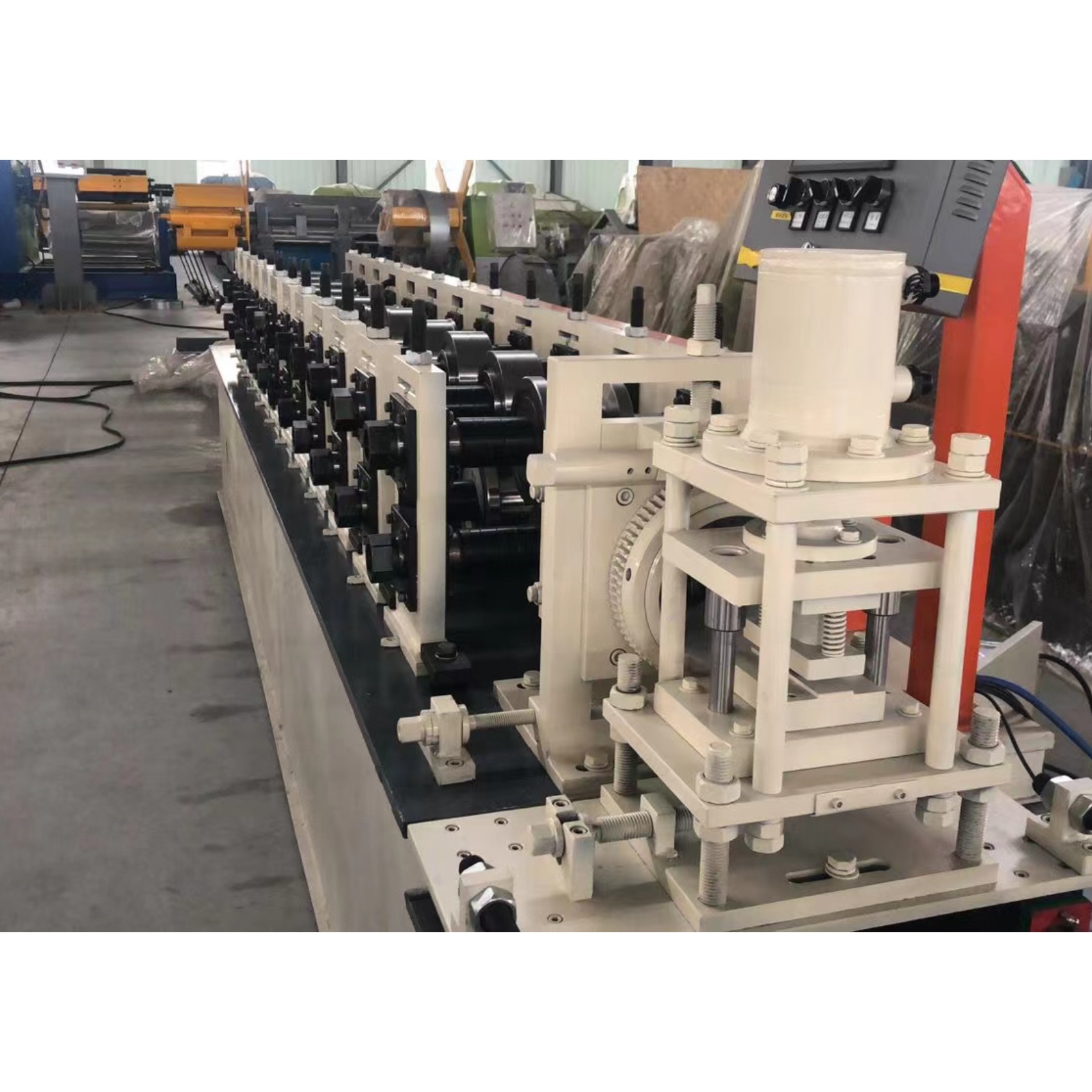

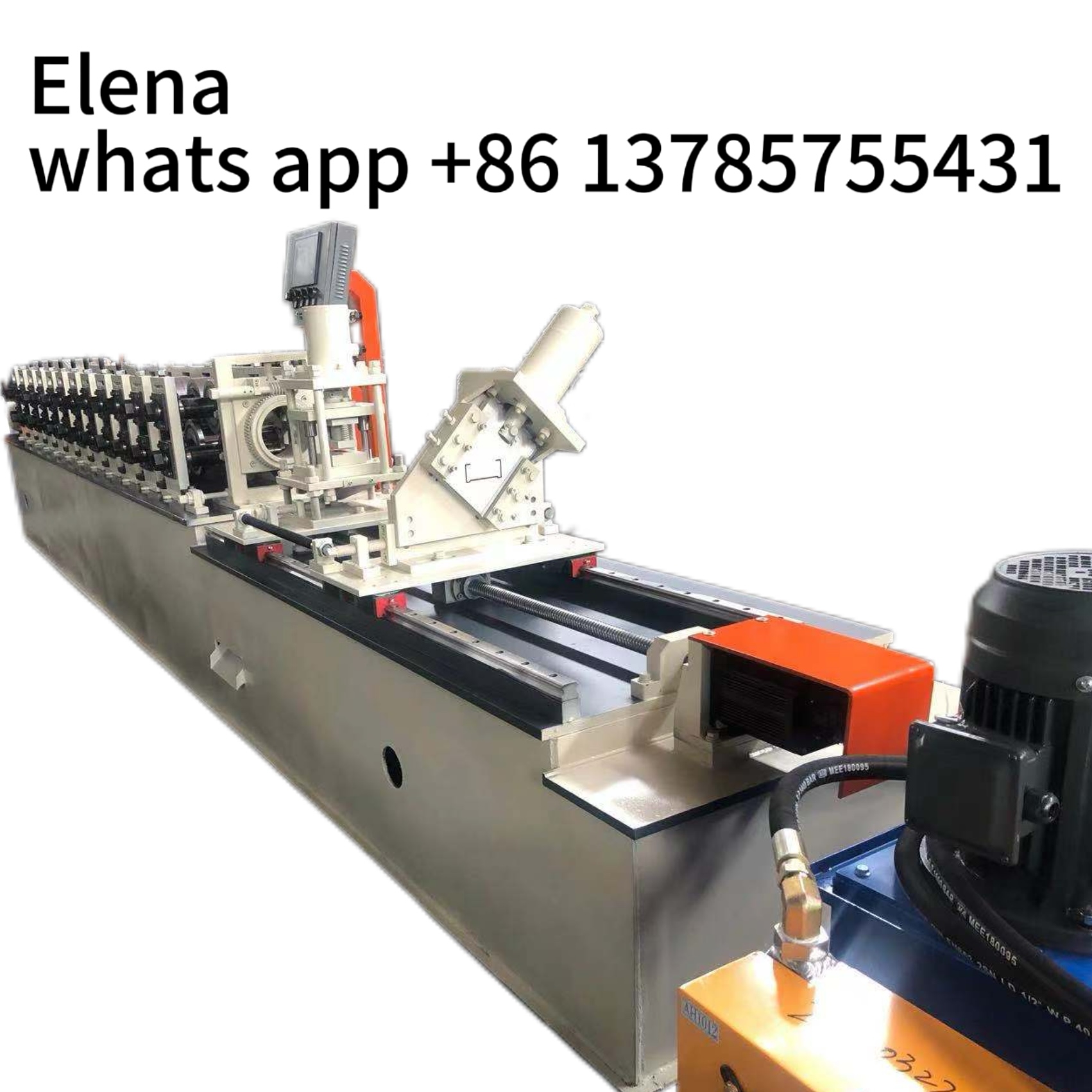

Products Display：
Why Choose Us：

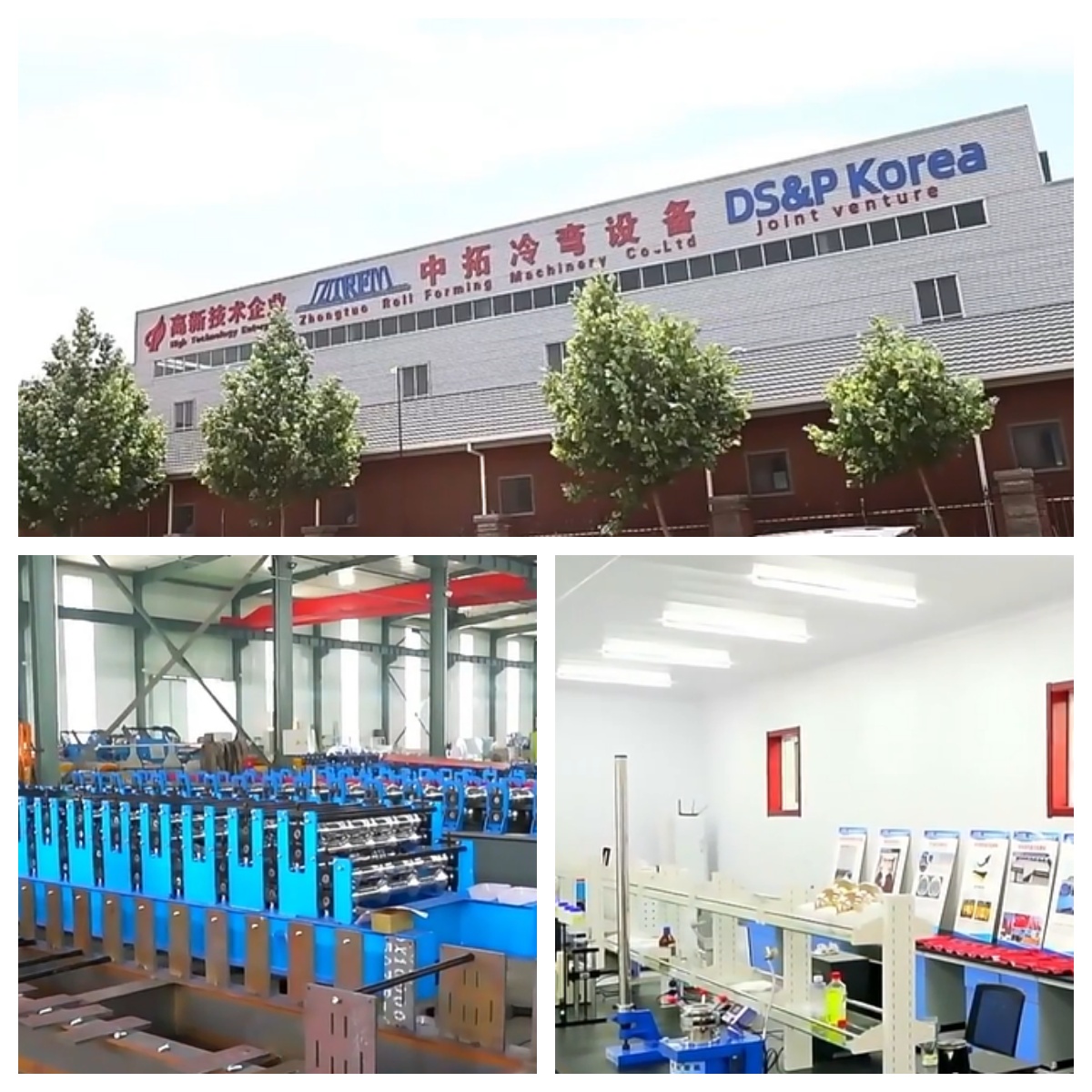

Company Profile：
Zhongtuo cold roll fonming machinery is one of the leading Chinese coil handling equipment brand founded in 2006.Our mission is to provide our customers with the very best quality metad rolling automalion solutions and afer-salesservice, Our machine offers a wide range of coil feeding equipment, ineluding Decoiler, Steel Straightener, Coil Feederas well as numerous rolling automation machines like color steel roofing sheet machines, purline machines, hotflming machine and others, Mletal eoll proeessing can be eanied out more eficiently and more accurately for betterneliability, less waste, and improved productivity.

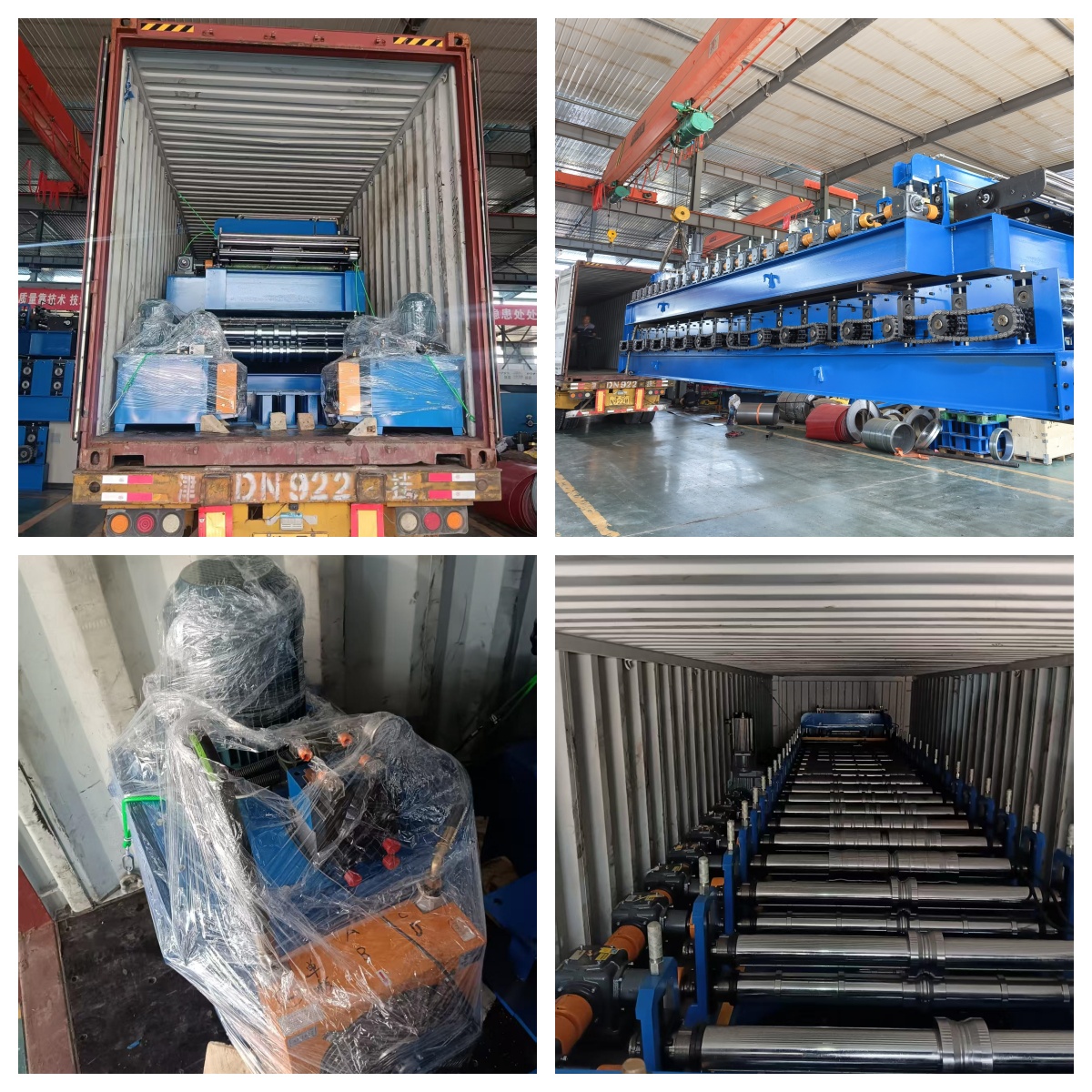

Product packaging：
Packing method :Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),oaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
Collaboration case:
Our machines have been exported to multiple countries and have established cooperation with multiple countries. At present, the product has successfully entered emerging markets such as Southeast Asia, the Middle East, Africa, and South America, and has established long-term stable cooperative relationships with well-known local construction companies. Through strict ISO and CE certification, our machines have won wide recognition from international customers for their excellent stability, efficient production efficiency, and intelligent operation interface. In the future, we will continue to deepen our global layout.
