The double-layer roofing roll forming machine has a wide range of applicability and can produce various specifications and models of color steel tiles. This enables enterprises to flexibly adjust their production plans according to market demand, meeting the requirements of different construction projects for the specifications and performance of color steel tiles.
The pictures for the finished product:
Production process:
Uncoiler-Feeding material into machine→Roll forming→hydraulic cutting→ Products receiving
Packing list of the Double Layer Roofing Roll Forming Machine:
| No. | Name | Quantity |
| 1 | Manual/hydraulic Decoiler | 1 set |
| 2 | Main roll former | 1 set |
| 3 | Control system | 1 set |
| 4 | Hydraulic system | 1 set |
| 5 | Product Run-out table | 1 set |
The technical specifications of the Double Layer Roofing Roll Forming Machine:
| Item | Name | Specifications |
| 1 | Raw material | GI&PPGI |
| 2 | Raw material thickness | 0.3—0.8mm |
| 3 | Decoiler | 5T |
| 4 | Felt device | Available |
| 5 | Roller station | 14stations |
| 6 | Roller material | 45# steel |
| 7 | Shaft diameter | 70mm |
| 8 | Shaft material | 45# steel |
| 9 | Transmission | By double chains |
| 10 | Motor power | 5.5kw |
| 11 | Machine frame | 350H steel |
| 12 | Cutting type | Hydraulic cutting |
| 13 | Hydraulic power | 4.5kw |
| 14 | Cutting blade material | Cr12 quenched |
| 15 | Cutting tolerance | +/1mm |
| 16 | Control system | Delta/ Siemens PLC |
The function of the Double Layer Roofing Roll Forming Machine:
1.High production efficiency:
The double-layer design can produce two types of color steel tiles simultaneously, which significantly improves production efficiency. Compared with traditional single-layer tile presses, the output can be increased by nearly twice.
2.High degree of automation:
By adopting advanced automation control systems, the automation and information management of the production process have been achieved. The staff only need to operate in the control room to complete the production of color steel tiles.
3.Durability:
Made with high-quality materials and subjected to strict quality control and durability testing, the stability and durability of the equipment are ensured.
4.High precision:
Adopting high-precision PLC electronic control system and frequency converter to ensure the accuracy and stability of the production process.
5.Small footprint:
The double-layer design makes the equipment occupy a small area and suitable for production environments with limited space.
6.Economical and affordable:
The cost of a Double Layer Roofing Roll Forming Machine is much lower than that of two single-layer machines, which saves equipment investment costs for enterprises.

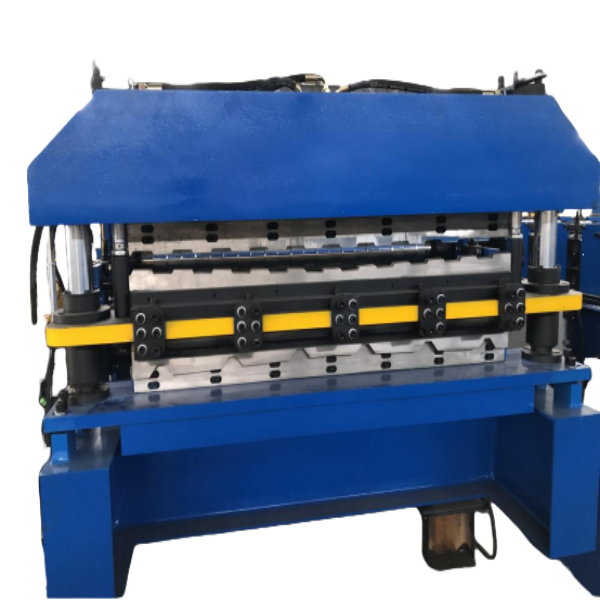

Machine photos:
