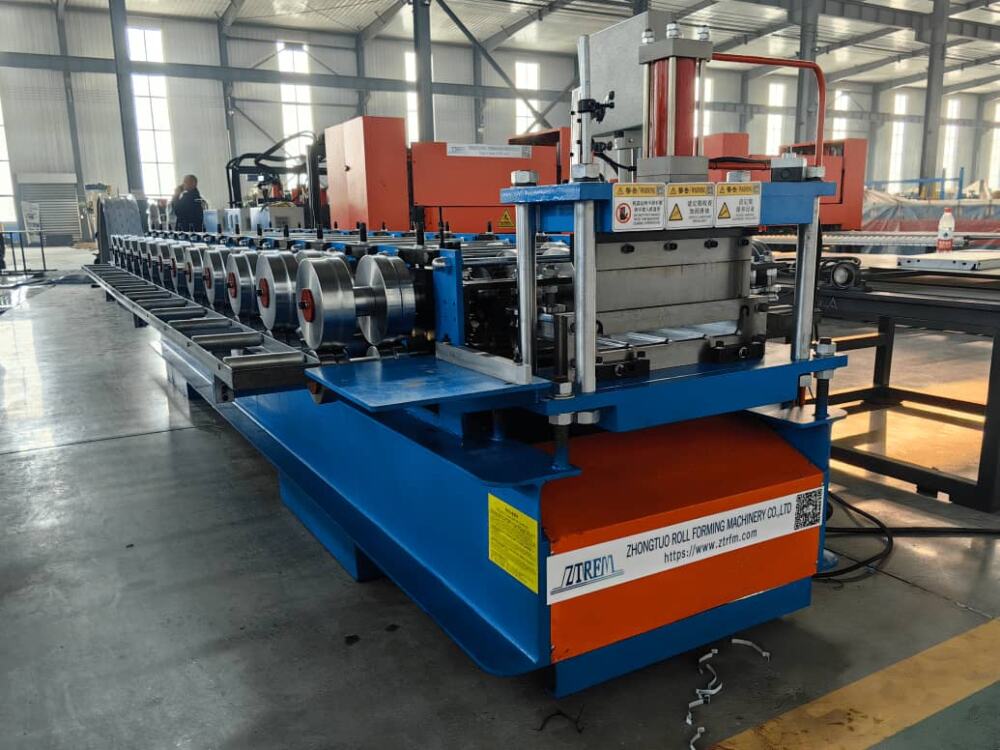

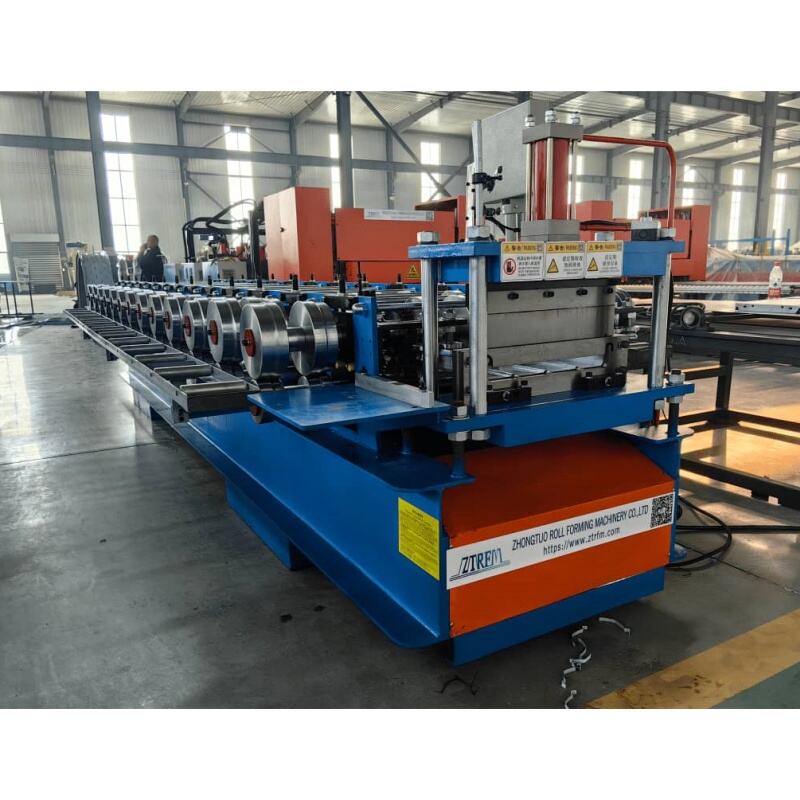

In the field of building roofing engineering, the Standing Seam Panel system is becoming the preferred roofing solution for more and more commercial buildings and high-end residences due to its excellent waterproof performance, beautiful seamless appearance, and long service life. The High Accuracy Standing Seam Panel Roll Forming Machine is the key equipment for the large-scale and high-efficiency production of this high-performance roof system.
Core Features：
1. Excellent waterproof performance
2. Dual mode options for self-locking and mechanical locking
3. Portable and flexible, with significant advantages in on-site operations
4. High precision automated production
5. Beautiful and durable building appearance

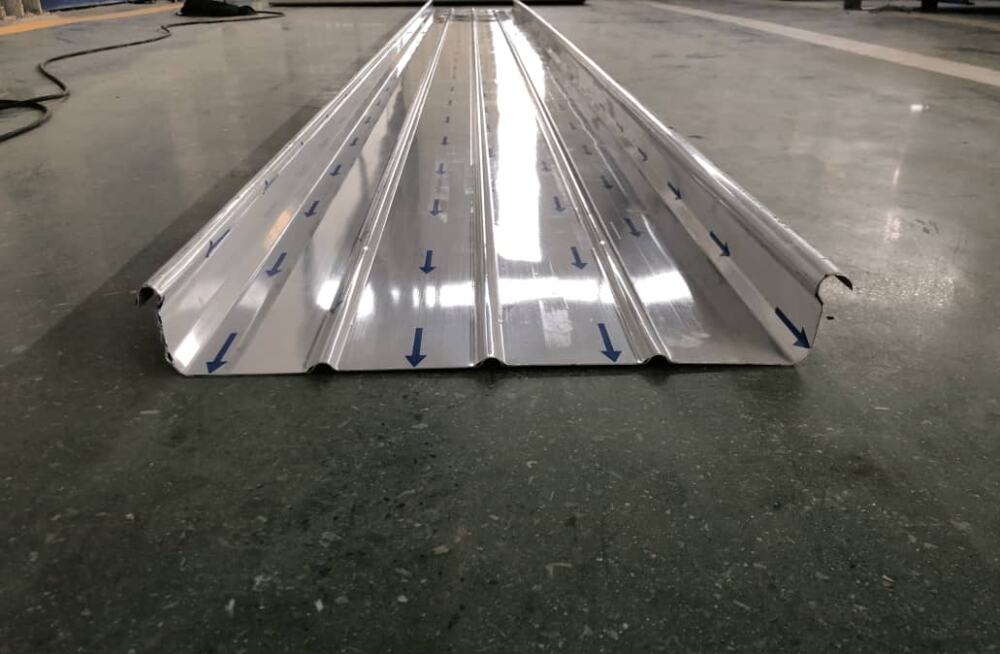

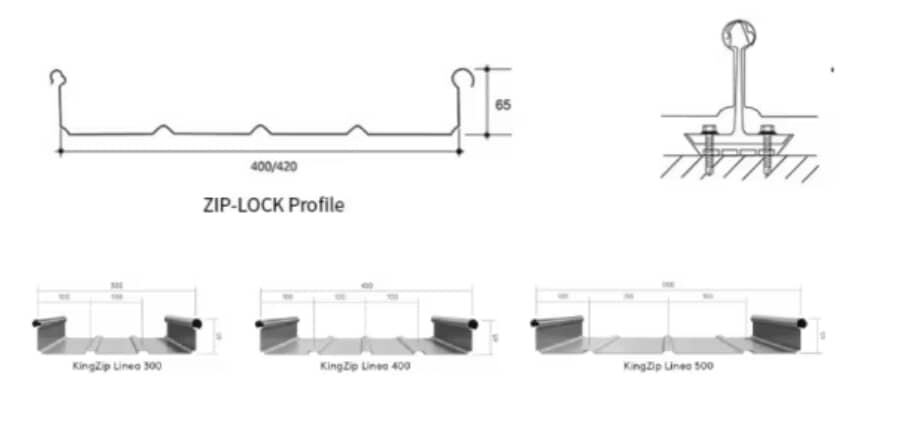

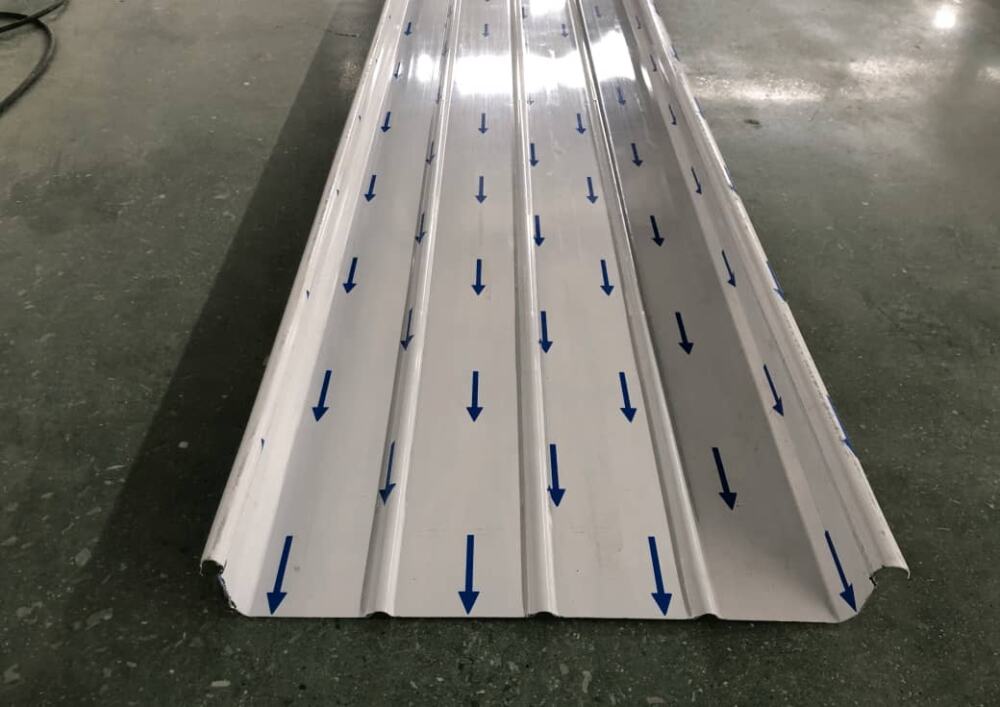

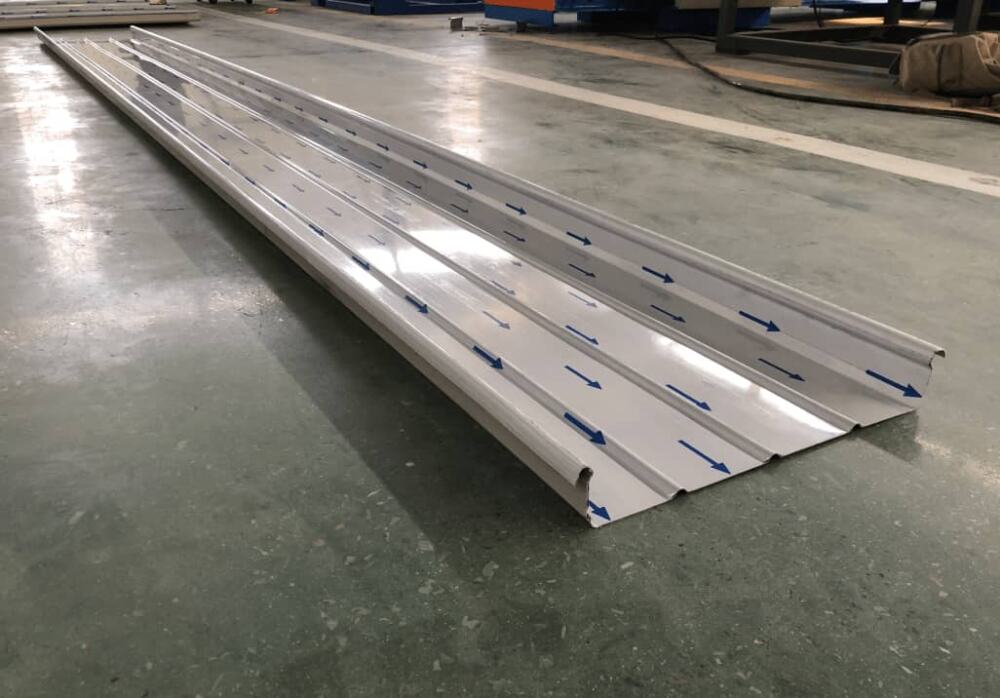

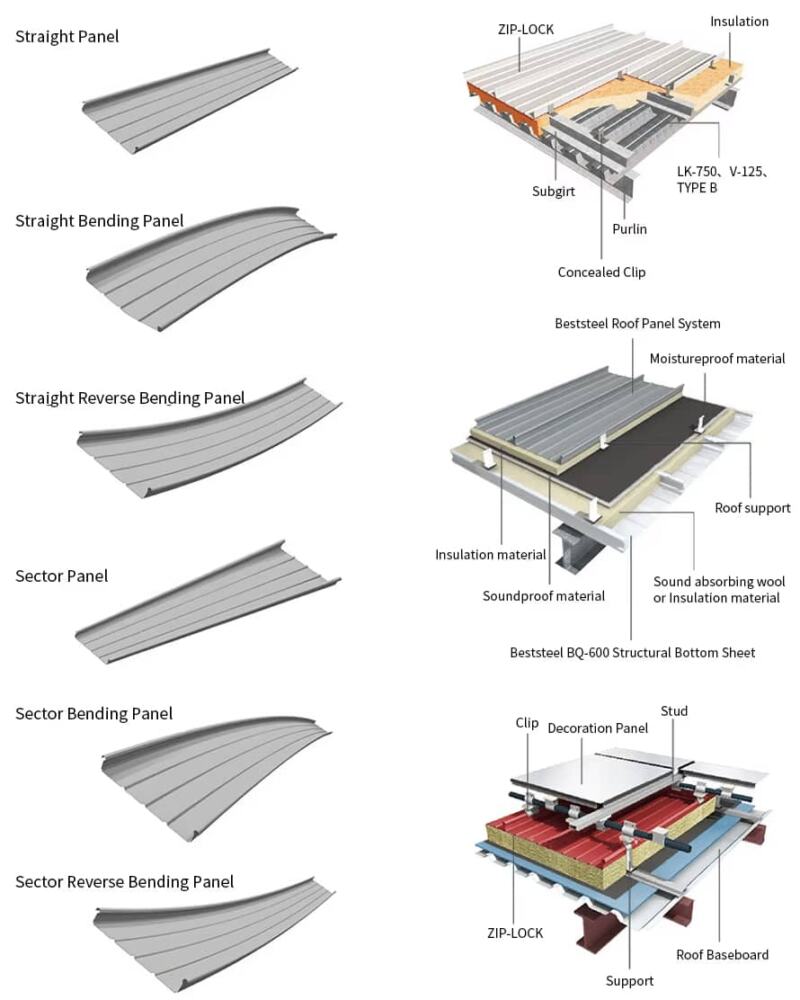

Finished product image:
Product Attributes :
|
1.Formed Material
|
PPGI,PPGL,AI,Etc.
|
Material Thickness:0.55-0.8mm
|
||
|
2.Decoiler
|
Hydraulic decoiler(optional)
|
Manual decoiler(will give you as free)
|
||
|
3.Main body
|

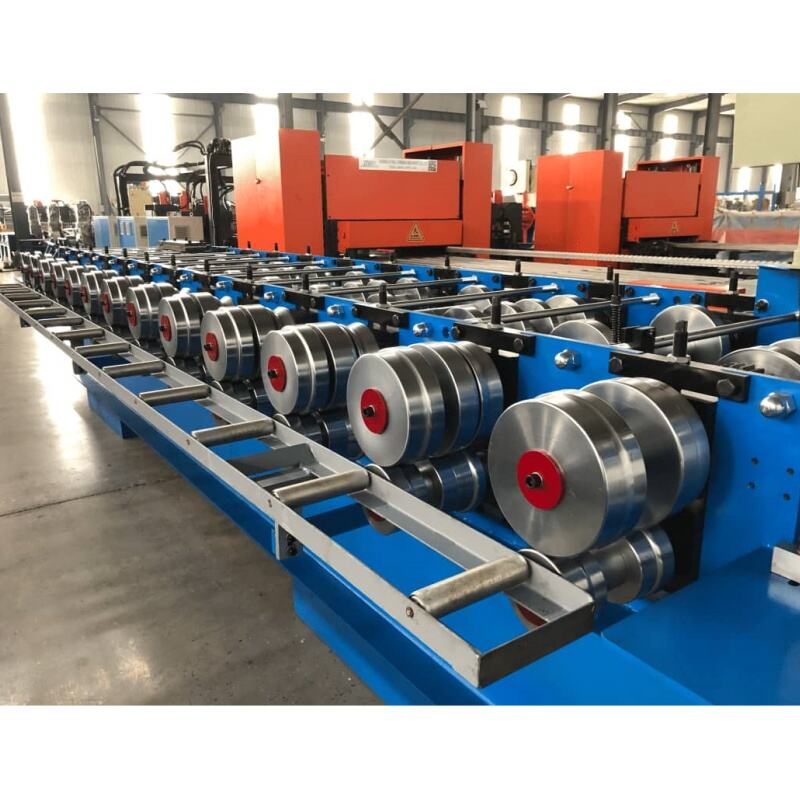

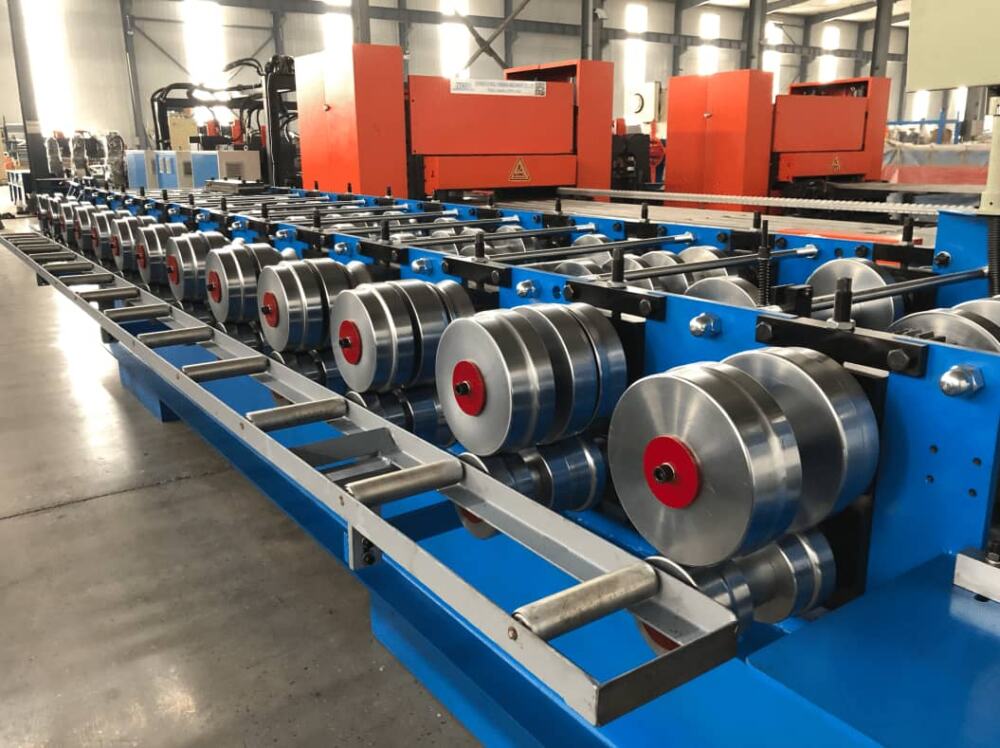

Roller station
|
14 station
|
||
|
Diameter of shaft
|
75mm solid | |||
|
Material of rollers
|
High Grade 45# Forged Steel, hard chrome plated on the surface(Chrome Thickness:0.05 mm)
|
|||
|
Machine body frame
|
Due to your requirement profile
|
|||
|
Drive
|
gear and Double Chain transmission/gearbox transmission optional
|
|||
|
Dimension(L*W*H)
|
Due to design
|
|||
|
Weight
|
Due to design
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
4KW(normally)
|
||
|
Hydraulic system power
|
3KW
|
|||
|
6.Voltage
|
As your requirement
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
Support multiple languages
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
0-15m/min
|
Provide customized
|
||
Application scenarios
The High Accuracy Standing Seam Panel Roll Forming Machine and its produced vertical seam roof panels have been widely used in the following scenarios due to their excellent performance:
• Buildings with low slope roofs
For roofs with small slopes, the flow rate of rainwater is slow and the waterproof requirements are extremely high. The roof panels produced by the Standing Seam roof tile forming machine, with their unique vertical locking edge splicing method, can effectively prevent rainwater leakage and are an ideal choice for low slope roofs.
• Commercial and public buildings
Large shopping malls, sports centers, airport terminals, convention centers, and other public buildings have high requirements for the aesthetics, durability, and waterproofing of their roofs. The Standing Seam metal roofing system has a simple and modern appearance, with no exposed screws, and has become the preferred roofing solution for many iconic buildings.
• High end residential projects
With the increasing demand of consumers for building quality, Standing Seam metal roofs are increasingly being used in high-end residential projects. Its outstanding durability, energy efficiency, and aesthetics make it a long-term investment that can significantly enhance the value of a house.
Production process：
The production process of the vertical seam roof tile forming machine is scientific and efficient, with full automation control. The main steps are as follows:
Step 1: Uncoiling and feeding – Place the rolled metal coil (color coated coil, galvanized coil or aluminum coil) on the hydraulic unwinding machine, and unfold the coil through the unwinding machine.

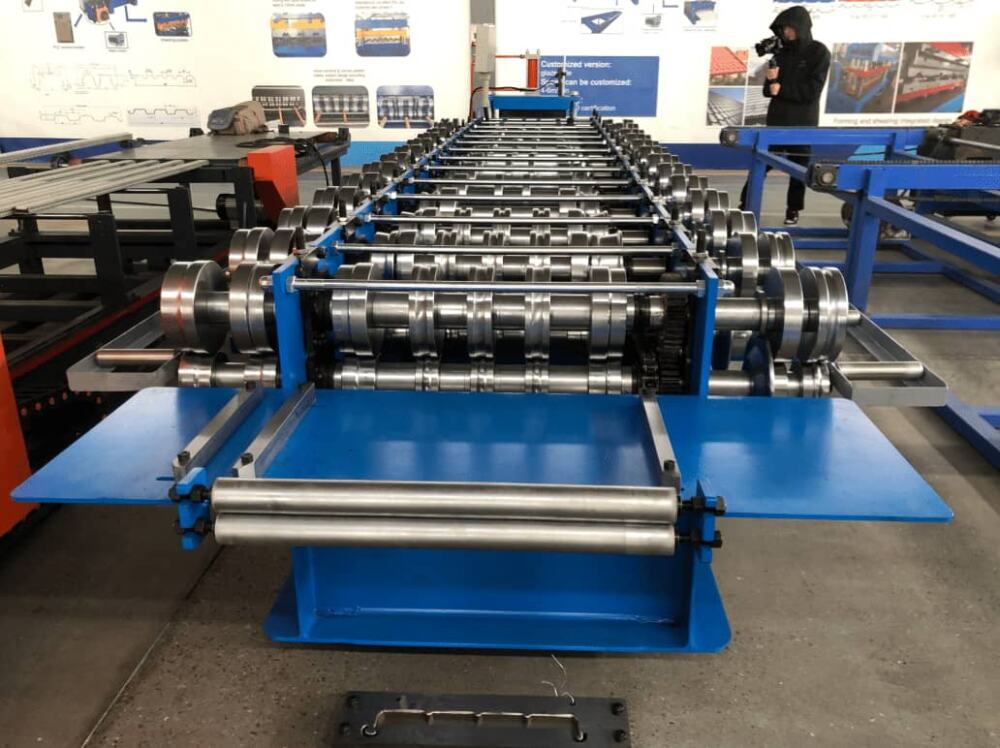

Step 2: Feed Guidance – The unfolded metal sheet smoothly enters the main forming machine through the feed guidance platform, ensuring accurate positioning and uniform tension of the sheet before entering the rolling process.

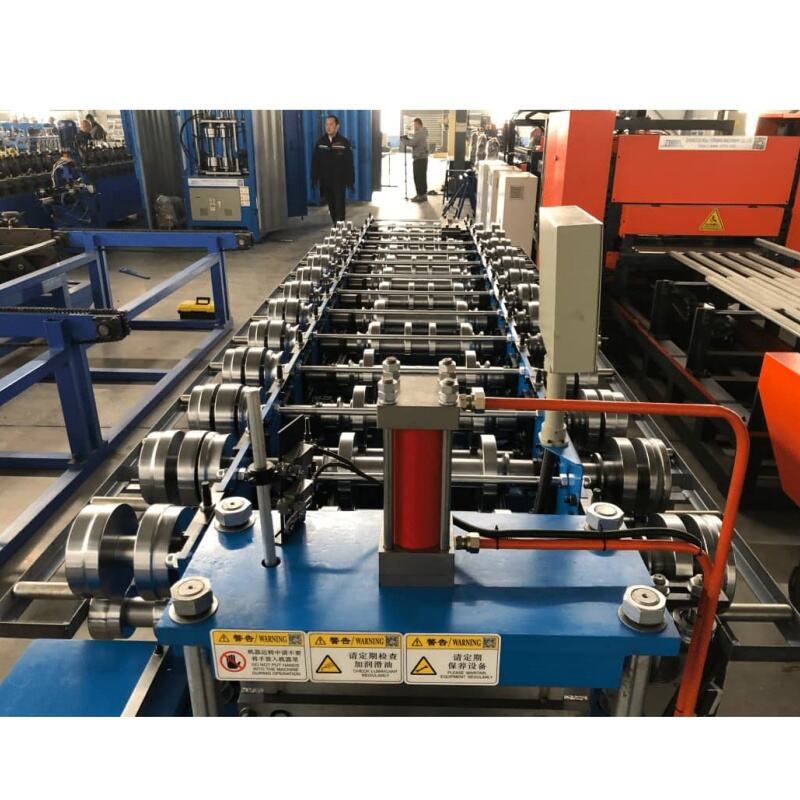

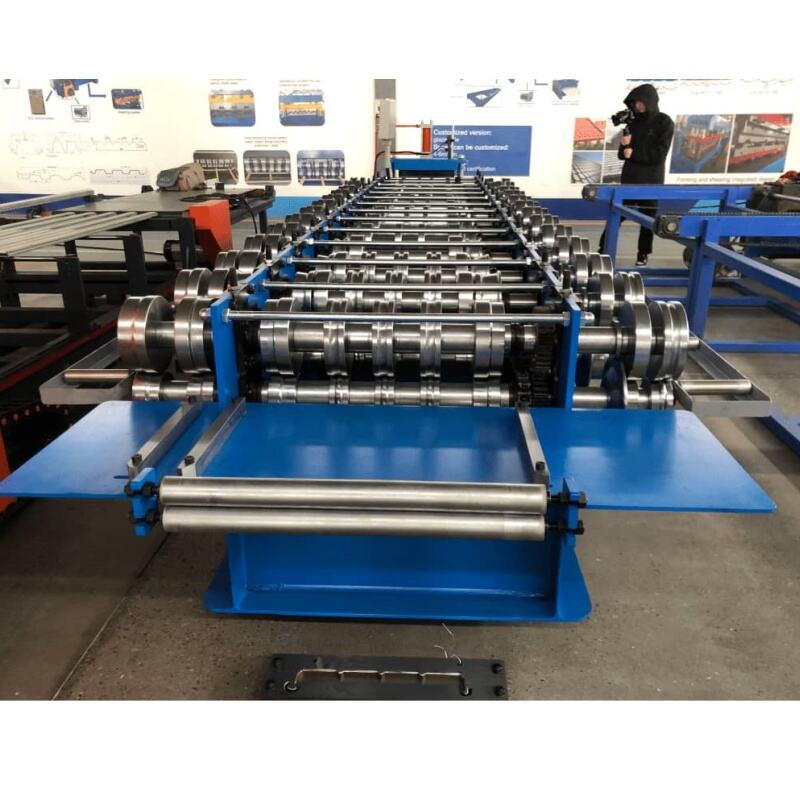

Step 3: Roll forming – The sheet is sequentially passed through 14 forming rollers, gradually forming a predetermined Standing Seam plate shape during continuous cold bending roll forming process. This process is the core link of the entire production line, determining the cross-sectional accuracy and quality of the finished board.

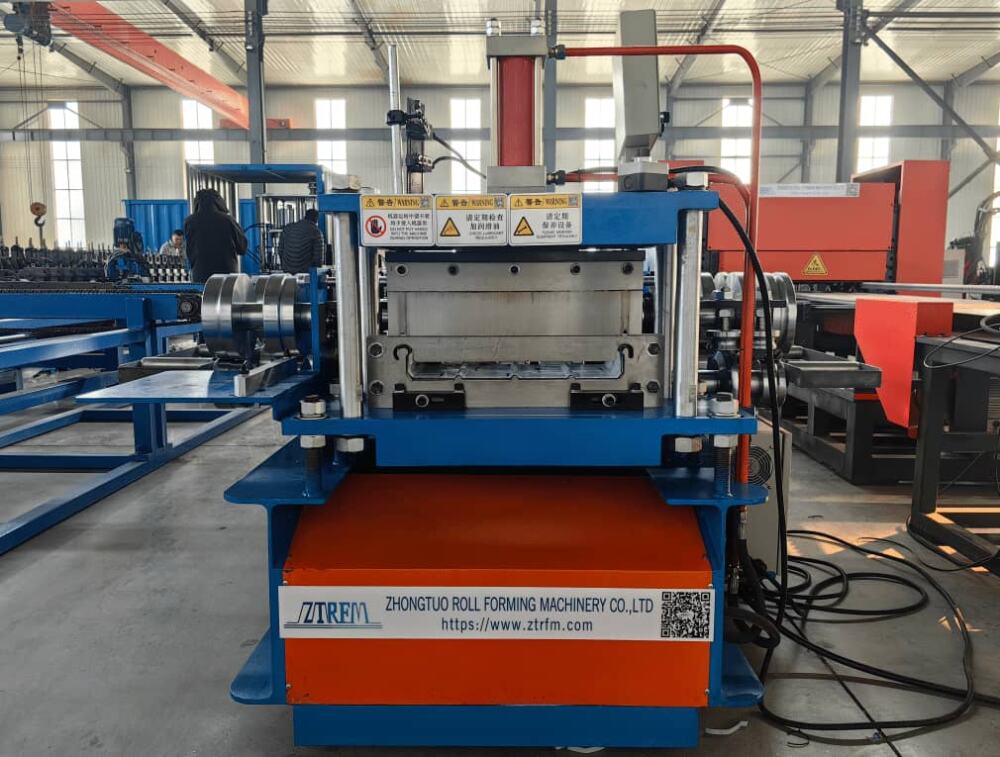

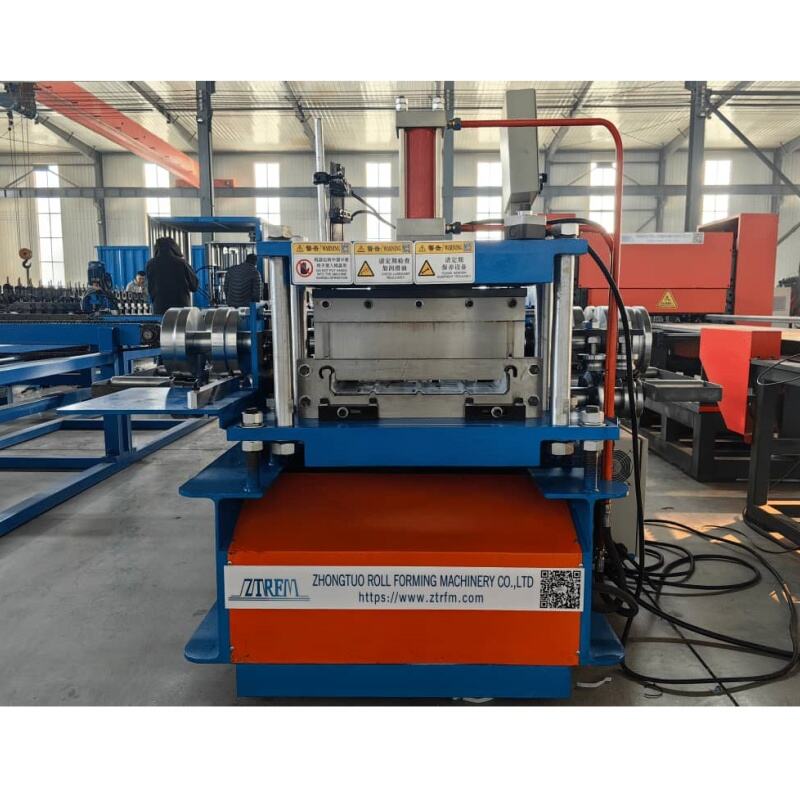

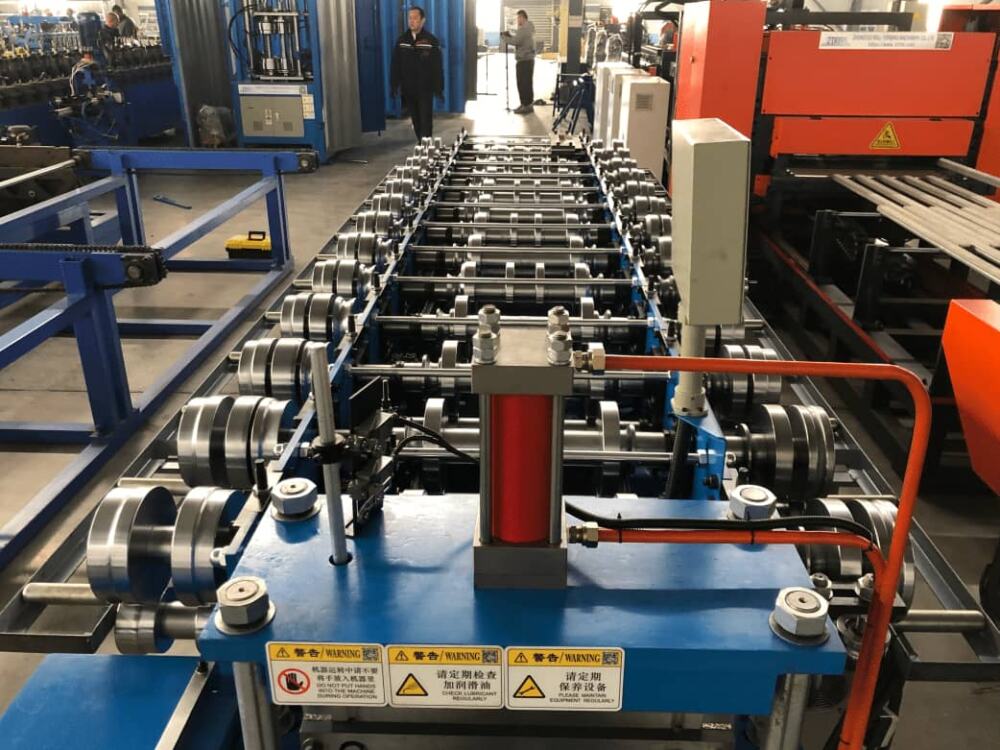

Step 4: Cut to Length – The formed continuous sheet is automatically cut to a predetermined length by a hydraulic cutting device under the precise control of the PLC system. Cutting is done using post cutting method, with no waste generated.
Step 5: Finished product output – The cut Standing Seam roof panels can be output through the discharge platform and enter the packaging or directly used for on-site installation.
Contact Us：
As the core equipment of modern metal roof manufacturing, the High Accuracy Standing Seam Panel Roll Forming Machine is driving the technological upgrading of the building roof industry with its efficient, precise, and flexible production capacity. From factory based mass production to real-time processing on construction sites, from standard straight plates to conical shaped plates, this equipment is helping more and more builders and construction teams complete roofing projects at lower costs, faster speeds, and higher quality. Choosing a vertical seam roof tile forming machine means choosing efficiency, quality, and future.
