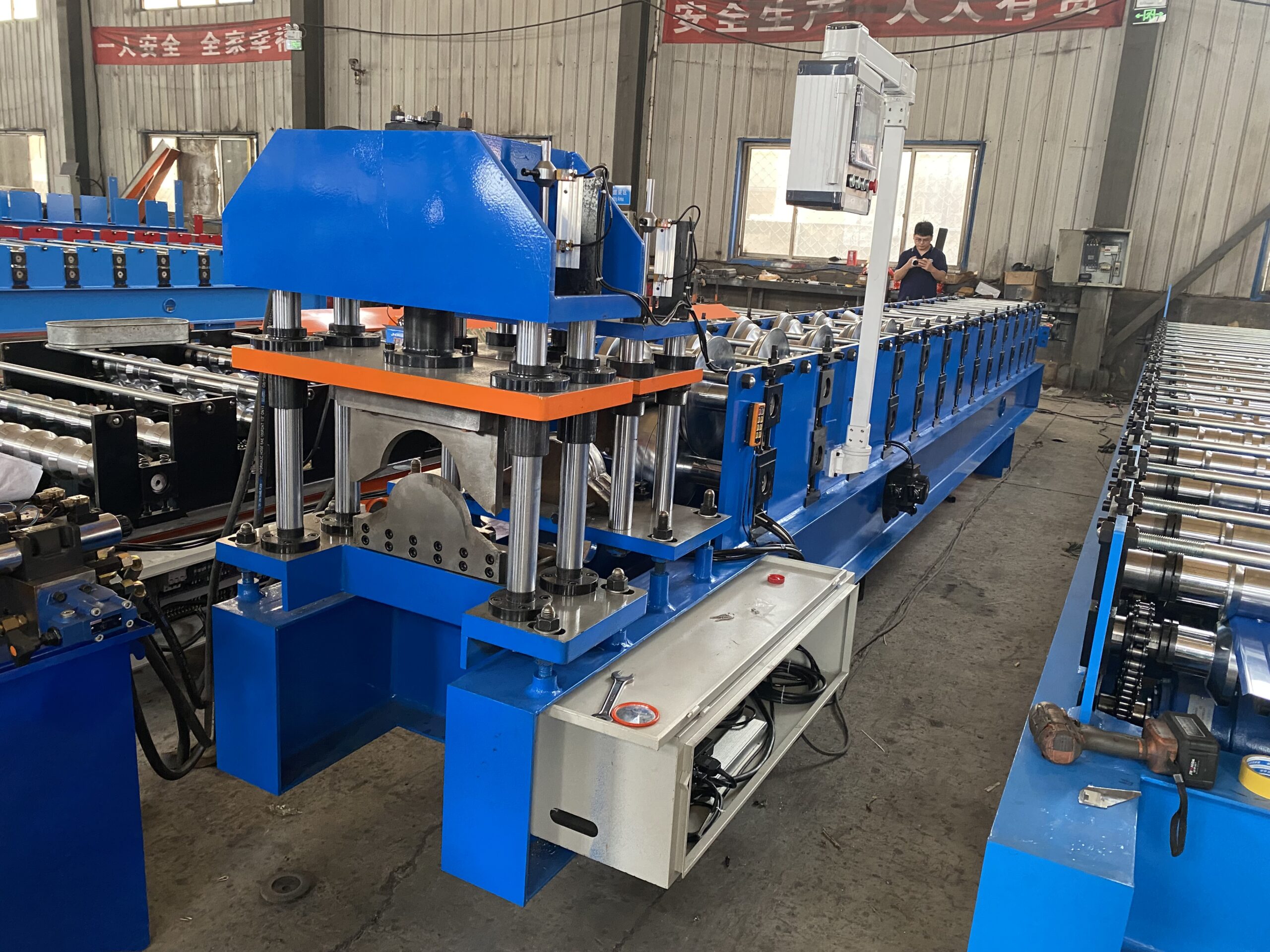

ZTRFM High Quality Metal Roof Panel Ridge Capping Making Machine
This type of equipment is usually referred to as a “ridge tile machine” or a “ridge cover forming machine”. It uses a series of precision designed rollers to continuously cold bend flat rolled metal sheets (such as color steel plates, galvanized steel, aluminum materials, etc.) and gradually process them into metal roof tiles with specific cross-sectional shapes. The entire process is automatically controlled by PLC (Programmable Logic Controller), from unwinding, forming to fixed length cutting in one go.
Application scenarios:
• residential building
Ordinary residential: Produce standardized ridge tiles to meet basic waterproof and aesthetic needs.
Villas/high-end residences: According to unique design styles, spine tiles with complex curves and decorative lines can be customized and produced to enhance the overall grade and artistic sense of the building.
• commercial building
Large commercial buildings such as shopping centers, office buildings, and hotels have large roof areas and a high demand for roof tiles. The efficient production capacity of the molding machine can meet the needs of large-scale construction, and its high-quality and high-precision ridge tiles can ensure the overall flatness and aesthetics of the roof.
• industrial building
Industrial plants, warehouses, etc. have high requirements for waterproofing, windproof, and durability of roofs. The metal ridge tiles produced by the metal ridge tile machine have high strength and corrosion resistance, making them an ideal choice for industrial buildings; The ridge tiles produced by the cement ridge tile machine also have excellent protective performance.
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness: 0.4-0.7mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler (will give you as free）
|
||
|
3.Main body
|

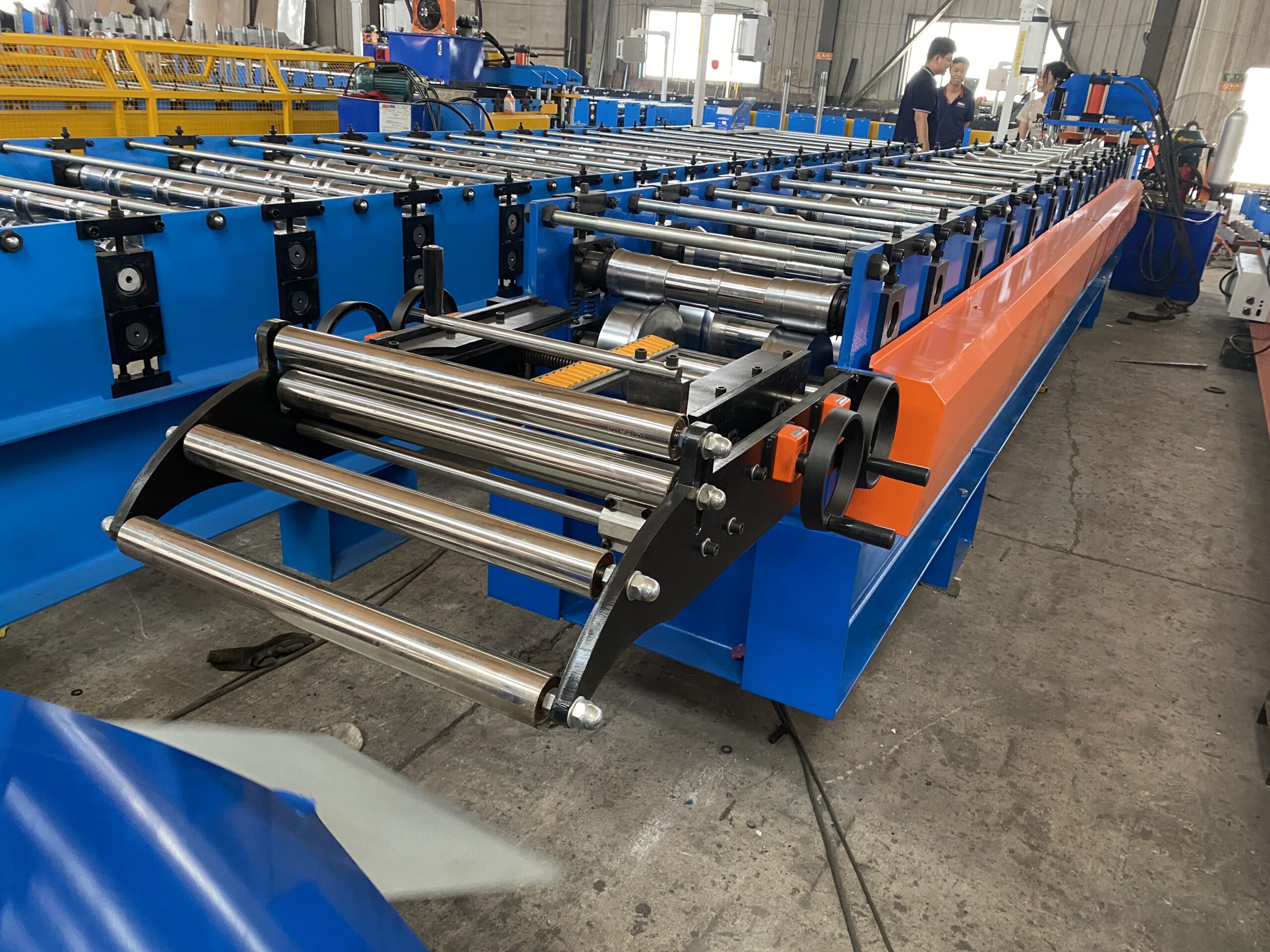

Roller station
|
14 rows (As your requirement)
|
||
|
Diameter of shaft
|
65mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
350 H steel
|
|||
|
Drive
|
Chain transmission
|
|||
|
Dimension(L*W*H)
|
about 5500*1600*1600(customize)
|
|||
|
Weight
|
7.5T
|
|||
|

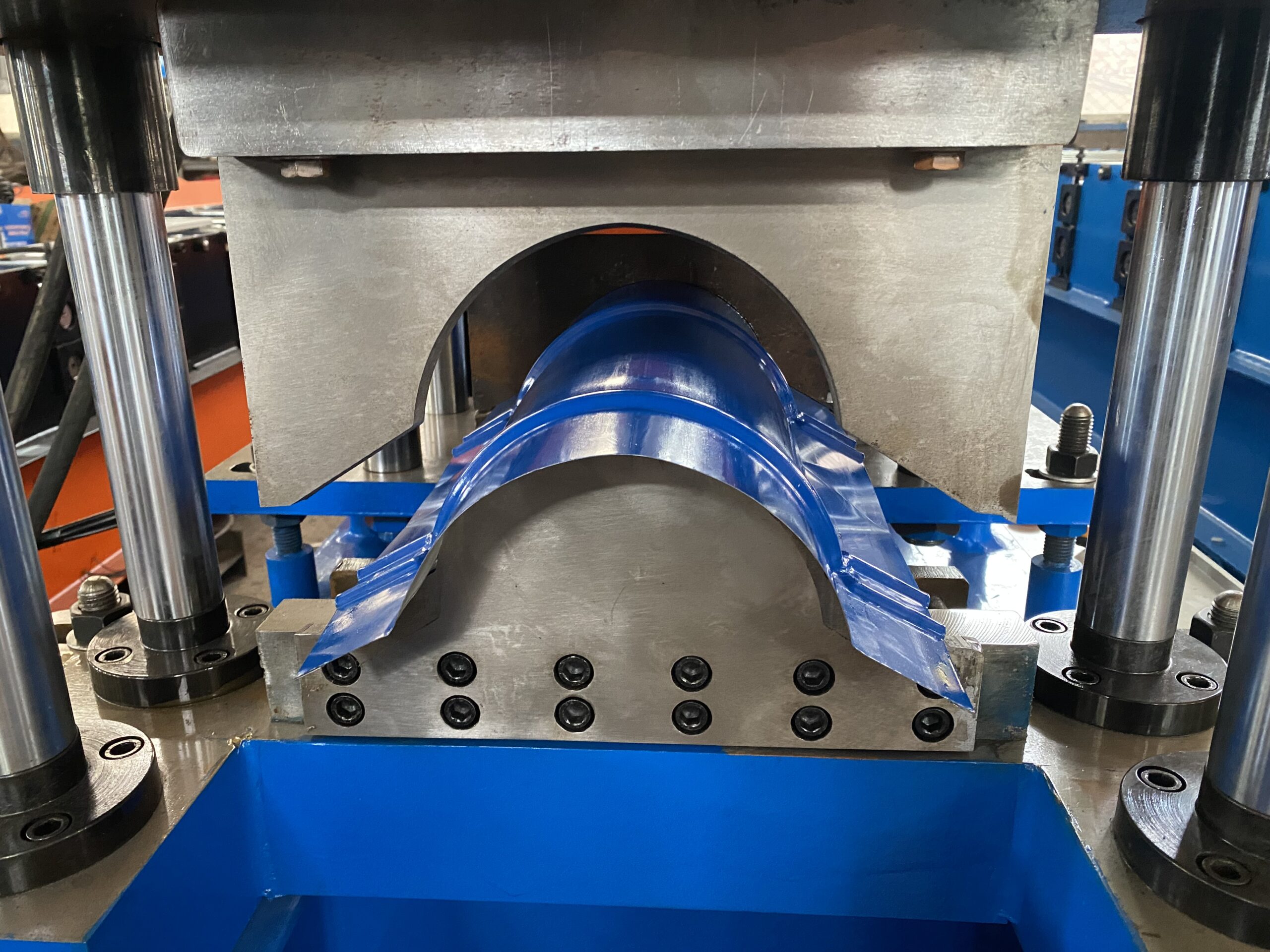

4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
5.5KW, servo motor
|
||
|

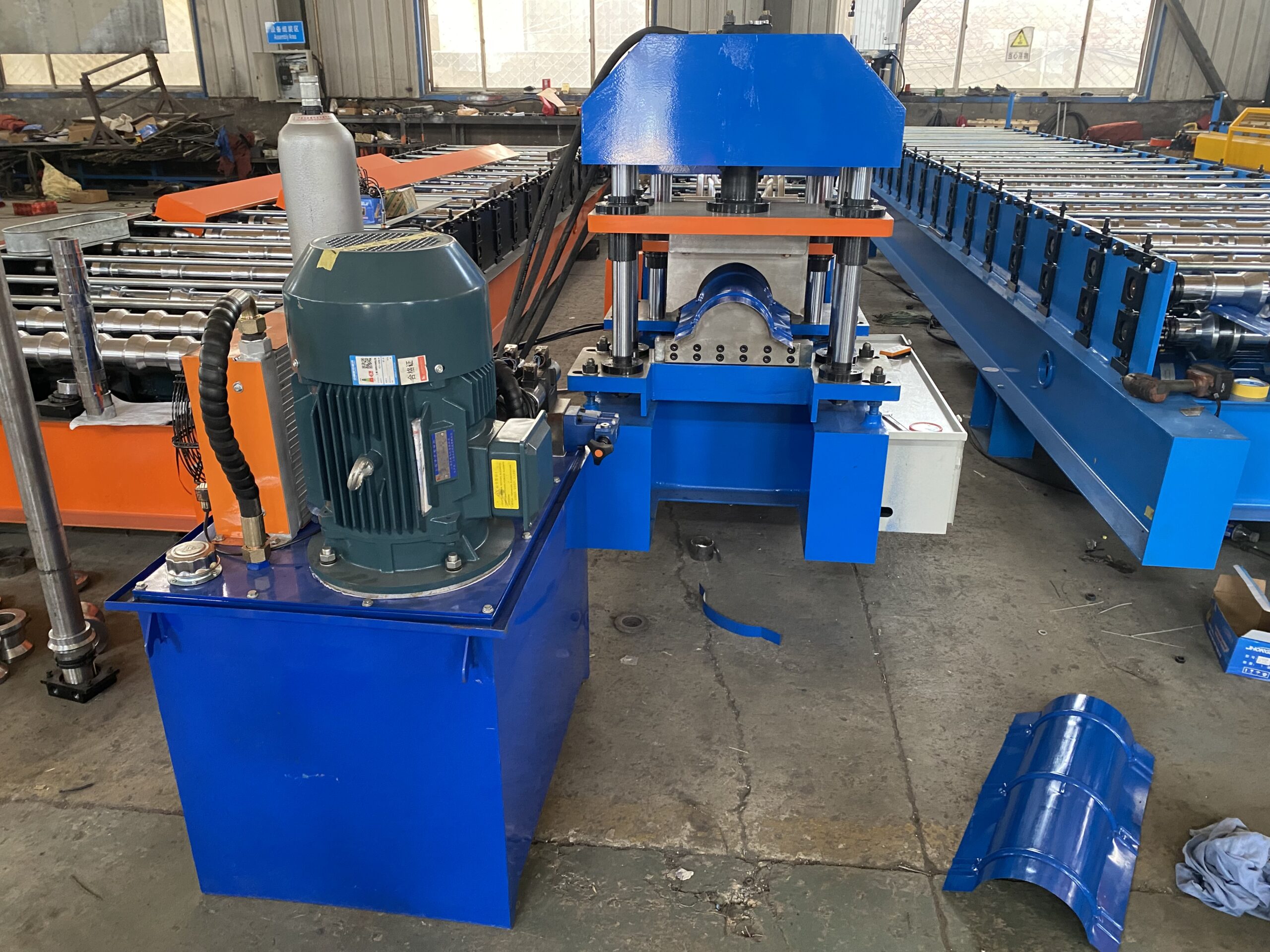

Hydraulic system power
|
4KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
10-15m/min
|
The speed can be adjusted as customer’s request
|
||
Pattern diagram:
Main Features：
1.High precision and consistency:
Using servo control and digital programming, the molding accuracy can reach ± 0.5mm, ensuring that the size and shape height of each ridge tile are uniform.
2.High efficiency:
Automated continuous production, with a speed of up to 8-15 meters per minute, far exceeding manual or semi automated production, significantly increasing production capacity.
3.Flexible customization:
Different curvature radii (such as 2-10 meters), widths, and thicknesses of curved or irregular roof tiles can be produced by changing molds or adjusting rollers to meet diverse architectural design needs.
4.Cost advantage:
High automation reduces reliance on manual labor and lowers labor costs; High precision reduces raw material waste.
