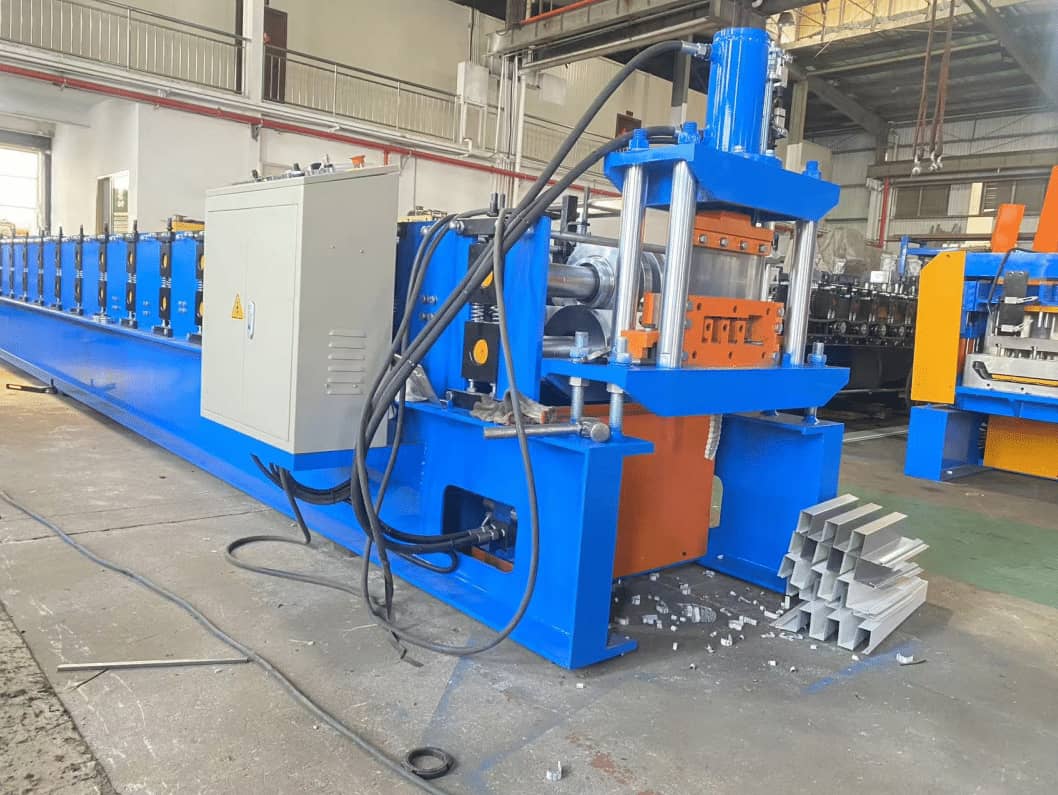

The High-Precision 90° Horizontal Wall Cladding Roll Forming Machine is a cold bending equipment specifically designed for producing transverse hanging color steel plates (such as wall panels and roof panels) with 90-degree corner structures. Its key feature is the precise bending of sheet edges into right angles through special roller arrangements and mold design during continuous rolling, meeting the stringent requirements of building envelope systems for lap strength and waterproof sealing.
Product Attributes :
|
1.Formed Material
|
PPGI,PPGL,AI,Etc.
|
Material Thickness:0.4-0.8mm
|
||
|
2.Decoiler
|
Hydraulic decoiler(optional)
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
Due to your requirement profile
|
||
|
Diameter of shaft
|
Due to your requirement profile
|
|||
|
Material of rollers
|
High Grade 45# Forged Steel, hard chrome plated on the surface(Chrome Thickness:0.05 mm)
|
|||
|
Machine body frame
|
Due to your requirement profile
|
|||
|
Drive
|
gear and Double Chain transmission/gearbox transmission optional
|
|||
|
Dimension(L*W*H)
|
Due to design
|
|||
|
Weight
|
Due to design
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5KW(normally)
|
||
|
Hydraulic system power
|
4.5KW
|
|||
|
6.Voltage
|
As your requirement
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
Support multiple languages
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
0-80m/min
|
Provide customized
|
||

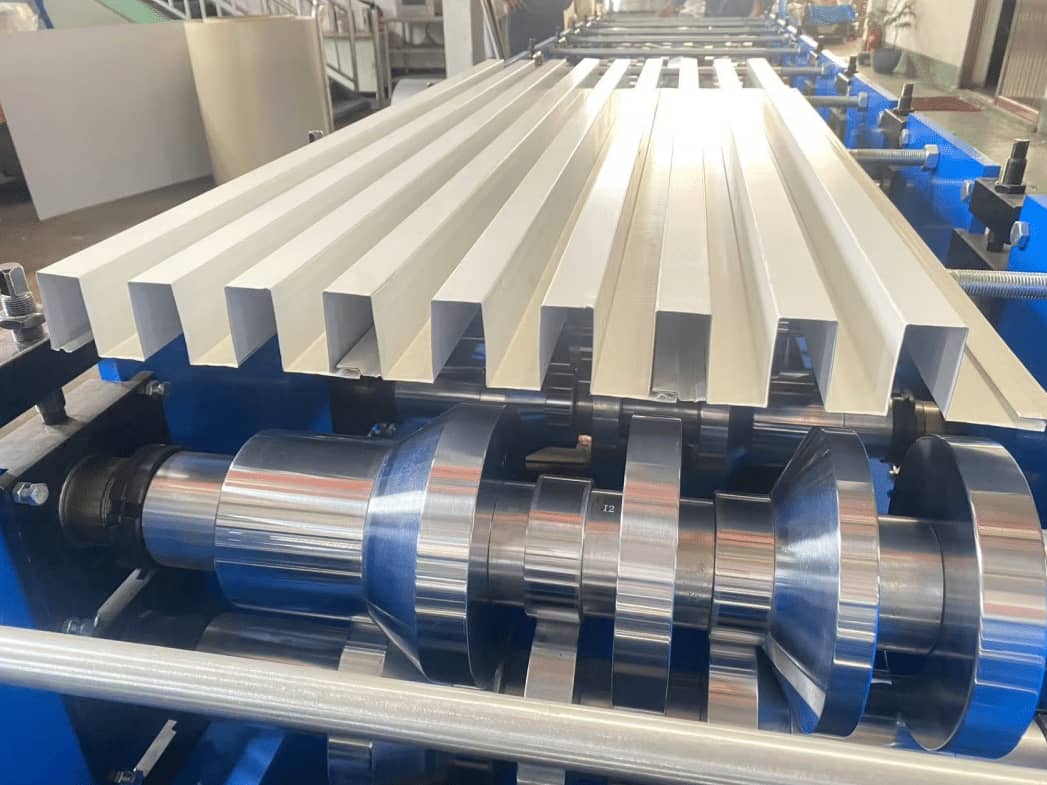

Pattern diagram:
Core features ：
1.Efficient molding process
Adopting multi pass progressive hydraulic/mechanical rolling technology to achieve uniform and continuous bending of the sheet metal, ensuring precise and consistent forming curvature, greatly improving production efficiency.
2.High strength and durability
The rolling mill adopts alloy steel (such as GCr15) for quenching and precision grinding, with high hardness and strong wear resistance. After forming, the strength of the sheet is significantly improved, making it suitable for long-term use in complex environments.
3.Flexible adaptability
Adjustable curvature: By precisely adjusting the rolling mill set or mold, transverse hanging plates with different curvature radii can be produced to meet diverse design needs.
Main application scenarios：
• Industrial and Storage Buildings
Used for roofs or enclosure structures of industrial plants, warehouses, logistics centers, etc., providing large-span, column free spatial layout with waterproof and moisture-proof performance.
• Public facilities and venues
The roof or column decoration of public buildings such as sports halls, exhibition halls, and auto show halls meets the structural requirements of large spaces and high strength.
• Agricultural and environmental facilities
Scenes such as breeding farms, greenhouses, coal storage sheds, and sewage treatment plant canopies are suitable for complex outdoor environments, corrosion-resistant, and easy to maintain.
• Temporary and Mobile Buildings
Construction site dormitories, post disaster resettlement houses, temporary office buildings, etc. are widely used due to their fast construction, low cost, and easy mobility.
