The Automatic Steel Scaffold Plank Roll Forming Machine is an automated device that continuously processes metal coil materials (primarily galvanized steel coils) into specialized metal footplates for construction scaffolding. The entire production line, from uncoiling, leveling, servo feeding, punching, rolling forming to hydraulic length cutting, integrates the processing of anti-slip holes, drainage holes, and reinforcing ribs in a single operation. The produced footplates are widely used in high-altitude work scenarios such as construction and industrial maintenance.

Core Features：

1.High automation level:
Equipped with PLC touchscreen control, it allows setting of board length, hole positions, and production output, enabling unattended continuous operation with speeds reaching 10–18 meters per minute.
2.High Strength and Safety:
The rollers undergo quenching and chrome plating, with step-by-step roll forming to ensure a flat surface and reinforced edges. Synchronous punching creates anti-slip textured holes and drainage holes, meeting high-altitude slip-resistant safety standards.
3.Strong material adaptability:
Capable of processing galvanized steel, cold-rolled steel, or aluminum plates with a thickness of 1.0–2.0mm, with customizable finished dimensions (width, hole spacing, length).
4.High efficiency and low consumption:
Servo feeding + hydraulic follow-up punching for continuous hole punching without stoppage; Optimized cutting design ensures smooth edges, minimal waste, and high material utilization.
5.Structurally sturdy and durable:
The frame features strong welded rigidity, with key rollers and cutting tools made of wear-resistant materials such as Cr12MoV, suitable for long-term batch production.

Application scenarios：

• Construction:
High altitude work platforms for exterior wall decoration, masonry, and coating construction of buildings, bridges, and municipal engineering.
• Industrial maintenance:
Equipment installation, maintenance, and cleaning operations in factories, power stations, chemical plants, and shipbuilding plants, suitable for complex environments such as humidity and oil pollution.
• Energy industry:
oil refining, offshore platform, wind tower maintenance, metal foot pedal fire prevention, rust prevention, anti-aging, safety is better than wooden plate.
• Leasing and engineering companies:
used for mass production of standard or customized foot pedals to meet self operated projects or external leasing needs, reducing procurement costs.
• Temporary Stage/Stand:
A load-bearing platform temporarily built for large-scale events, which is easy to disassemble and can be reused.

Scaffolding Deck Roll Forming Machine working flow:

5 Ton hydraulic decoiler with the loading car- leveling and pinch roller- Pit- servo coil feeder—–punching machine– cutting edge for easy shearing and do the side punching together– pit again—leveling– main rolling forming machine– cutting connection holes and shearing— hydraulic shearing with molding f— receiving table of 12 meters.

Product Attributes :

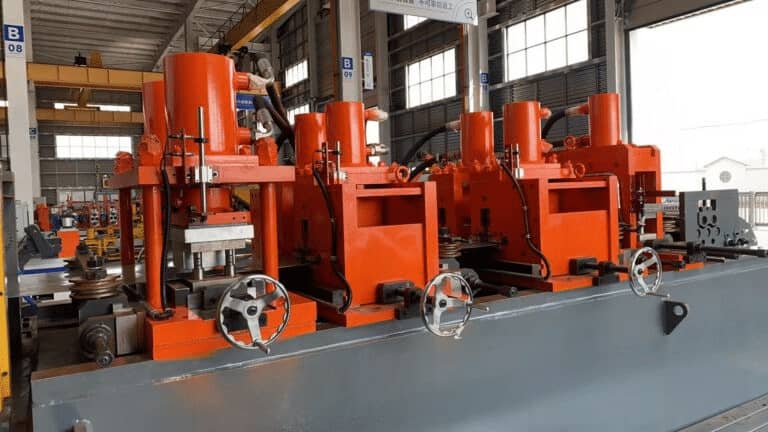

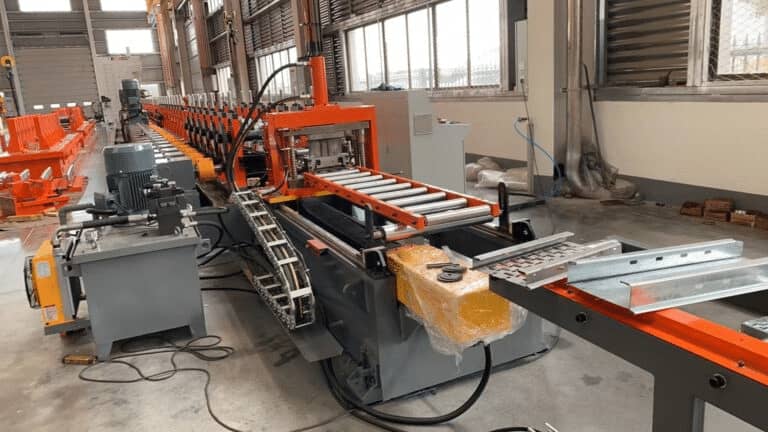

Machine photo:
