Equipment Introduction
The Double Line Roof To Wall Roll Forming Machine for Edge Finishing and Eaves is an integrated metal cold bending processing equipment.
• Core Process: Through continuously arranged rollers, metal coils (such as galvanized sheets and color steel sheets) are gradually deformed at room temperature, ultimately rolled into profiles with specific cross-sections.
• “One-Out-Two-Outlet” Meaning: This refers to the equipment’s ability to simultaneously produce two different specifications of finished products, or double the production efficiency of a single-outlet model, making it ideal for large-scale projects.

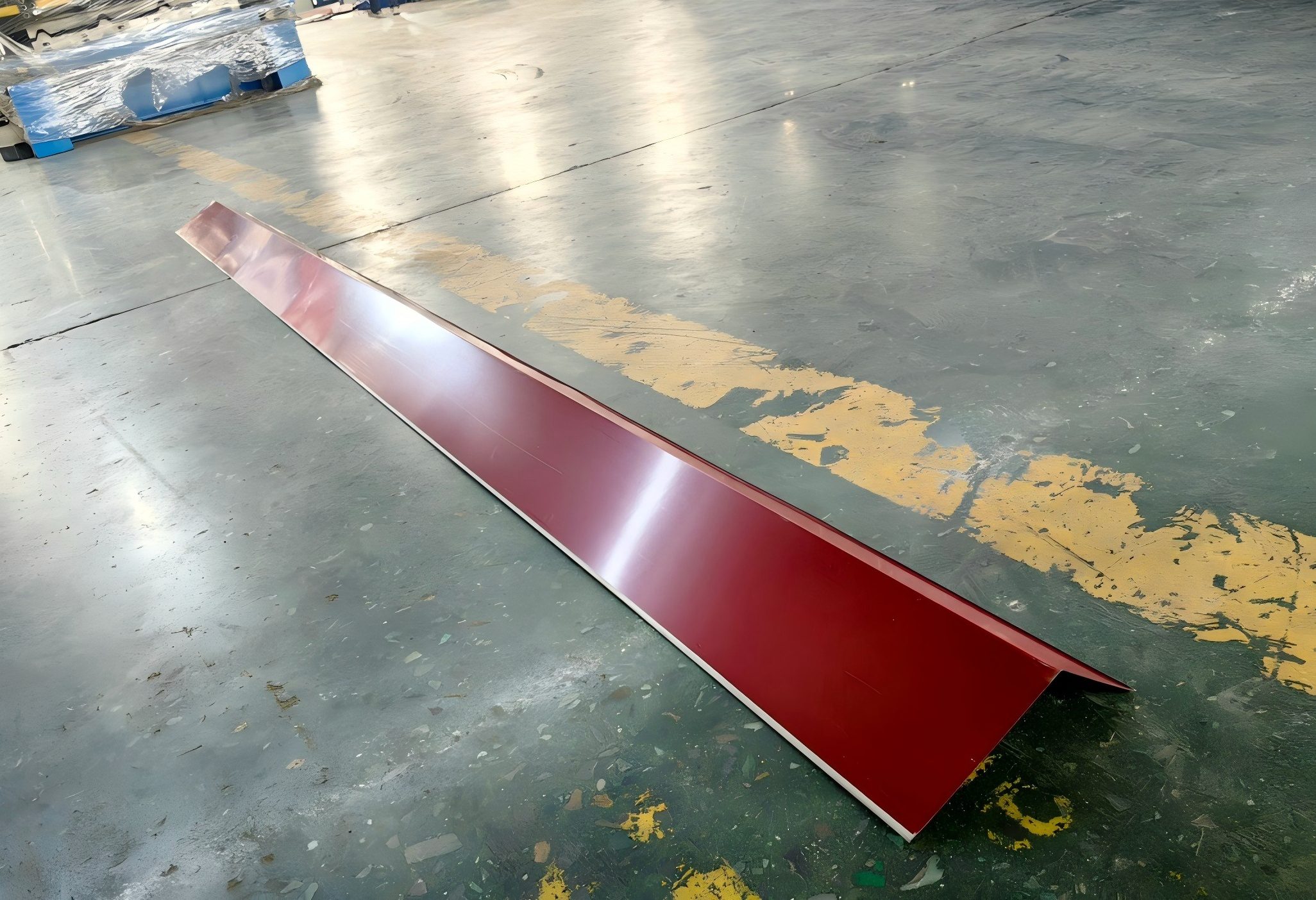

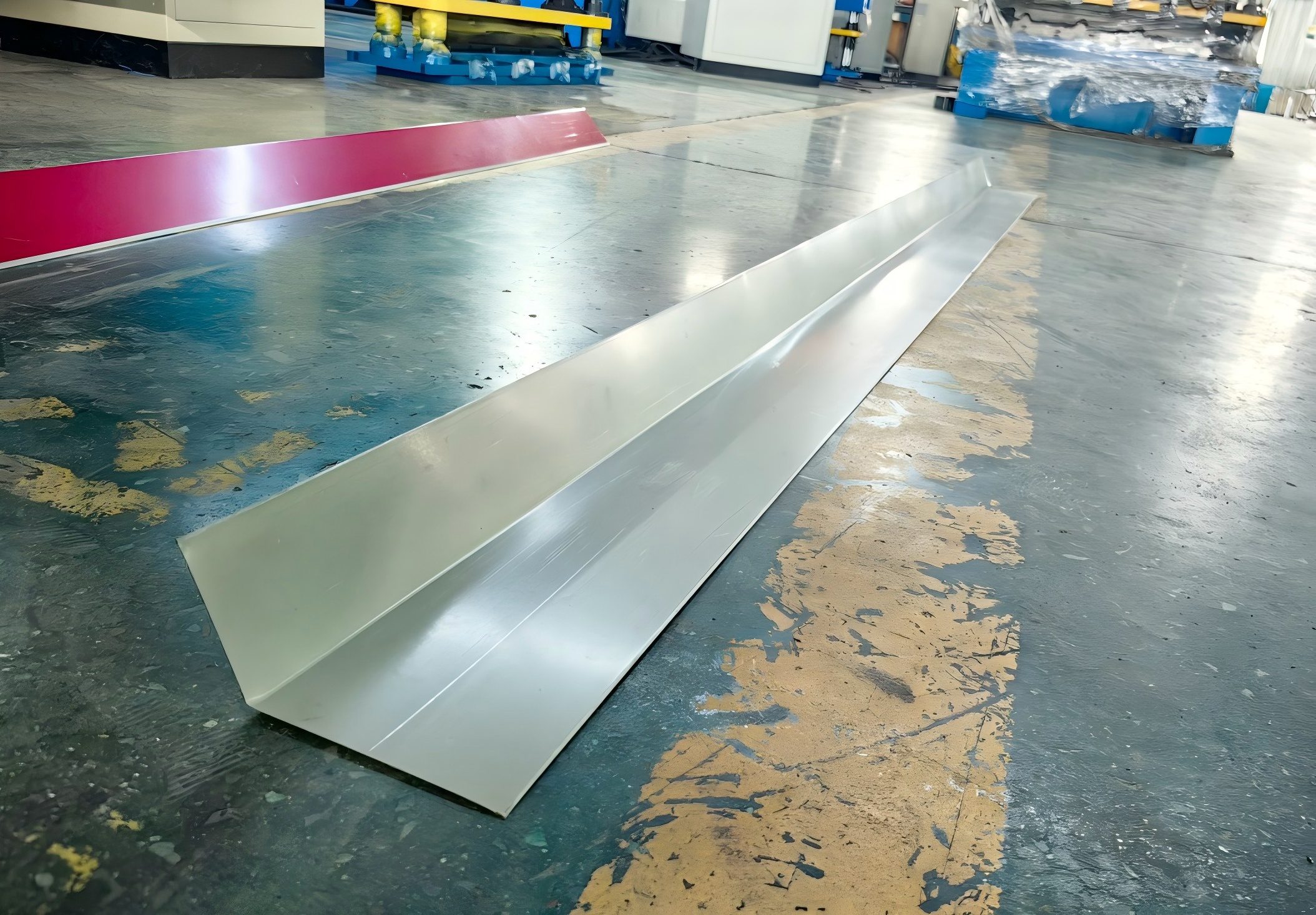

• Main Applications: Commonly used in the construction industry for producing decorative and structural components, such as edge finishing (edge sealing) of sheet metal, eaves finishing (waterproof eaves), etc.
Main Application Scenarios：
This equipment is primarily used in light steel structures and interior decoration:
• Steel Structure Workshops:
Used for edging (U-shaped channels, interlocking fittings) at the joints between wall panels and roof panels, as well as for aesthetic edging of door and window openings.
• Prefabricated Houses/Container Houses:
Produces metal fittings for ceiling edging and partition wall edge joists (slots), facilitating rapid modular assembly.
• Cleanroom Engineering:
Used in cleanrooms of electronics factories and pharmaceutical plants for producing edging profiles for rounded transitions between wall and floor corners.
• Curtain Walls and Exterior Wall Insulation:
Used for side edging of rock wool boards and integrated insulation and decorative panels, protecting the edges of the insulation layer and enhancing waterproofing.
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:0.4-0.8mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free)
|
||
|
3.Main body
|
Roller station
|
10 station
|
||
|
Diameter of shaft
|
60mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
Chains transmission
|
|||
|
Dimension(L*W*H)
|
7800*800*1200(customize)
|
|||
|
Weight
|
About 4.5T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
4KW
|
||
|
Hydraulic system power
|
4KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
40-100m/min(customized)
|
Different speed designs for options.
|
||
Pattern Diagram:
Key Features：
This equipment offers the following significant advantages in the metal forming field:
1.High Efficiency:
The dual-outlet design doubles the output per feed, with production line speeds typically reaching 10-15 meters per minute, reducing unit costs.
2.Multi-functionality:
By changing the rollers or adjusting parameters, it can produce profiles of various shapes, such as edging and bezels, adapting to diverse edge finishing needs.
3.High Precision:
Cold bending produces precise dimensions and excellent straightness, resulting in scratch-free finished surfaces, suitable for exposed decorative parts where aesthetics are paramount.
4.Labor Savings:
Fully automated control allows one person to operate multiple machines, reducing semi-finished product turnover and secondary processing steps.
