In today’s era where the steel structure construction industry is advancing toward intelligence and green development, Intelligent Servo Control Exchanging CZ purlin Roll Forming Machine has evolved from “optional equipment” to “core productivity.” As a technological culmination in the cold bending forming field, it not only addresses the pain points of traditional production—such as slow model switching, low precision, and high reliance on manual labor—but also stands as a key tool for steel structure enterprises to reduce costs and enhance efficiency, thanks to its “multi-functionality, intelligent control, and high-efficiency stability” features.
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:1.5-3mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
12 rows(As your requirement)
|
||
|
Diameter of shaft
|
80mm solid shaft
|
|||
|
Material of rollers
|
Gcr 15 with quenched teeatment
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
Chain transmission
|
|||
|
Dimension(L*W*H)
|
9500*800*1200(customize)
|
|||
|
Weight
|
About 7T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
15KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
60-70m/min(customized)
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
In the field of architecture and infrastructure:
This is the main application market for CZ steel, especially playing a key role in steel structure construction.
• Industrial and civil buildings:

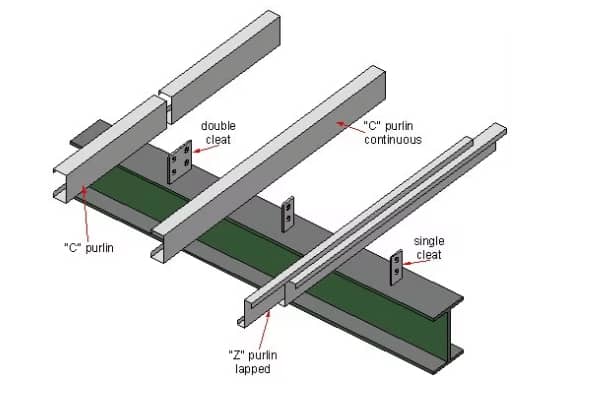

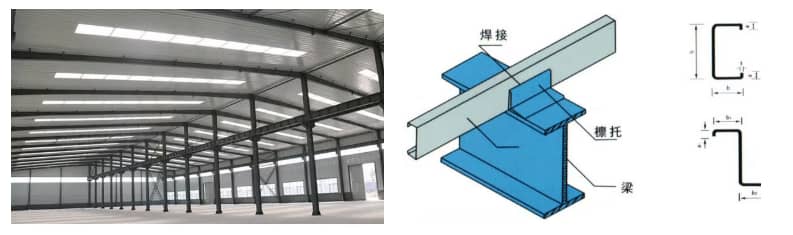

widely used for roof purlins and wall beams in large-span buildings such as steel structure factories, warehouses, workshops, sports halls, exhibition centers, etc. CZ steel purlins can effectively support roof and wall panels, transmit loads, and are an important component of the main structure.
• New building system:
In light steel villas and prefabricated buildings, CZ steel is used as wall studs, floor joists, and roof trusses due to its easy processing and quick installation characteristics, making it an ideal material for rapid construction.
• Agriculture and Public Facilities:
Suitable for skeleton construction of facilities such as greenhouses, market flower sheds, aircraft hangars, parking lots, etc., providing an economical and efficient load-bearing solution.
• Transportation infrastructure:
In the construction of bridges, railways, etc., it can also be used as auxiliary structural components or supporting members.
Technological Breakthrough: From “Single Function” to “All-in-One Integration”
The production of traditional C-shaped and Z-shaped steel relies on two independent machines, which not only occupy substantial space but also face issues of cumbersome mold changes and low efficiency. In contrast, the modern CZ-shaped steel integrated machine achieves revolutionary breakthroughs through three core technologies:
1.Universal Formwork Technology:
No mold replacement is required. With an intelligent control system, the switch between C-shaped and Z-shaped purlins can be completed within 3 minutes. The specification adjustment accuracy reaches ±0.5mm, supporting custom sizes for webs ranging from 80-300mm and flanges from 30-80mm, meeting the requirements of non-standard projects.
2.Integrated production process:
Combines six major steps—automatic feeding, leveling, punching, forming, cutting, and stacking—requiring only a single feed from steel coil to finished product. With a daily production capacity of up to 30 tons, it achieves a 40% efficiency improvement over traditional methods and reduces labor costs by 50%.
3.Smart Control System:
Equipped with a PLC + touch screen interface, it supports remote import and automatic conversion of CAD drawings, enabling “one-click startup and unmanned operation.” Some high-end models also feature remote maintenance capabilities, allowing engineers to monitor equipment status in real-time via the network and issue early warnings for potential faults.
Machine image:
