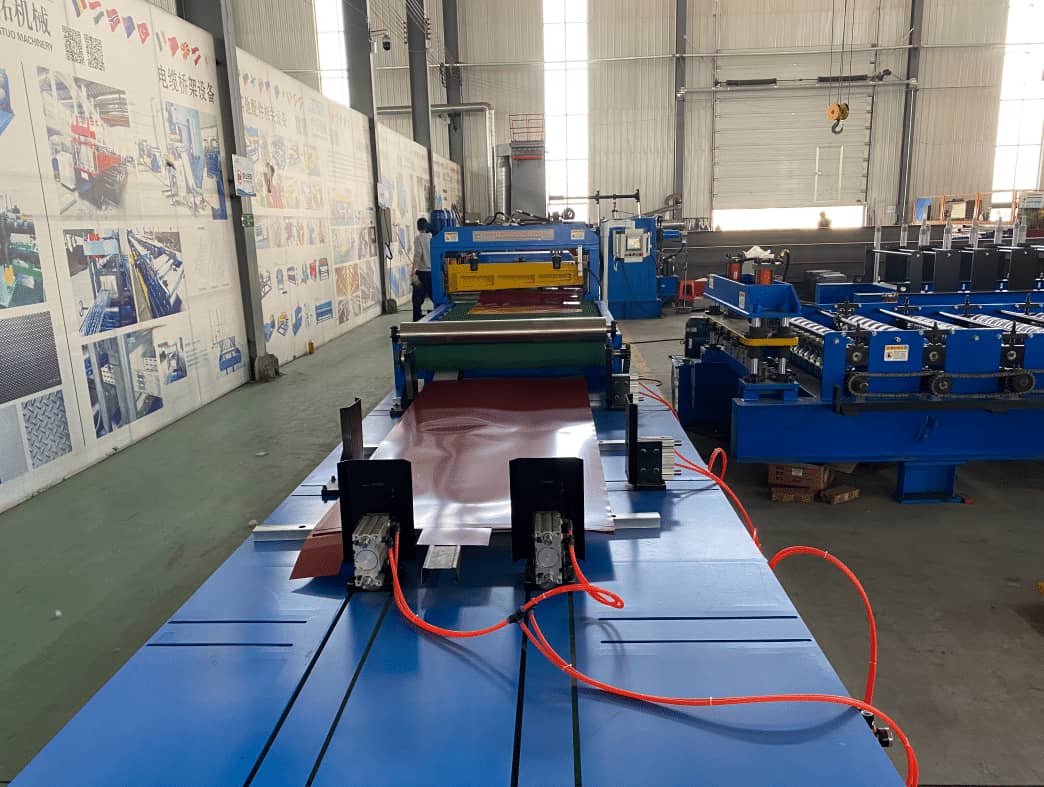

The Galvanized Sheet Metal Slitting Line Machine Coil Cutting System, as the name suggests, is a high-end automation equipment that deeply integrates the functions of vertical cutting (slitting) and horizontal cutting (cutting to length).

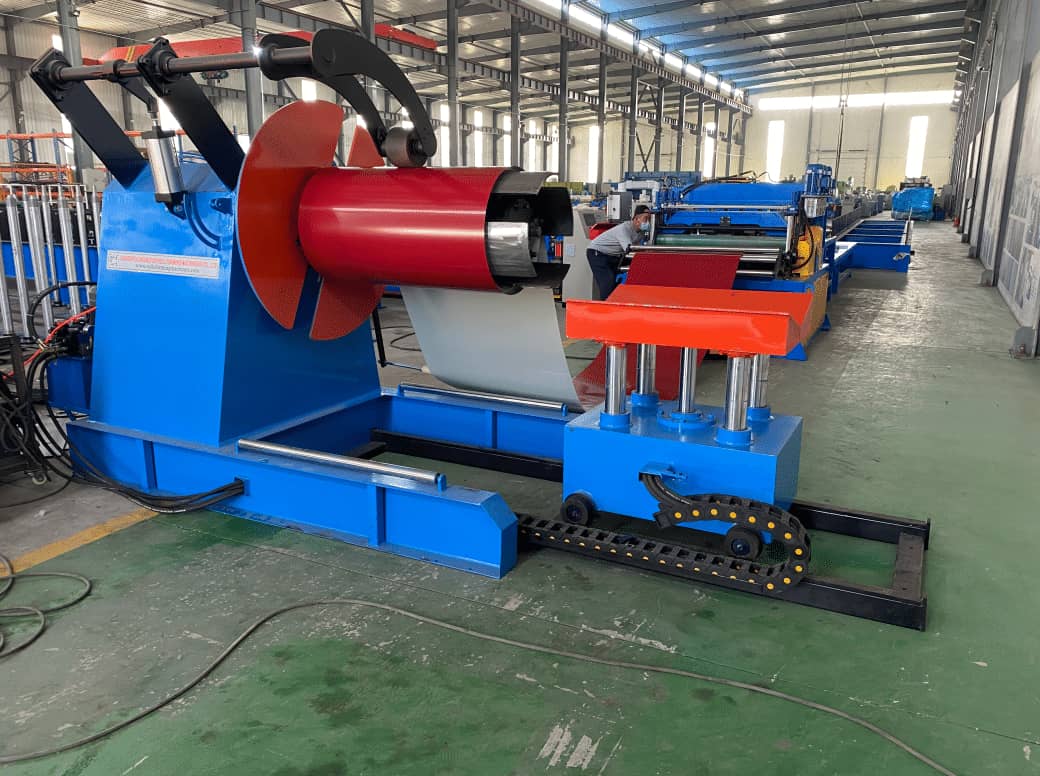

It is not just a shearing machine, but also a fully automatic production line that integrates unwinding, leveling, longitudinal cutting and slitting, servo sizing, transverse cutting, and conveying stacking. This device can directly process various metal coils (such as cold-rolled sheets, galvanized sheets, stainless steel, aluminum sheets, etc.) into finished sheets of specific width and length in one go, eliminating intermediate transportation links and truly achieving one click direct processing from “coil materials” to “sheet materials”.

Product Attributes :

Core features: Accurate, efficient, and intelligent ultimate interpretation

Compared with the traditional single machine operation mode, the horizontal and vertical cutting integrated forming machine has the following unparalleled advantages:

1. Zero transit, doubled efficiency
The core breakthrough of the equipment lies in the integration of processes. Once the material is rolled up, it is continuously trimmed longitudinally and cut horizontally on the same production line, eliminating the process of unwinding, rewinding, and rewinding in the middle. This not only improves production efficiency by more than 50%, but also completely eliminates the waste of materials caused by multiple rewinding.

2. Servo drive, precision in micrometers
Using high-performance servo motors to drive the fixed length feeding system, coupled with a closed-loop CNC system, the cutting length accuracy can be easily controlled within ± 0.2mm. Both the width consistency of longitudinal cutting strips and the diagonal accuracy of transverse cutting plates have reached the top level in the industry, perfectly meeting the matching needs of high-precision sheet metal parts.

3. Flexible production, one click switching of specifications
Faced with the market demand for small batches and multiple varieties, this equipment demonstrates strong adaptability. Simply input the width and length parameters of the board on the touch screen, and the system will automatically adjust the spacing between the vertical scissor axes and the horizontal scissor sizing gear. Switching product specifications only takes a few minutes, greatly reducing downtime for debugging.

4. Highly integrated, saving space and manpower
A horizontal and vertical cutting machine can replace the traditional combination of “slitting line+shearing machine+leveling machine”. The compact structural design significantly saves the factory floor space. The production line, which originally required 3-5 people to collaborate, can now be easily controlled by only 1-2 people, greatly reducing the labor cost and management difficulty of the enterprise.

5. Intelligent protection, protecting the surface of materials
For easily scratched materials such as galvanized sheet, color coated sheet, aluminum sheet, etc., the equipment is usually equipped with a stress relief leveling mechanism and nylon/polyurethane material coated rollers to ensure zero scratches on the material surface during high-speed cutting, and to fully preserve the high-quality appearance of the original roll.
