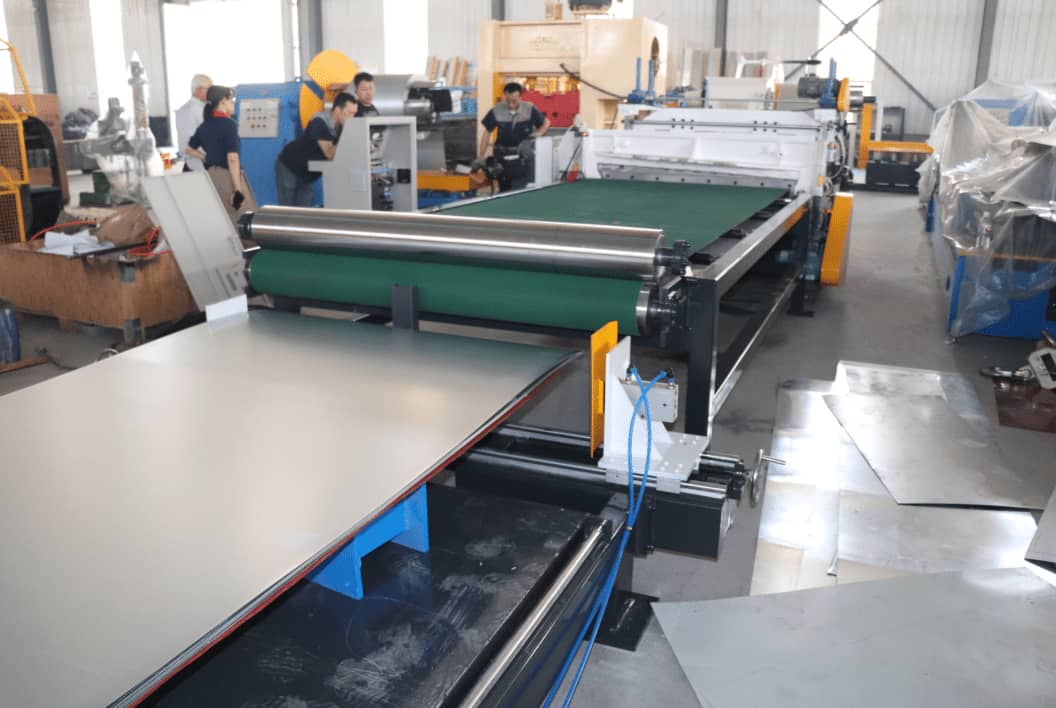

Fully Automatic Stainless Steel Cut to Length Production Line is a fully automatic sheet metal processing production line that integrates unwinding, leveling, fixed length cutting, and stacking. It is specifically designed to process metal coils (steel coils, aluminum coils, stainless steel coils, etc.) into flat and fixed length single sheets at once, and is the core front-end equipment for metal sheet metal processing.
Process flow: feeding → unwinding → leveling → servo feeding → cutting to length → conveying → automatic stacking, PLC numerical control for the entire line, can be equipped with punching, pressing, laminating and other modules to achieve the integration of “cutting+forming”.
Product Attributes :
|
CUT TO LENGTH |
||||
| 1.Formed Material | GI | Thickness:0.8 to 3.0 mm (standard) | ||

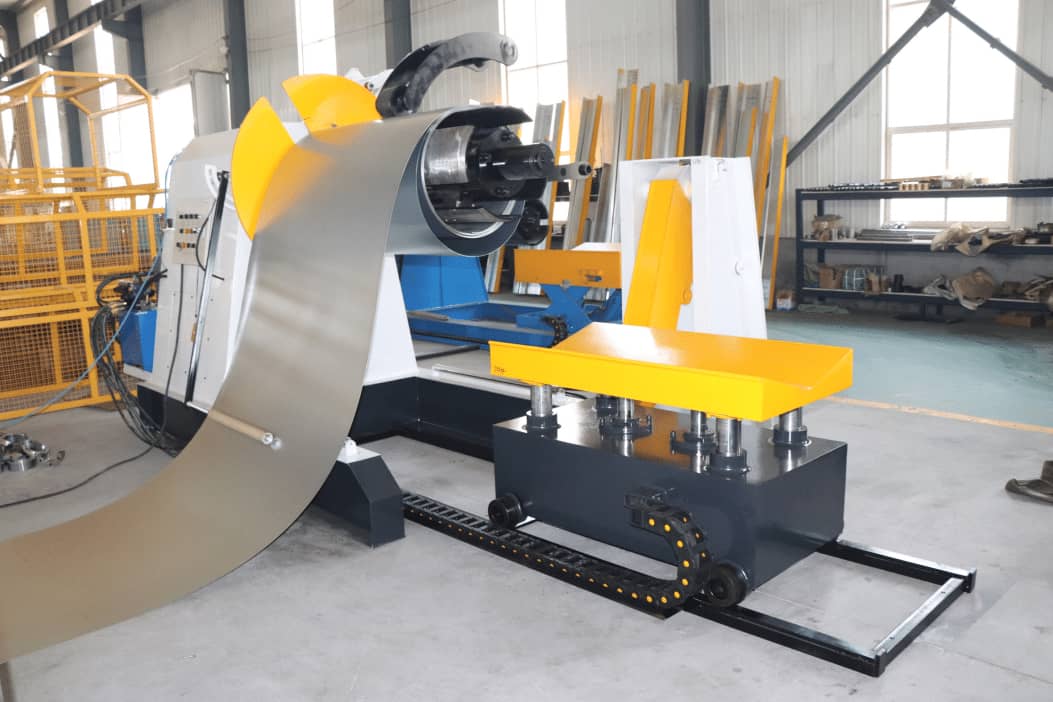

| 2.Decoiler | 3 Tons decoiler | 3 Tons Manual decoiler(will give you as free） | ||
| 3.Main body | Shaft diameter | 120mm | ||
| leveling rollers | 15 | |||
| Material of rollers | Gcr15 | |||
| Machine body frame | 400 H steel | |||
| Drive | Gear and chains transmission | |||
| Dimension(L*W*H) | 15000*1800*1600(customize) | |||
| Weight | 5T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 7.5KW*2 sets,Siemens brand | ||
| Hydraulic system power | 15 KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 8.Forming Speed | 25 m/min | The speed depends on the shape of the tile and the thickness of the material. | ||
Core Features：
1.Fully automated and efficient production:
speed of 60-120 m/min, daily production capacity of tens of thousands of sheets; 1-2 people can be on duty, which increases efficiency by 5-10 times compared to manual cutting and significantly reduces costs.
2.Ultra high precision and consistent size:
servo positioning+CNC flying shear, with a fixed length tolerance of ± 0.1- ± 0.5 mm; multi roll leveling (5-11 rolls), high flatness of the board, no stress deformation, and strong interchangeability.
3.Wide material/thickness adaptability:
capable of processing 0.1-20mm cold-rolled/hot-rolled steel, galvanized/color coated sheet, stainless steel, aluminum/copper, silicon steel, etc; Adjustable bandwidth of 300-2200 mm, with strong flexibility.
4.Durable and sturdy structure:
The frame is welded and annealed, the rollers are quenched and chrome plated (HRC58-62), and the cutting tools are wear-resistant; Equipped with hydraulic/pneumatic systems, the long-term continuous operation has a low failure rate.
5.High material utilization rate, safe and environmentally friendly:
optimized discharge+waste recycling, increased utilization rate by 3% -5%; Equipped with safety protection, dust removal, and noise reduction devices that comply with industrial environmental standards.
