The Full Automatic Half Round Rainwater Gutter Roll Forming Machine is a specialized equipment used for producing circular cross-section gutters (also known as eaves gutters or drainage channels). This type of equipment uses multiple precision arranged rollers to continuously roll metal sheets such as color coated steel coils, galvanized coils, and aluminum coils at room temperature, ultimately bending them into semi-circular or fully circular gutter profiles. The entire process is highly automated, integrating functions such as unwinding, forming, and fixed length cutting.
Main Features：
1.High precision forming:
High strength, heat-treated alloy steel rollers (such as Cr12MoV) are used to ensure smooth curvature, precise size, and smooth surface without wrinkles of the formed circular gutter.
2.Highly automated:
Operated by PLC control system and touch screen, it can automatically complete length measurement, cutting, and even automatically punch out the required mounting holes at both ends of the gutter, with extremely high production efficiency.
3.Strong adaptability:
It can process metal coils of different thicknesses and widths. By replacing the mold rollers, one equipment can produce circular gutters of various diameters and specifications.
4.Seamless production:
It can produce continuous seamless gutters on site or in the factory according to the actual length of the building roof, effectively avoiding water leakage problems caused by joints.
Application scenarios：
• High end and historical buildings:
Due to its classic and beautiful shape, semi-circular gutters are often used for villas, historical building restoration, or projects with high requirements for building appearance.
• Industrial and civil buildings:
Suitable for organized drainage of roofs of various steel structure factories, warehouses, shopping malls, residential buildings, etc., effectively collecting and guiding rainwater.
• Coastal and corrosive environments:
Circular gutters made of stainless steel (such as 304 material) or specially coated aluminum coils have excellent corrosion resistance and are particularly suitable for coastal areas or chemical plants.
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:0.5-1.2 mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|

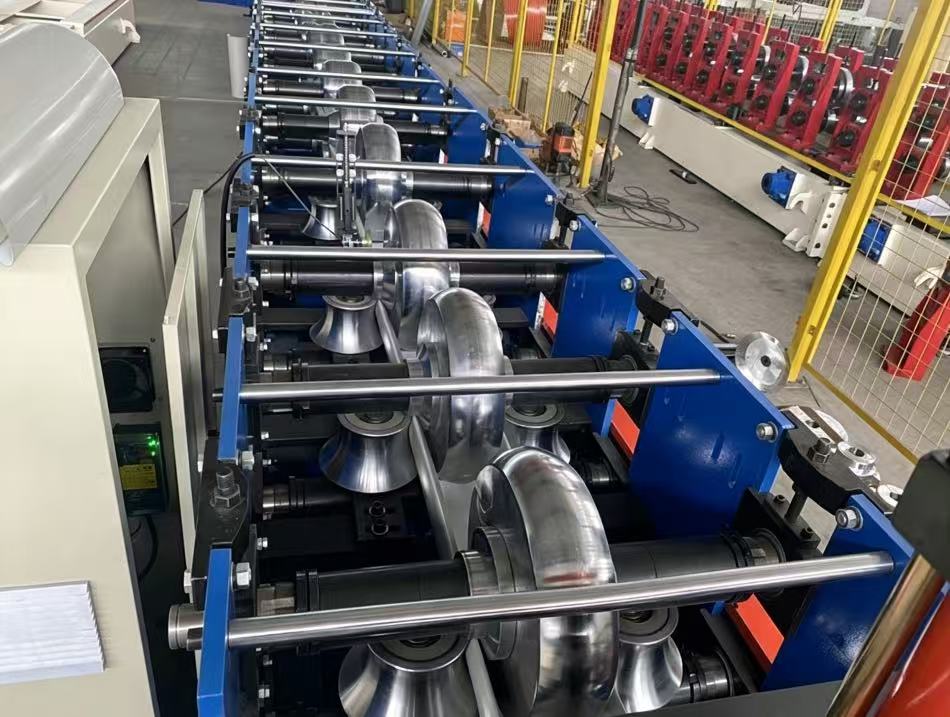

3.Main body
|
Roller station
|
12 rows(As your requirement)
|
||
|
Diameter of shaft
|
80mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
350 H steel
|
|||
|
Drive
|
Chain transmission
|
|||
|
Dimension(L*W*H)
|
8500*1000*1200(customize)
|
|||
|
Weight
|
6.5T
|
|||
|

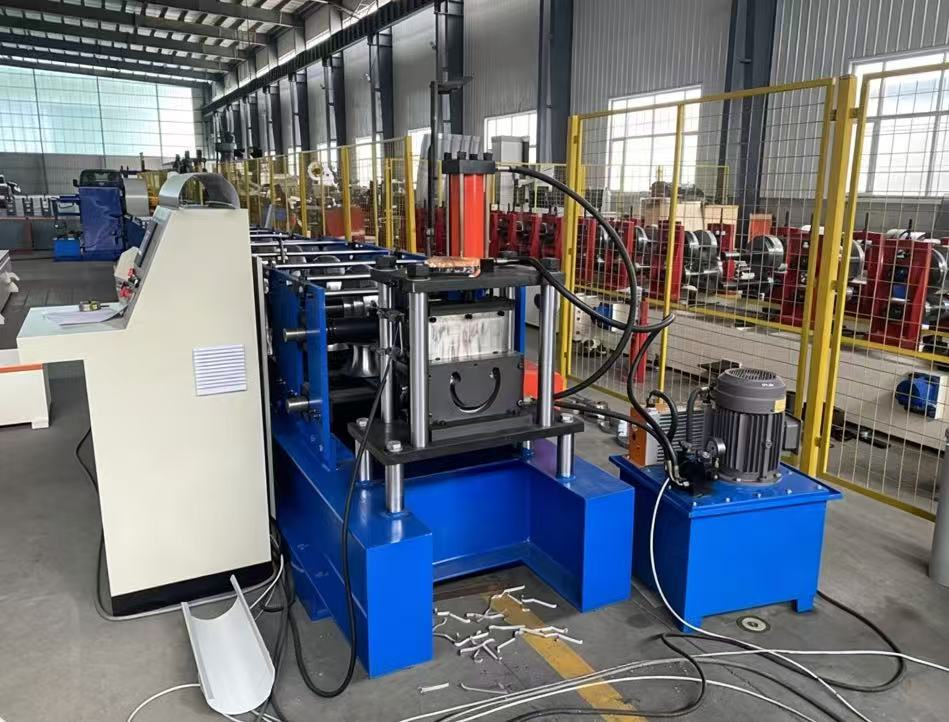

4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
5.5KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
15-30m/min
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
