In modern transportation networks, highways are the “arteries” of economic takeoff, while guardrails are the “lifeline” guarding this artery. Every meter of precise and sturdy waveform guardrail carries a reverence for life.

Faced with the increasing demand for infrastructure and strict security standards, traditional production methods are no longer able to meet the dual requirements of efficiency and accuracy. Our new generation Highway Guardrail 2 Waves 3 Waves Roll Forming Machine, driven by cold bending core technology, redefines the industrial level of guardrail production and provides a one-stop, high-efficiency, and high-strength solution for your project.

Equipment Introduction: Industrial masterpiece of the culmination

This is an automated assembly line equipment specifically designed for producing two wave/three wave waveform beam steel guardrail panels for highways. It is not just a machine, but an intelligent production system that integrates unwinding, leveling, servo feeding, continuous cold bending, hydraulic punching, and cutting to length.

The equipment adopts a PLC fully automatic control system, combined with a touch screen human-machine interface. By simply inputting parameters, the production line can automatically complete the entire process from coil to finished product stacking. Whether it is a national standard board or a non-standard customized reinforced board, it can handle it with ease and achieve true “one click intelligent manufacturing”.

Application scenario: Building a global security barrier

The finished product of this guardrail molding machine is widely used in key scenarios related to national economy and people’s livelihood:

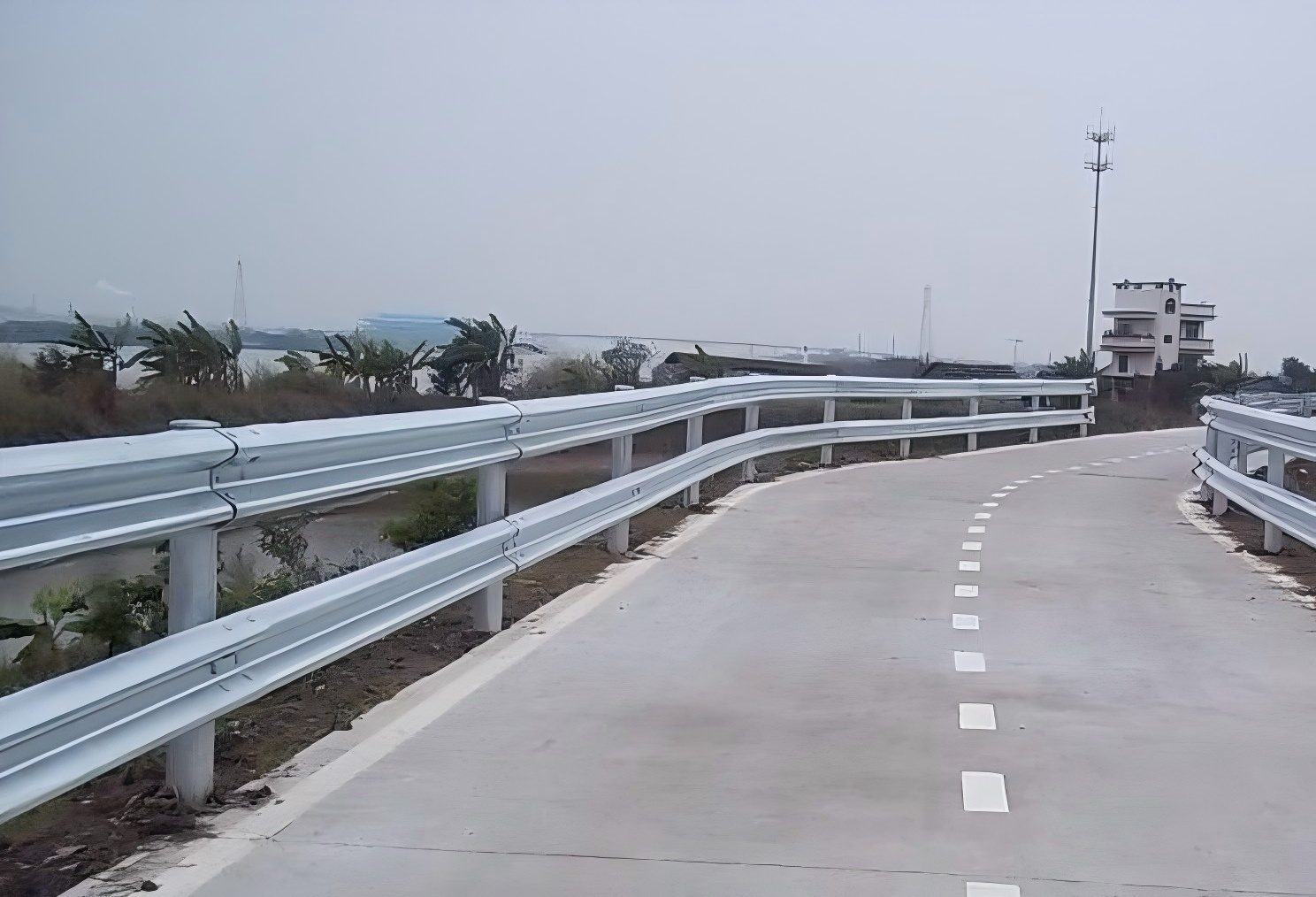

• Highways and provincial highways:
As core protective facilities, they effectively absorb collision energy, prevent vehicles from rushing out of the road or entering the opposite lane, and are standard configurations on long transportation lines.

• Rural road security engineering:
In response to the national call for the construction of “Four Good Rural Roads”, high-strength and corrosion-resistant protection is provided for dangerous sections such as cliffs, water, and sharp bends to safeguard rural travel safety.

• Bridge and tunnel entrances and exits:
Provide transitional protection at the junction of rigid concrete structures and flexible roadbeds to reduce accident injuries.

• Municipal elevated roads and overpasses:
ensuring the safety of urban expressway traffic, their beautiful waveform design also harmoniously blends with modern urban landscapes.

• Large industrial and mining enterprises and logistics parks:
used for internal road separation, storage area isolation, and loading and unloading platform protection, maintaining the order of pedestrian and vehicle separation.

Product Attributes :

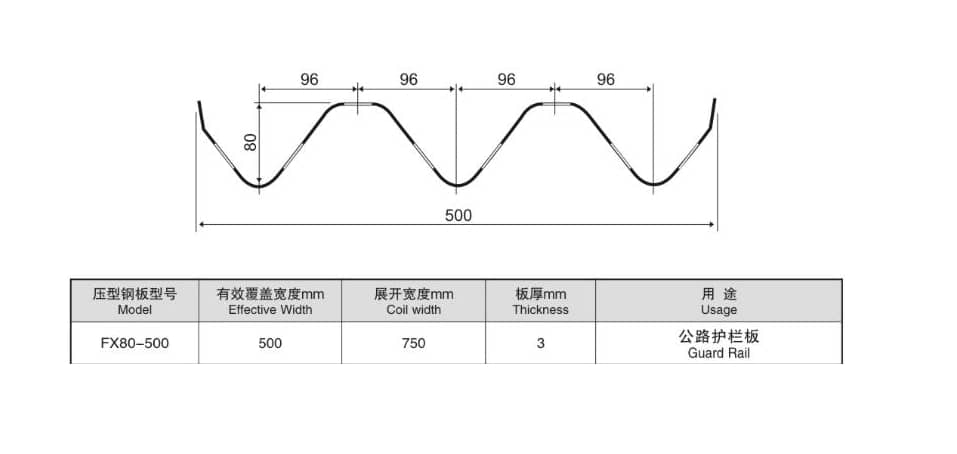

Pattern diagram：

Core feature: Born for efficiency and precision

1. Rapid continuous production, doubling efficiency
Traditional single machine stamping requires multiple process flows, while our cold bending forming machine adopts online synchronous punching and continuous rolling technology. The steel strip can complete the punching of all hole positions during the rolling process, with a production speed of 10-15 meters per minute, which is several times more efficient than traditional processes and greatly shortens the project supply cycle.

2. High molding accuracy and excellent consistency
The core of the equipment adopts high-quality alloy steel rollers, which have undergone precision heat treatment and CNC machining, with high surface hardness and good wear resistance. The multi pass gradient forming process ensures that the curvature, wave height, and cross-sectional dimensions of the waveform board strictly comply with national standards, and the board surface is flat without scratches. The consistency of the batch products is perfect, and the splicing is smooth without misalignment during installation.

3. Intelligent control, easy to operate
Equipped with advanced servo drive system and PLC control module, it achieves high precision of fixed length cutting (error control within ± 1mm). The humanized touch screen interface intuitively displays the production status and can store various product specifications and parameters. When changing production models, only the program needs to be retrieved, and the foolproof operation greatly reduces the dependence on skilled technicians.

4. Durable, stable and reliable
The whole machine adopts a heavy-duty welded structure, which has undergone aging treatment to eliminate internal stress, and remains stable like a rock even under high-speed operation. The key transmission components are selected from internationally renowned brands, and the hydraulic system has stable performance, ensuring zero failure operation of the equipment in continuous high-intensity operation, with a lifespan of over 15 years.

5. Flexible production, one machine for multiple purposes
Simply replace some of the rolling mill molds, and the same equipment can flexibly switch between producing second wave plates and third wave plates. It can even customize production columns, anti blocking blocks, and other accessories, greatly expanding the scope of business acceptance. With the investment of one equipment, you can undertake diversified guardrail orders.

Contact Us：

Sharp tools make good work. In this era where efficiency and safety are equally important, choosing advanced guardrail forming machines is not only a wise move to increase production capacity, but also a solemn commitment to every road user.
We are committed to providing one-stop services from complete machine solutions to mold customization, installation and debugging, and personnel training. Let’s join hands and use precision equipment to forge sturdy guardrails, building a trustworthy defense line for every road.
We sincerely invite you to inquire, learn from the power of intelligent manufacturing, and build a safe and smooth road together.
