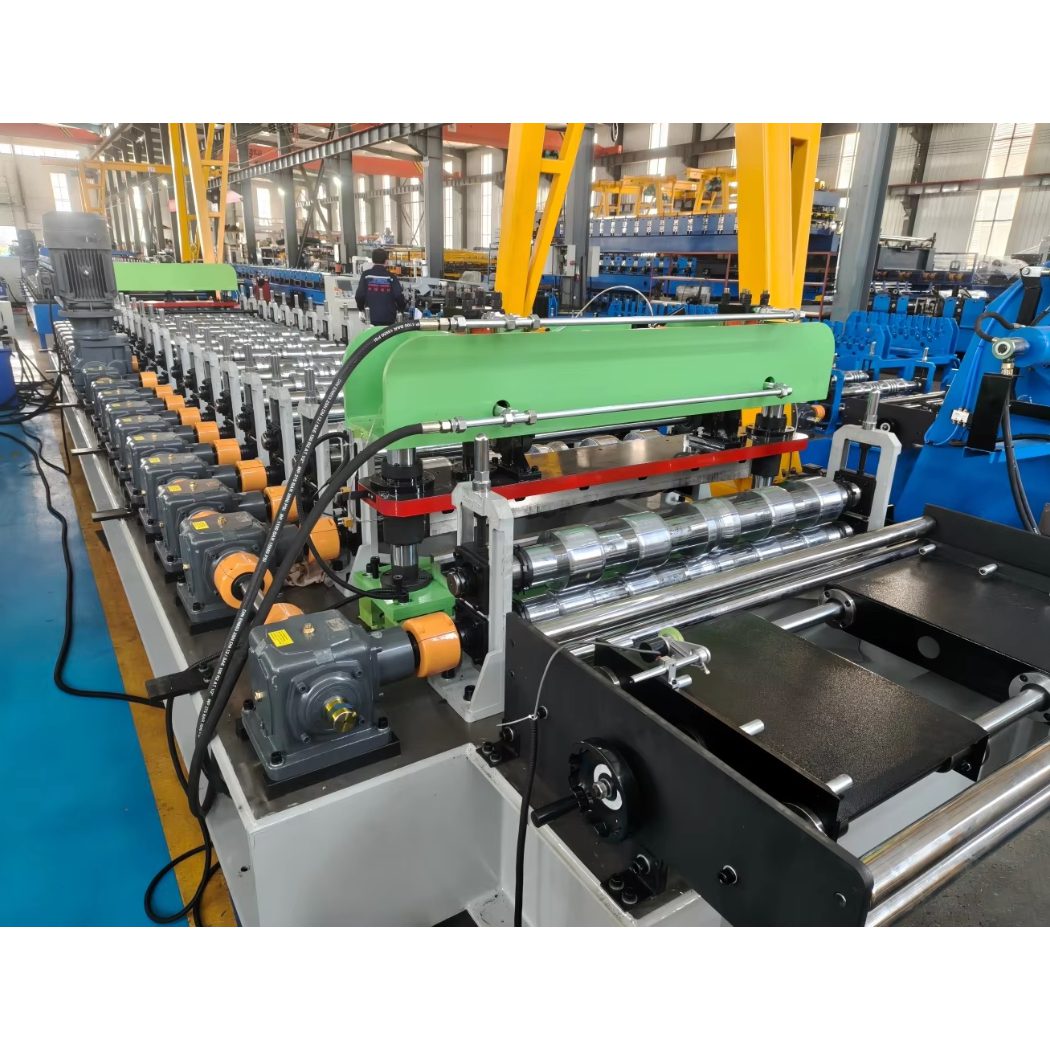

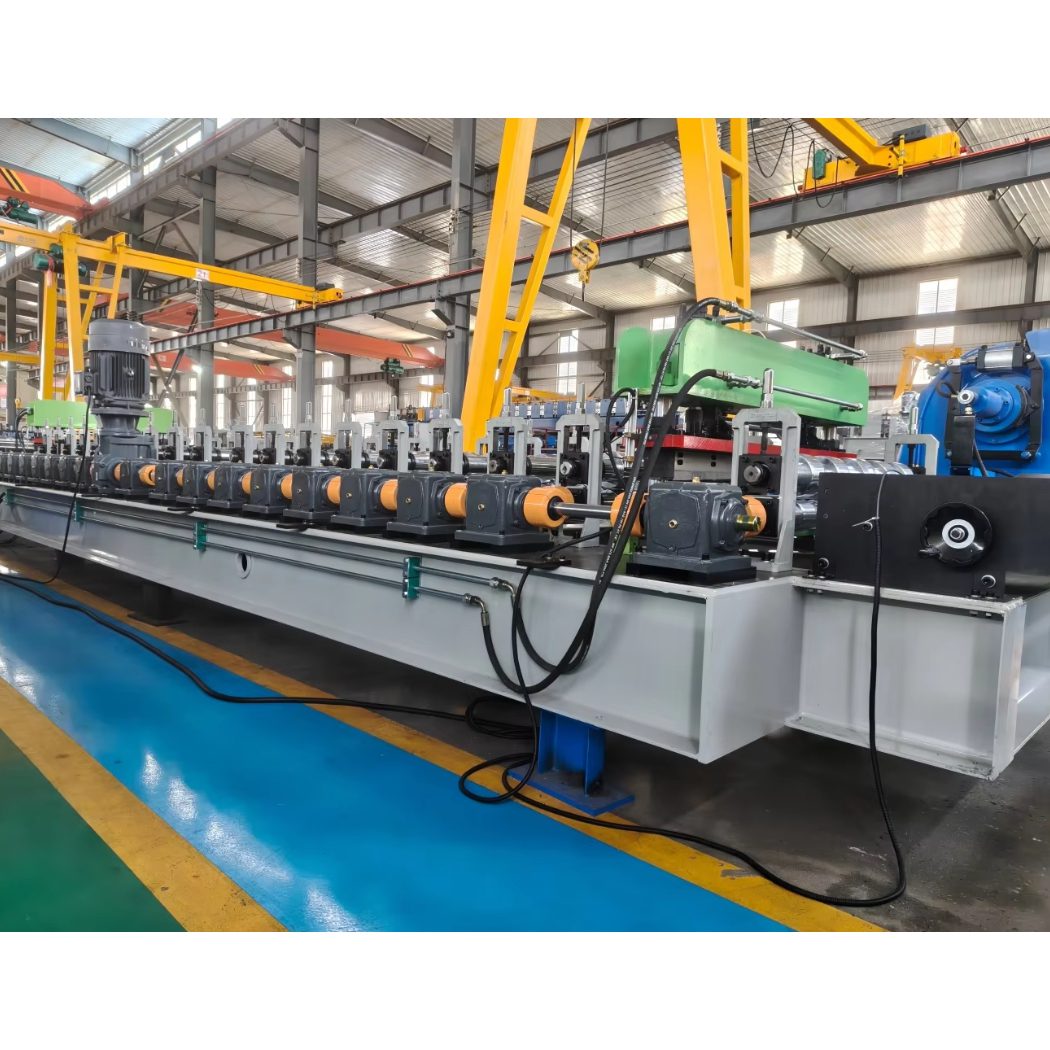

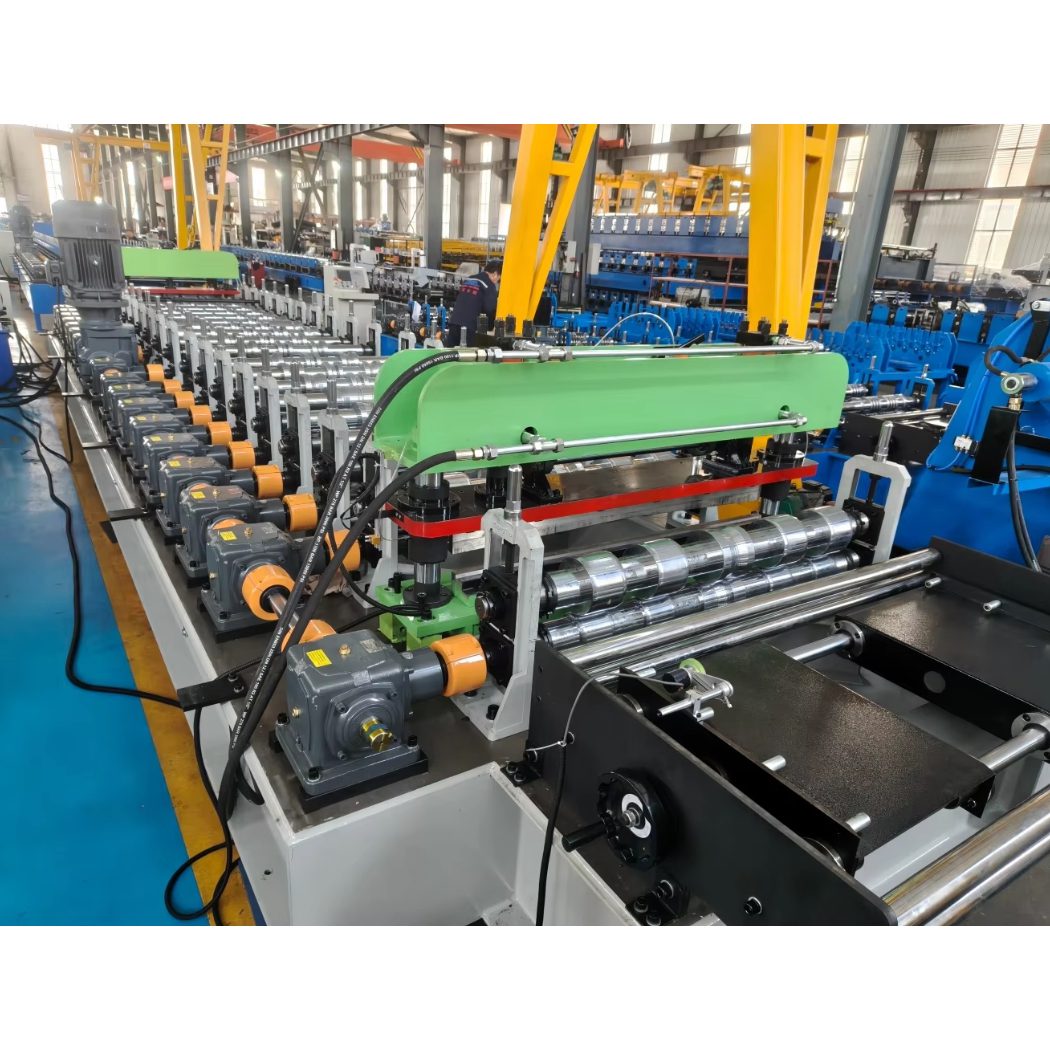

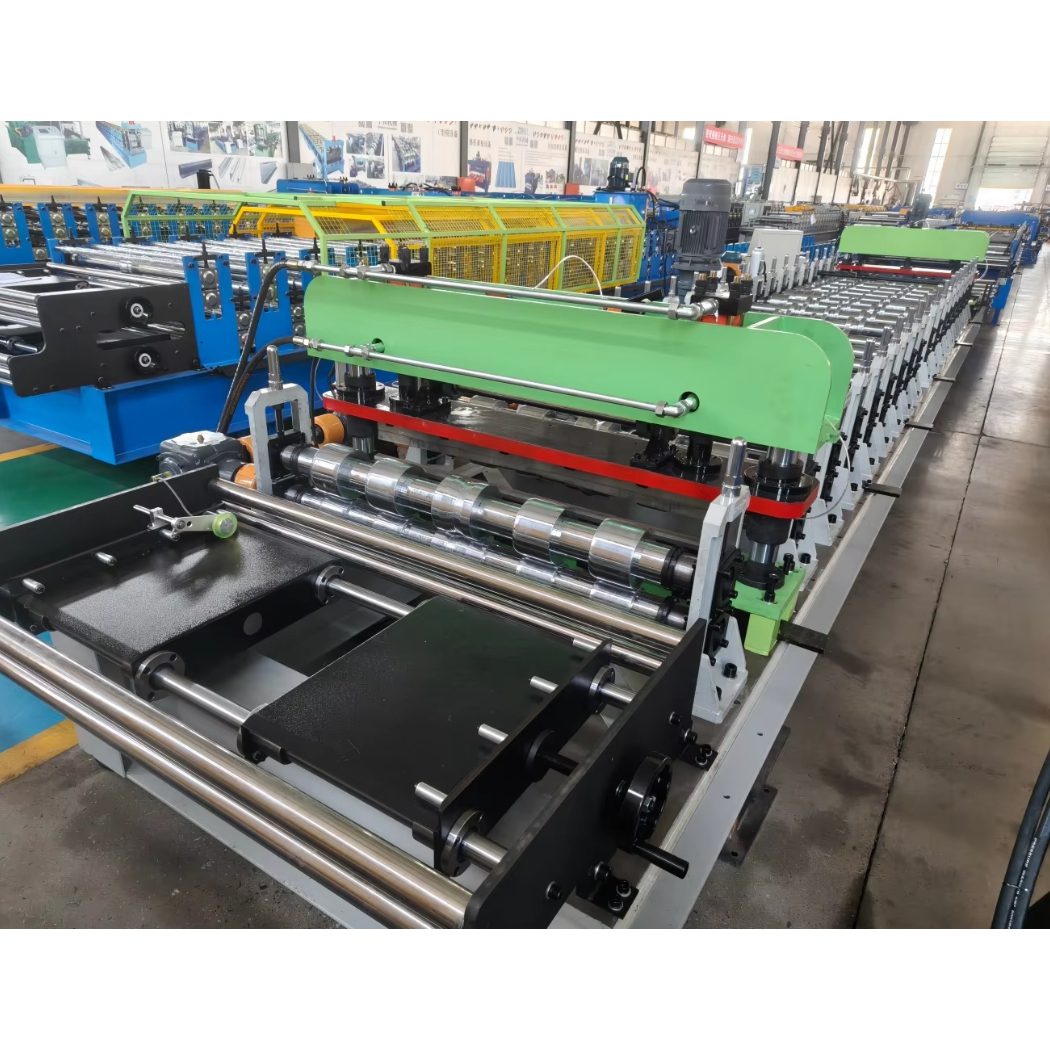

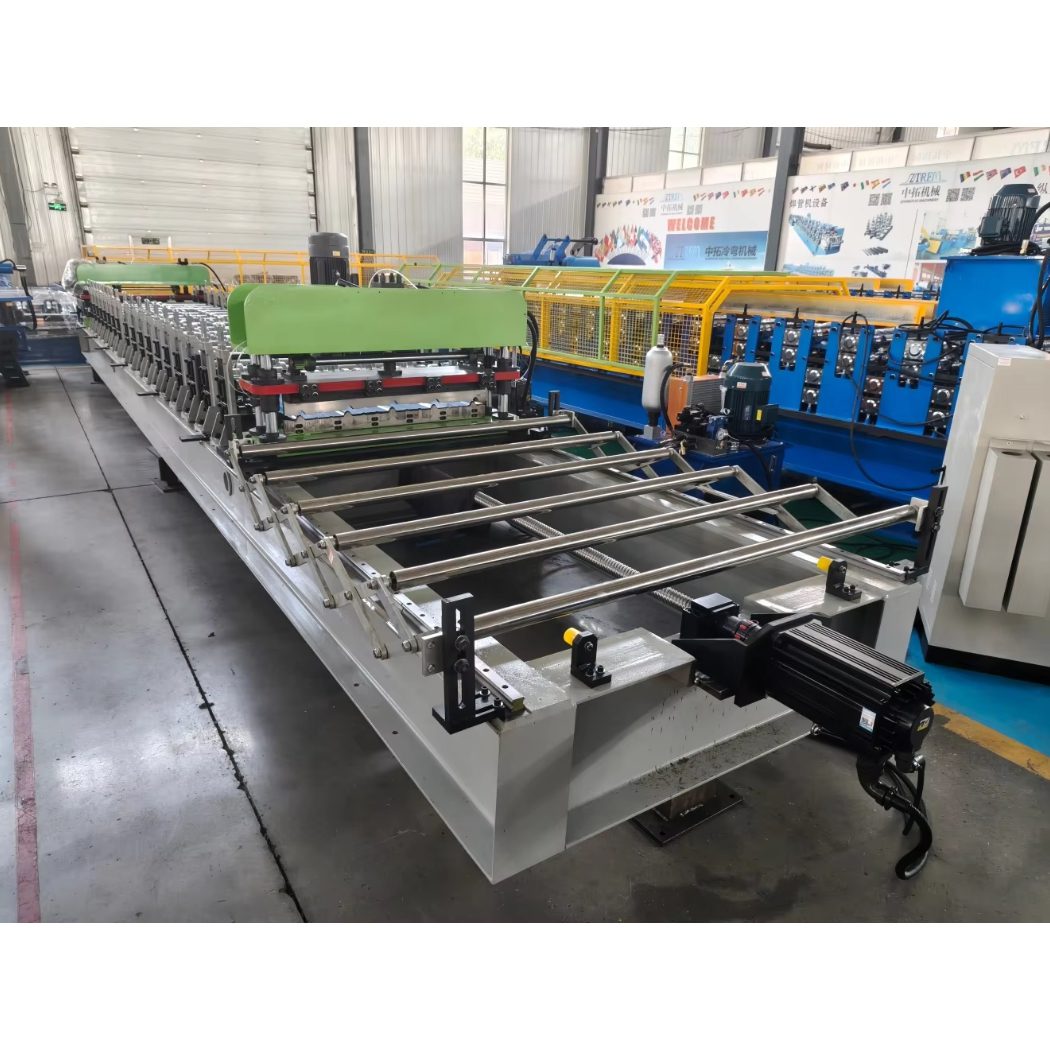

The High Speed 50m/min AG Panel Trapezoidal Roll Forming Machine is a highly integrated automated cold bending forming equipment. It uses galvanized steel coils, color coated steel coils, or aluminum coils as raw materials, and through processes such as unwinding, guided feeding, continuous cold bending roll pressing, and precise length cutting, produces roof tiles with standard trapezoidal corrugated cross-sections in one go.

This is not a simple physical shaping, but a recombination art of metal molecules. The equipment usually consists of a hydraulic unwinding machine, servo feeding system, high-precision forming host, flying saw cutting system, PLC computer control cabinet, and finished product rack. Thanks to its modular design, it can be the main production force of fixed factories or a mobile factory loaded into containers to rush to the construction site, achieving a zero inventory construction mode of “production and use”.

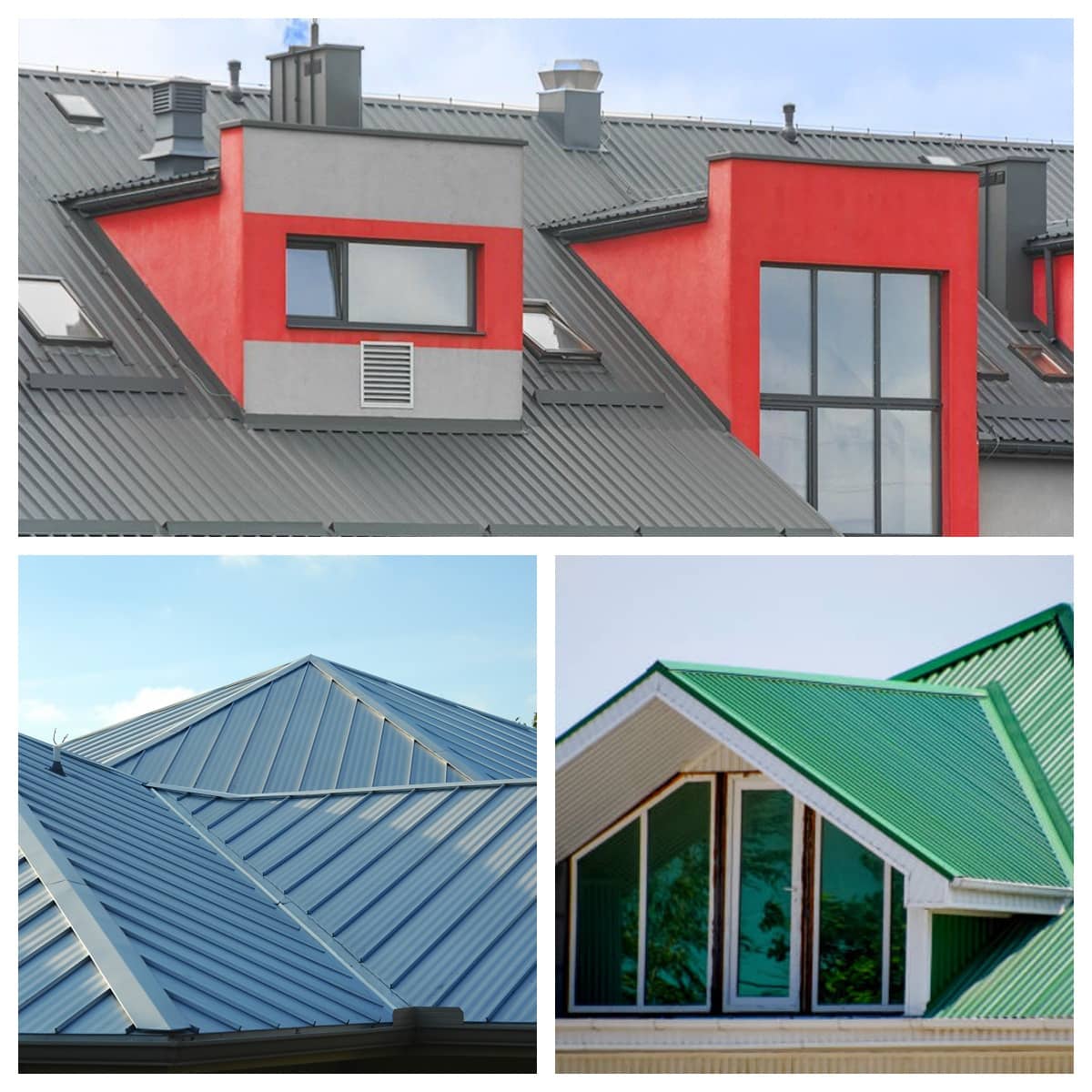

Application scenario: Crossing geographical and functional boundaries

• Industrial large-span factory buildings and logistics parks
On industrial buildings of tens of thousands of square meters, trapezoidal tiles, with the advantage of customized length, completely eliminate leakage hazards caused by longitudinal overlap from the ridge to the eaves, providing absolute safety protection for expensive equipment and goods. Its high reflective coating can also effectively insulate and reduce energy consumption in the factory building.

• Modern public buildings and sports venues
Airports, stations, and exhibition centers pursue grand spaces and smooth lines. The arc-shaped or straight plates produced by the trapezoidal tile forming machine can be perfectly fitted to irregular surfaces through curved processing, presenting the technological aesthetics of architecture with a metallic texture full of tension.

• High standard agriculture and animal husbandry
In response to the high humidity and corrosive environment of the breeding farm, the molding machine can press special acid and alkali resistant coating trapezoidal tiles, and can achieve “insulation roof integration” by configuring insulation cotton laying devices, creating a comfortable growth environment for poultry and livestock.

Product Attributes :

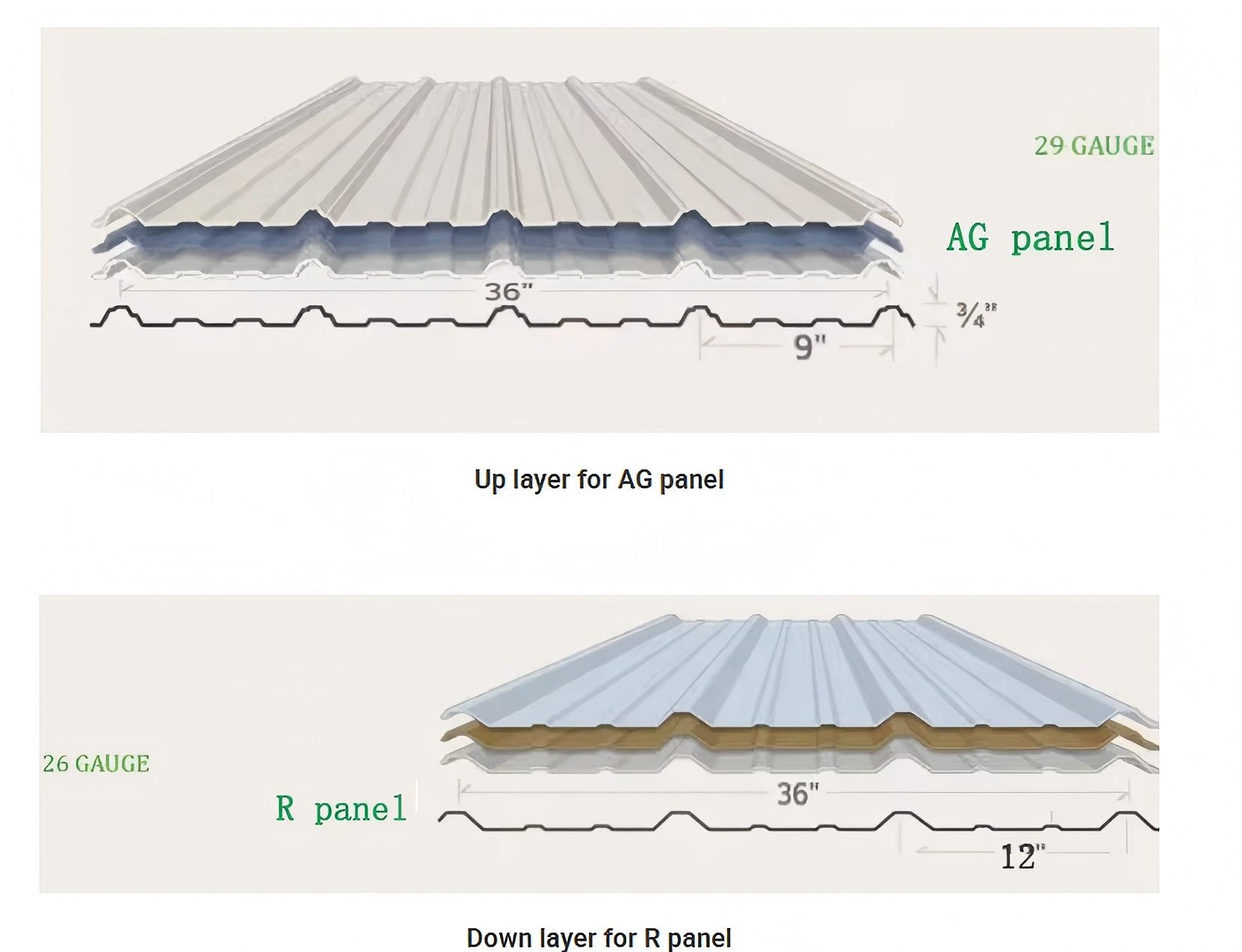

Pattern diagram：

Core feature: Why choose a trapezoidal tile forming machine?

1. Ultimate efficiency, overturning traditional project timelines
Traditional tile paving requires “hanging tile strips and installing them piece by piece”, while trapezoidal tiles are laid with a continuous board width without overlapping joints. The molding machine produces continuously at a speed of 15-25 meters per minute, and the length of a single tile can be customized (up to 20 meters or more). A single device can meet the demand for thousands of square meters of roofs in a single day, reducing the construction period to one tenth of traditional craftsmanship.

2. Multi functional and flexible production with one machine
True flexibility lies in boundlessness. By replacing the roller mold or adjusting the pressing gap, the same equipment can produce a variety of board types: from T-shaped trapezoidal tiles with straight wave peaks, to glazed tile types suitable for ancient building repairs, to wall panels and floor slabs. Whether it is wave height, wave spacing, or plate thickness (usually 0.4mm-0.8mm), they can be precisely controlled to perfectly respond to personalized customization needs.

3. Craftsmanship in structure creates an ultra long lifespan
The design of trapezoidal waves is not accidental. The equidistant trapezoidal rib structure endows the board with super strong bending resistance and drainage efficiency. The high-precision rolling of the molding machine ensures that every edge is full and straight. With high-quality aluminized zinc or fluorocarbon coated substrate, the finished tile is corrosion resistant and anti-aging, with a service life of more than 30 years, and can easily resist the erosion of wind, rainstorm and salt spray.

4. Intelligent control, at your fingertips
The entire series is equipped with a PLC touch screen control system, which can preset production length and quantity, and achieve fully automatic fixed length cutting. Some high-end models support remote operation and self diagnosis of faults. Operators only need to input parameters, and the equipment can automatically complete the entire process from feeding to stacking, bidding farewell to heavy physical labor.

5. Win win situation between economy and environmental protection
The trapezoidal tile forming machine adopts dry operation, without water and soil pollution. The lightweight and high-strength characteristics significantly reduce the amount of steel used in building foundations and steel structures, directly saving the cost of the main structure. In addition, with low construction noise and minimal waste, it is undoubtedly the preferred equipment in the era of green buildings.

Contact Us：

The trapezoidal roof tile forming machine is not only a production tool, but also an innovation in architectural thinking. It allows the roof to no longer be limited by the weight, length, and form of materials, paying tribute to every inch of space that needs to be guarded with a solution that integrates structural safety and industrial aesthetics.
