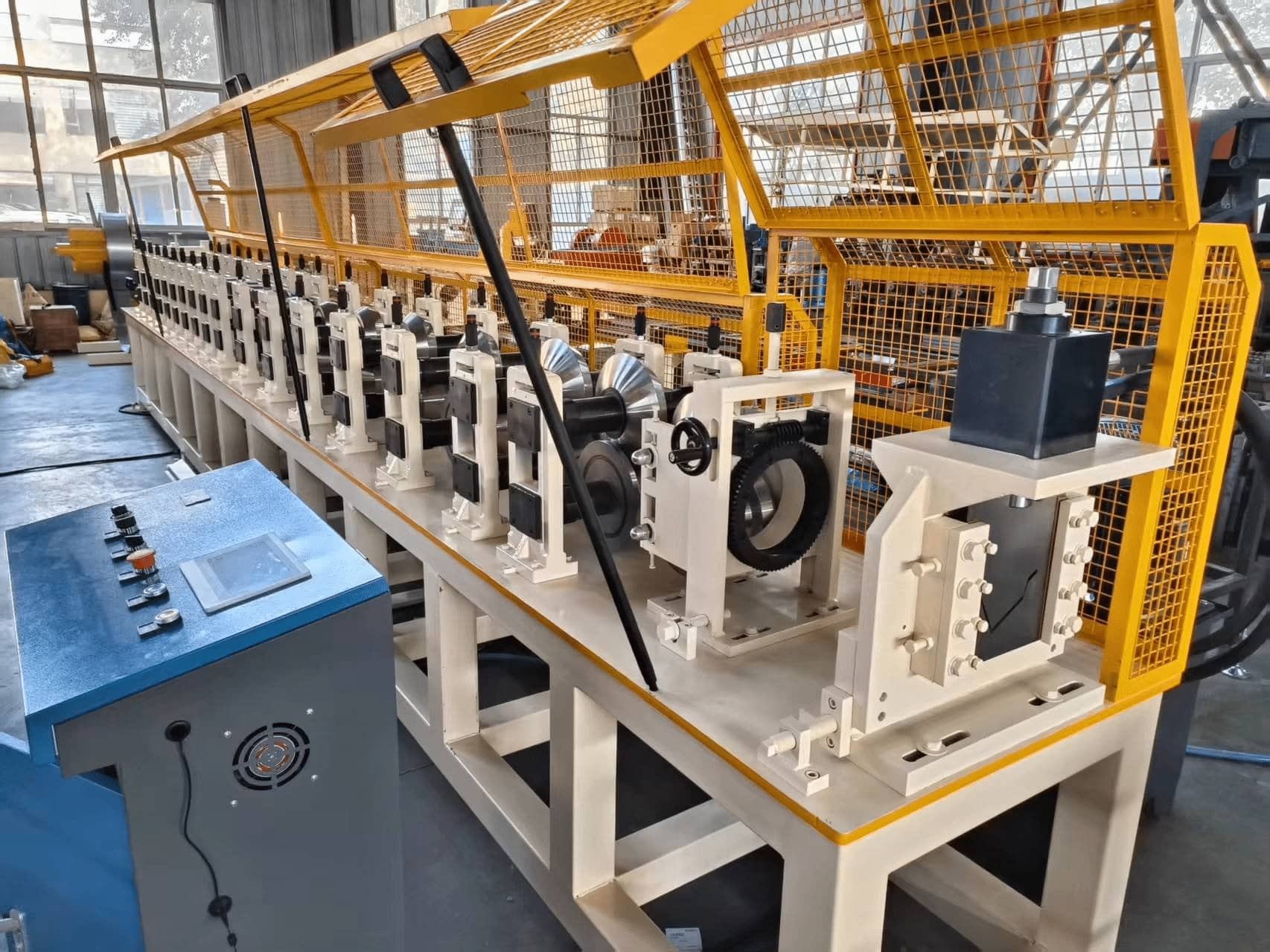

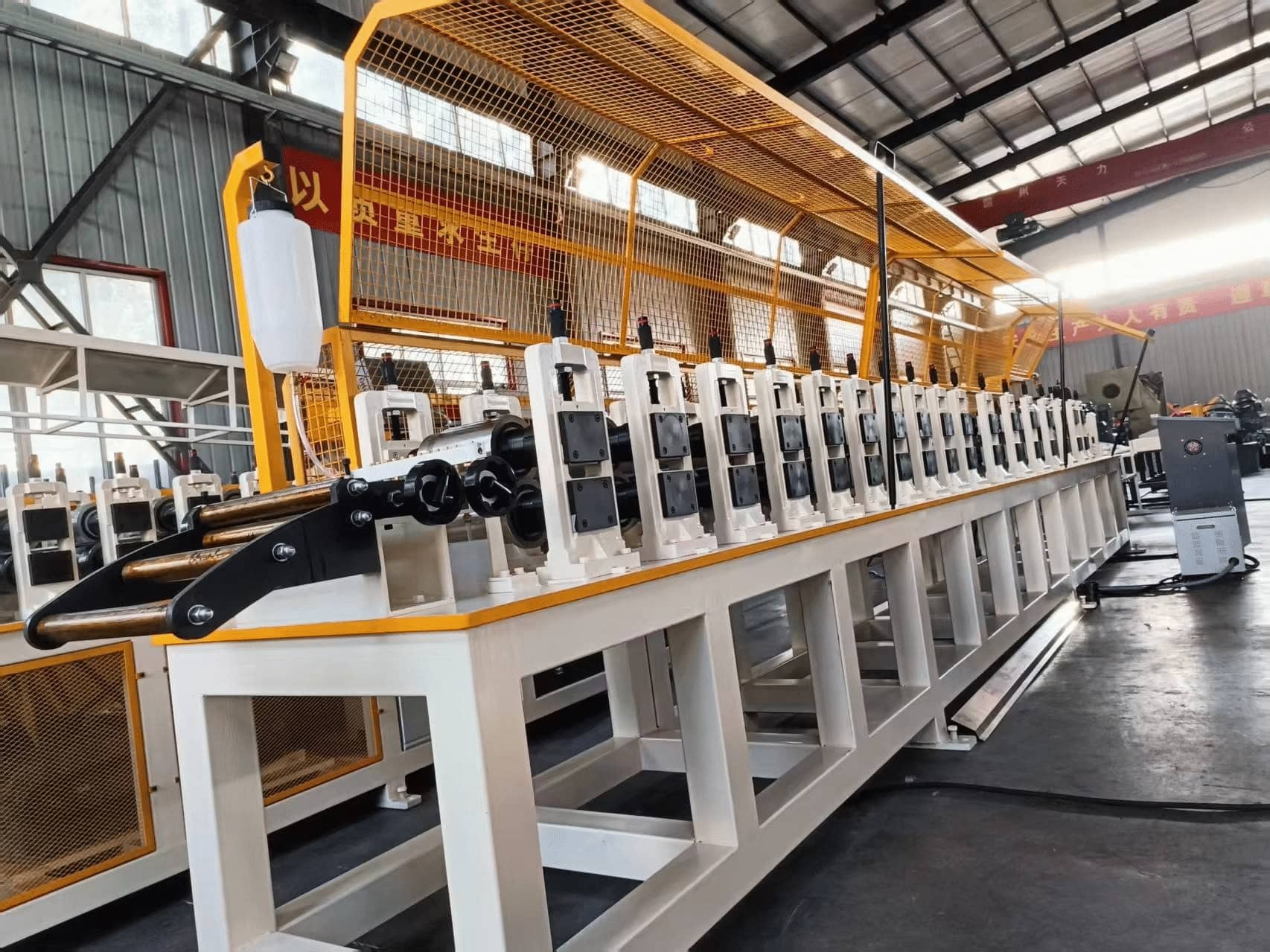

North America Hot Sale Drip Edge Roll Forming Machine is an automated cold bending equipment specifically used for producing building eaves drainage components – drip eaves (also known as drip troughs, eaves machines, floor troughs). It uses precision rolling technology to process metal coils such as color coated steel plates and galvanized plates into eaves profiles with specific cross-sectional shapes, ensuring smooth drainage of rainwater and preventing backflow and leakage.
Application scenarios:
The profiles produced by the drip eaves molding machine are key “detail” components in the building enclosure system, mainly used to solve the trimming and drainage problems of eaves and corners.
• Steel structure factory and warehouse:
used for trimming the eaves of color steel tile roofs to ensure that rainwater from large areas of the roof can be discharged into the gutter in an orderly manner, preventing leakage from the eaves joints.
• Large public buildings:
Metal roofing systems suitable for airports, sports centers, exhibition centers, and other buildings, with a sleek and aesthetic effect that also takes into account building aesthetics.
• Civil and commercial buildings:
widely used for edge wrapping of eaves and corners of buildings such as villas, supermarkets, logistics centers, etc., to enhance the overall waterproof performance and appearance cleanliness of the building.
• Composite board building:
used for the bottom closure of composite board wall panels and roof panels, forming U-shaped grooves or floor grooves, which serve the dual functions of edge sealing and water diversion.
Product Attributes :
|
1.Formed Material
|
PPGI,PPGL,AI,Etc.
|
Material Thickness:0.5-0.7mm
|
||
|
2.Decoiler
|
Hydraulic decoiler(optional)
|
Manual decoiler(will give you as free)
|
||
|
3.Main body
|
Roller station
|
14 rows (as your requirement)
|
||
|
Diameter of shaft
|
60mm solid shaft
|
|||
|
Material of rollers
|
High Grade 45# Forged Steel, hard chrome plated on the surface(Chrome Thickness:0.05 mm)
|
|||
|
Machine body frame
|
Due to your requirement profile
|
|||
|
Drive
|
Gearbox
|
|||
|
Dimension(L*W*H)
|
Due to design
|
|||
|
Weight
|
Due to design
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5KW(normally)
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
As your requirement
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
Support multiple languages
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
0-45m/min
|
Provide customized
|
||
Pattern diagram:
Main Features:
The North America Hot Sale Drip Edge Roll Forming Machine integrates multiple practical technologies aimed at improving construction efficiency and waterproofing effect:
1.Multi purpose and adjustable specifications:
Many models of drip eaves machines support switching between multiple specifications (such as 50mm, 75mm, 100mm and other different sizes of floor troughs), and one device can produce multiple matching edge strips to adapt to different thicknesses of color steel plates and composite plates, reducing equipment investment and material waste.
2.High molding accuracy and good waterproof effect:
The equipment can accurately press out edges with a “drip rock” design, and its unique curvature can effectively guide water flow, avoiding rainwater from flowing back to the wall along the eaves, fundamentally solving the water leakage hazard at the joints of eaves and corners.
3.High degree of automation:
Using PLC programming controller, the automation level is high, the production speed is fast, the edges are neat and tight, the finished product quality is stable, like a factory assembly line, significantly better than manual folding, saving time and effort.
4.Sturdy structure and stable operation:
Equipment racks are usually designed to be sturdy and durable, able to adapt to various environments such as construction sites or workshops, ensuring long-term stable operation.
