Equipment introduction

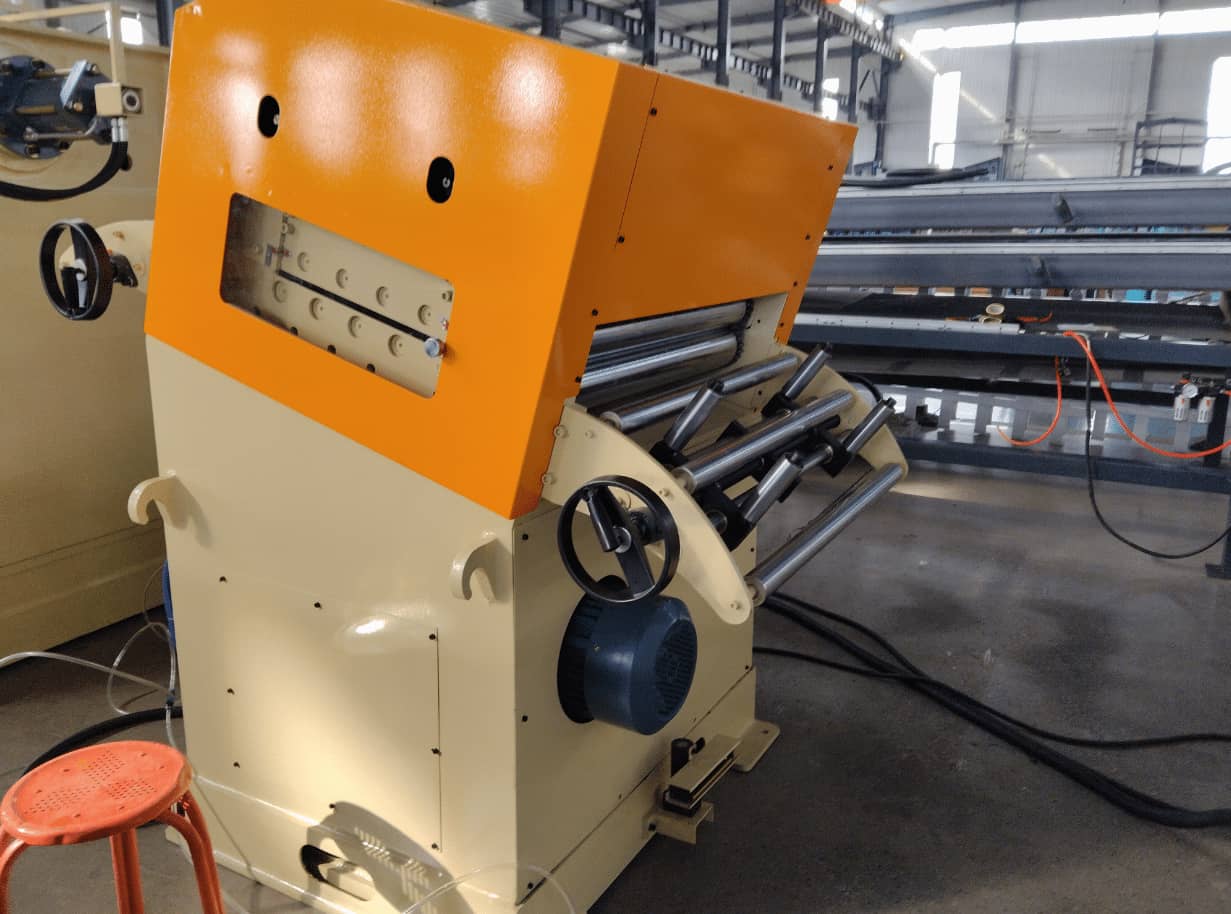

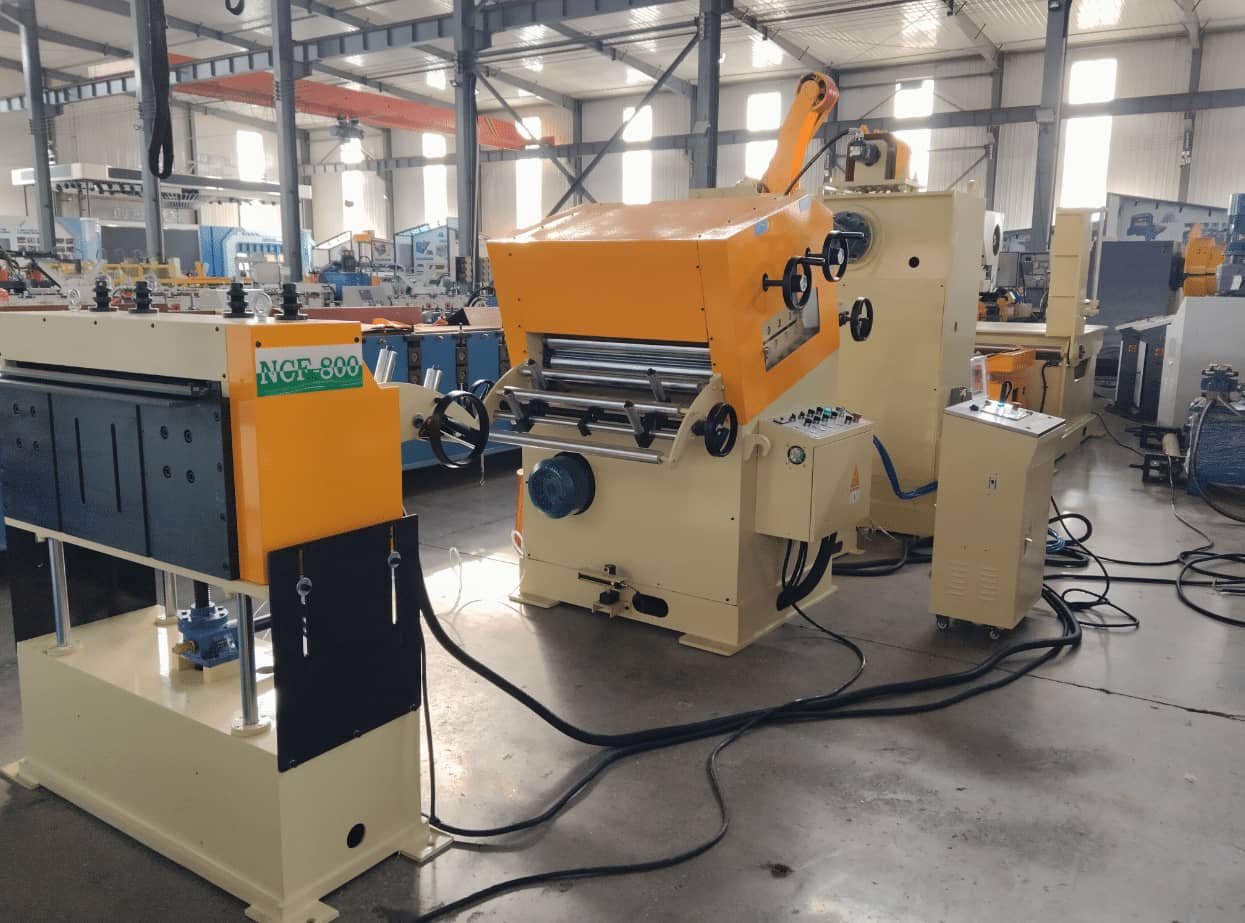

The 6T Hydraulic decoiler with leveling device machine (also known as the two-in-one uncoiling and leveling machine, or the two-in-one material rack leveling machine) is an integrated equipment for the preprocessing of metal coils.
• Core function: This equipment combines the two processes of “uncoiling” and “leveling” into one, which can be simply understood as a machine for “decompressing” and “ironing” steel coils. It first unfolds the coiled metal sheets (such as steel strips and aluminum strips), and then uses multiple sets of high-precision rollers to restore the flatness of the sheets deformed by curling.
• The “two-in-one” concept refers to a device that integrates an independent uncoiler (material rack) and a leveler (straightener) into a single unit, significantly reducing the length of the production line and the equipment footprint.
• Equipment composition: It primarily consists of a feeding rack (with a braking device), a leveling main unit, a transmission system, and an electronic control system (usually including a frequency converter for speed regulation), among other components.
Product Attributes :
| 1 | Raw material width | 200-800mm |
| 2 | Material thickness | 0.5-4mm (DC01 steel) |
| 3 | Feeding speed | 16m/min(adjustable) |
| 4 | Feeding direction | Customized by customer |
| 5 | Voltage | 380V/50HZ/3P (customized by customer) |
| 6 | Feeding roller | 2 sets |
| 7 | Feeding roller diameter | Φ120mm |
| 8 | Leveling roller | 9 pieces , Up 4 /down 5 |
| 9 | Leveling roller diameter | Φ100mm |
| 10 | Leveling Roller material | 40Cr round steel |
| 11 | Leveling accuracy | ≤±1.5 |
| 12 | leveling adjustment | Precision worm gear adjustment upper and lower clearance |
| 13 | Leveling amount display | Scale display |
| 14 | Leveling Motor | 3KW |
| 15 | Pneumatic system pressure | ≤0.6Mpa |
| 16 | Decoiler capacity | 6 tons |
| 17 | Coil inner diameter | Φ470mm-Φ530mm |
| 18 | Coil outer diameter | Φ1500mm (Max) |
| 19 | Decoiler type | The shrink and expand of core is by hydraulic power, The coil moving forward or reverse is pulled by motor |
| 20 | Coil loading car | Load the coil on the decoiler easily |
| 21 | Coil flipping car | Flip the coil on the coil loading car |
Equipment advantages:
1.High straightening accuracy, without damaging the material
This is its most crucial technical advantage, which is mainly reflected in the following points:
• Fully-driven design: The leveling section utilizes universal joints and gears for full drive, effectively preventing scratches on the material caused by the passive rotation of the upper roller.
• High-quality roller: The leveling roller is typically made of solid bearing steel, which undergoes heat treatment and hard chrome plating, resulting in high hardness and good wear resistance, ensuring long-term stable leveling effect.
• Precision adjustment: Equipped with a dial gauge and a balance fine adjustment device, it can precisely control the leveling gap according to the material thickness, making it suitable for precision stamping processes.
• Design optimization: By adding a correction back pressure wheel to enhance rigidity, the straightening effect is improved. Additionally, the down-feeding method facilitates stable conveyance of thin materials, making them less prone to scattering.
2.High automation and convenient operation
• Independent electrical control: The material rack and leveling machine are typically controlled separately using independent electrical boxes, equipped with frequency converters for smooth operation and excellent protection performance.
• Photoelectric sensing: Equipped with a variable frequency speed regulation and photoelectric sensing control system, it can achieve uniform speed adjustment and automatic start-stop, facilitating online integration with subsequent stamping equipment to achieve automated production.
• Convenient maintenance: Some models feature a hinged drum structure, facilitating daily cleaning and maintenance.
3.Efficient production, reduce costs
• Improving efficiency: Immediately straightening after unrolling reduces material circulation and preparation time.
• Labor saving: Automated operation and stable performance reduce the reliance on manual labor and material waste.
• Reduced investment: Compared to the “three-in-one” feeder, this equipment has lower procurement costs and is the preferred solution for many small and medium-sized enterprises entering automated production.
• Flexible expansion: The equipment has good versatility, capable of processing metal coils of various materials and specifications. Additionally, it can be equipped with functions such as a pressing arm and hydraulic expansion according to needs, further enhancing operational convenience and safety.
contact us：
We provide a complete service, from factory layout planning and equipment installation and commissioning to operator training and lifetime technical support. Invest with confidence, operate with ease, and profit happily.
Contact us today for customized production solutions and quotes, and usher in a new era of efficient manufacturing!
