What is a High-Accuracy Automatic Cable Tray Roll Forming Machine?

Are you curious how standardized, uniform, and stable-load cable tray systems—whether trough-type, tray-type, or ladder-type—are achieved through efficient mass production?

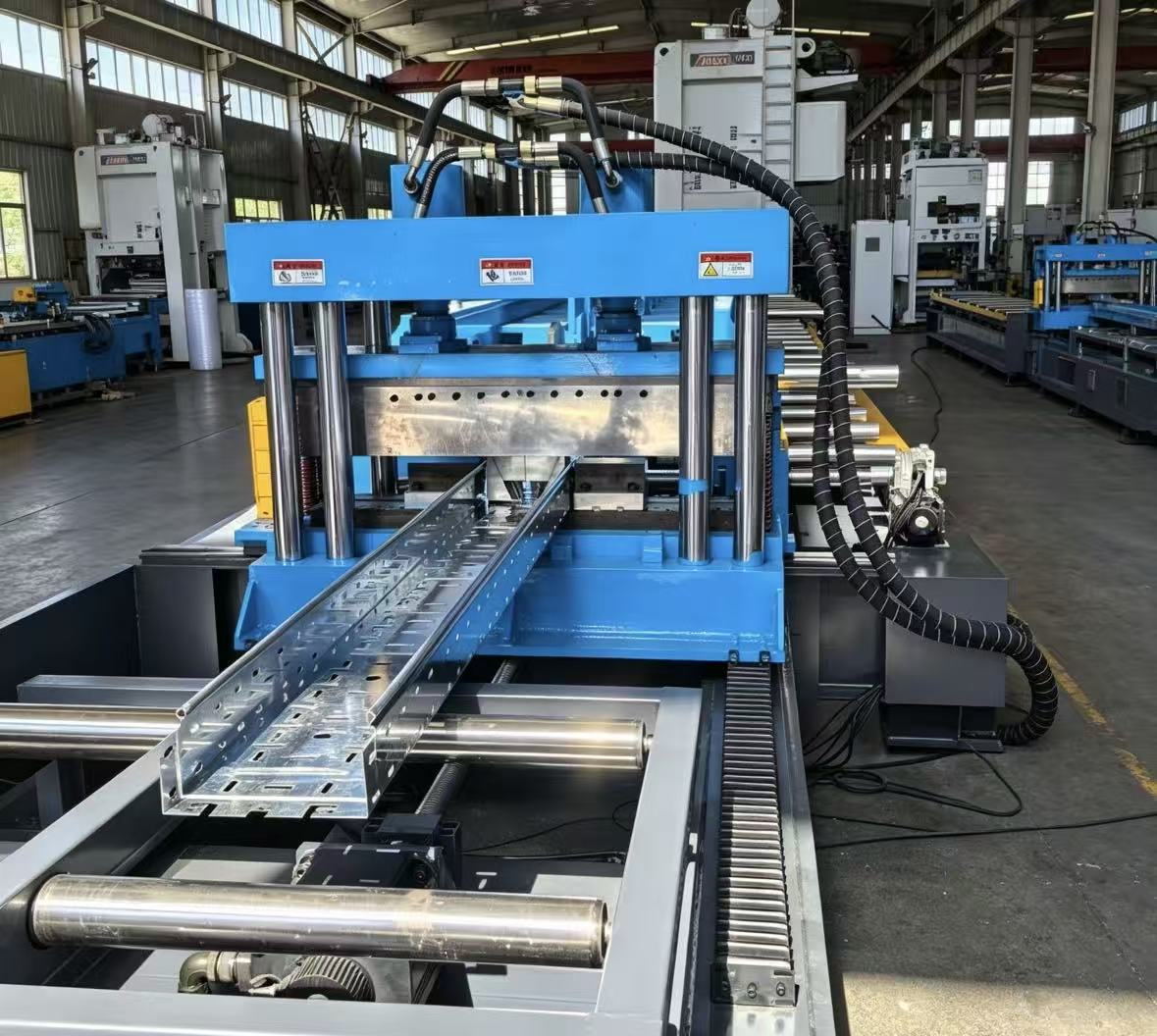

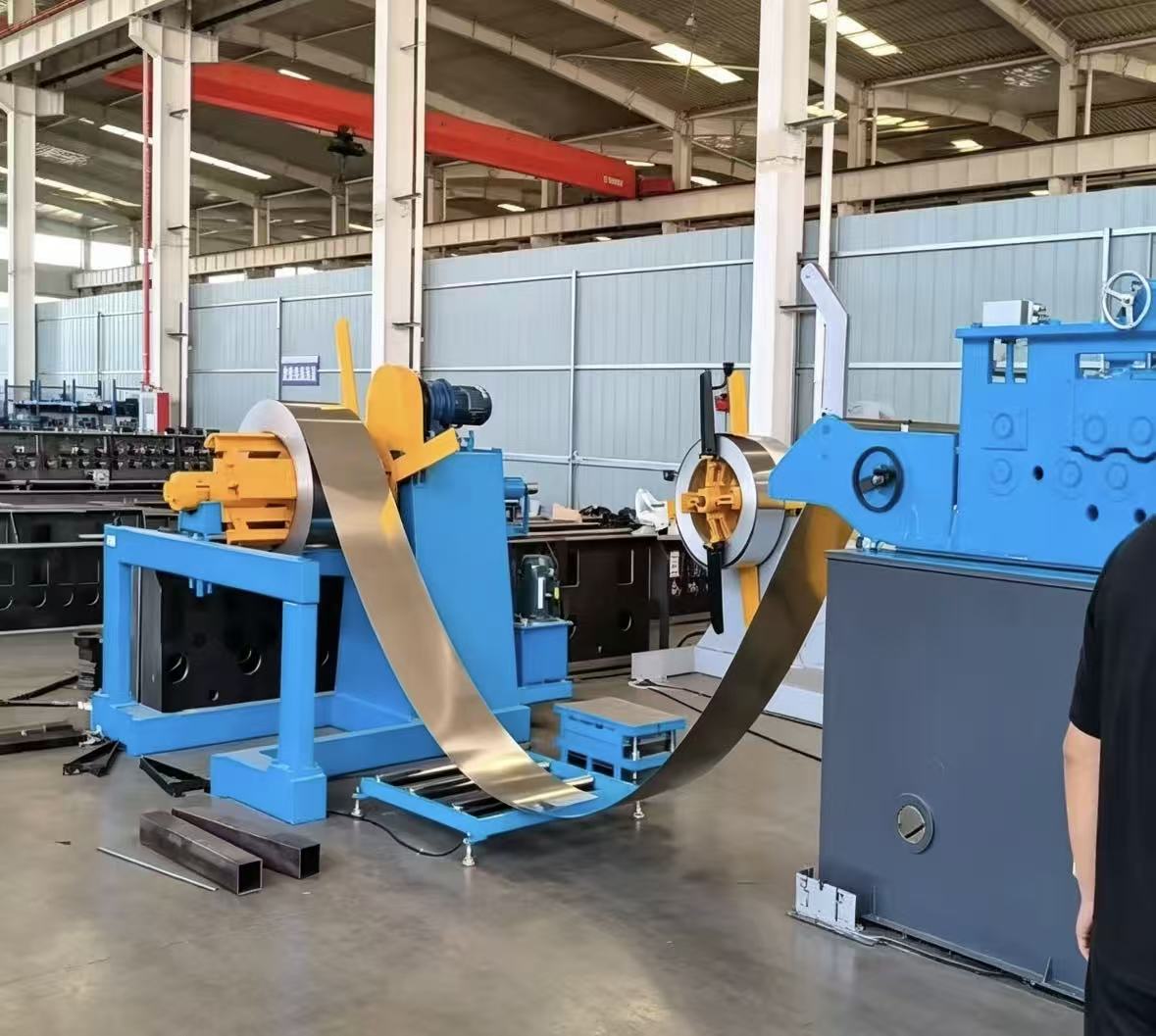

The High-Accuracy Automatic Cable Tray Roll Forming Machine is an all-in-one fully automated production equipment developed based on cold bending roll forming technology, serving as the core and primary device in the cable tray processing industry. It breaks away from the outdated model of segmented processing and manual auxiliary forming, integrating decoiling, leveling, punching, roll forming, hydraulic cutting, and automatic material collection into a single system. Eliminating the need for multiple interconnected devices or cumbersome manual intervention, it can directly process raw materials such as galvanized steel strips and aluminum strips into various standard and non-standard finished cable trays in a single operation.

Pattern Diagram:

Wide market:

Where there are cables, there are cable trays.
Where there is a demand for cable trays, there are business opportunities for you.

What production scenarios can cable tray forming machines adapt to?

Are you still hesitating about whether this device is suitable for your business track? In fact, its application scenarios cover all industries and meet the vast majority of cable tray production and engineering support needs.

1. Industrial Plant Supporting Scenarios
Factory workshops and industrial parks require a large number of high-strength, high-stability cable trays for power and equipment wiring. This equipment can mass-produce industrial-grade cable trays with high load-bearing capacity and corrosion resistance, meeting the wiring standards for heavy and light industrial plants and fulfilling the production needs of large-scale infrastructure construction.

2. Commercial and Construction Engineering Scenarios
Commercial buildings such as office towers, shopping malls, hotels, and integrated complexes have extremely high requirements for the aesthetic appearance, dimensional accuracy, and installation compatibility of cable trays. The finished products manufactured by the equipment are neat and flawless, with standardized specifications that fully comply with the electrical engineering acceptance standards for commercial buildings, making them suitable for various municipal and commercial infrastructure supporting orders.

3. New Energy and Power Engineering Scenarios
R1: “anti-aging” must be translated as “anti-aging” Photovoltaic power stations, wind power projects, power grid upgrades, substations, and other power engineering projects impose stringent requirements on the safety, durability, and precision of cable trays. The equipment can produce high-strength, anti-aging, and outdoor-complex-environment-adapted power-specific cable trays, precisely meeting the high-standard construction demands of new energy power engineering projects.

Product Attributes :

Why is the cable tray forming machine the industry’s preferred choice?

Why are more and more processing plants and building materials enterprises replacing old equipment and choosing fully automatic cable tray forming machines for the same production of bridge equipment? Its core advantages are hidden in every detail that meets production needs.

1.Can fully automated integrated production really double efficiency?
Of course! The equipment is fully automated and closed-loop production, with no one on duty throughout the entire process from raw material feeding to finished product discharge, eliminating the cumbersome process of traditional processing with multiple steps such as transportation, manual calibration, and manual cutting. The continuous roll forming process supports 24-hour stable and uninterrupted operation, with fast forming speed and continuous discharge, greatly reducing the production cycle of a single batch. Compared with traditional equipment, the production efficiency can be improved several times, making it easy to meet the urgent needs of large batch orders and completely bid farewell to the problems of insufficient production capacity and order backlog.

2. Can the accuracy of products be maintained uniformly in mass production?
Absolutely possible! The equipment is equipped with a servo drive system and a laser intelligent correction device. Multiple sets of high-precision quenching rollers are precisely shaped layer by layer, and the deviation rate of the sheet can be controlled below 0.3%. Hydraulic fixed length cutting and precise punching technology ensure that the aperture, curvature, size, and cut of each bridge are standardized and uniform, without burrs, deformations, or wrinkles. Full process intelligent parameter locking, eliminating manual operation errors, and achieving high consistency in batch production, perfectly meeting the strict acceptance standards of various projects.

3. Flexible adaptation to multiple specifications, are you still worried about the hassle of changing models?
No need for frequent mold changes, no need for complex debugging! The device supports parameterized one click control, which can quickly switch between various types of cable trays such as trough type, tray type, step type, and porous type. It is compatible with different thicknesses of 1.0mm-3.0mm boards, easily meeting the non-standard customization needs of different scenarios such as power, construction, and new energy. One device replaces multiple traditional models, significantly reducing equipment procurement costs and site occupation, and maximizing flexible production capacity.

Finally, let me ask you one more crucial question:

Do you want to continue struggling on the old path of low efficiency and high cost, being chased by orders and abandoned by profits? Do you still want to use an automated production line to completely change your competitive position, take on larger orders, and earn more stable money?

If you already have the answer in your heart, what are you waiting for?

Click below to contact us immediately for your exclusive production line plan and detailed quotation. Let change begin today.
