The Metal Colored Steel Wall Cladding Sheet Panel Roll Forming Machine is usually a highly automated cold bending production line, and its standard process includes: unwinding and discharging → sheet guiding and laminating → roll forming → fixed length distance measurement → automatic cutting → finished product discharge. The entire line is centrally controlled by PLC (Programmable Logic Controller), and operators can set production parameters through the human-machine interface to achieve continuous and stable output from raw materials to finished products.

The device has demonstrated good industry adaptability in terms of technical parameters:

Processing range: The thickness of materials that can be processed is usually between 0.3mm and 0.6mm, and some equipment can process thin aluminum plates of 0.2mm or steel plates as thick as 1.2mm.

Molding speed: The molding speed can usually reach 10-15 meters per minute, with some standard models having a speed range of 15-30 meters per minute.

Applicable materials: Widely supports various metal coils such as color coated steel plates, galvanized steel plates, aluminum zinc coated steel plates, aluminum coils, etc.

Application scenario: Covering multidimensional requirements of modern architecture

The products produced by the metal exterior wall hanging panel forming machine are widely used in various construction projects due to their beauty, weather resistance, and fast construction

• Industrial buildings:
In large industrial buildings such as factories, warehouses, locomotive depots, and aircraft hangars, as exterior and roof materials, it provides high-strength and durable enclosure solutions that can effectively resist dust and slight corrosion in industrial environments.

• Public and commercial buildings:
used in sports halls, exhibition halls, cinemas, office buildings, shopping malls and other places to create modern and atmospheric building facades. Through rich color and panel design, the landmark and artistic sense of the building are enhanced.

• High end residential and cultural tourism projects:
In villas, resorts, and other projects, metal cladding can be used for exterior wall decoration, creating a unique architectural style of modern simplicity or rural style, and its environmental characteristics also conform to the concept of green building.

Product Attributes :

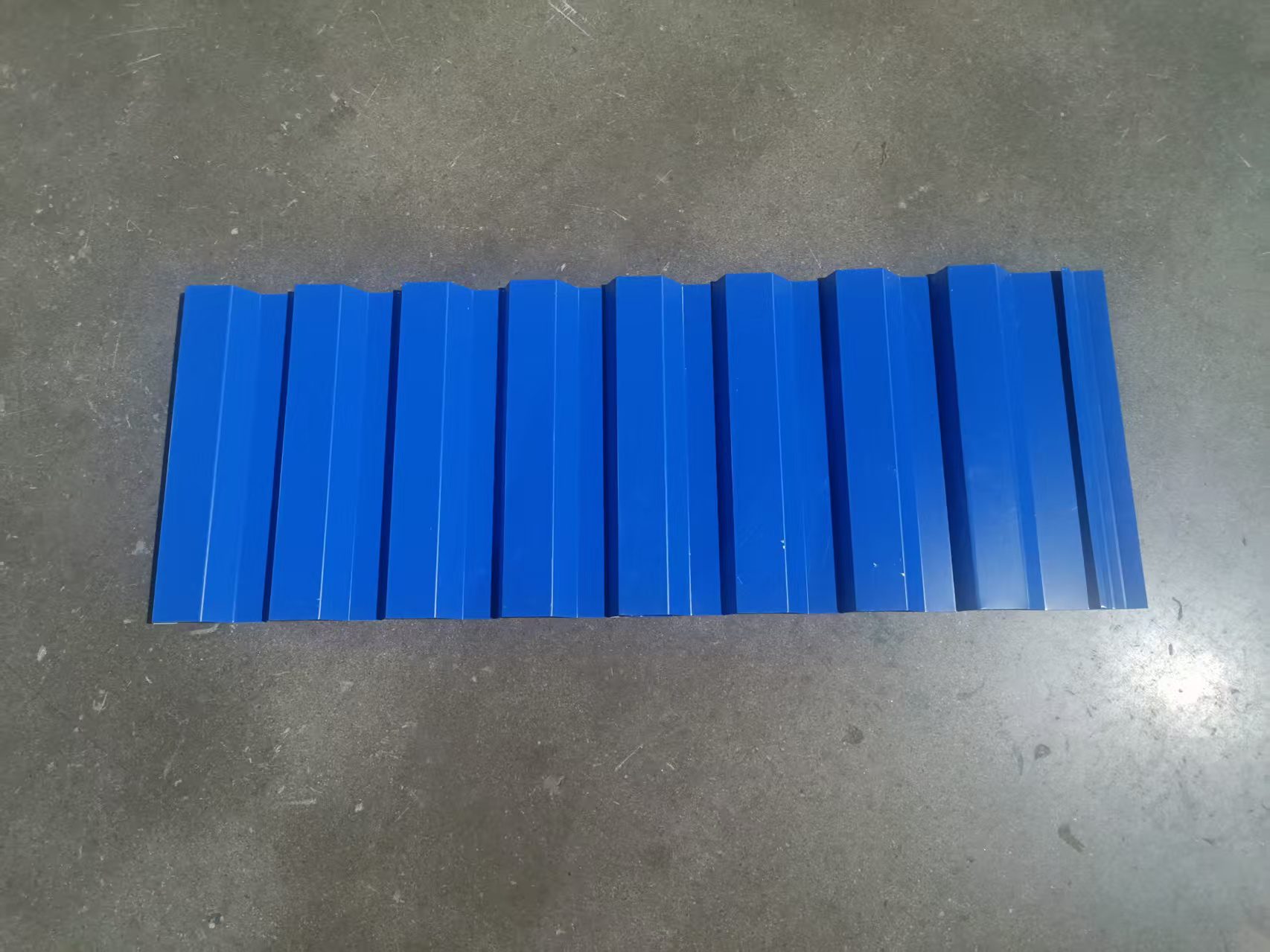

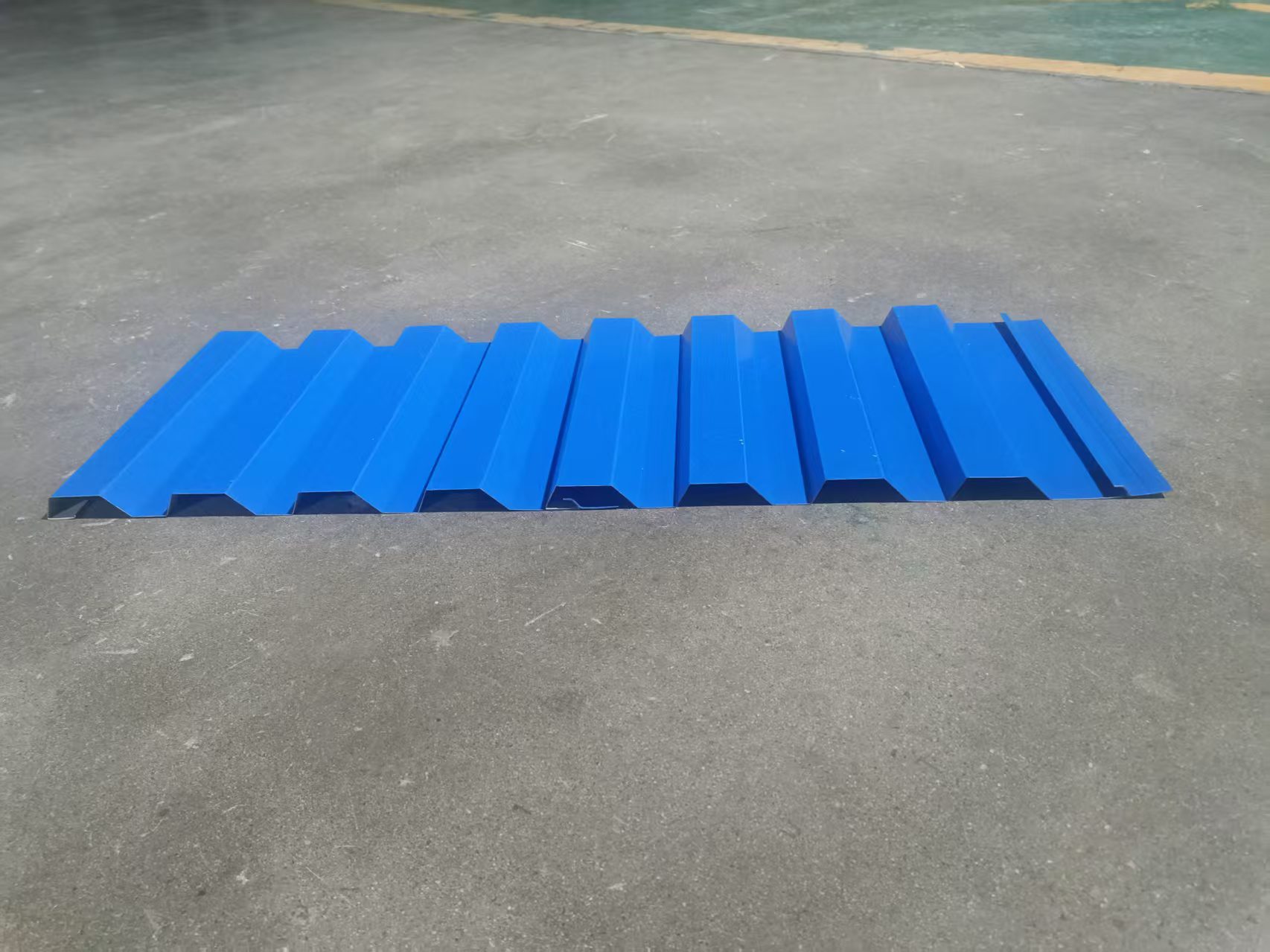

Pattern diagram：

Core feature: Excellent performance forged by technological accumulation

The advantages of the metal exterior wall hanging panel forming machine stem from a deep understanding of the forming process and precision manufacturing:

1. High precision “progressive” molding to ensure product quality

Unlike simple equipment that undergoes significant deformation in a single step, modern exterior wall cladding forming machines use multiple roller groups to gradually bend and process metal plates. For example, for complex waveform hanging boards, the equipment will sequentially pass through the middle waveform forming roller group, the two side waveform forming roller group, and the outer waveform forming roller group, and the bending angles of the forming wheels for each pass within each group are designed to gradually increase. This progressive forming process of “breaking down the whole into parts” effectively avoids wrinkles, dimensional instability, and shape deformation problems caused by excessive single deformation of the sheet metal, ensuring accurate shape and flat surface of the finished product, laying the foundation for efficient assembly in the future.

2. High rigidity body and durable components ensure long-term stable operation

The core structure of the equipment adopts high standard materials and processes. The main frame is mostly welded with 350H steel or 400H steel, and is matched with a 16mm thick middle plate to ensure the rigidity and stability of the equipment under long-term high-speed and heavy loads. Forming rollers are usually made of 45 # forged steel and plated with hard chromium, or made of materials such as GCr15 (bearing steel), which have extremely high wear resistance and smoothness. The cutting blade is made of die steel such as Cr12MoV and quenched to ensure sharpness and durability under millions of cutting actions.

3. Intelligent control and humanized design to improve production efficiency

The use of PLC control system is a standard configuration of the equipment, which is matched with an encoder to accurately measure the length. When the finished product reaches the set length, the equipment automatically completes cutting and continues to operate, achieving unmanned continuous operation. Some devices also integrate online film coating function, which can cover the surface of metal plates with protective film, effectively preventing scratches during transportation and installation. In addition, the cutting length tolerance can be controlled within ± 1mm, ensuring the height consistency of product dimensions and providing a guarantee for standardized construction.

4. The product is aesthetically diverse and suitable for modern architectural needs

The metal exterior wall panels produced by the equipment have a fashionable and three-dimensional appearance, and can be designed with different roller shapes to give traditional wall panels a visual effect of imitating stone patterns, wood grain, or modern ripples. At the same time, the metal material itself has excellent properties such as frost resistance, heat resistance, and wind resistance. Combined with the transverse flow channel designed on the board, it can effectively improve the waterproof and ventilation performance of the wall and extend the service life of the building.

contact us：

The metal exterior wall hanging panel forming machine is not only a tool for forming metal sheets, but also a bridge connecting industrial design and architectural aesthetics. It transforms cold metal coils into functional and decorative architectural “outerwear” with high-precision progressive forming technology, high rigidity structural design, and intelligent control system. Whether it is industrial plants that pursue efficiency and durability, or modern buildings that pursue style and quality, it is a trustworthy forming partner that continues to empower innovation and upgrading in the construction industry.
