In the field of architecture, roof tiles are not only functional components for shelter from wind and rain, but also important expressions of architectural style and quality. From modern industrial plants to rural residences, from urban commercial complexes to tropical vacation villas, trapezoidal roof tiles are becoming the preferred choice for more and more architects due to their simple and neat lines, excellent drainage performance, and wide adaptability. And what gives these metal tiles their perfect form is the core equipment behind them – the Trapezoidal type roofing sheet wall panel roll forming machine.

This is an intelligent production line that accurately shapes color coated steel plates, galvanized plates, or aluminum plates into trapezoidal section tiles through continuous cold bending technology. It integrates precision machinery, hydraulic transmission, and automatic control technology, and is a key tool for building material manufacturing enterprises to improve production capacity and ensure quality.

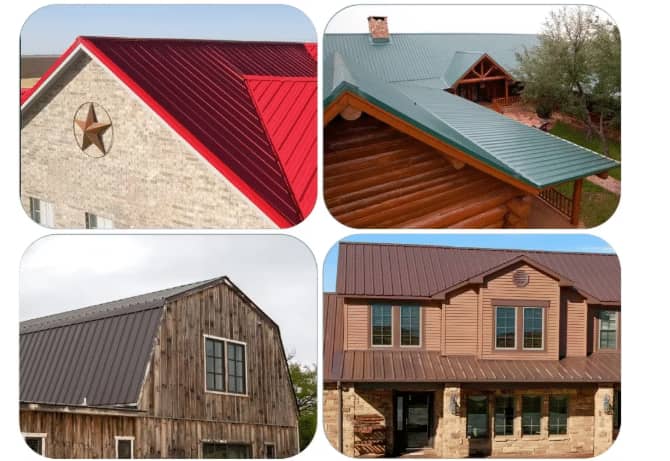

Application scenario: Diversified architecture, showcasing its capabilities

• Industrial plants and logistics warehousing:
This is the most widely used field for trapezoidal roof tiles. Large area and large-span roofs require materials with light weight, high strength, and fast drainage. Trapezoidal tiles, combined with concealed or penetrating fasteners, can be quickly installed with extremely high construction efficiency, making it an economical and preferred solution for steel structure factory roofs.

• Commercial buildings and public facilities:
Sports centers, exhibition centers, transportation hubs, and other buildings pursue a modern and distinctive appearance. Colorful trapezoidal metal tiles provide a wide range of color options, and their simple and powerful lines can perfectly blend with modern architectural styles, while meeting the laying needs of large-span curved or irregular roofs.

• Residential self built houses and rural construction:
In self built houses, villas, and beautiful rural construction projects, trapezoidal roof tiles are gradually replacing traditional heavy tiles due to their advantages of lightweight, high strength, earthquake resistance, wind resistance, and easy installation. Its rich colors and antique or modern appearance can meet personalized aesthetic needs while effectively reducing the load on building structures.

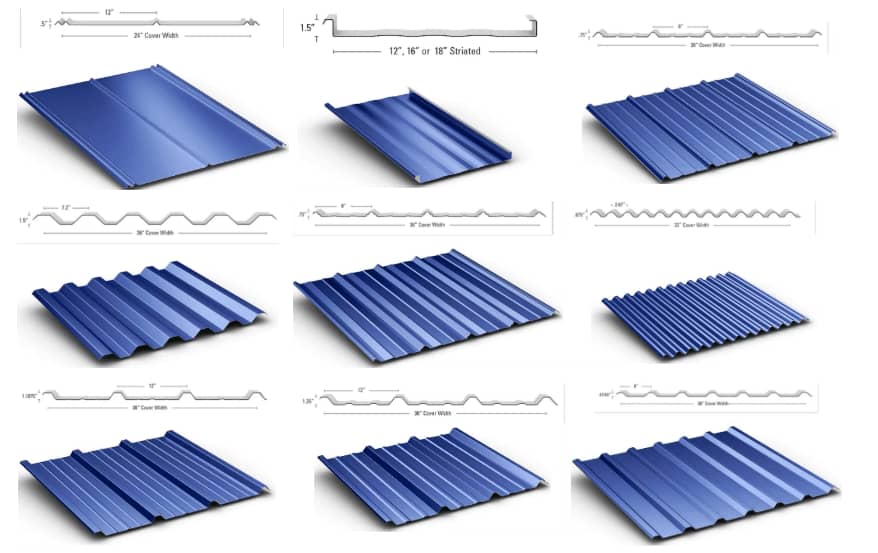

Pattern Diagram:

Product Attributes :

Core features: Five major advantages, defining industry benchmarks

1.Efficient continuous production, leap in production capacity
The equipment adopts fully automatic continuous roll forming technology, from coil feeding, feed guidance, cold bending forming to fixed length cutting and finished product stacking, with uninterrupted automatic operation throughout the entire process. The production speed can reach up to 20-35 meters per minute, and the single shift output can easily exceed 10000 meters, greatly reducing the delivery cycle and calmly responding to the centralized supply demand of large-scale projects.

2.Accurate molding, consistent quality
The key dimensions of trapezoidal tiles, such as peak height, wave distance, and overlapping edges, directly affect the bite degree of on-site installation and the overall waterproofing effect of the roof. The equipment is equipped with a high-precision rolling mill system and servo fixed length flying shear, ensuring that the cross-sectional size error of each tile is controlled within ± 0.5mm, and the cutting edge is smooth without burrs, achieving high consistency and interchangeability of the product.

3.Flexible compatibility, one machine with multiple types
The same equipment can flexibly produce various trapezoidal cross-section tile shapes by replacing the rolling mill group or adjusting the forming parameters. Whether it is standard trapezoidal tiles with different corrugated heights, high-strength tiles with reinforced ribs, or composite tiles with wave and trapezoid shapes, one device can cover the mainstream market demand, achieving multi-purpose and flexible production of one machine.

4.Durable and sturdy, with low maintenance costs
The core forming roller is made of high-quality alloy tool steel (such as Cr12MoV), and after vacuum heat treatment, the surface hardness can reach HRC58-62, with excellent wear resistance. The overall structure adopts a heavy-duty profile welded frame, which has undergone stress relief treatment, with sufficient rigidity and minimal deformation. It maintains stable accuracy under long-term high-frequency operation and has a service life of over ten years.

Squeeze out excitement, carry the future

An advanced trapezoidal roof tile forming machine production line is a bridge connecting high-quality raw materials and premium roof products. It represents not only the improvement of production capacity, but also the leap of product quality and the reshaping of enterprise competitiveness.

We are committed to providing one-stop turnkey engineering services from complete machine design, mold development to installation and commissioning, and technical training. Choosing us means choosing a trustworthy long-term partner. Let’s join hands and use precision equipment to create wonderful pieces, and together build a solid dome of beautiful living!
