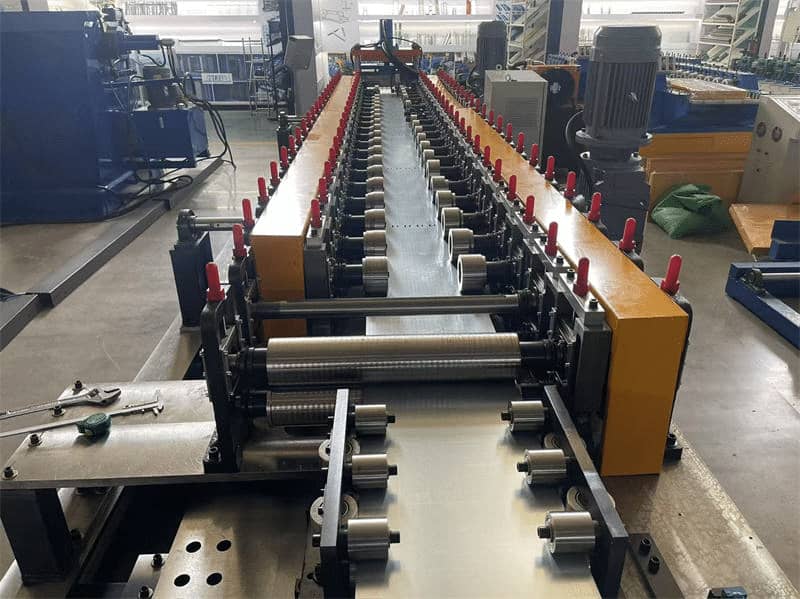

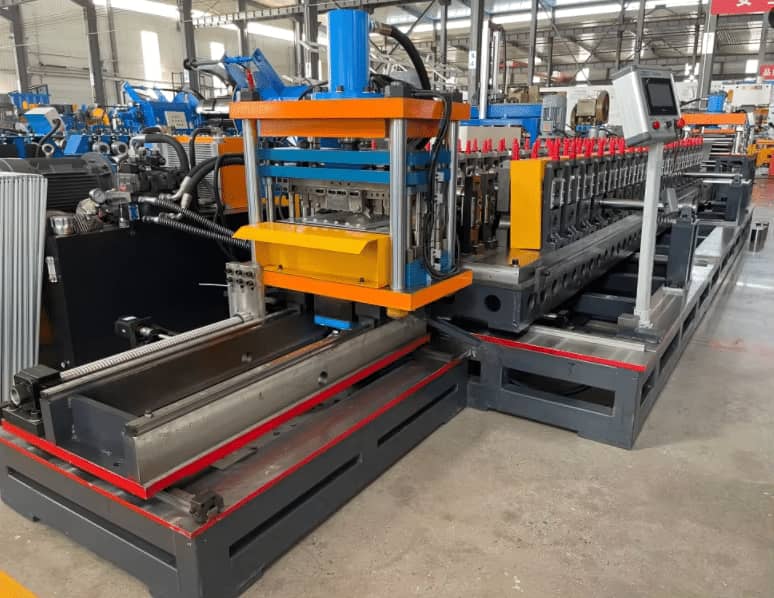

The Metal Supermarket Shelf Back Panel Profile Rolling Forming Machine is a fully automatic cold bending and rolling forming equipment, which specializes in processing galvanized/cold-rolled steel strip coils into metal components such as supermarket shelf shelves, trays, backboards, etc. in one go.
Process flow: uncoiling → leveling → servo feeding → punching/cutting → rolling forming → hydraulic cutting/flanging → unloading, fully PLC controlled, no manual intervention required.
Application scenarios：
• Supermarket retail:
shelves, pallets, backboards, and end frames in supermarkets/convenience stores, with strong load-bearing capacity, easy cleaning, and corrosion resistance.
• Storage and logistics:
e-commerce warehouses, logistics centers, lightweight storage shelves, picking pallets, turnover box side panels.
• Industrial and Commercial:
Factory workshop material racks, tool cabinet partitions, pharmacy/stationery store display racks, storage cabinet trays.
• Customized furniture:
metal cabinet shelves, display cabinet partitions, DIY shelf accessories, high efficiency for mass customization.
Product Attributes :
|
Size of main part
|
about 15000 х 1850 х 1500 mm
|
|||
|
Weight of main part
|
about 15.5 t
|
|||
|
Processing material
|
galvanized coils yield strength till 550 Mpa
|
|||
|
Material thickness
|
0.4-0.8mm
|
|||
|
Input material width
|
285mm~685mm
|
|||
|
Effective width after forming
|
285mm~685mm
|
|||
|
Voltage
|
380 v 60 hz 3 phase or as request
|
|||
|
Frame
|
400 H beam steel welded
|
|||
|
Roller fixer
|
Middle plate (thickness 20mm)
|
|||
|
Drive mode
|
2 inches double chain with chain tensors(gearbox type optional)
|
|||
|
Material of rollers
|
Gcr15 quenching treat HRC58-60
|
|||
|
Material of shafts
|
45# steel precision-machined
|
|||
|
Diameter of shafts
|
φ 95 mm
|
|||
|
Number of rollers
|
about 30 rollers
|
|||
|
Drive motor power
|
15 kw
|
|||
|
Forming speed
|
4-8 m per minute
|
|||
Pattern diagram:
Core Features：
1.Fully automated and efficient production:
from coil to finished product integration, speed 8-15 m/min, daily production capacity of thousands of pieces, saving labor and improving product yield.
2.High precision and strong interchangeability:
servo positioning+CNC adjustment, dimensional tolerance * * ± 0.5 mm * *; Roller quenching chrome plated (HRC58-62), long-term stability, wear resistance and durability.
3.Strong flexibility and compatibility with multiple specifications:
adjustable width of 300-640mm and thickness of 0.5-1.0mm, one click changeover, suitable for multi size trays/shelves.
4.The structure is sturdy and the finished product has good load-bearing capacity:
using rolling reinforcement and folding process, the tray has strong load-bearing capacity and deformation resistance, suitable for heavy-duty scenarios in supermarkets.
5.Wide material adaptability and low cost:
available in cold-rolled steel, galvanized steel, and stainless steel, with high material utilization rate, minimal waste, and low overall cost.
