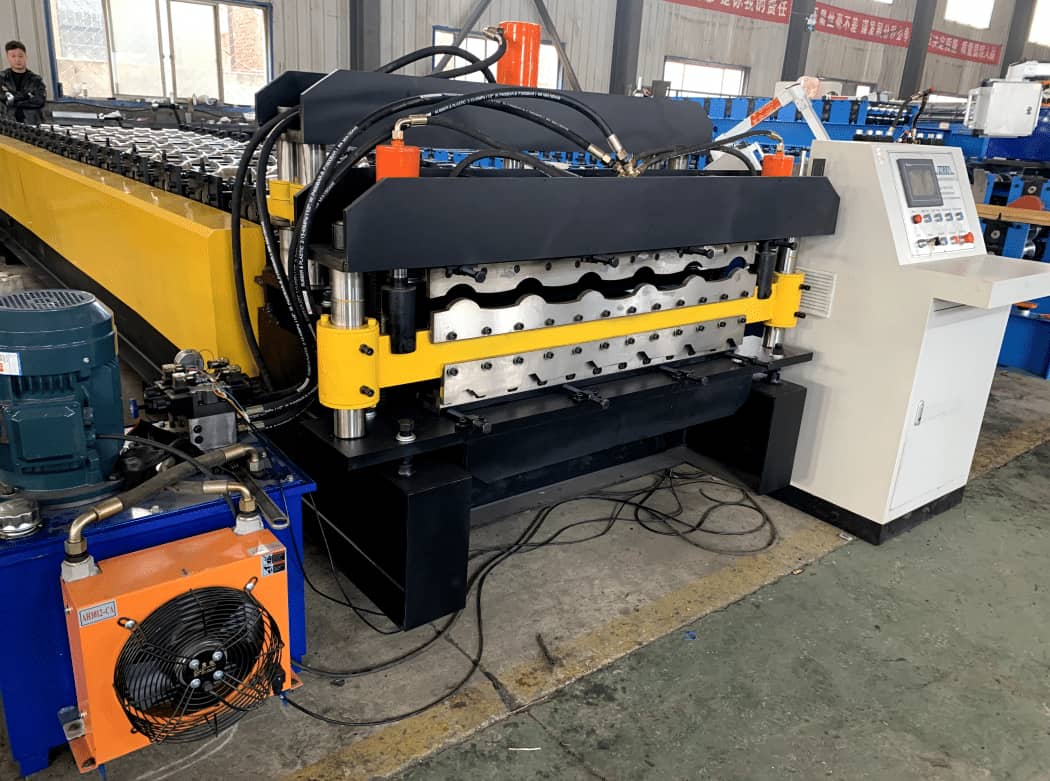

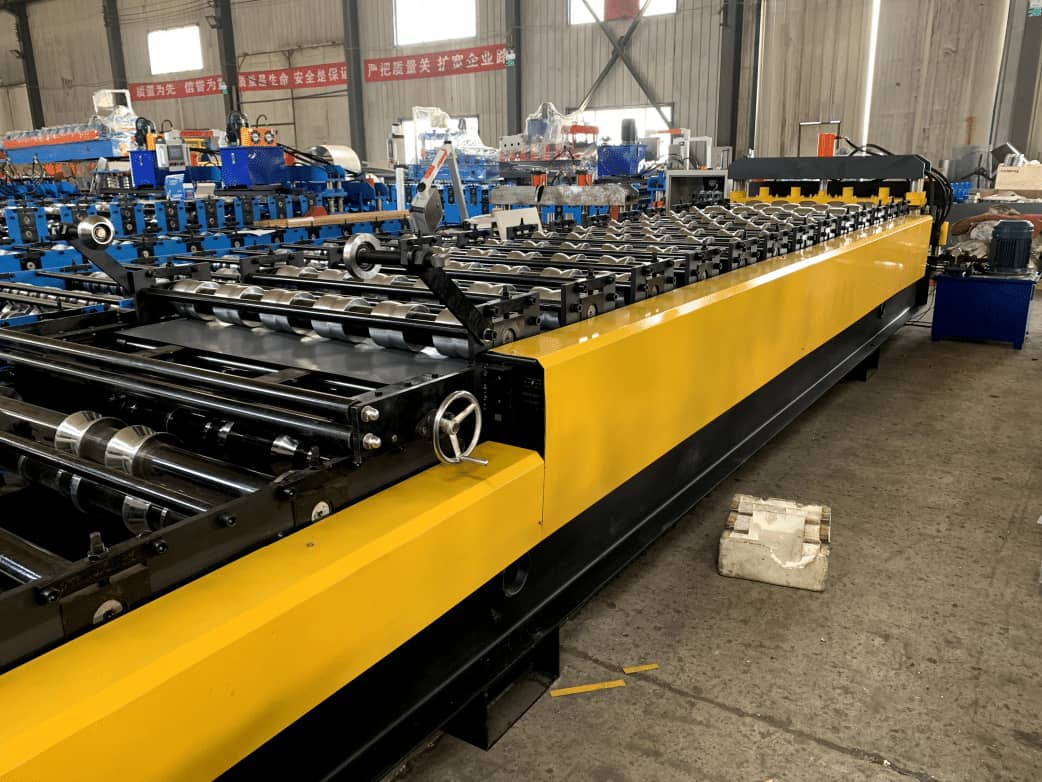

The Hot Sale Double Layer Glazed Tile Making Forming Machine is an efficient and multifunctional automated production equipment, specifically designed to continuously process metal coils such as color steel plates and galvanized plates into two different types of roof or wall tiles.
Introduction and Working Principle:
The device adopts a double-layer structure, integrating two independent molding systems on one rack. Each forming layer has its own independent roller station and cutting system, which can work independently or collaboratively.
The basic workflow is as follows:
1.Automatic feeding: The metal coil is placed on the unwinding machine and automatically fed into the equipment.
2.Roll forming: Metal sheet enters the upper or lower forming station according to the set path, and is gradually cold-formed by a series of precision arranged rollers to form the target plate shape (such as trapezoidal plate, corrugated plate, etc.).
3.Fixed length cutting: After forming, the continuous sheet is precisely cut by the PLC control system through a hydraulic cutting device according to the preset length.
4.Finished product output: Cut tiles are automatically stacked or output to complete the entire production process.
Application scenarios：
The metal roof panels and wall panels produced by the double-layer roof tile forming machine are widely used in various construction fields due to their excellent performance and beautiful appearance.
• Industrial buildings:
large factories, warehouses, hangars, steel structure workshops, etc., usually using high-strength and large-span trapezoidal slabs.
• Commercial and public buildings:
sports arenas, convention centers, airport terminals, train stations, large supermarkets, etc.
• Residential buildings:
villas, residential communities, new rural construction, etc., especially suitable for corrugated boards or antique tile types with aesthetic requirements.
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI,GL
|
Thickness:0.3-0.8mm Width:1000mm/1200mm(As per profile drawing)
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
As your requirement
|
||
|
Diameter of shaft
|
80mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
350 H steel
|
|||
|
Drive
|
Chain transmission
|
|||
|
Dimension(L*W*H)
|
10500*1600*1600(customize)
|
|||
|
Weight
|
6.5T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
5.5KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
15m/min
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
Pattern diagram:
Main Features：
1.High production efficiency:
The equipment has a high degree of automation, with a production speed of 8-15 meters per minute, and some high-speed models can even reach 45 meters per minute. Operators only need 1-2 people to complete the entire process, significantly increasing production capacity and saving labor costs.
2.Save space and investment:
Compared to installing two independent single-layer production lines, the double-layer structure greatly reduces the equipment’s footprint (saving about 30-40%), while also reducing the initial equipment investment cost.
3.Automation and high precision:
Adopting advanced PLC computer control system, parameter setting, length setting, and quantity control are all very convenient. Combined with high-precision encoders and hydraulic shearing systems, the length error of the finished product can be controlled within ± 1mm, and the incision is smooth without burrs.
4.Good finished product quality:
The produced roof panels have the advantages of high strength, flat surface, and scratch free paint surface, which can meet the needs of high standard construction projects.
