Metal Wall Angle High Speed Rotary Punching Roll Forming Machine: A High-Efficiency Enabler in Industrial Manufacturing and Construction
As the core equipment of modern industrial manufacturing, the Metal Wall Angle High Speed Rotary Punching Roll Forming Machine upgrades traditional angle steel processing to a high-precision and continuous production process through automated rolling, hydraulic drive, and servo control technology. Its core functions include multi process integration such as punching, forming, cutting, and coiling, and are suitable for steel processing needs in fields such as power towers, building steel structures, and mechanical equipment.

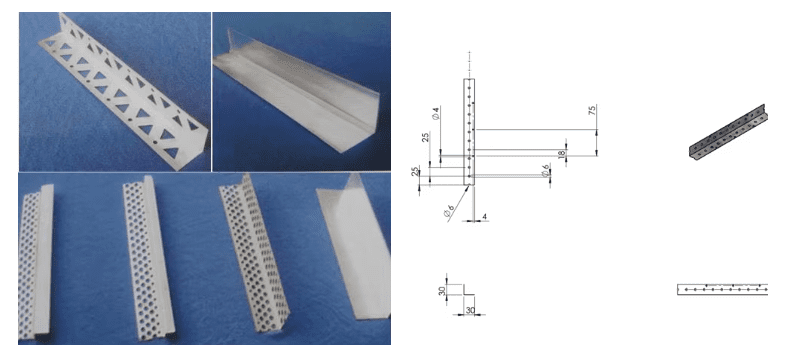

Product Attributes :
|
1.Formed Material
|
GI
|
Thickness:0.2-0.3mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|
3.Punching device
|
Punching type
|
High speed rotary punching
|
||
|
4.Main body
|
Roller station
|
12 rows(As your requirement)
|
||
|
Diameter of shaft
|
50mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
Gearbox transmission
|
|||
|
Dimension(L*W*H)
|
5500*800*1200(customize)
|
|||
|
Weight
|
About 3T
|
|||
|
5.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
6.Power
|
Motor Power
|
7.5KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
7.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
8.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
9.Forming Speed
|
70m/min(customized)
|
Speed is adjustable according to customer’s request
|
||
Core advantages:
1. Fully automated production:
equipped with automatic feeding, laser cutting, and multi station collaborative systems, achieving seamless connection from raw materials to finished products, and increasing single shift production capacity by more than 2.3 times compared to traditional equipment.
2. Millimeter level machining accuracy:
By using servo motor drive and visual recognition device, the positioning error of angle steel is ensured to be less than 0.5mm, and the product qualification rate exceeds 99.5%.
3. Energy consumption and environmental optimization:
By using frequency conversion energy-saving technology, the no-load energy consumption is reduced by 15%, and the waste rate is controlled within 1%, which meets the green manufacturing standards.
Main application scenarios：
• Steel structure buildings:
widely used in the manufacturing of load-bearing frames, purlins, supports, etc. for buildings such as factories, warehouses, sports venues, commercial centers, etc. After forming, angle steel can form specific cross-sectional shapes to improve structural strength and installation efficiency.
• Building materials and door and window frames:
used for producing square pipes, door and window keels, ceiling brackets, etc. for construction, especially suitable for transforming waste round pipes into square pipes to achieve resource reuse and reduce material costs.
• Transportation facilities:
used for steel reinforcement processing, support fabrication, and prefabricated component connections in bridges, high-speed railways, tunnels, and other engineering projects to meet high-precision and large-scale production needs.
• Electrical and industrial equipment manufacturing:
used for producing electrical cabinet brackets, equipment racks, conveyor line frames, etc. After forming angle steel, it can enhance structural rigidity and simplify assembly processes.
• Agricultural and livestock facilities:
The renovated angle steel can be used to make greenhouse skeletons, livestock fences, storage shelves, etc., with both strength and cost advantages.
