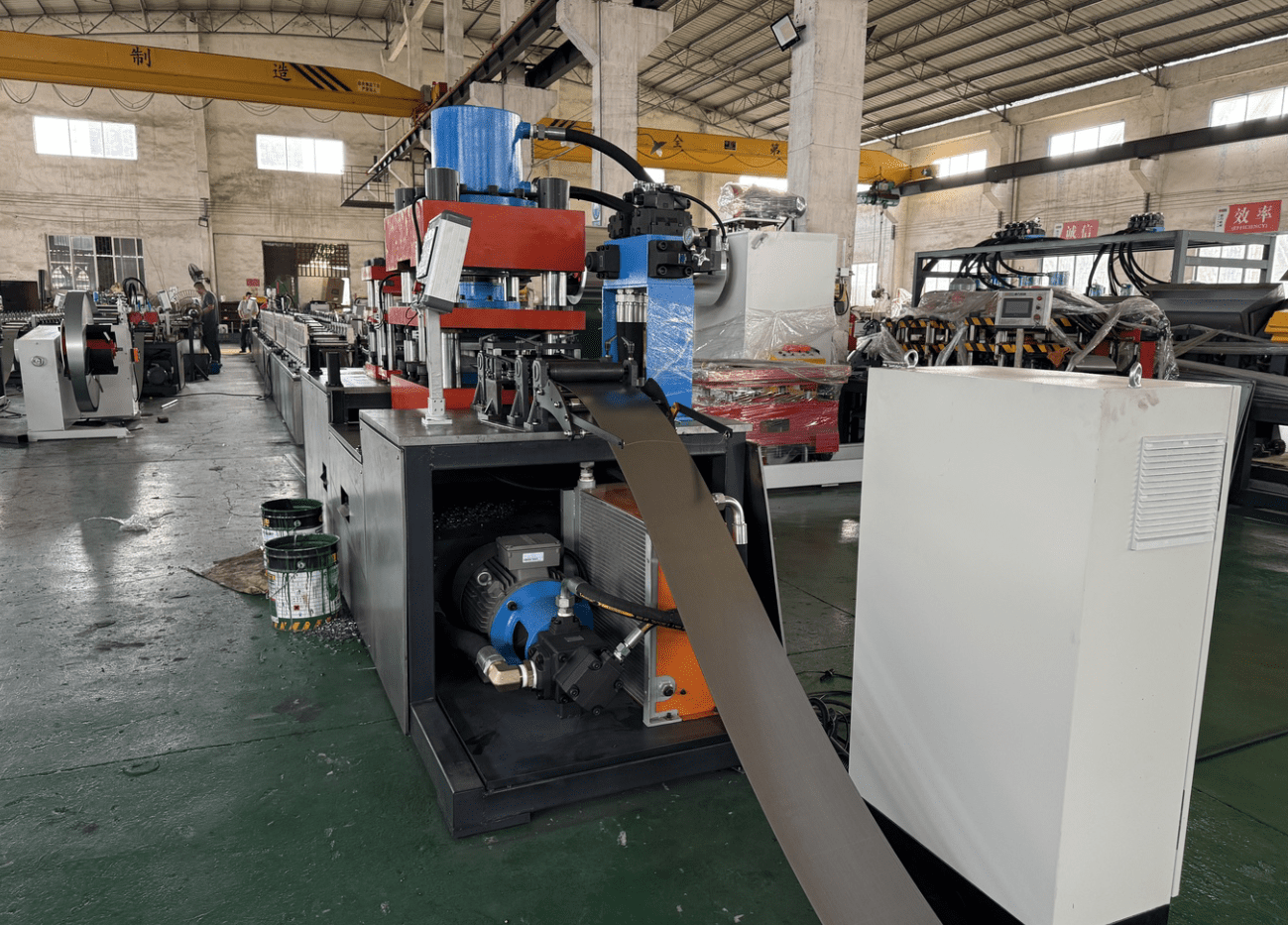

In today’s increasingly competitive retail industry, supermarket shelves, as the core carrier of product display, have a direct impact on operational efficiency and customer experience in terms of stability and functionality. As the backbone of the shelf, the column bears the responsibility of supporting the shelves, hanging accessories, and carrying goods. We focus on the needs of supermarket scenarios and introduce modular, high load-bearing, and easy to maintain column equipment. Supermarket Shelf System Upright Box Beam Making Machine solves the pain points of traditional shelf installation complexity, insufficient load-bearing capacity, and low space utilization through technological innovation, helping supermarkets achieve efficient operation and image upgrading.
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:1.5-2.0mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
14 rows(As your requirement)
|
||
|
Diameter of shaft
|
80mm solid shaft
|
|||
|
Material of rollers
|
Gcr 12 with quenched teeatment
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
Chain transmission
|
|||
|
Dimension(L*W*H)
|
9500*800*1200(customize)
|
|||
|
Weight
|
About 8T
|
|||
|

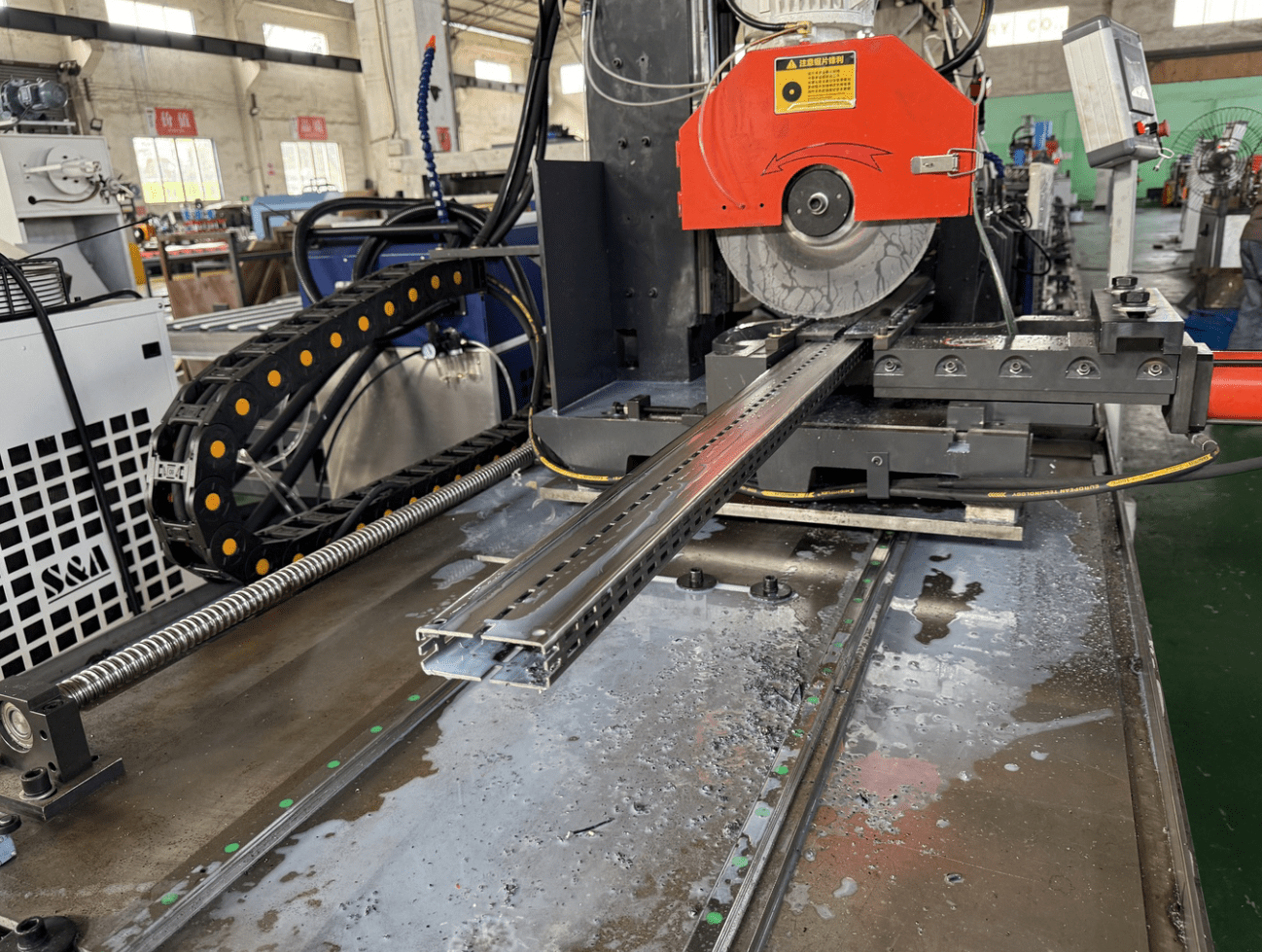

4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
15KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
60-70m/min(customized)
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
Core advantages of the product
1.Stable structure, safe and reliable
The use of steel and cold-rolled steel composite columns has strong impact resistance, with a single column bearing capacity of over 500kg, ensuring the safety of heavy commodity display.
Install an anti overturning base at the bottom of the column and fix it to the ground with expansion screws to prevent the risk of shelves tilting.
2.Modular design, flexible adaptation
The columns and beams are connected by plug-in connections, without the need for welding or complex tools, and can be assembled in a single layer within 30 minutes.
Supports single-sided and double-sided combinations, paired with corner pieces or semi-circular pieces, making it easy to handle irregular spatial layouts.
3.Surface treatment, durable and long-lasting
Epoxy resin electrostatic spraying process, anti-corrosion and rust proof, suitable for high humidity environment, extends service life by more than 30%.
Optional LED light box column, combining lighting and advertising functions, enhances the display effect of products.
4.Space optimization, cost reduction and efficiency improvement
The spacing between columns is precisely designed, and the height of the shelves can be adjusted (50mm/75mm step spacing) to adapt to different product sizes, increasing storage space utilization by 40%.
Adapt to electronic tag systems to achieve real-time inventory management and reduce manual inventory costs.
Application scenarios and cases
• Large supermarkets:
style column shelves carry heavy items such as household appliances and daily necessities, and the widened layer board design meets the display needs of large goods.
• Community Convenience Store:
Four column lightweight columns paired with adjustable shelves, flexible response to space limitations, and a 50% increase in daily installation completion rate.
• Fresh food area renovation:
Waterproof columns paired with stainless steel laminates solve the problem of corrosion in cold chain environments, reducing customer complaint rates by 60%.
