The Roof Drip Edge Roll Forming Machine is a specialized industrial equipment used for continuously cold bending metal coils (such as galvanized steel, aluminum, color coated steel, etc.) to produce Drip Edge metal components.

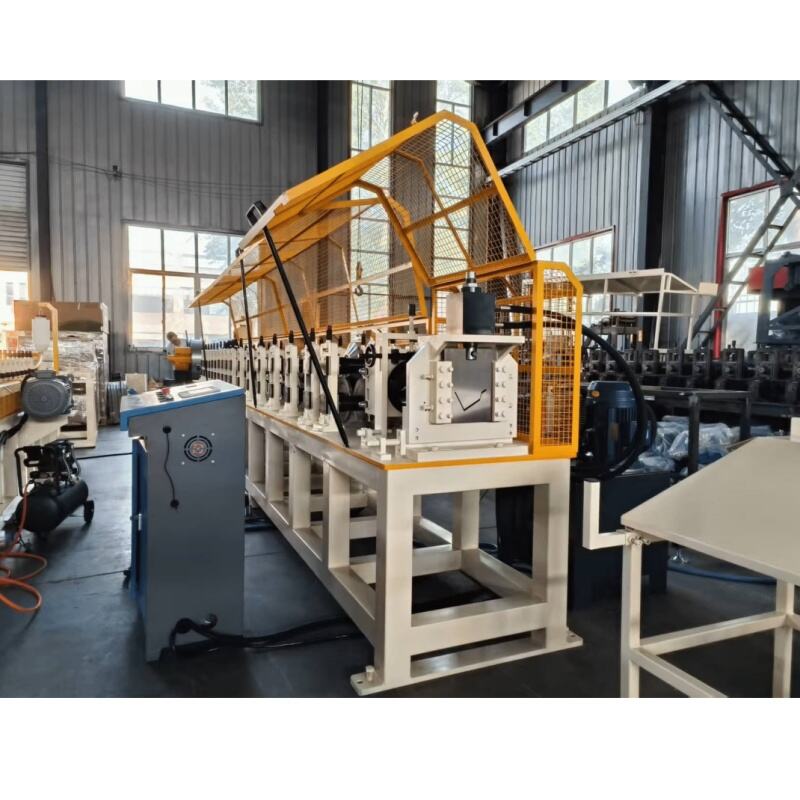

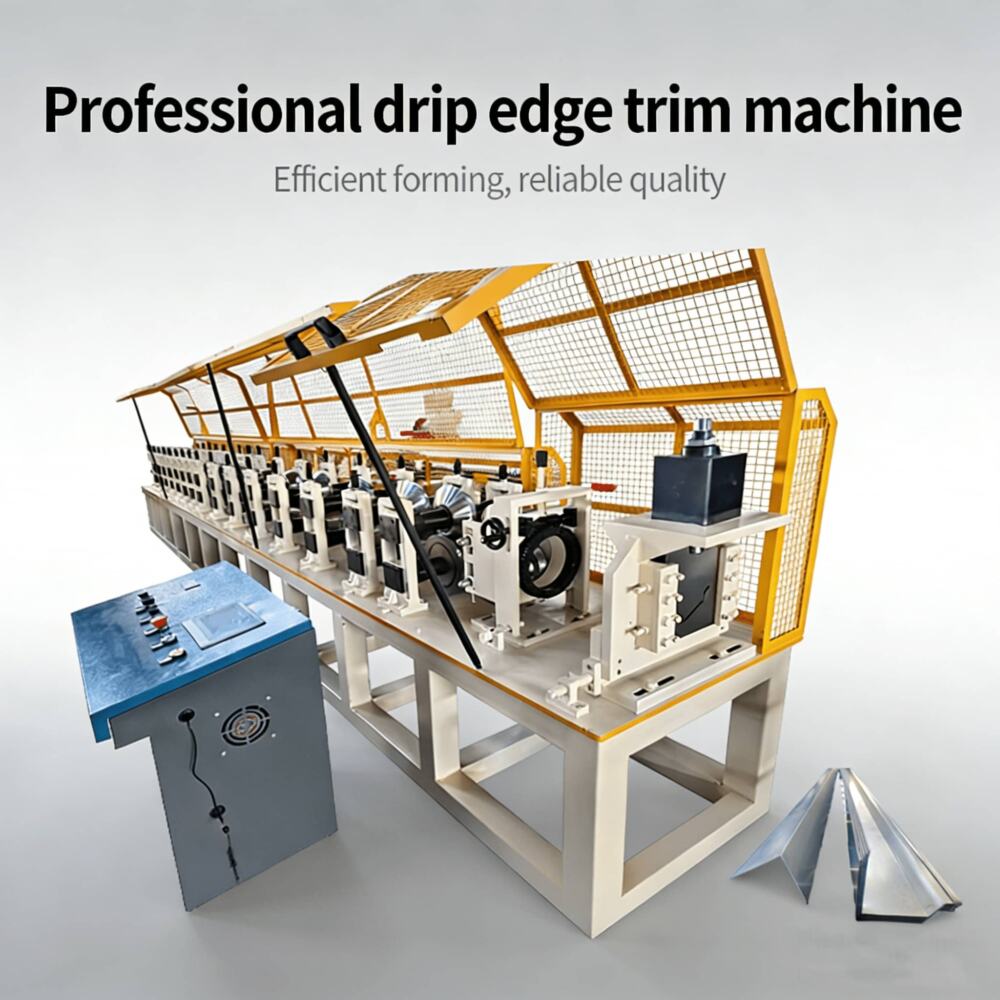

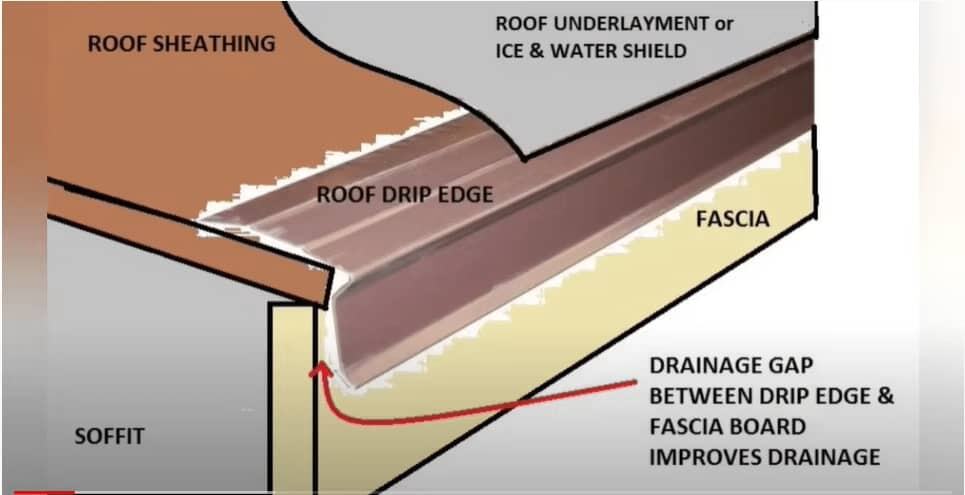

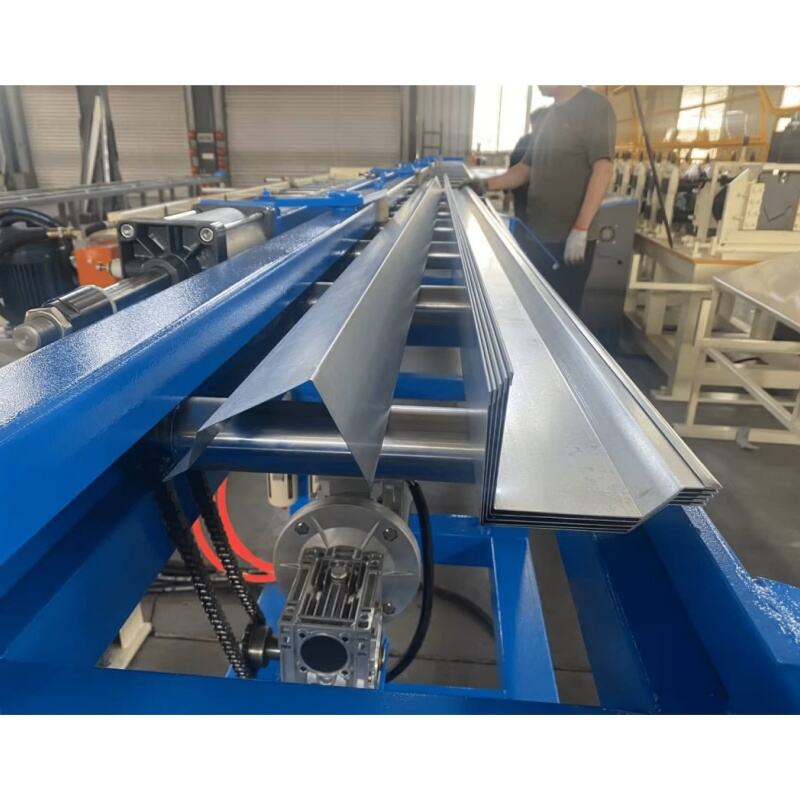

Drip line is a metal flashing installed at the edge of the roof, which guides rainwater away from the exterior walls and eaves of the building, preventing water from seeping into the interior of the roof structure and protecting the building from water erosion. Its working principle is to feed the metal coil into the forming machine, and through continuous bending of multiple (usually 10-20) precision rollers, gradually form the flat metal sheet into drip line profiles with specific cross-sections. Finally, the hydraulic or electric shearing system cuts it to a set length.
Application scenarios：
• Residential roof engineering
Widely used for waterproofing of roof edges in residential buildings such as single family homes and townhouses. Drip lines are installed at the junction of roof panels, eaves, and gutters to prevent rainwater from flowing back into the roof structure.
• Commercial buildings
Suitable for roof waterproofing systems in commercial buildings such as shopping malls, office buildings, and hotels. Commercial projects usually have larger scales and higher requirements for product consistency and aesthetics. Automated molding equipment can effectively meet the needs of mass production.
• Industrial buildings and storage facilities
Roof drainage system for industrial buildings such as steel structure factories, warehouses, logistics centers, etc. The roof area of industrial buildings is large, and there is a high demand for waterproof components. High efficiency molding equipment can significantly shorten the production cycle.
Product Attributes :
|
1.Formed Material
|
GI
|
Thickness:0.4-0.8 mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Electric double head decoiler
|
||
|

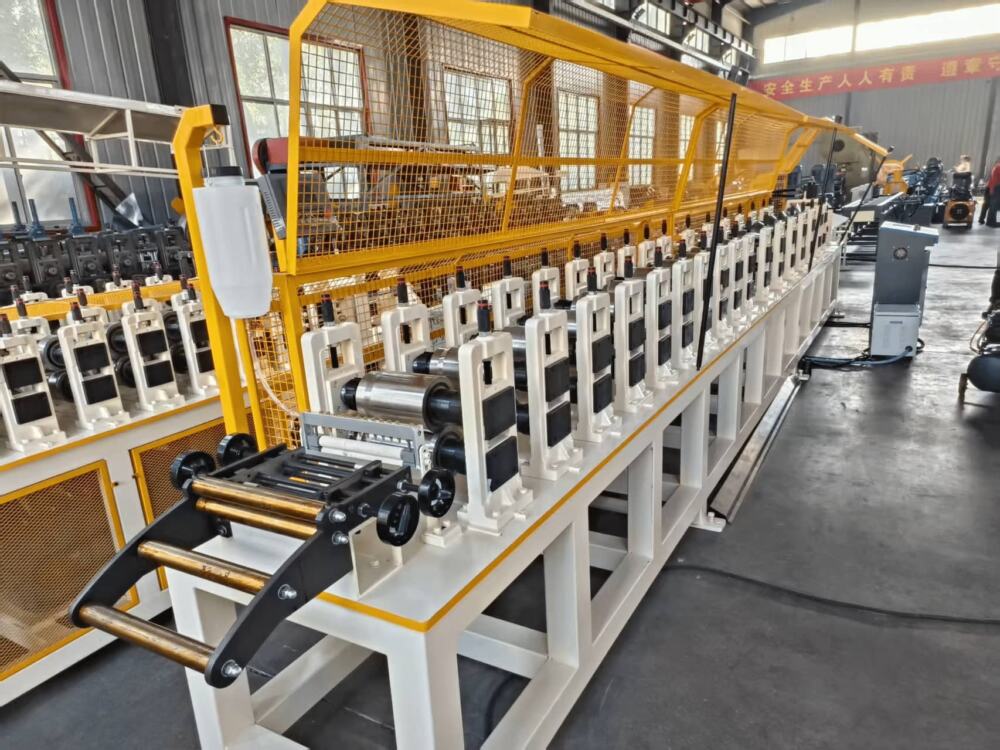

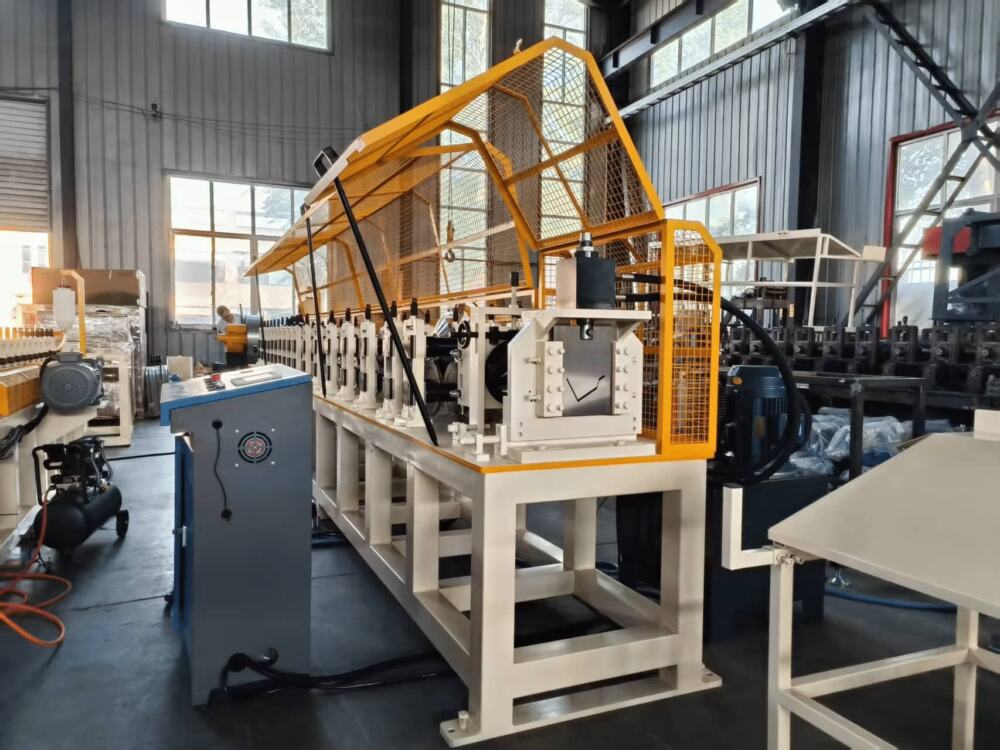

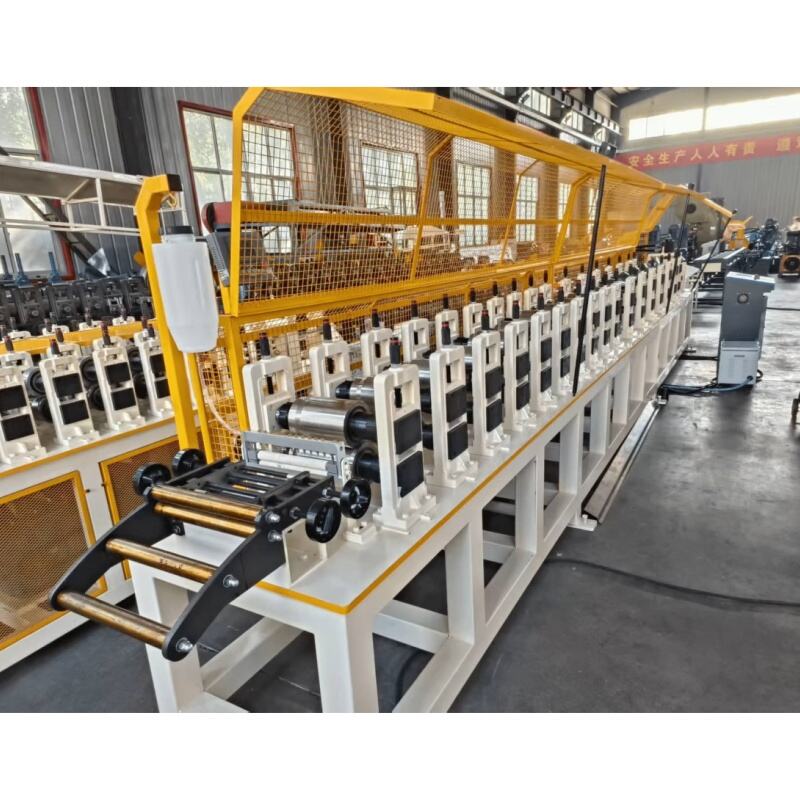

3.Main body
|

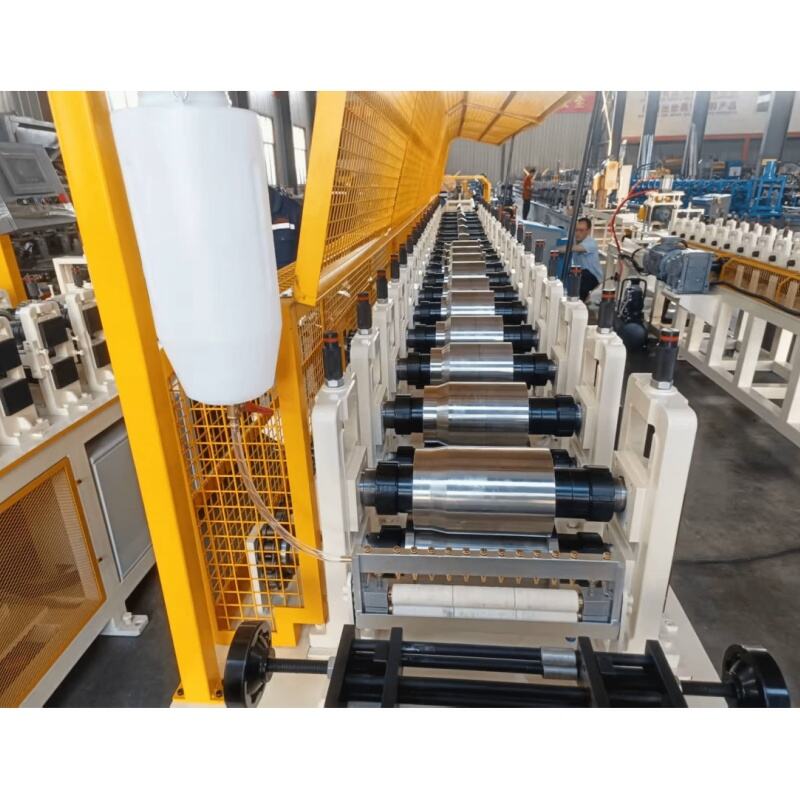

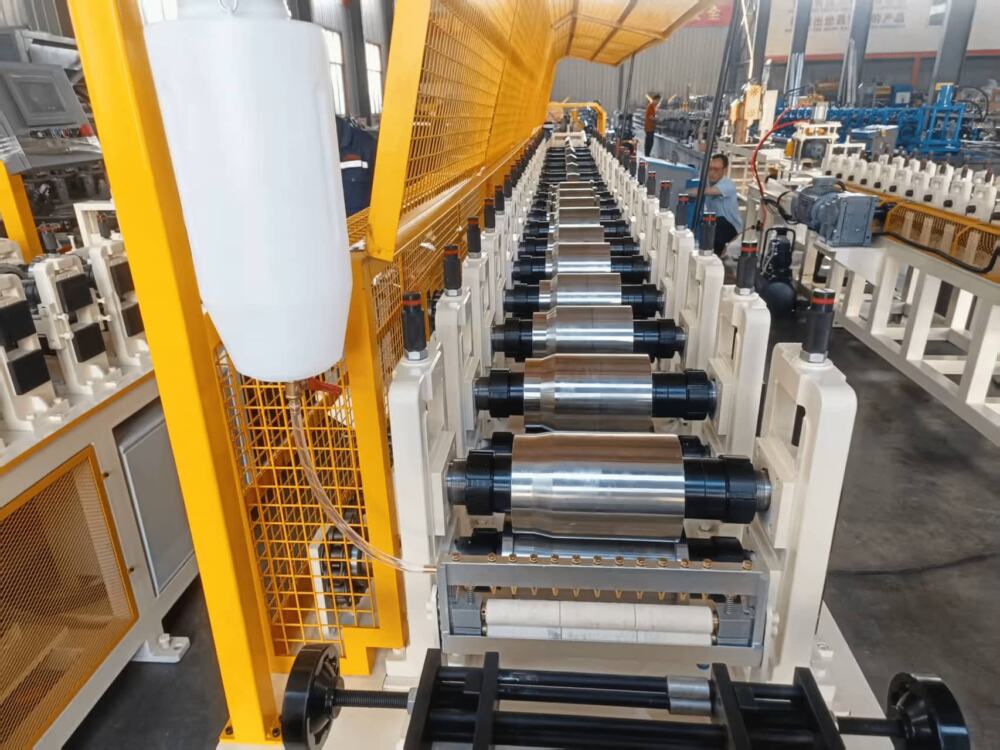

Roller station
|
18 rows(As your requirement)
|
||
|
Diameter of shaft
|
75mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
Chains transmission
|
|||
|
Dimension(L*W*H)
|
5500*1400*1500(customize)
|
|||
|
Weight
|
About 5T
|
|||
|

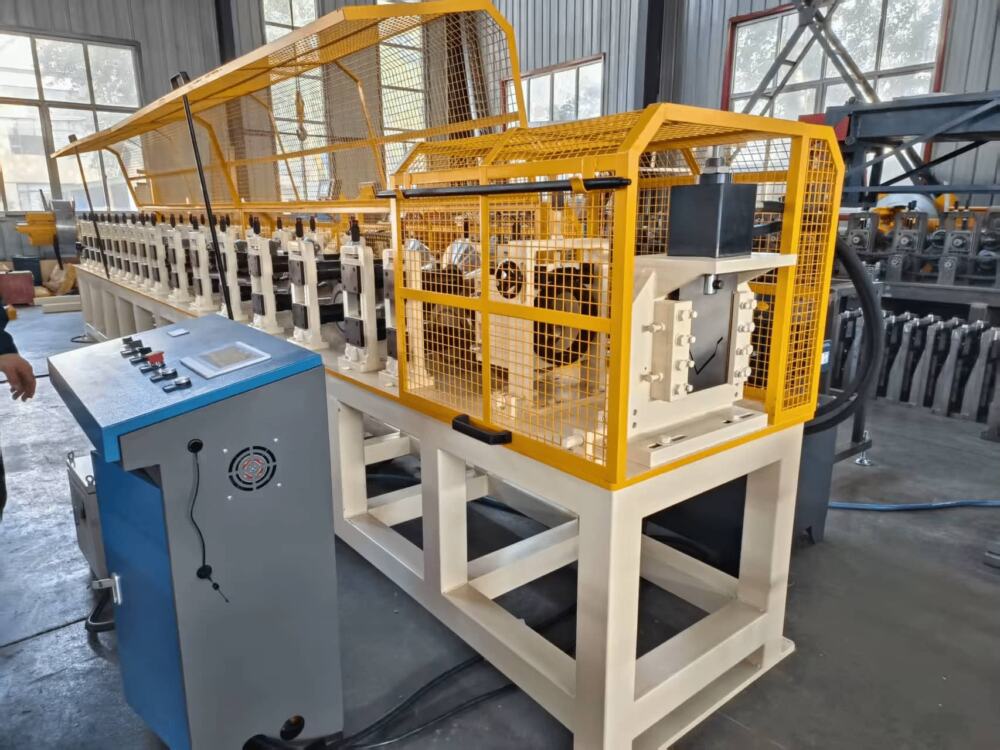

4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
5.5 KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|

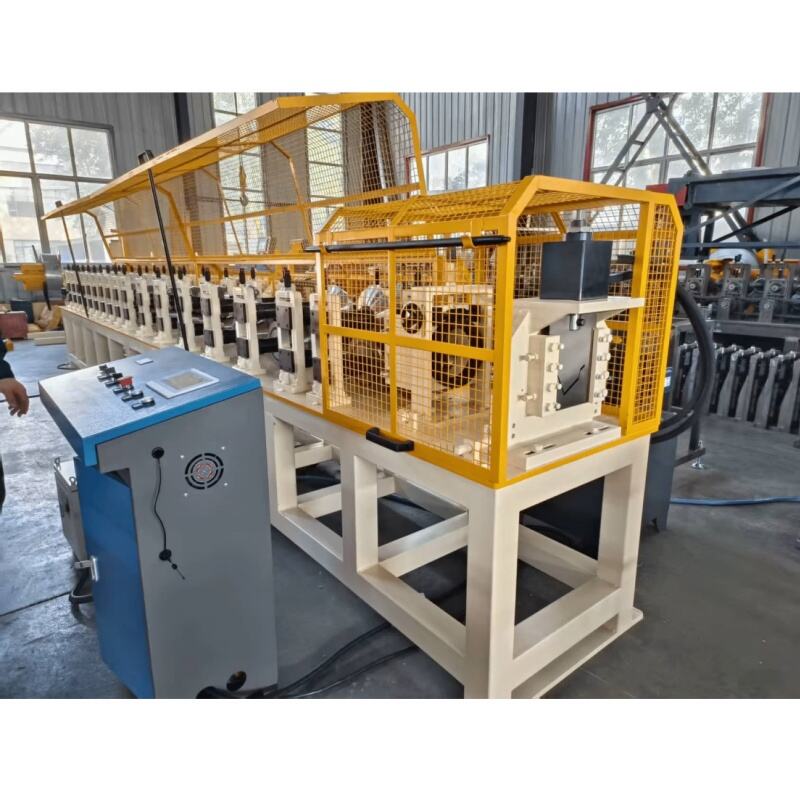

7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
40m/min(customized)
|
Speed is adjustable according to customer’s request
|
||

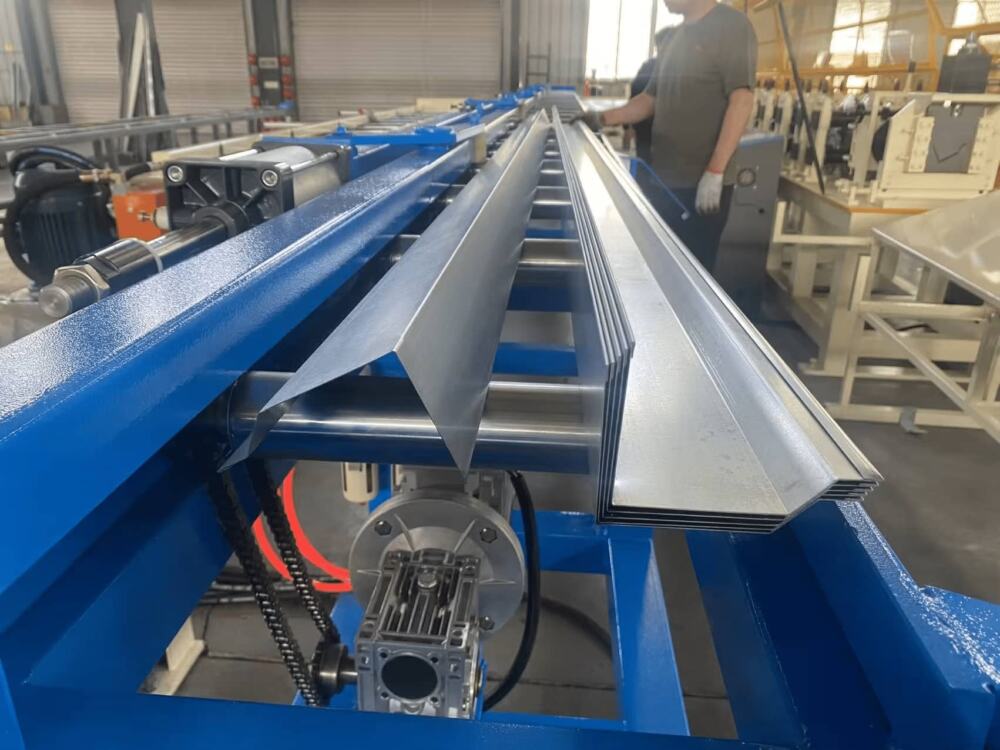

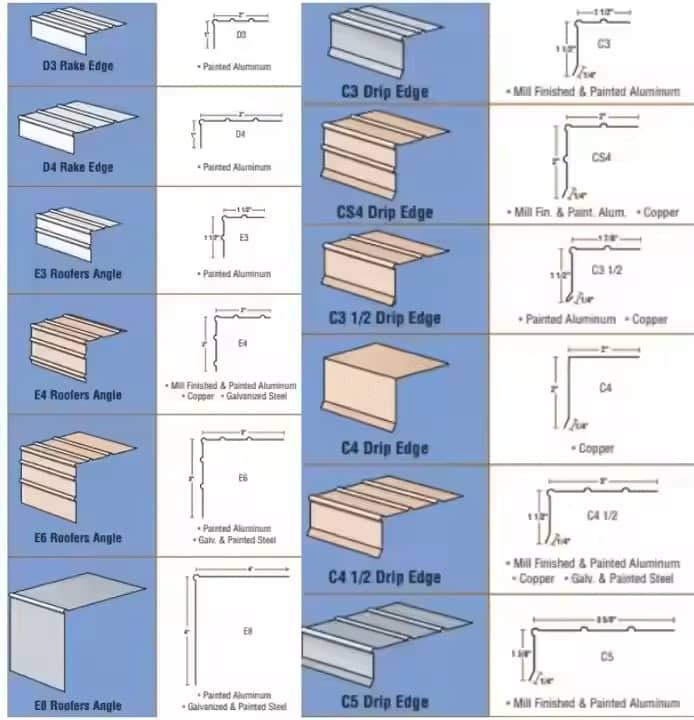

Pattern drawing：
Core Features：
1. High degree of automation and PLC intelligent control
The equipment is generally equipped with a PLC (Programmable Logic Controller) touch system, which can achieve automated continuous production. Operators only need to set parameters such as length, quantity, and speed, and the system can automatically complete the entire process of feeding, forming, and cutting. Mainstream PLC brands include Siemens, Mitsubishi, etc.
2. High production speed and efficiency
The typical production speed is 10-20 meters per minute, and some high-speed models can reach 30-45 meters per minute. Compared to traditional production methods, it can improve efficiency by about 20%.
3. High precision and consistency
High quality rollers treated with quenching (such as GCr12, Cr12MoV, etc.) are used, with a cutting accuracy of ± 0.5 mm, ensuring that each batch of products has consistent dimensions and smooth cuts without burrs.
4. Modular and customizable design
The equipment can customize parameters such as profile size, hole position, length, etc. according to customer needs, to meet the drip line specifications requirements of different construction projects.
5. Durable and sturdy structure
The rack is usually welded with 16-20mm thick steel plates, and the main motor power is generally 7.5-15 HP. The overall power of the machine is about 15-25 kW, ensuring long-term stable operation.
Contact Us：
The Roof Drip Edge Roll Forming Machine is a key equipment in the building roof waterproofing industry chain. Through automated continuous forming technology, it efficiently produces high-precision drip line components, which are widely used in roof waterproofing systems of various buildings such as residential, commercial, industrial, and agricultural.
