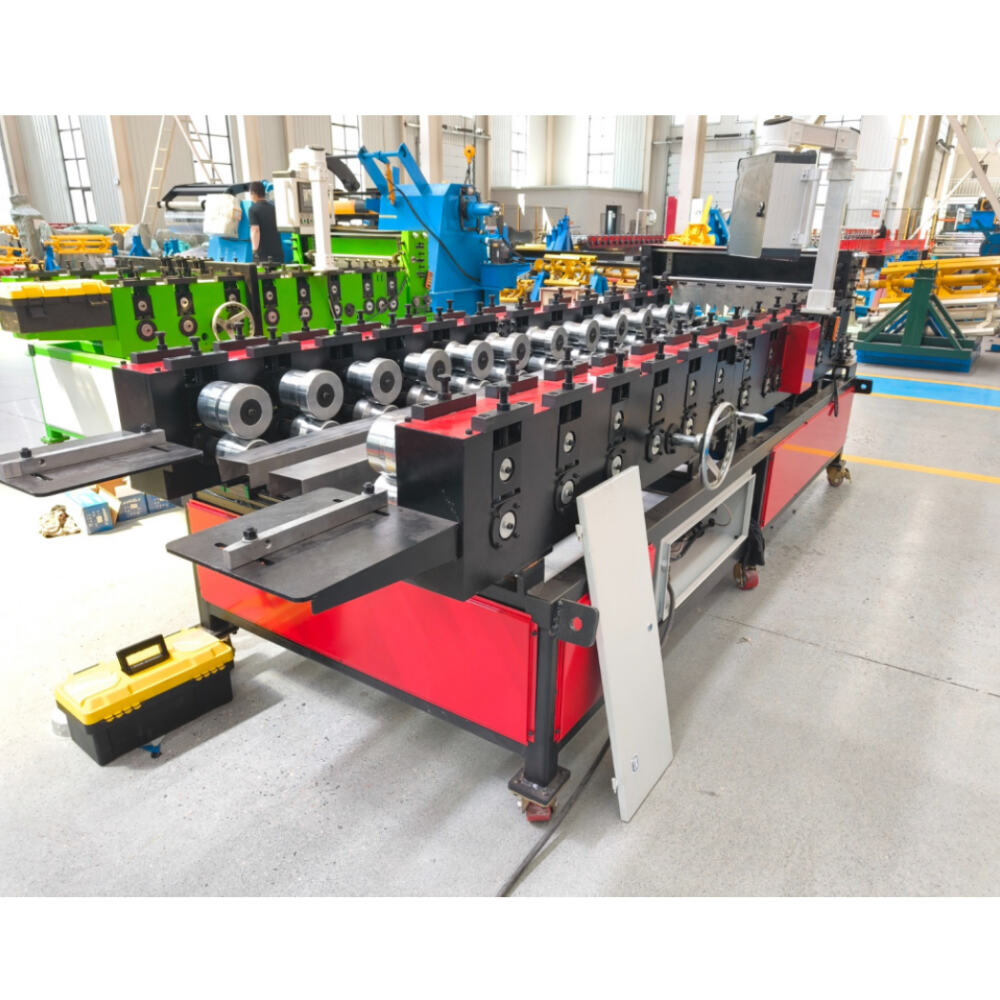

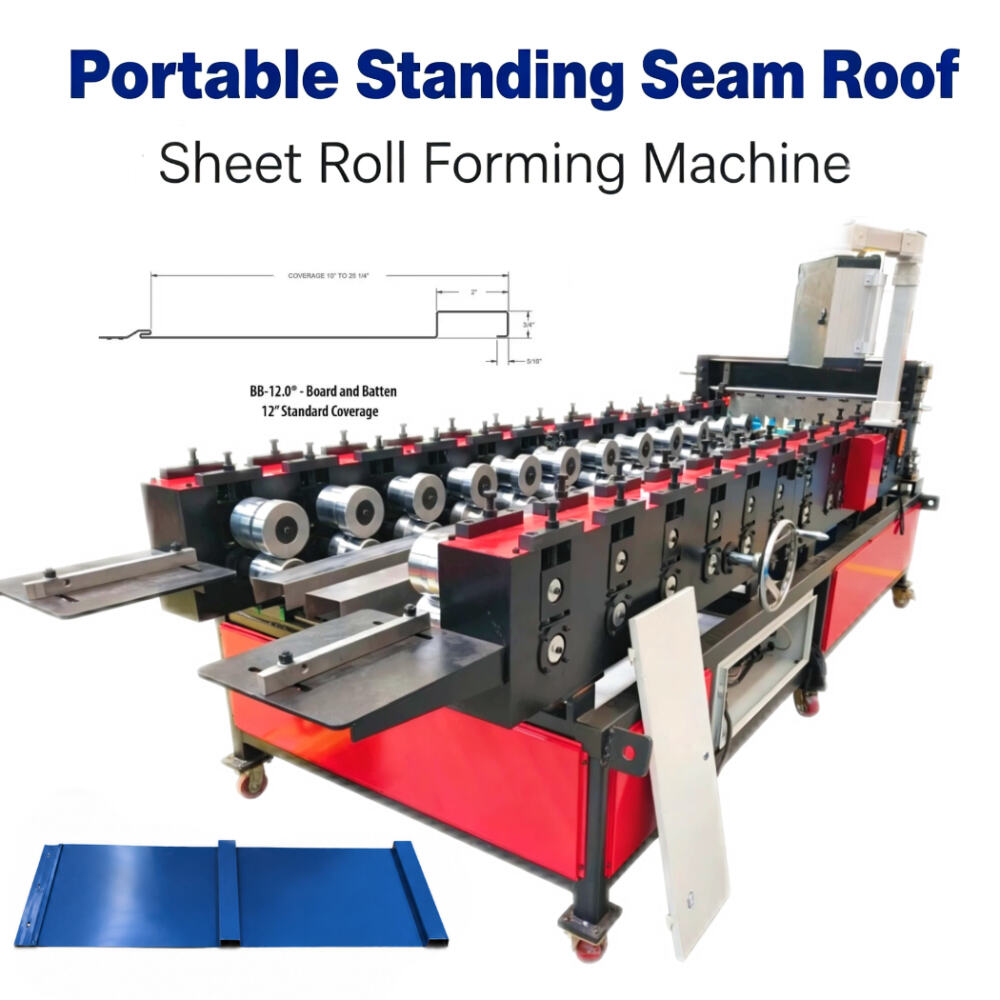

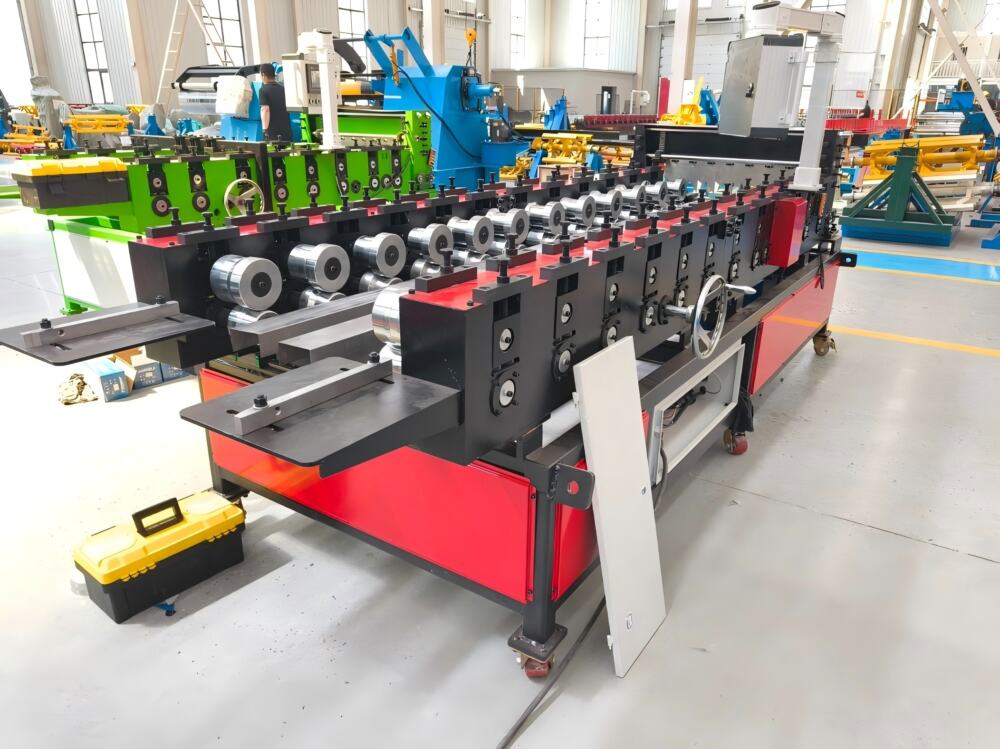

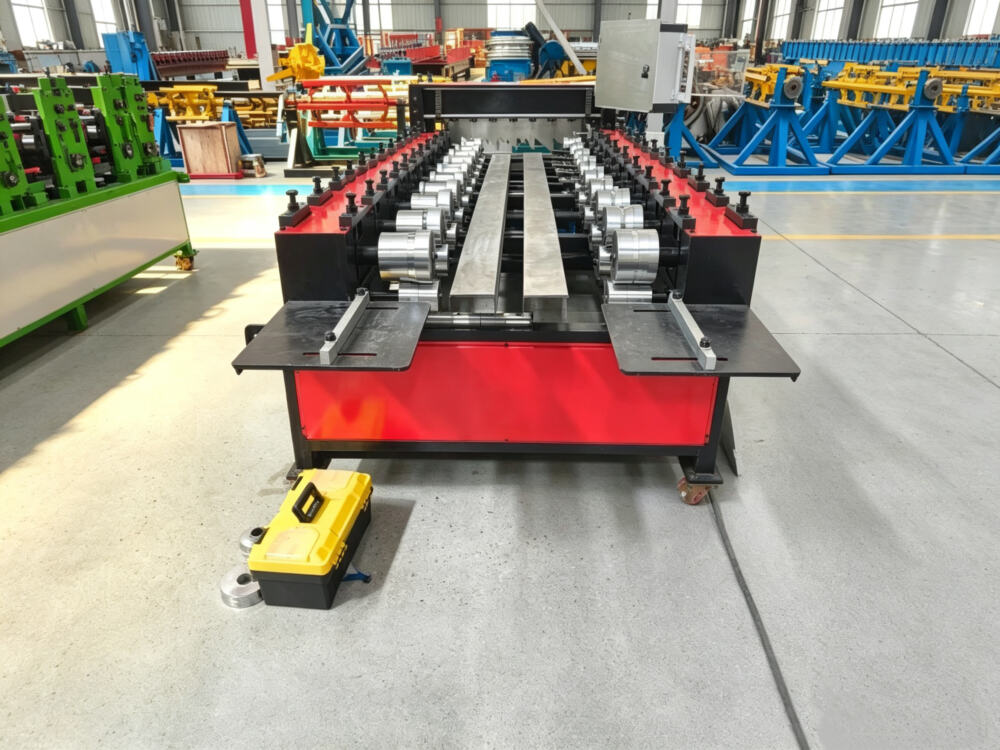

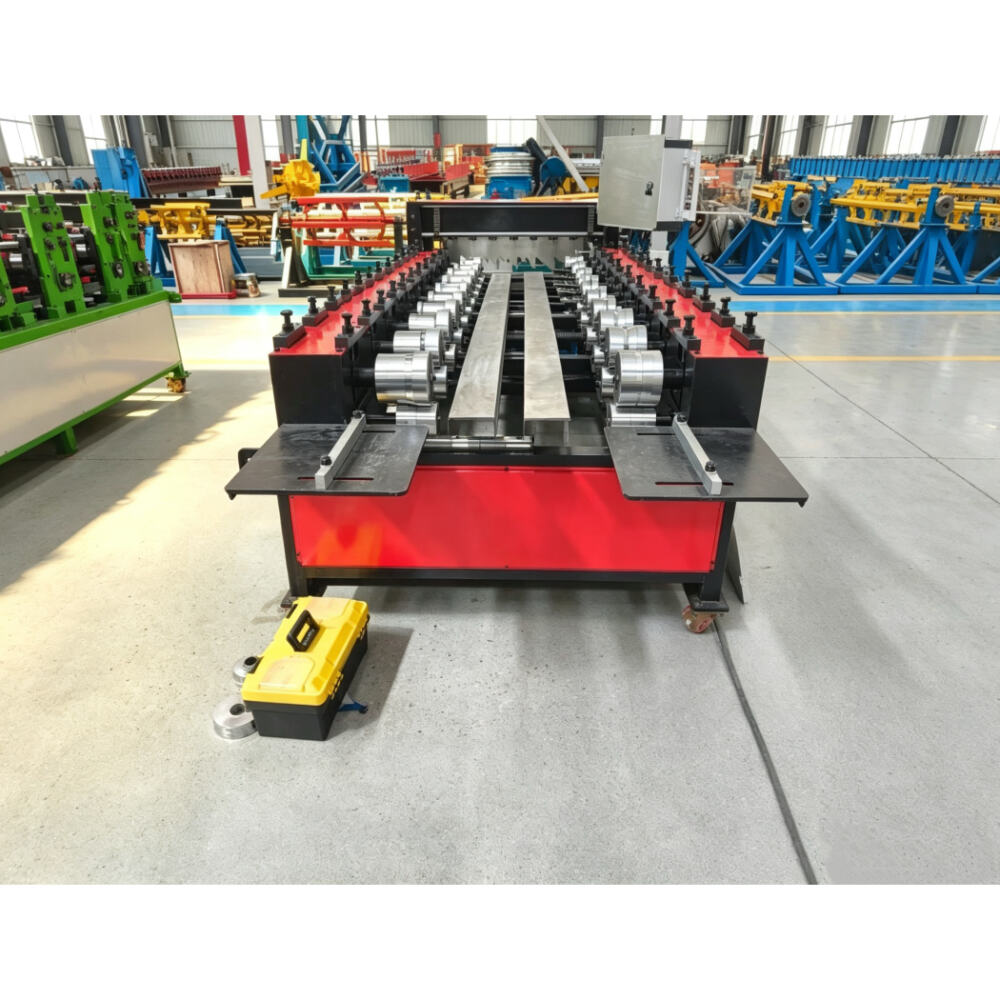

The Portable Standing Seam Roof Panel Roll Forming Machine is a vehicle mounted cold bending production line that integrates unwinding, roll forming, and servo cutting to length. The whole machine can be installed in flatbed trailers or containers, and can be flexibly transferred to different construction areas. The metal coils can be continuously cold-formed into vertical seam roof panels of the design length on site.

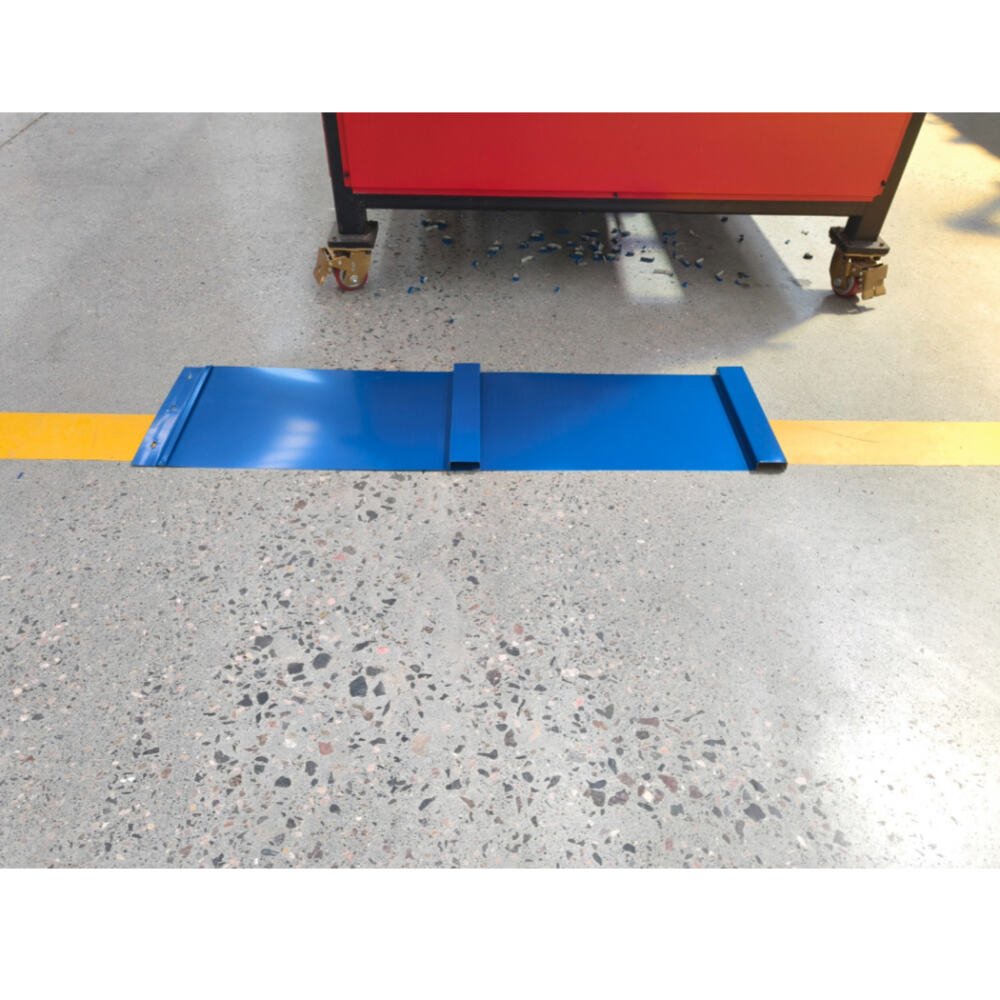

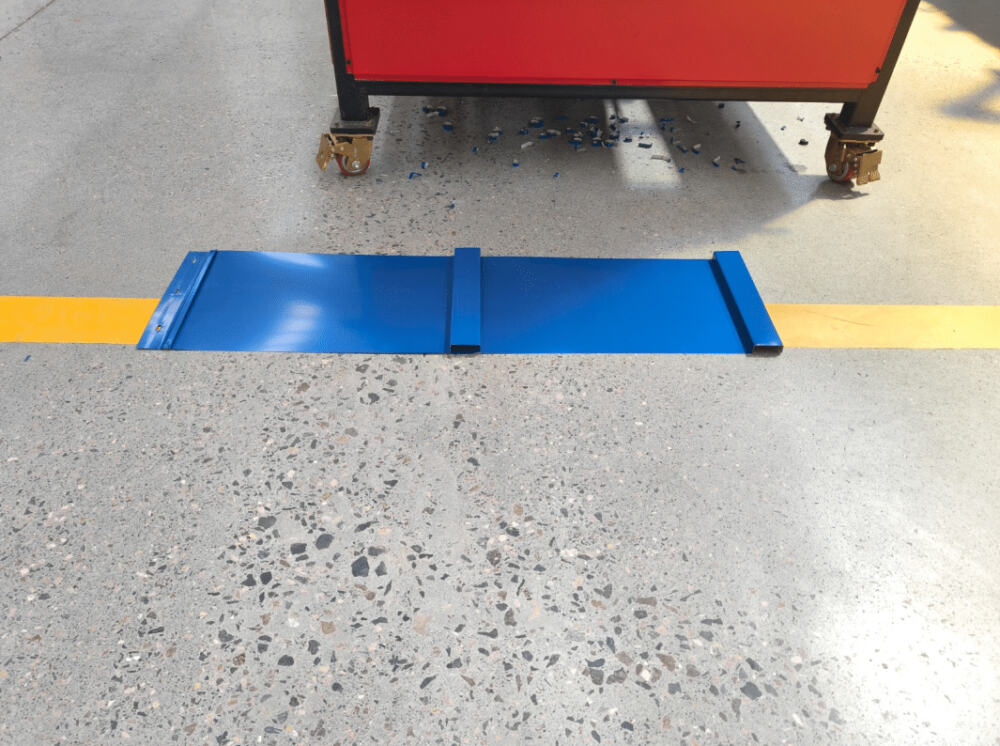

The equipment can produce a variety of board types, including 65 series vertical edge biting board, high rib vertical locking board, etc. It supports customized fan-shaped board, arc board and other shaped boards. The produced board has consistent rib height and tight locking edges, fully meeting the wind resistance, waterproofing, and thermal expansion and contraction requirements of large metal roofs.
Application Scenarios：

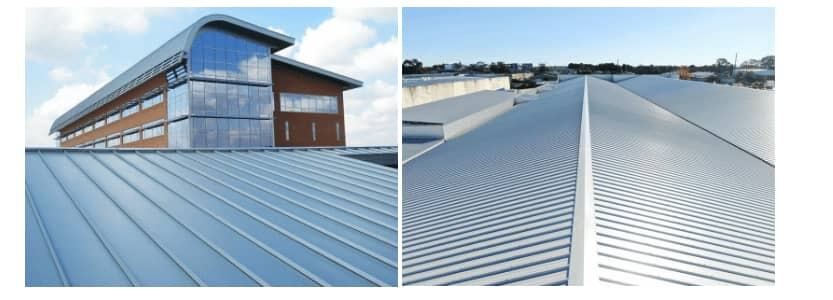

Large public buildings such as airport terminals, high-speed railway stations, sports venues, and exhibition centers often require over 100 meters of full-length roof panels for their large-span roofs.
• Industrial and logistics buildings:
large workshops, warehouses, and cold storage facilities require rapid construction and ensure the airtightness and insulation of the roof.
• Commercial and Residential:
High end villas and clubs with vertical seam metal roofs, pursuing aesthetics and personalized customization.
• Renovation and reconstruction project:
Production directly above the old roof to solve the problem of limited construction sites in the city.
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:0.3-0.45mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
12 rows(As your requirement)
|
||
|
Diameter of shaft
|
50mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Square tube welded with steel panel
|
|||
|
Drive
|
Gear transmission
|
|||
|
Dimension(L*W*H)
|
2300*1500*1600(customize)
|
|||
|
Weight
|
1500kg
|
|||
|

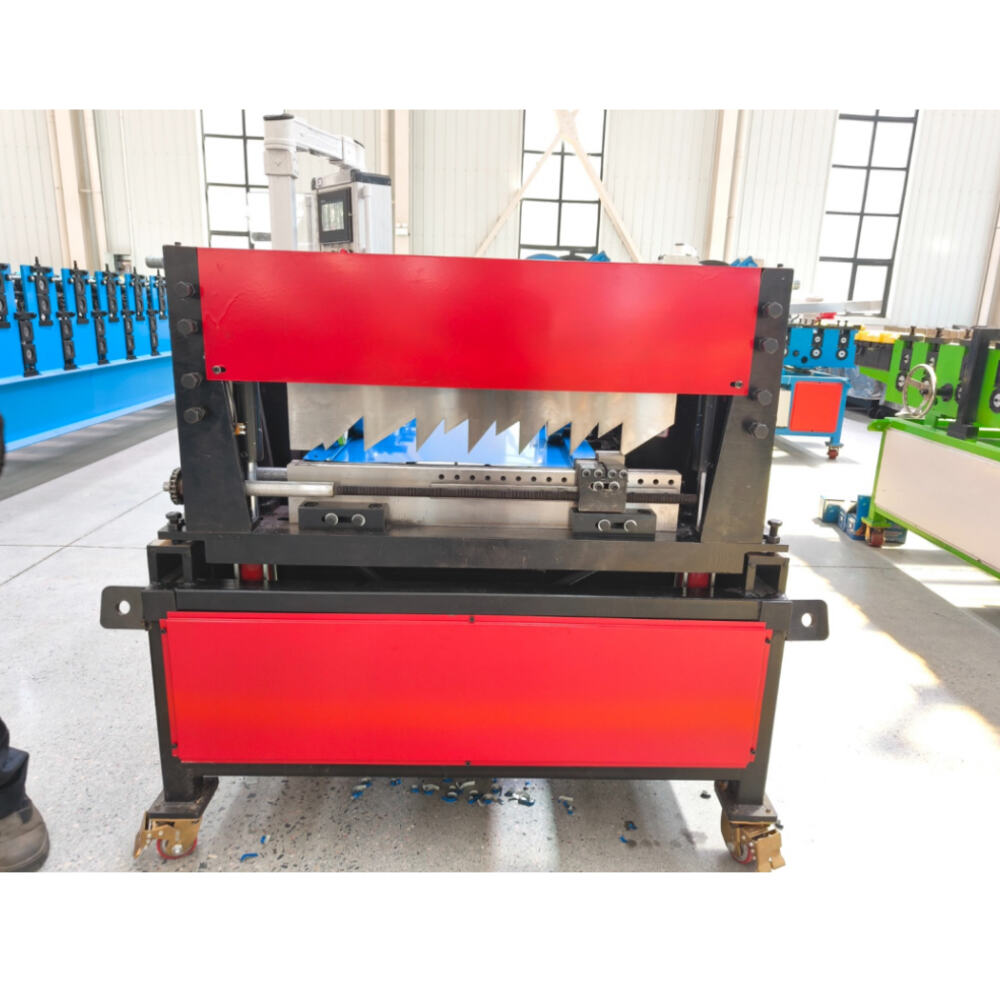

4.Cutter
|
Automatic
|

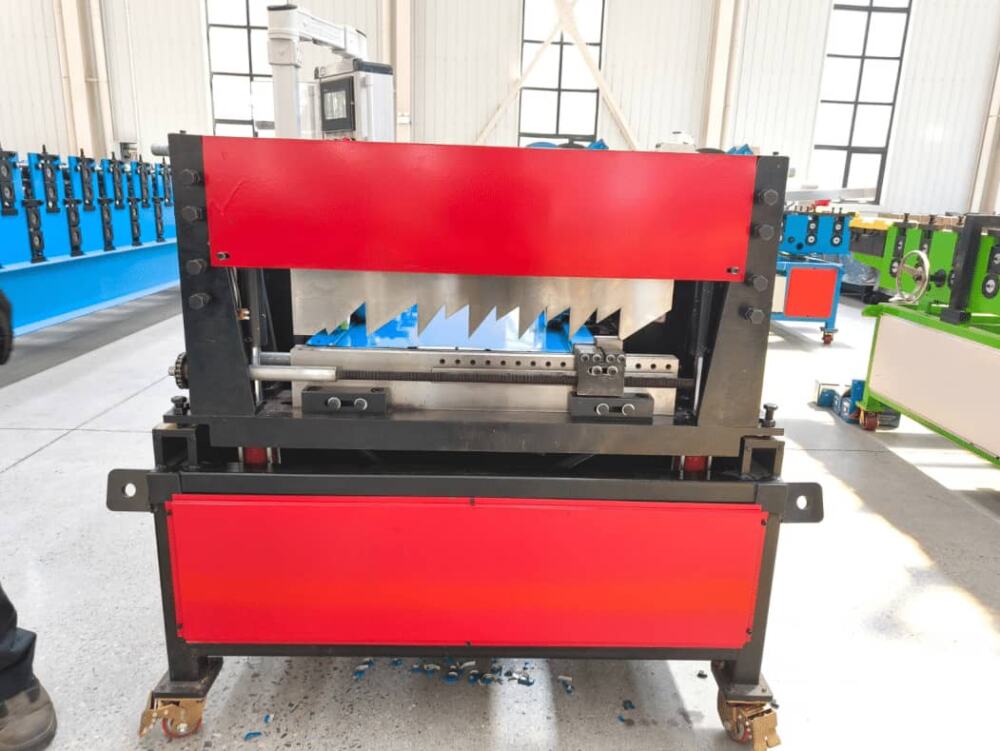

cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
3KW
|
||
|
Hydraulic system power
|
3KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|

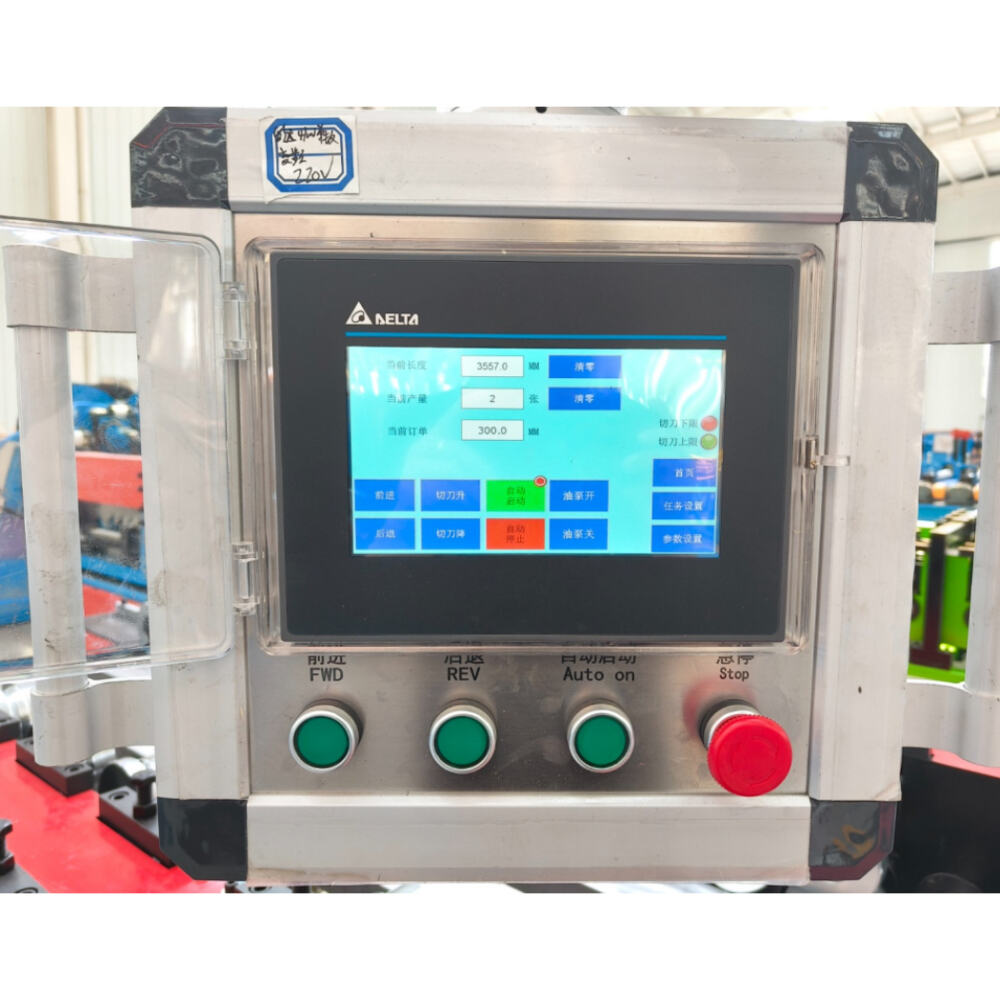

PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
8.Forming Speed
|
10-15m/min
|
The speed is adjustable
|
||

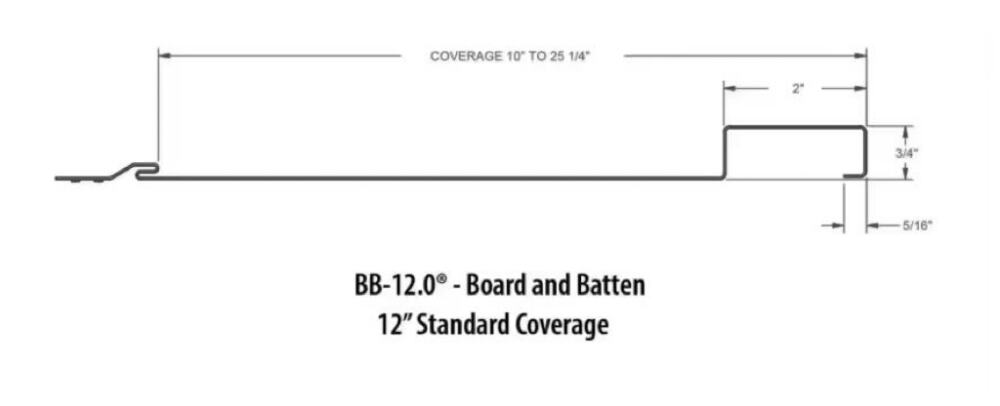

Pattern drawing：
Core Features：
1. Real mobile production, breaking through transportation bottlenecks
The whole machine adopts a container or trailer design, which can be towed by ordinary trucks or lifted as a whole, and is ready for production upon arrival. The production speed can reach 15-25 m/min, and the board length can be set arbitrarily. From a few meters to hundreds of meters, it can be formed in one go, completely eliminating the risks of long board transportation and high shipping costs.
2. High precision molding, with tightly sewn edges
By gradually cold bending with multiple precision rollers, the plate ribs are upright and straight, and the cross-sectional size tolerance is strictly controlled to ensure that the subsequent automatic edge locking machine fits tightly, forming a 360 ° airtight waterproof layer. Equipped with servo flying shear cutting, the board length accuracy reaches ± 2mm, and the incision is smooth without burrs.
3. Flexible changeover, one machine with multiple functions
By using a quick change roller set or a whole change type trolley, it is possible to switch between different rib heights and board widths of roof panels within 30 minutes, adapting to various standard and non-standard specifications such as 65/300, 65/400, 76/380, etc. It can also be equipped with a fan-shaped bending device to directly produce conical fan-shaped panels, meeting the needs of irregular roofs.
4. Intelligent control, simple and reliable

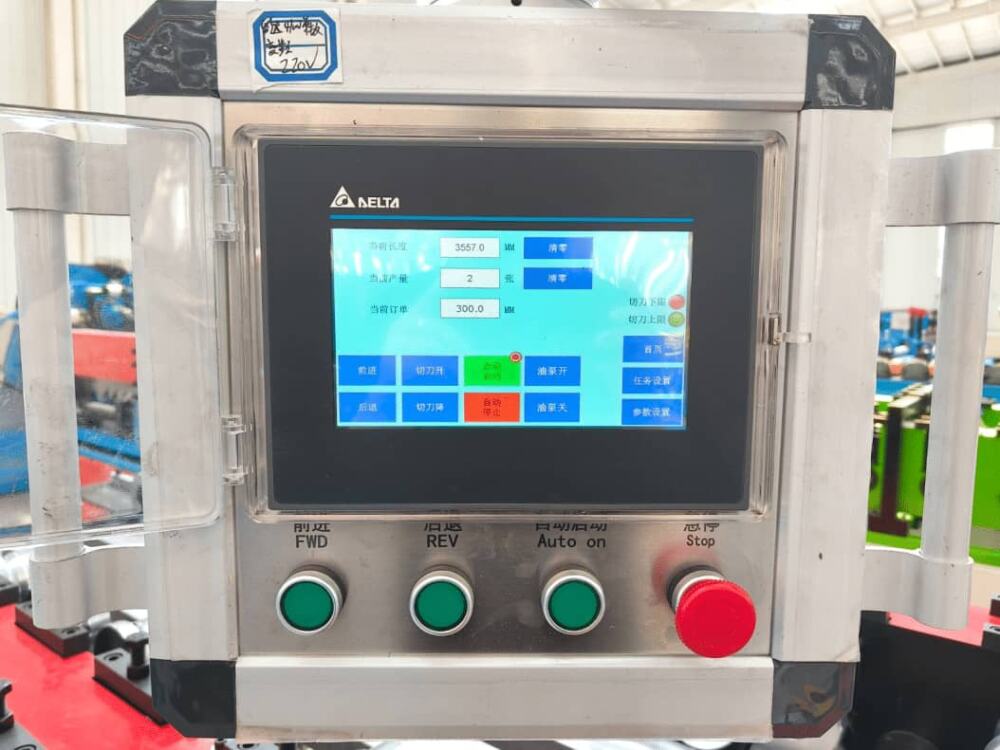

Equipped with an industrial grade PLC control system and touch screen, the equipment can operate fully automatically by simply inputting the production quantity and length, including automatic counting, sizing, and cutting. The key hydraulic and electrical components are made of international brands, suitable for outdoor high temperature, high humidity, and dusty environments with low failure rates.
5. Compact and sturdy, worry free in harsh working conditions
The body is welded with high-strength steel plates and annealed as a whole to eliminate stress, making it fearless of transportation bumps. The device comes with leveling legs, which do not require a foundation and can be easily leveled for production. The compact layout integrates unwinding, forming, and cutting into one chassis, occupying a small area and making it very suitable for narrow construction sites.
Contact Us：
Choosing a portable vertical seam roof tile forming machine means choosing lower transportation costs, faster construction progress, and better board quality. Enable your metal roofing project to have high-end manufacturing capabilities directly on-site, no matter where it is located.
If you need specific configurations, board samples, and customized in car solutions, please feel free to communicate with us at any time to start your new mobile manufacturing experience.
