Electric Self-lock Standing Seam Roll Forming Machine
Product Attributes :
| 1 |
Decoiler/uncoiler |
3ton manual decoiler |
Capacity: 3ton
Coil inner dia:450-550mm Feeding width: max 500mm |
| 2 | Feeding, pinch and pre-cutter | Pinch rollers | 2sets |
| Shearing type | hydraulic pre shearing | ||
| Blade material | Gcr12 quenched treatment | ||
|
3. |
Main roll forming part |
Machine frame | 350mm H beam structure,
Outside steel wall plate is connected by screw on the frame surface being sandblasted |
| Forming stations | 20 rollers stations | ||
| Material of rollers | high grade No.45 forged steel, with digital-controlled procession, surface hard chromium plating to ensure long lifetime | ||
| Diameter of shafts | Φ70mm full axis | ||
| Material of shafts | High grade 45#, all shafts are tooled by grinding machine for two times to ensure the precision of final product. | ||
| Forming speed | 0-20m/min | ||
| voltage | 380V,60HZ,3 Phrase or as your request | ||
| Transmission way | By chain | ||
| Main motor | 5.5KW Siemens brand | ||
| 5. | PLC control station | PLC brand | PLC, Siemens brand of buttom and low-voltage apparatus
Friendly man-machine interface system can be set batches to the workpiece, length, quantity, etc. |
| language | English and Chinese | ||
| encoder | Omron brand | ||
|
6 |
Hydraulic oil pump station |
Hydraulic station motor | 3KW |
| type | With air-cooling system | ||
| Main components | Include a set of hydraulic tank, a set of hydraulic oil pump, four hydraulic pipes. And two sets of electromagnetism valves | ||
| 7 | Product run-out table | type | 3m Simple table |
| 8 | Spare parts | tooling | One set |
| others | Chain, gear, fuse, travel switch, encoder |
The advantage of Electric Self-lock Standing Seam Roll Forming Machine：
1. Excellent waterproof performance:
The self-locking standing seam roof panel is connected by a 360 ° vertical seam between the panels, avoiding the problem of water leakage caused by screws penetrating the roof in traditional nailed roof panels. This design is not only aesthetically pleasing and tidy, but also effectively prevents rainwater leakage, ensuring the safety of the internal structure of the building.
2. Strong wind resistance:
The self-locking standing seam roof panel is made of high-strength metal materials, such as aluminum magnesium manganese alloy plate, titanium zinc plate, etc., which have good durability and corrosion resistance. Through the locking connection method, the system can form a tight structure, effectively resist wind pressure in strong wind weather, and ensure the safety and stability of the building.
3. Strong adaptability:
This system is particularly suitable for buildings with low slopes and can seamlessly integrate with building facades, becoming an important component of visual design.
The electric self-lock standing seam roll forming machine is a device used for producing standing lock edge roof panels, mainly for the installation and fixation of metal roofs. This machine continuously locks the edges of adjacent roof panels together to form a tight connection without the need for perforation, thereby maintaining the integrity and waterproof performance of the roof panels.
Product main components：
| No. | Name | Unit | Quantity |
| 1 | 3T decoiler | set | 1 |
| 2 | Feeding,pinch, and pre-cutter part | set | 1 |
| 5 | Roll forming part | set | 1 |
| 6 | Product run-out table | set | 1 |
| 7 | PLC control station | set | 1 |
| 8 | Hydraulic oil pump station | set | 1 |
| 9 | Spare parts | set | 1 |

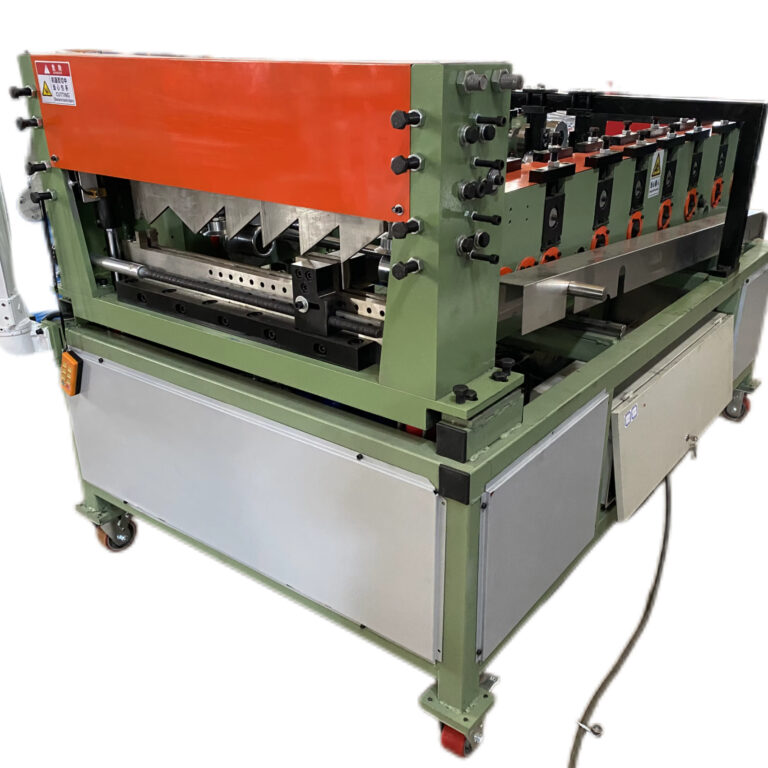

Products Display：
