In the building drainage system, downpipes are often considered as “inconspicuous supporting role”. But with the improvement of modern architectural aesthetic standards, traditional circular downspouts are gradually being replaced by square downspouts with rugged shapes and larger flow rates due to their difficulties in fitting with building facades and complex connections.

However, the bending accuracy and production efficiency of square pipes have always been processing difficulties. To this end, we have launched a heavy-duty Square Downspout Roll Forming Machine Rainwater Downpipe Making Machine, redefining the production method of high-quality downspouts with cold bending technology, injecting smooth drainage aesthetics into your building projects.

Equipment Introduction: From coil to square tube, it can be processed in one go

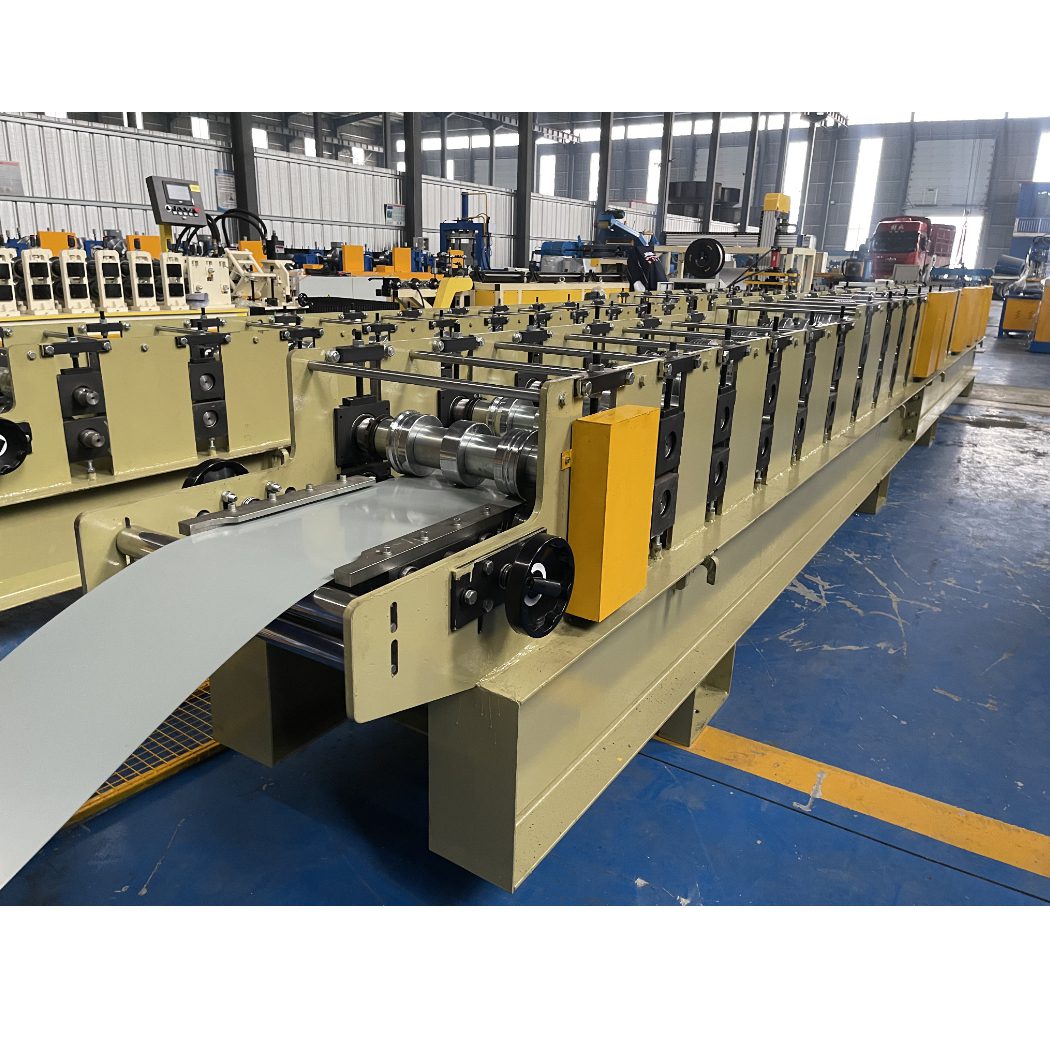

This is a high-precision cold bending production line specially developed for the field of building drainage. The equipment uses color coated steel plates, galvanized steel plates, stainless steel or aluminum magnesium manganese alloy coils as raw materials, and through continuous roll cold bending technology, completes multiple processes such as unwinding, continuous forming, biting and locking edges, and cutting to length online, directly outputting square shaped downspout products with regular appearance and accurate dimensions.

The entire line adopts PLC centralized control, which can achieve fast switching production of different specifications (such as 60x80mm, 80x100mm, 100x120mm, etc.). Whether it is a closed square tube, a rear buckle square tube, or a customized section with decorative grooves, all can be accurately completed, truly making the drainage pipe the “finishing touch” of the building.

Application scenario: Make every building so calm when it falls into the water

● High rise residential and commercial complexes
The towering facade requires straight lines to echo. The square downspout, with its rugged contour, perfectly blends into the modernist architectural style. It can be concealed in the groove of the curtain wall or sprayed in the same color as the facade, allowing the drainage system to quietly hide in the building texture.

● Industrial plants and logistics warehouses
A large-span roof means a huge catchment area. Square downspouts have a larger water discharge cross-section than circular pipes of the same diameter, significantly improving drainage efficiency. High strength steel plate forming endows it with excellent impact resistance, making it stable and reliable even in harsh environments such as forklift traffic and mechanical operations.

● Prefabricated buildings and modular houses
Standardization and fast pace are the core demands of prefabricated buildings. The square downspout forming machine can be synchronously produced online, achieving precise fixed length supply, greatly reducing on-site cutting and joint operations, and perfectly meeting the efficiency and cost reduction needs of modular construction.

● Municipal Landscape and Public Facilities
From vertical drainage of pedestrian overpasses to organized drainage of bus stops and landscape corridors, square downspouts are integrated into urban furniture design with simple geometric lines, combining functionality and decoration, conveying the delicacy and warmth of municipal facilities.

Product Attributes :

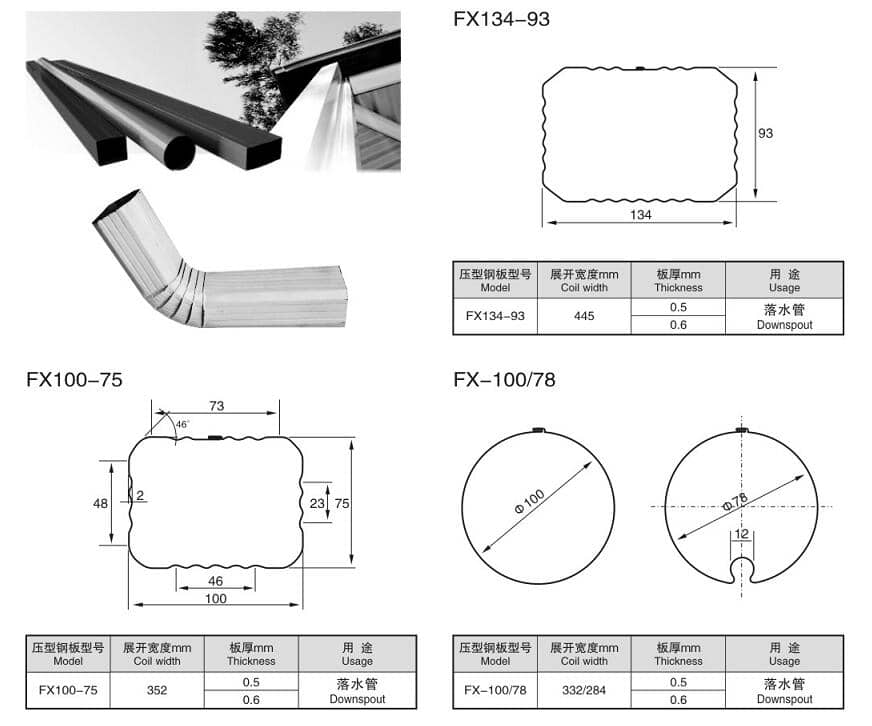

Pattern diagram：

Core feature: Defining industry benchmarks with hardcore technology

1. High precision square cross-section, tightly sealed

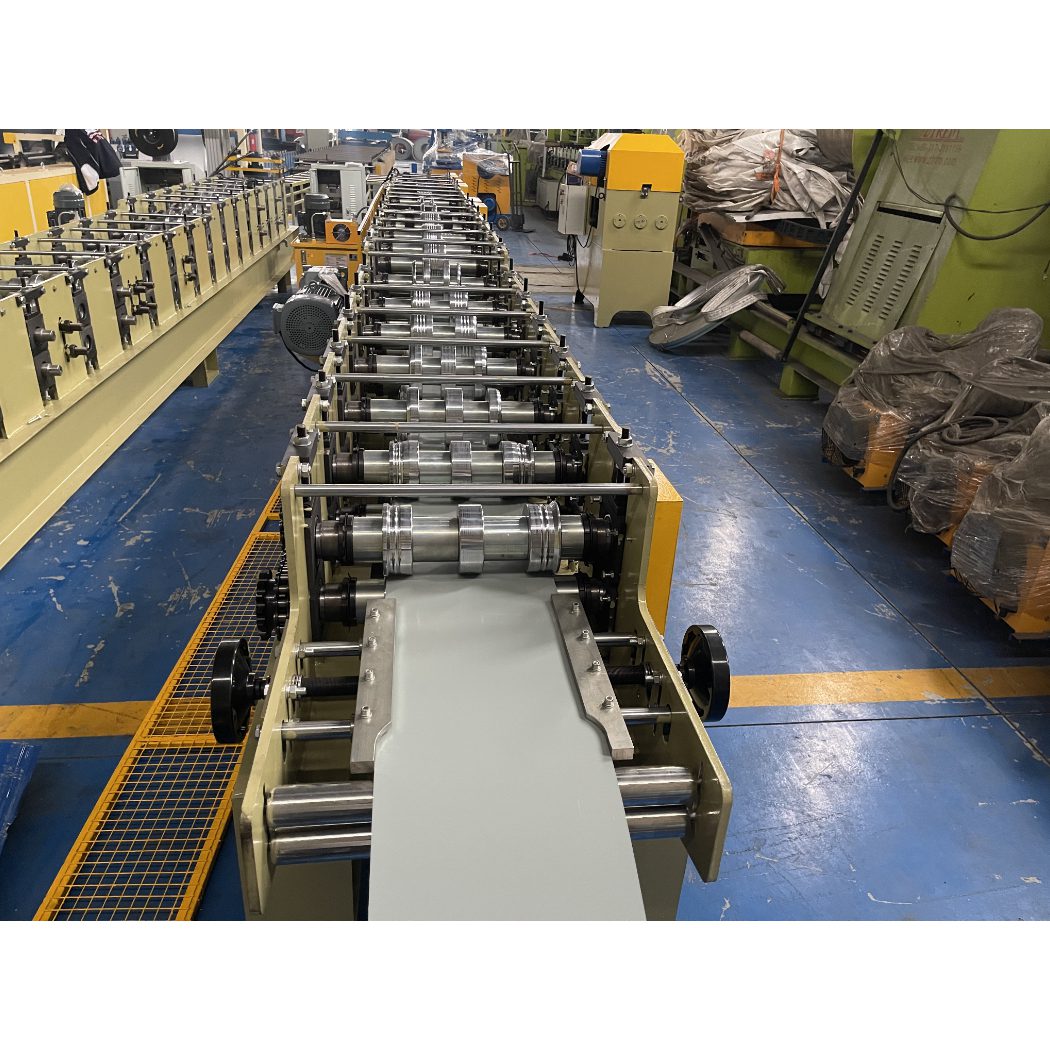

The biggest technical challenge of square downspouts lies in the verticality and flatness of the four angles. The equipment adopts multi pass progressive forming and precision sizing molds to ensure that the deviation of the finished cross-sectional dimensions is controlled within ± 0.3mm, and the pipe body is straight without torsion. Seamless fit with the building facade during installation, completely bidding farewell to the abrupt feeling of traditional circular pipe “external hanging”.

2. Integrated lock edge bite, no leakage of water
In response to the pain point of leakage at the square tube interface, the equipment can integrate an automatic locking device to form a tight mechanical interlocking structure at the joint of the pipe, achieving excellent sealing performance without the need for additional welding or sealant. Some models also support double-layer laminated hemming, with the tensile strength and waterproof grade doubled, and calmly cope with the scouring test of rainstorm and flood peak.

3. Flexible intelligent manufacturing, one machine with multiple functions
Through modular roller design and intelligent parameter adjustment, one device can cover the production of multiple cross-sectional specifications. Changing the mold only requires replacing a small amount of molding tools, greatly reducing the time required. Whether it’s standard right angled square tubes, rounded corner square tubes with more design sense, or reinforced decorative tubes, they can all be flexibly adapted to help customers undertake diversified orders.

4. Efficient and stable, fully automated and unmanned operation

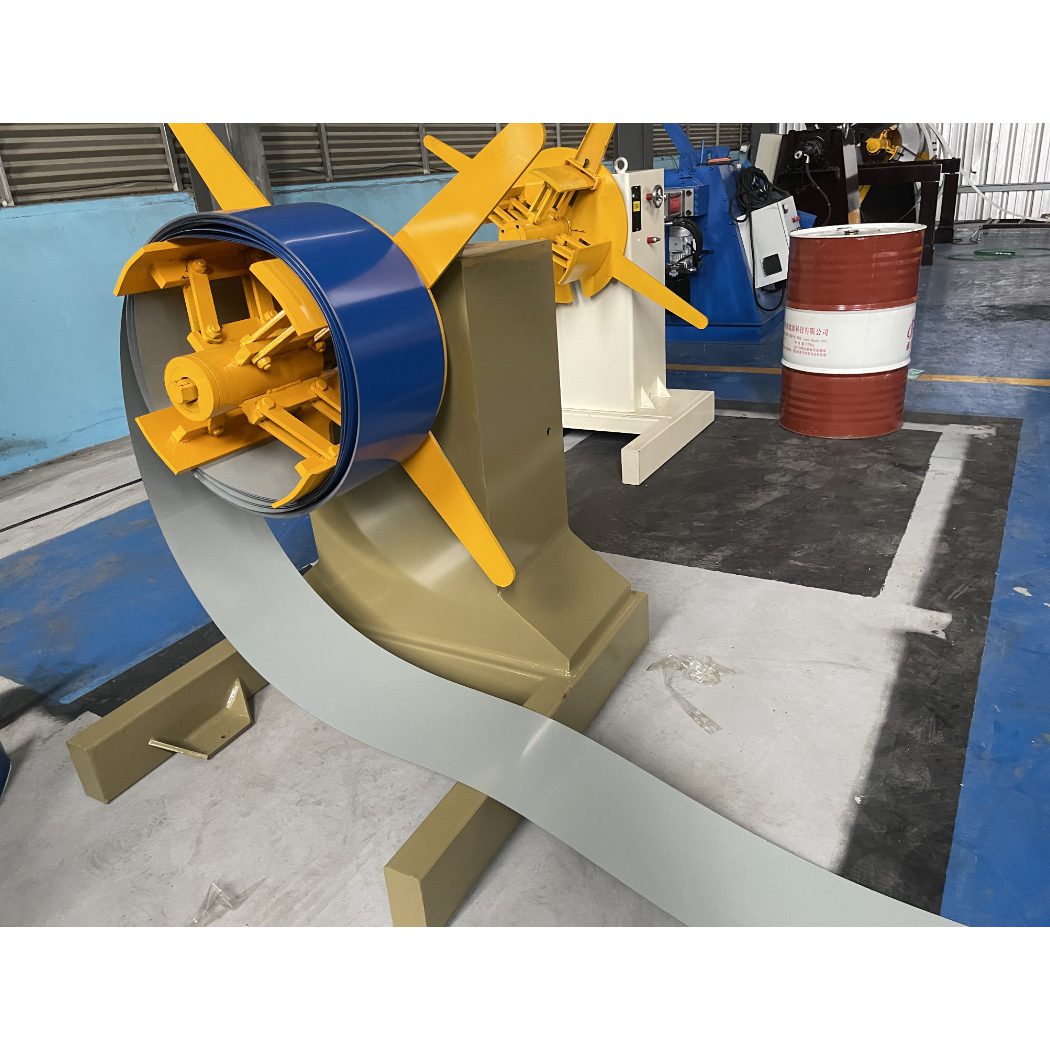

Equipped with hydraulic automatic feeding rack, servo fixed length flying shear/chasing shear system, and automatic stacking and flipping table, the entire line can achieve full process automation from coil feeding to finished product stacking. The production speed can reach 15-30 meters per minute, and only one person needs to patrol to maintain efficient operation, significantly reducing manual dependence and operational risks.

5. Durable molds that last forever
The forming rollers are made of high-quality alloy steel that has undergone vacuum heat treatment, resulting in high surface hardness and strong wear resistance. Coupled with precise gap adjustment mechanisms, they ensure excellent precision even after long-term high-speed production. This not only extends the service life of the equipment, but also ensures the consistent quality of every downspout.

Between the surrounding areas, we choose the better one：

From the flexibility of circles to the rigor of squares, this is not only a change in shape, but also an upgrade in the concept of building drainage. The fully automatic square downspout forming machine uses the ultimate precision of cold bending technology to make every meter of downspout an extension of building quality.

Choose us to make drainage no longer a hidden project, but a visible style. If you need to know detailed technical parameters, equipment configuration, or obtain a complete line solution, please feel free to inquire at any time. We will provide you with one-on-one customized services.
