The Full Automatic Aluminum Galvanized Steel Wall Cladding Panel Machine is an automated device specifically designed for the continuous roll forming of metal sheets, such as color steel coils, into exterior wall decorative panels. Taking a typical industry configuration as an example, the entire machine is arranged along the frame with a coating area, feeding area, cutting area, forming area, and discharge area, forming a smooth automated production line.
During operation, the uncoiler opens the color steel coil and feeds it into the feeding area. In the coating area, a protective film is applied to the surface of the sheet using coating rollers and flattening rollers, effectively preventing surface scratches during subsequent processing. In the cutting area, the pressure rollers and counter work together to accurately measure and cut the sheet according to the length instructions set by the controller. The forming area is the core of the entire production line, consisting of multiple roll forming units, including the middle corrugated forming roller group, the side corrugated forming roller groups, and the outer corrugated forming roller group, which continuously cold-bend the sheet into shape. Finally, the formed cladding panels are output from the discharge area, awaiting packaging or installation.
Main Application Scenarios：
• Industrial and Public Buildings:
Exterior cladding and decoration for large-span buildings such as factories, logistics warehouses, exhibition halls, and stadiums, prioritizing quick construction, economic durability, and a modern visual effect.
• Commercial and Residential Buildings:

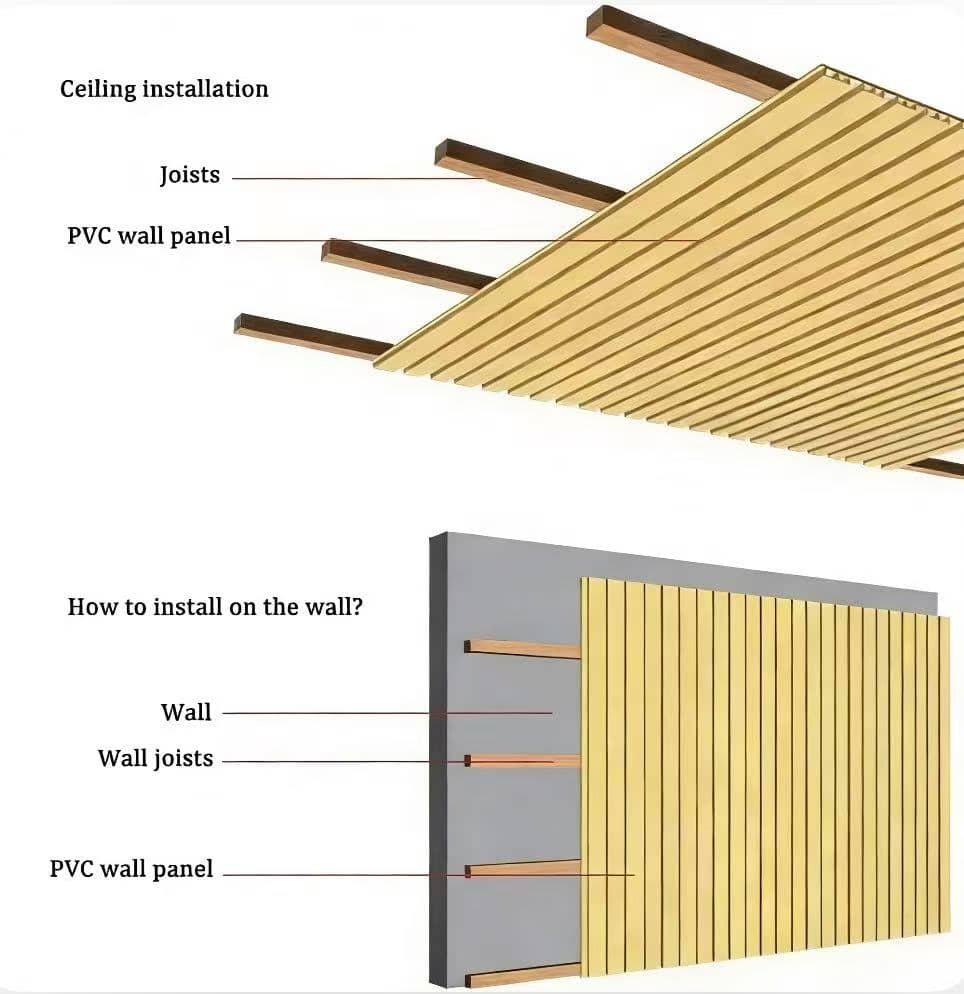

Exterior wall decoration for villas, hotels, and apartment buildings, using different installation methods for horizontal or vertical panels to create simple, stylish, or classic architectural styles.
• Old Building Renovation and Refurbishment:
Panels can be directly applied to old walls, with a short construction period and minimal impact on building load, making it an ideal solution for rapid facade updates.
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:0.32-0.5mm
|
||
|
2.Decoiler
|
Hydraulic decoiler
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
20rows(As your requirement)
|
||
|
Diameter of shaft
|
75mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine frame
|
350 H steel
|
|||
|
Drive
|
Chain transmission
|
|||
|
Dimension(L*W*H)
|
9500*1600*1600mm
|
|||
|
Weight
|
7.5T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
5.5KW
|
||
|
Hydraulic system power
|
3KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
Support multiple languages
|
|||
|
PLC
|
Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
15-20m/min
|
The speed is adjustable
|
||

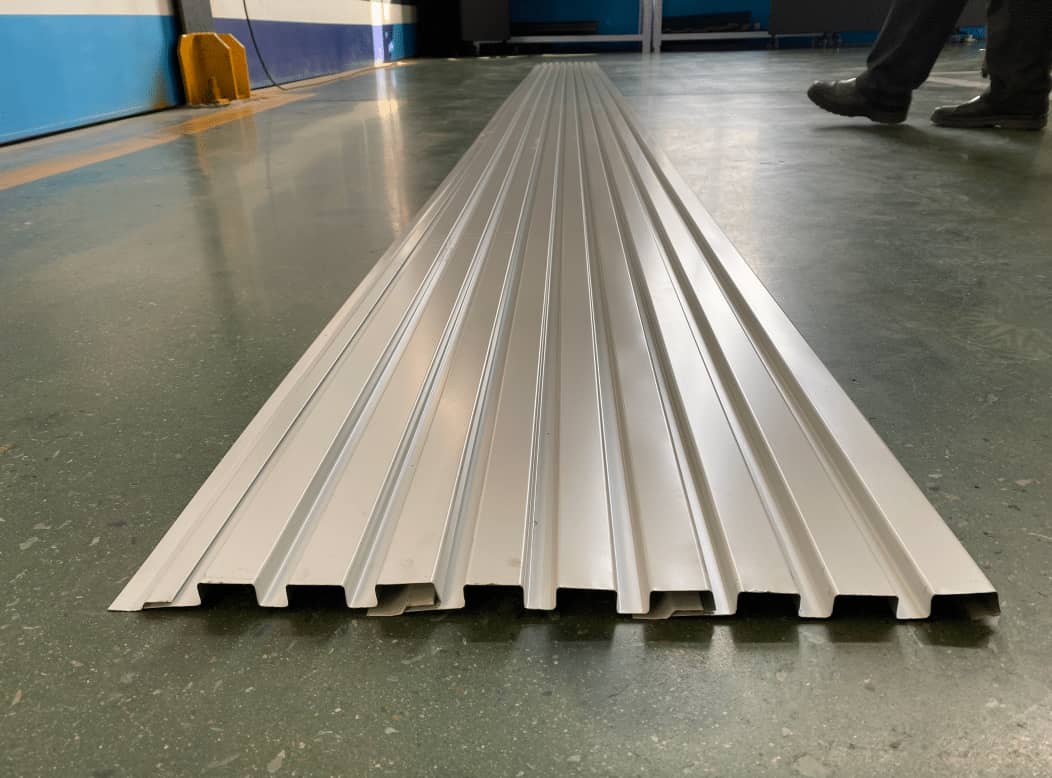

Pattern Diagram:
Key Features: Precision, Efficiency, Intelligence
1.Unlike traditional single-pass forming equipment, modern exterior wall panel forming machines employ a multi-roller design, allowing the metal sheet to undergo progressive deformation through the middle waveform, side waveforms, and outermost waveform. This process effectively avoids problems such as wrinkles, dimensional instability, and shape springback caused by large-scale deformation in a single pass, ensuring high precision and consistency of the finished product.
2.Regarding the control system, the equipment is generally equipped with a PLC computer control system and an encoder length measuring device. Operators can set parameters such as product length and production speed via a touchscreen. The equipment automatically completes the entire process from uncoiling to fixed-length cutting, with cutting length tolerances controlled within an extremely small range. Some high-end models also integrate automatic lamination and online punching functions, simultaneously completing surface protection and mounting hole processing during the forming process, significantly reducing subsequent steps.
3.Furthermore, the equipment frame is welded from high-strength steel, and the roller pressing unit is equipped with a drive sprocket and motor linkage system, ensuring smooth operation, low noise, and maintenance-free operation. It can adapt to production speeds of 12-20m/min or even higher, and the daily output of a single unit can meet the wall panel needs of small and medium-sized projects.
contact us：
The exterior wall panel forming machine is not only a processing tool that transforms metal coils into wall panels, but also a key piece of equipment for achieving the industrialization, standardization, and aesthetics of building exterior walls. From the precision rolling of multiple forming rollers to the full-process support of PLC intelligent control, it ensures that every exterior wall panel possesses consistent quality and an elegant form. For wall panel manufacturers that pursue efficiency and quality, choosing the right forming machine is a crucial step in winning the market.
Contact us today for customized production solutions and quotes, and usher in a new era of efficient manufacturing!
