The Double Layer Trapezoidal AG Panel Roll Forming Machine is a high-efficiency, integrated forming color steel tile production machine primarily used for manufacturing roof tiles in steel structure buildings. It can simultaneously produce two different wave patterns of color steel plates, such as combinations of trapezoidal tiles and wave-shaped tiles, or arc tiles, and is widely applied in construction scenarios like factories, warehouses, and mobile container houses.This type of equipment continuously forms color steel plates into the desired tile shape through the cold rolling and bending process, featuring advantages such as space-saving, high production efficiency, neat panel alignment, and excellent sealing. The equipment typically consists of an uncoiler, forming machine, hydraulic cutting system, and control system, supporting automated continuous operation. Some high-end models are also equipped with servo control systems, enabling precise adjustment of forming angles and speeds.
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI,GL
|
Thickness:0.3-0.6mm Width:1220mm(As per profile drawing)
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
20+24rows(As your requirement)
|
||
|
Diameter of shaft
|
80mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
400 H steel
|
|||
|
Drive
|
Chains transmission
|
|||
|
Dimension(L*W*H)
|
10500*1600*1600(customize)
|
|||
|
Weight
|
11.5T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
5.5KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
15-20m/min
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
Mainstream Device Types and Characteristics：
1.Hydraulic interlinked type
The upper and lower dies are synchronized by hydraulic cylinders, ensuring high forming accuracy and suitability for mass production with continuous output efficiency of 12-15 pieces per minute.
2.Mechanical gear type
Dual-axis gear transmission ensures smooth operation and low maintenance costs, with lightweight equipment (approximately 1.2 tons), facilitating easy movement and installation, making it suitable for temporary construction or small-scale work sites.
3.Servo motor type
Digital control allows flexible adjustment of tile parameters, supports customized production, and is particularly suitable for scenarios with special curvature requirements such as sloped roofs.
Typical application scenarios：
• Industrial plants and warehouses
Suitable for large steel structure workshops, logistics warehouses, production workshops, and other building roofs, the color steel sheets produced by the equipment feature characteristics such as lightweight, high strength, waterproofing, earthquake resistance, and fire resistance, effectively withstanding harsh weather and industrial environmental corrosion.
• Agriculture and Greenhouses
It can produce roof tiles for greenhouses, ecological parks, and planting and breeding greenhouses, which can be used in combination with hollow tiles or PVC plastic tiles to achieve a balance between lighting, insulation, and structural strength.
• Public and Municipal Engineering
Suitable for large-span buildings such as stations, market passages, parking garages, and sports venues, the equipment can be customized with wide-profile tile types (e.g., Type 1000, Type 1100) to meet the requirements of large-span structures.
• Civil Buildings and Temporary Facilities
Suitable for scenarios such as prefabricated housing, villa roofs, antique-style buildings, and agricultural markets, it supports dual-layer composite forming of trapezoidal tiles and glazed tiles, enhancing architectural aesthetics and durability.

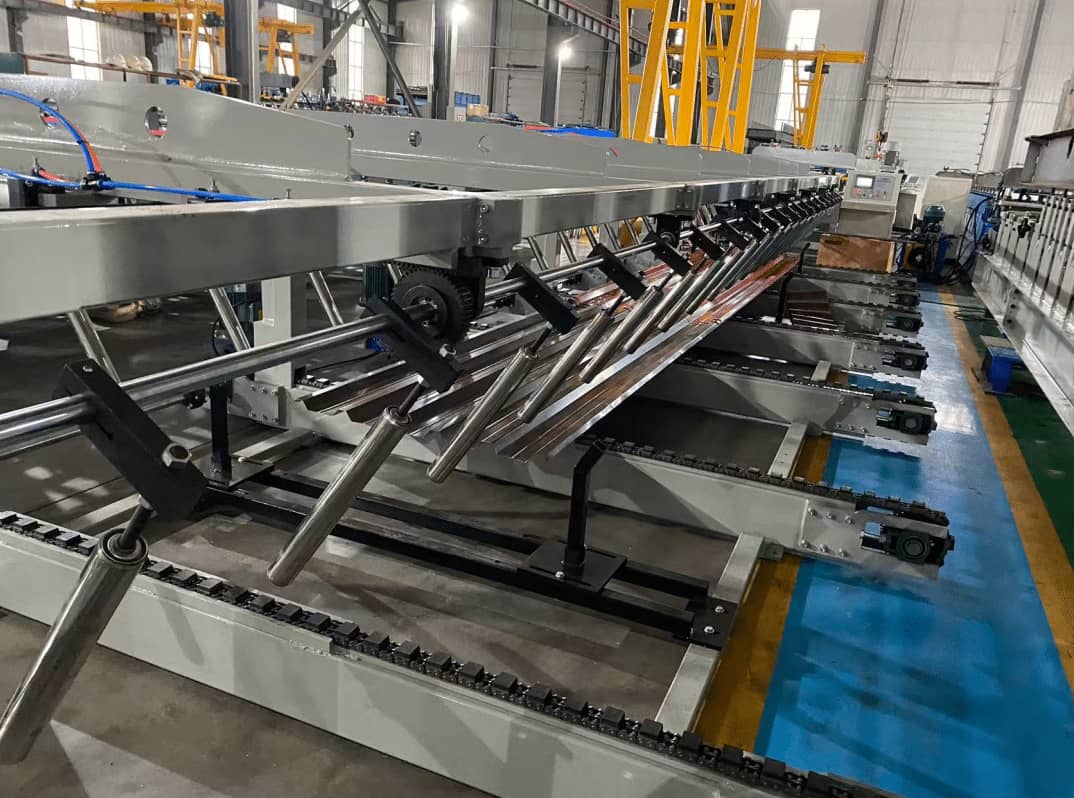

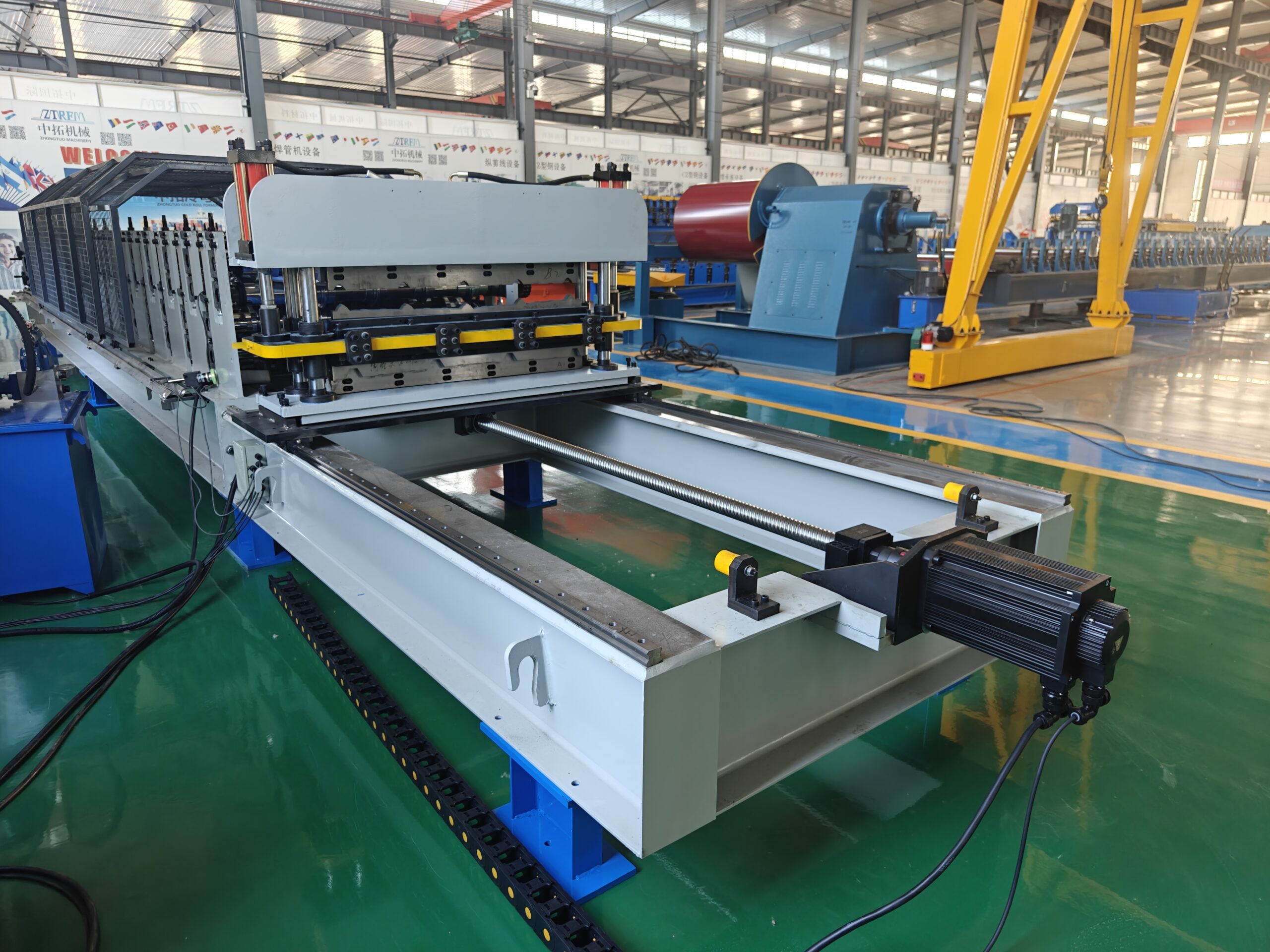

Machine image:
