Against the backdrop of the accelerated popularization of steel structure and prefabricated buildings worldwide, color steel trapezoidal roof panels have become the preferred material for industrial plants, logistics warehouses, and commercial building enclosure systems due to their advantages of light weight, high strength, good drainage performance, and convenient construction. The High Speed Color Steel Trapezoid Roof Panel Making Machine Production Line, as the core equipment for efficient production of trapezoidal roof panels, is helping global building material manufacturers achieve dual breakthroughs in production capacity and quality with its high-speed continuous production capacity, high-precision molding quality, and intelligent control system.

What is a high-speed color steel trapezoidal roof panel production line?

The high-speed color steel trapezoidal roof panel production line is a fully automatic cold bending forming equipment, dedicated to gradually rolling metal coils such as color coated steel plates (PPGI), galvanized steel plates (GI), or aluminum zinc plates through multiple precision arranged rollers, and continuously forming them into trapezoidal wave shaped building panels at high speed.

The standard production process is: hydraulic unwinding → feed guidance → roll forming → hydraulic fixed length cutting → finished product output. The entire production line is coordinated by a PLC control system, and operators can set parameters such as board length and production quantity through a touch screen, achieving intelligent production management.

Core Advantages：

1. High speed continuous production, doubling production capacity
The equipment adopts optimized transmission structure and power matching design, with a production speed of up to 0-20 meters per minute, and the high-performance version can even reach 40-60 meters per minute. Even in long-term uninterrupted mass production, the equipment still runs smoothly without jamming or deviation. In fully automatic operation mode, only 1-2 operators are needed to complete the management of the entire production line. Compared with traditional processing equipment, the production efficiency is increased by more than three times, effectively helping manufacturers to complete large-scale orders of roofing materials for industrial plants and warehouses in a short period of time.

2. High precision molding, perfect installation matching
The equipment is equipped with multiple sets of high-precision solid alloy forming rollers. After multiple progressive rolling processes, the trapezoidal wave peaks, wave distances, edge bending, and overlapping grooves are formed in one go with zero error. The surface of the finished board is smooth and without deformation, and the coating does not crack or peel off. It fully complies with international standard roof installation dimensions and does not require on-site secondary trimming or manual correction, effectively reducing material waste and improving overall construction efficiency.

3.Heavy duty fully welded frame, with an ultra long service life
The formed main frame is welded and stress relieved with thickened steel plates, ensuring that the body does not shake or deform under long-term high load operation. The roller shaft is made of 45 # high-quality steel precision machining, combined with a double bearing support structure, to ensure stable output under high-strength continuous operation. The transmission system adopts gearbox or heavy-duty chain transmission, which is suitable for harsh workshop environments such as high temperature, humidity, and dust in overseas regions.

4. Intelligent PLC control, easy to operate and labor-saving
The equipment is equipped with an English version industrial touch screen PLC control system, which supports one click start, automatic counting, fixed length setting, and intelligent fault alarm. Workers only need to set the length and quantity on the screen, and the entire production line can run automatically without professional technical background. Local employees can operate proficiently within ten minutes, effectively saving labor costs and training expenses.

5. Flexible customization, one machine for multiple uses
The equipment supports processing materials such as color coated steel plates, galvanized plates, and aluminum zinc plates with a thickness of 0.3-0.8mm. By quickly replacing the molding mold set, one host can produce various trapezoidal plate types (such as 840, 850, 900, 1000, etc.), improving equipment utilization. Some models can also be equipped with a double-layer structure, allowing for the simultaneous production of two different board types on a single device.

Application Areas：

The boards produced by the high-speed color steel trapezoidal roof panel production line are widely used in various building scenarios:

• Industrial buildings:
Roofing and wall systems for large steel structure factories, logistics warehouses, and manufacturing workshops

• Commercial buildings:
enclosure structures for supermarkets, sports halls, exhibition centers, and farmers' markets

• Agricultural buildings:
livestock farms, greenhouses, grain warehouses

• Prefabricated buildings:
roofs and walls of modular houses, prefabricated houses, and prefabricated buildings

• Other uses:
noise barriers, composite sandwich panel substrates

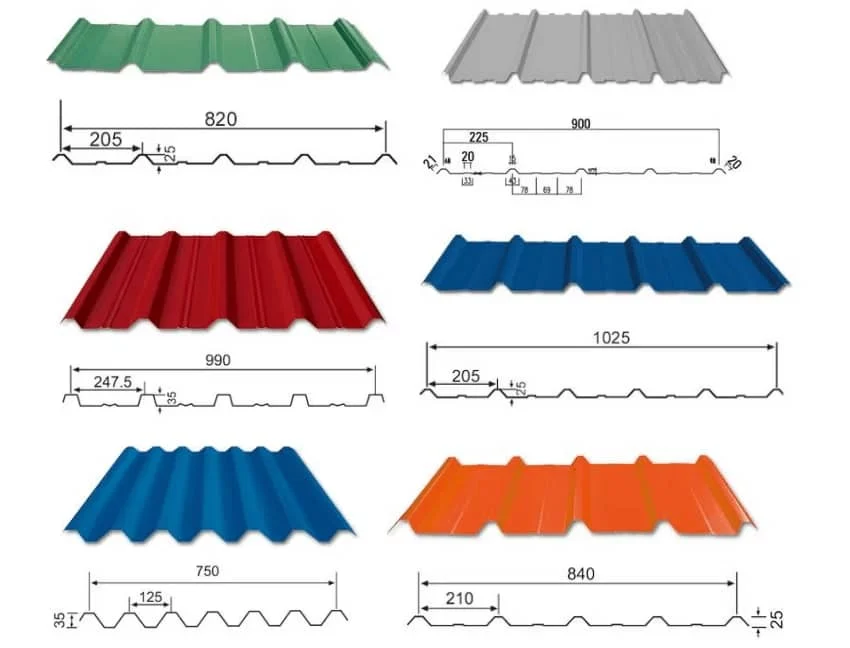

Pattern diagram:

Product Attributes :

Frequently Asked Questions (FAQ):

Q1: What types of boards can this production line produce?

The equipment can produce various trapezoidal board types such as 840, 850, 900, 1000, etc. We can also customize and produce trapezoidal tiles with different peak heights and distances according to customer needs. We can design customized rolling mill molds for customers by providing plate drawings or samples.

Q2: How to ensure the forming accuracy of the equipment?

Accuracy assurance comes from three levels: the rolling mill is made of 45 # steel or GCr15 bearing steel, which has been quenched and plated with hard chromium to ensure accurate forming contours; The PLC closed-loop control system, in conjunction with the encoder, monitors and adjusts production parameters in real-time; The hydraulic shearing system, in conjunction with the sizing device, achieves a cutting tolerance of ± 1mm.

Q3: Does the device support quick changeover?

By replacing different specifications of forming roller sets, trapezoidal tile models with different peak heights and distances can be produced within a certain range (such as 840, 850, 900, etc.). Some models can be configured with a double-layer structure, allowing for the simultaneous production of two different board types on a single device.

Q4: What voltage and power standards does the device support?

The equipment can be customized with voltage configuration according to the power grid standards of the customer's country, supporting different voltages such as 220V, 380V, 415V, 440V, etc. The frequency can be selected as 50Hz or 60Hz, and it is a three-phase power supply. The control system supports multiple language operation interfaces such as English and Chinese.

Contact Us：
