This Automatic Corrugated Roof Sheet Machine for Metal Roofing Production is designed for the efficient production of various metal roofing panels. The equipment utilizes high-quality roll forming technology, integrating uncoiling, feeding, roll forming, and length cutting. The entire machine is operated by a PLC automatic control system, continuously cold-bending color-coated coils, galvanized coils, or aluminum coils into roofing panels with various corrugated shapes. The equipment operates smoothly, with high forming precision, producing flat, scratch-free panels, making it an ideal production line for building materials manufacturing, steel structure engineering, and roofing construction companies.
Core Advantages:
1. High Speed and Efficiency, Superior Production Capacity
Production Speed: 10-30m/min (High-speed models can be customized upon request)
Continuous automated operation, significantly reducing labor costs
Efficiency increased by over 30% compared to traditional single-machine equipment
2. Precision Forming, Beautiful Sheet Surface
Rollers are made of high-quality 45# steel or bearing steel, CNC precision machined and high-frequency heat treated, resulting in high hardness and strong wear resistance.
High forming precision, accurate peak and trough dimensions, and tight splicing.
Progressive forming design ensures no damage or scratches to the sheet surface coating.
3.Fully Automatic Intelligent Control
Utilizes a PLC programmable controller + touchscreen human-machine interface.
Automatic fixed-length cutting with minimal length error.
Supports setting production quantity and batch; automatic shutdown upon reaching the set quantity.
Features automatic fault alarm function for quick troubleshooting.
Application Areas:

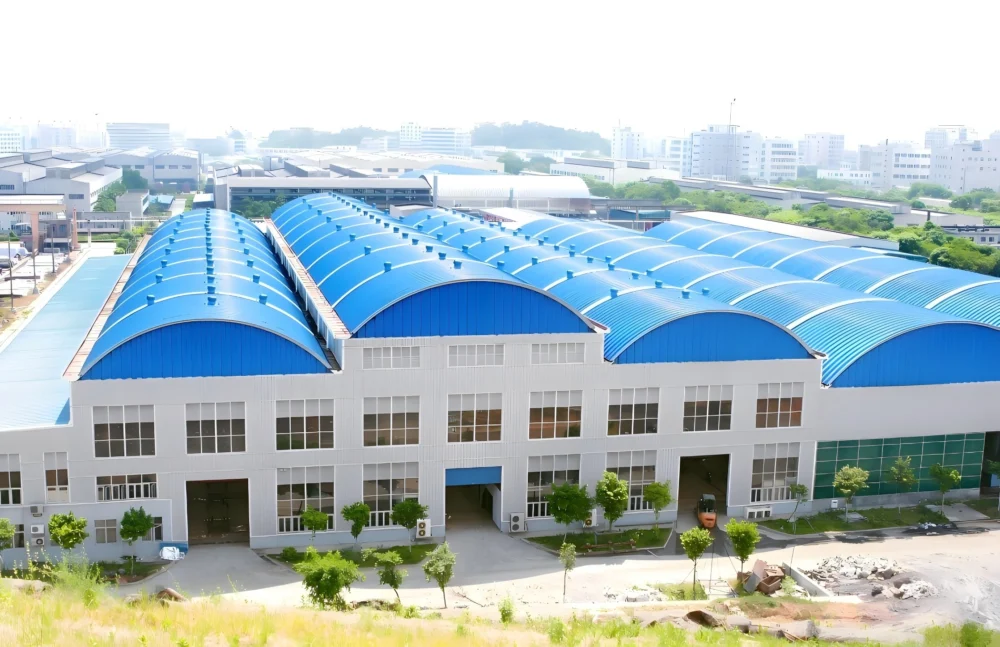

• Steel structure roofs for industrial plants, warehouses, and logistics centers
• Metal roofs for commercial buildings and stadiums
• Roofs for agricultural greenhouses and livestock farms
• Residential corrugated steel tile roofs and villa roof decorations
• Public facility buildings such as stations, airports, and toll stations
• Fences, partitions, and temporary building panels

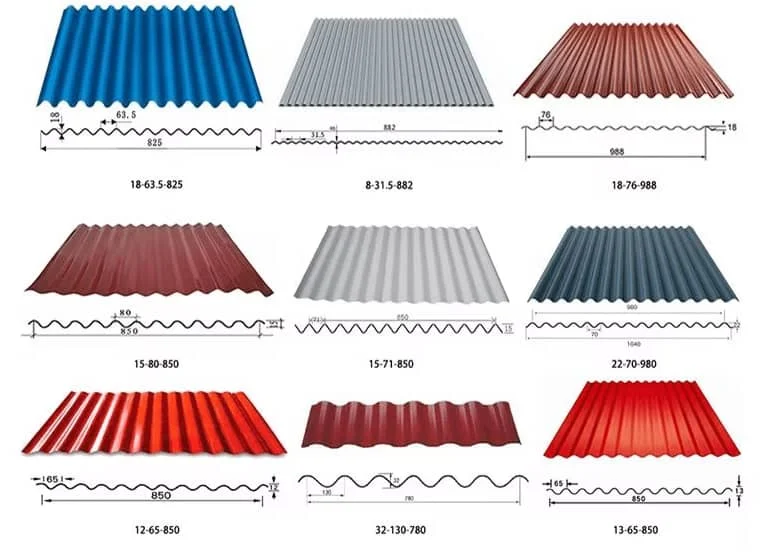

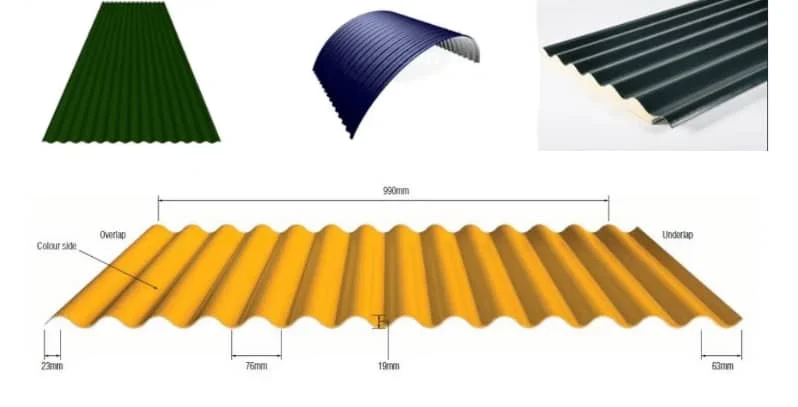

Pattern diagram：
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:0.3-0.8mm
|
||
|

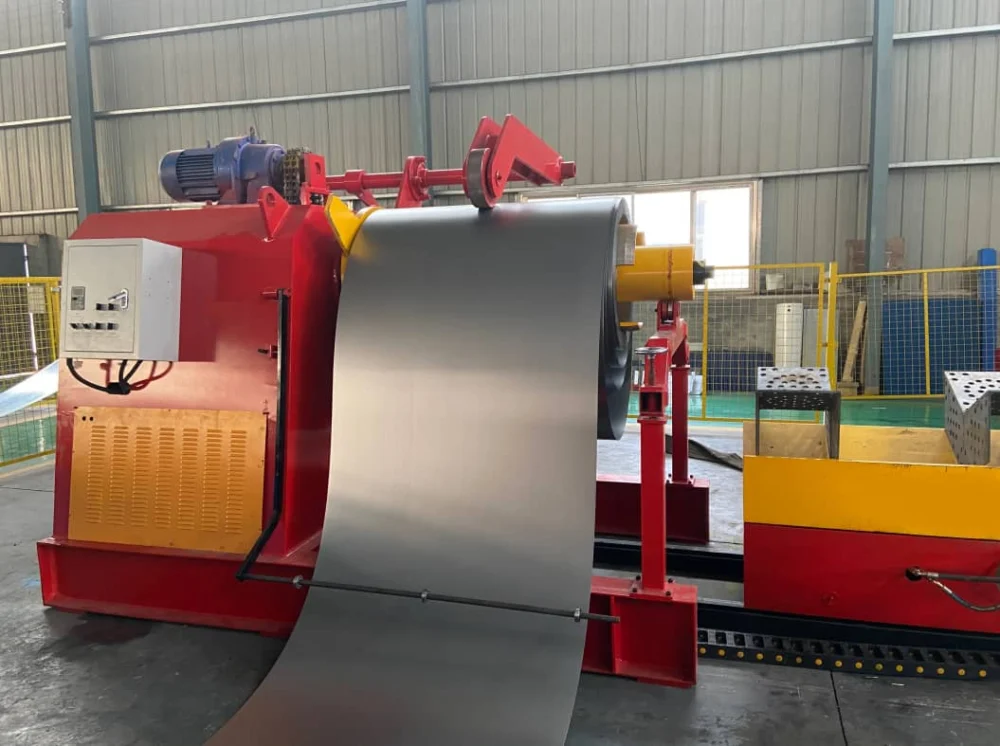

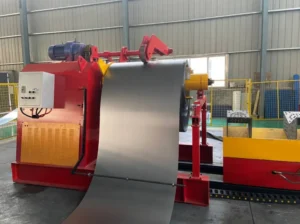

2.Decoiler
|
Hydraulic automatic decoiler
|
will give you as free
|
||
|
3.Main body
|
Roller station
|
19 rows(As your requirement)
|
||
|
Diameter of shaft
|
80mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
350 H steel
|
|||
|
Drive
|
gearbox transmission
|
|||
|
Dimension(L*W*H)
|
9500*1600*1600(customize)
|
|||
|
Weight
|
13tons
|
|||
|

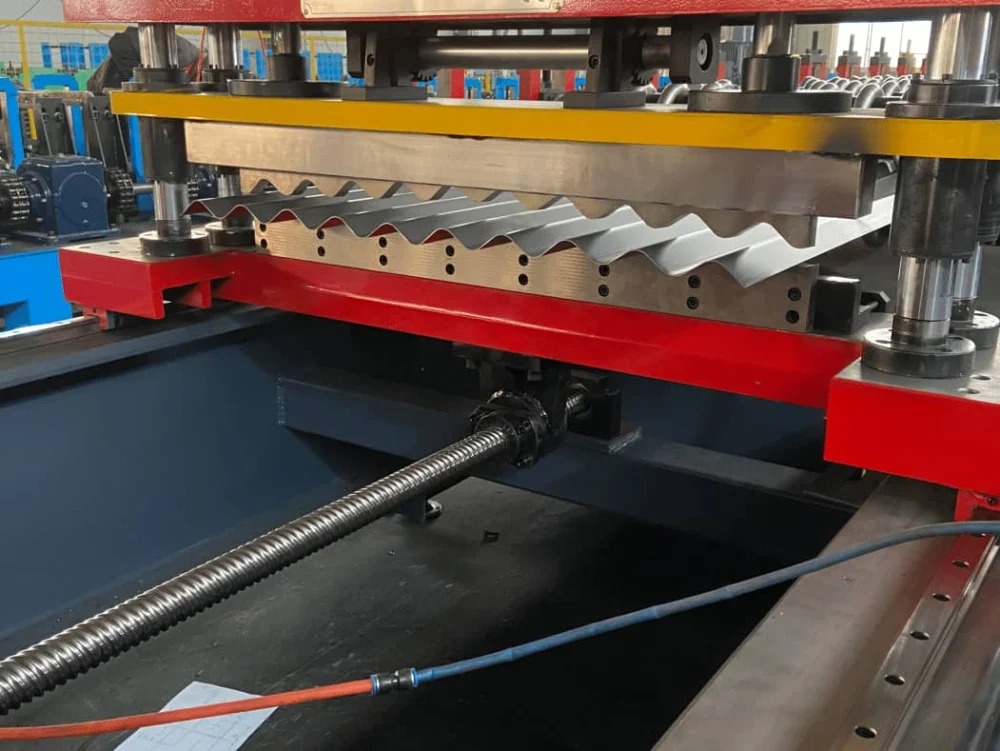

4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
5.5KW
|
||
|
Hydraulic system power
|
4.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
8.Forming Speed
|
0-20/min
|
The speed depends on the shape of the tile and the thickness of the material.
|
||

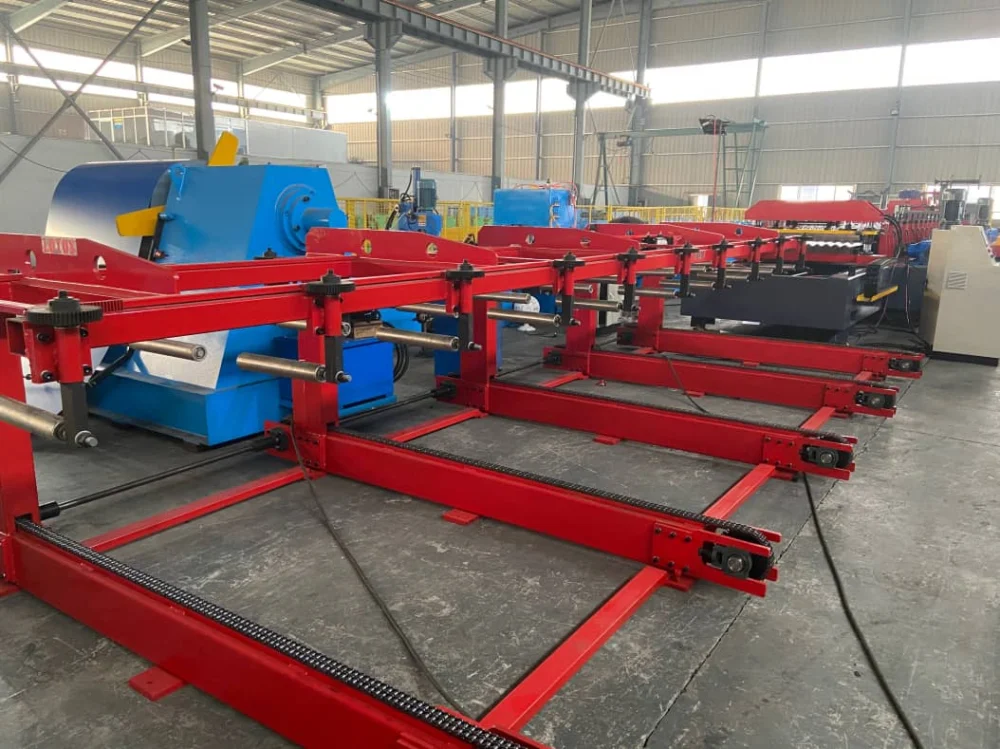

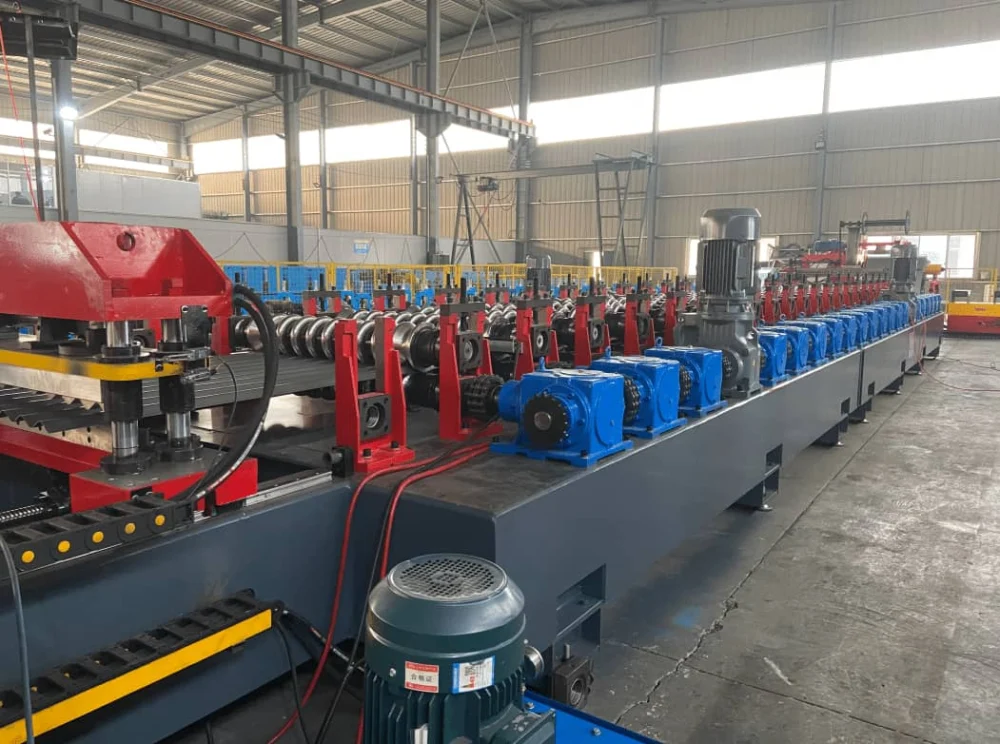

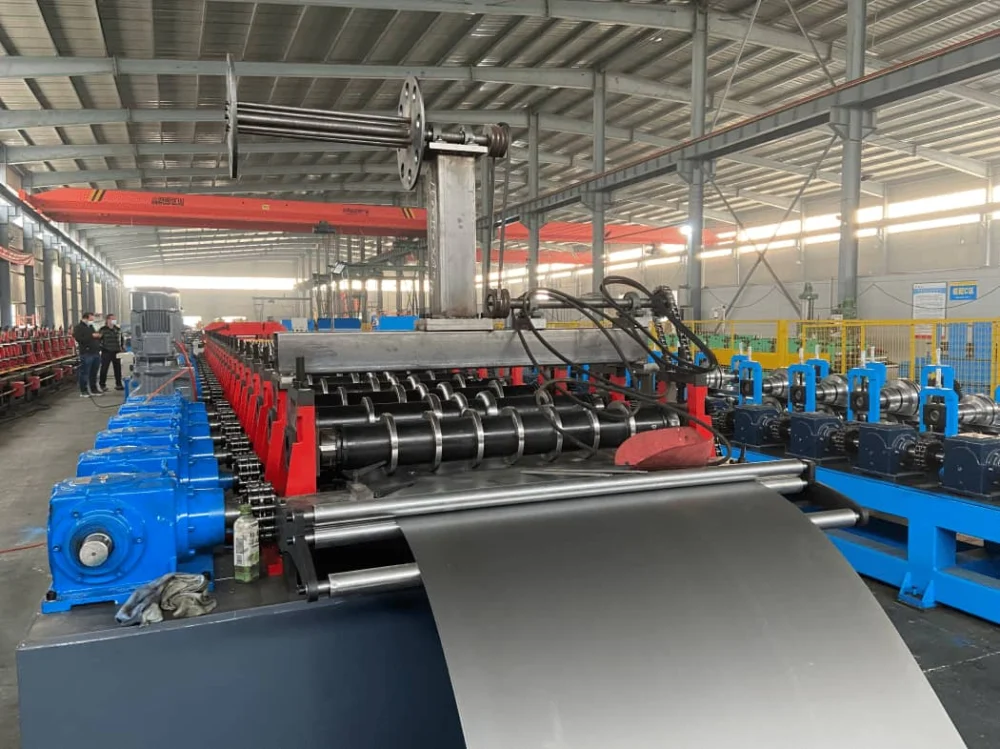

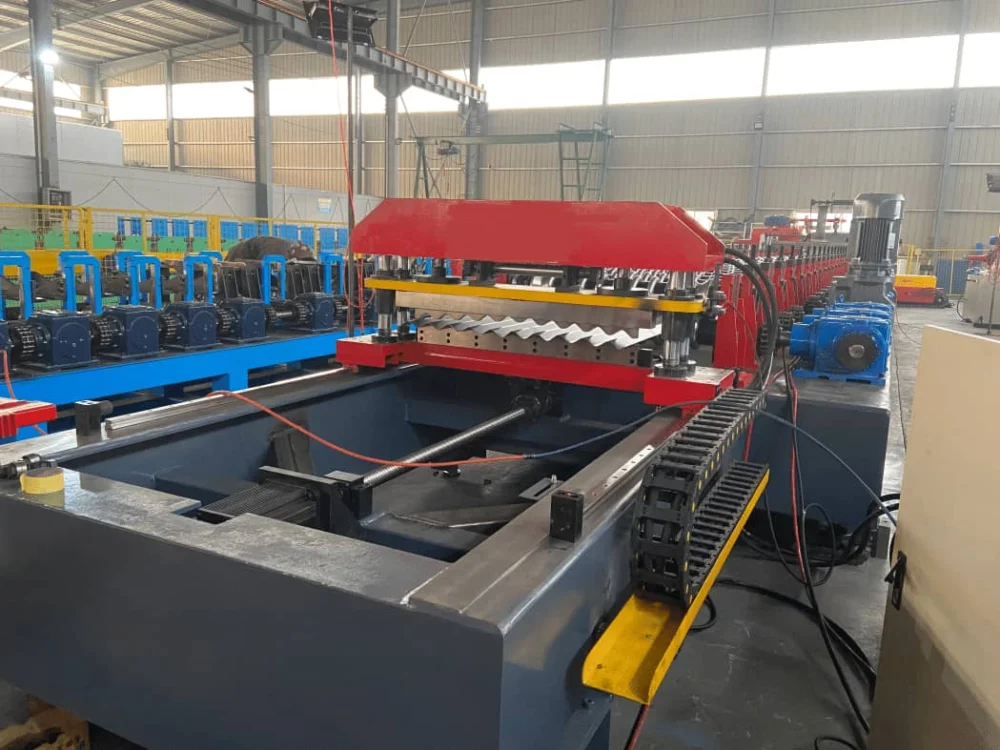

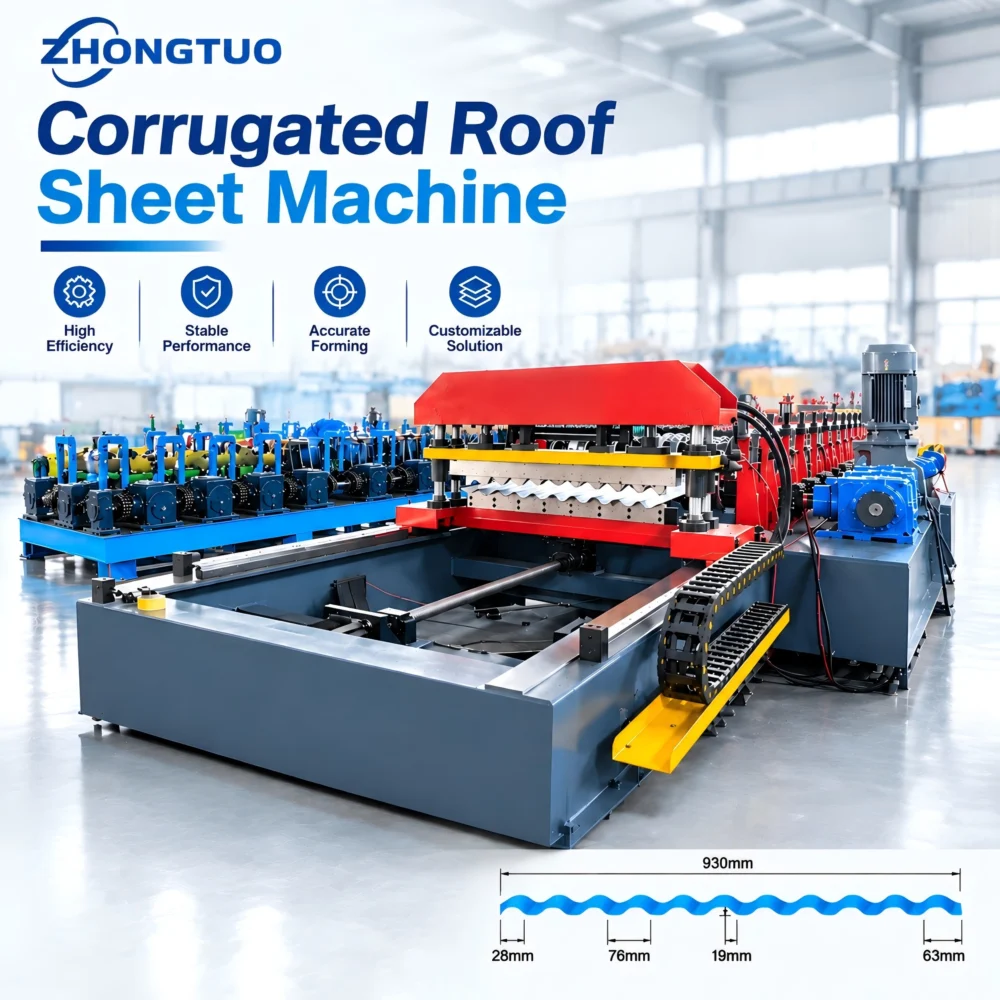

Machine photo:
Why Choose Us?
✅ 15+ Years of Industry Experience – Focused on the R&D and manufacturing of roll forming equipment, with mature technology
✅ Strong Mold Customization Capabilities – Possesses a rich wave pattern database, enabling rapid customization of special plate shapes
✅ Turnkey Service – One-stop service including solution design, equipment manufacturing, installation, commissioning, and personnel training
✅ Global Service Network – Products sold overseas, with timely after-sales response
✅ Quality Assurance – 12-month warranty on the entire machine, lifetime technical support
Get a customized solution and quote now!
If you are looking for a high-quality Automatic Corrugated Roof Sheet Machine for Metal Roofing Production, please feel free to contact us. Whether it's a standard model or a customized solution, we can provide you with highly competitive prices and professional technical support to help you reduce costs and increase efficiency in your metal roofing panel production!
