In today’s ever-evolving world of modern architectural aesthetics, roofs are no longer merely structures for sheltering from the elements; they have become the soul of a building, determining its character and space utilization. As a culmination of cold-bending forming technology, the Corrugated Steel Sheet Wall Panel Roll Forming Machine is becoming the ideal choice for industrial plants, commercial exhibition halls, and high-end villa projects due to its superior performance and extremely high production efficiency.

Product Introduction:

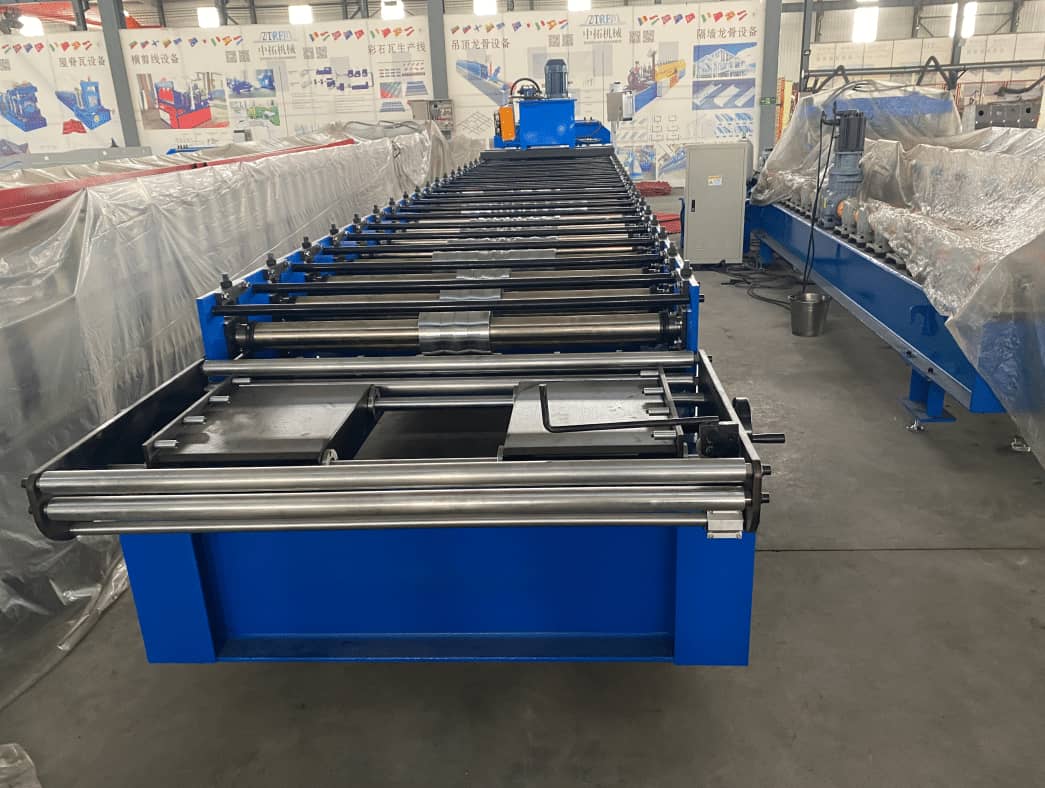

This Corrugated Steel Sheet Wall Panel Roll Forming Machine is designed specifically for high-volume, high-standard production, a perfect example of efficiency and precision. The equipment employs an advanced fully automatic servo control system and PLC digital programming technology, achieving a forming speed of up to 15 meters per minute. The fully automatic feeding system and computer-controlled fixed-length cutting device work in close coordination, significantly reducing manual intervention and strictly controlling forming accuracy within ±0.5 millimeters.

Wide Range of Applications:

1. Large Industrial and Public Buildings
With its large span and unsupported structural advantages, the curved roof panels produced by this equipment are ideal for the roofing and wall construction of stadiums, convention centers, large industrial plants, warehouses, and airport/high-speed rail stations. Its smooth curves not only optimize the utilization of indoor space but also effectively withstand extreme weather conditions such as typhoons and heavy rains.

2. High-End Commercial and Cultural Tourism Buildings
In projects such as shopping malls, star-rated hotels, tourist attraction pavilions, and exhibition halls, curved roof tiles can give buildings a highly modern and elegant appearance, making them stand out from their surroundings. Their excellent thermal insulation and soundproofing properties also provide a quiet, temperature-controlled, and comfortable environment for commercial activities and tourists.

3. Modern Residential Buildings and Ancient Building Restoration
Suitable for the pitched roofs or dome structures of high-end villas and self-built houses, the neat paving effect can significantly enhance the sophistication of the building’s appearance. Meanwhile, through customized molds and arching techniques, the equipment can also replicate the patterns of traditional tiles, perfectly adapting to the renovation projects of antique buildings or historical buildings, taking into account both waterproof and load-bearing functions and decorative features.

Product Attributes :

Pattern diagram:

Main Core Advantages :

1. High-Efficiency Automated Production, Cost Reduction and Efficiency Improvement:
The equipment adopts an advanced PLC fully automatic computer control system and servo tracking shearing technology. During production, the main forming machine can maintain continuous operation, and the cutter precisely follows the steel plate trajectory for synchronous shearing, with a forming speed of up to 15 to 40 meters per minute. This highly automated “feeding-forming-fixed-length cutting” process greatly shortens the production cycle. Typically, only one worker is needed to complete the entire process, significantly reducing labor and time costs compared to traditional manual bending.

2. Superior Forming Precision and Surface Quality:
To ensure the aesthetic appeal of the finished product, the equipment employs a “split forming” process and a high-precision shearing structure (such as single-sided single-guide-column or four-column hydraulic shearing). By decomposing the basic curvature pressing, edge finishing, and surface pressing into multiple independent modules, stress concentration and wavy bending caused by traditional one-piece forming are effectively avoided. The finished tiles have uniform curvature, minimal dimensional error (controllable within ±0.5 mm), and smooth, burr-free or indented cuts, with a mirror-like surface.

3. Robust and Durable Mechanical Structure and Material Protection:

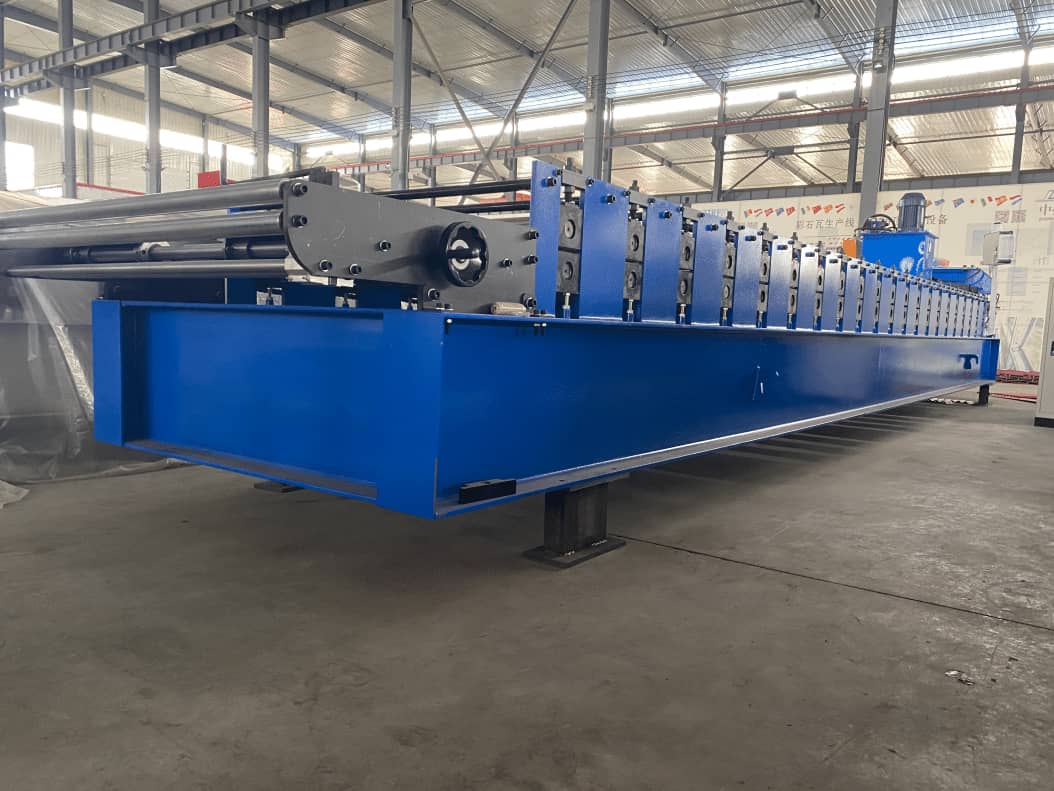

The main frame of the machine is welded from high-strength steel, and the core forming rollers are made of high-quality 45 alloy steel or Cr12 mold steel. After heat treatment, precision grinding, and chrome plating, they possess extremely high hardness and wear resistance. This design not only enables continuous processing of high-hardness materials such as stainless steel and cold-rolled steel sheets, but also effectively protects the coatings and plating on the sheet surface from scratches during high-speed operation, maximizing the preservation of the material’s appearance integrity.

4. Excellent Material Compatibility and Span Load-Bearing Capacity:
The equipment possesses excellent flexible processing capabilities, capable of handling various metal coils such as color steel sheets, galvanized sheets, aluminum-magnesium-manganese sheets, and stainless steel sheets. Sheet thicknesses range from 0.15 mm to 1.5 mm, and curvature radii can be flexibly adjusted between 2 meters and 10 meters. The produced arc-shaped panels have high structural strength; when used as load-bearing components for roofs or walls, spans can reach over 12 meters without additional internal supports, effectively reducing the overall weight of the roof while ensuring performance.
