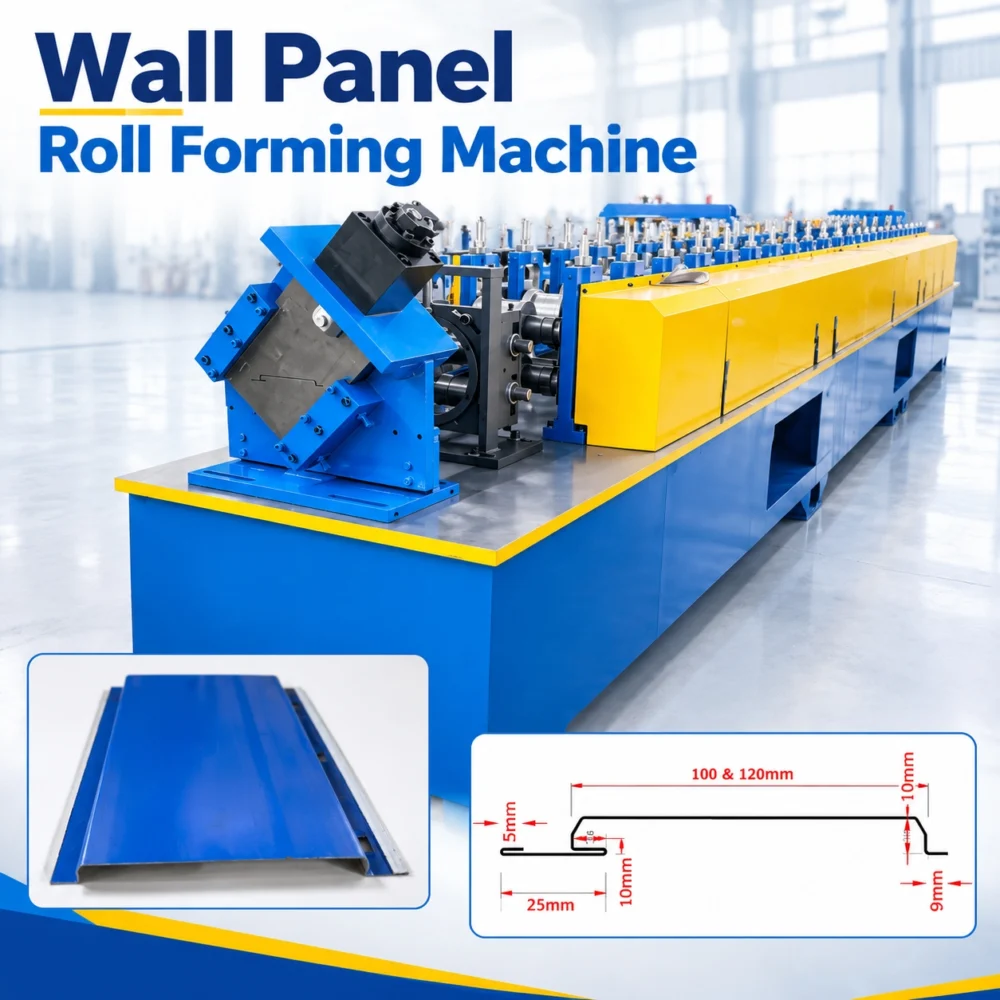

Looking for an automated roll forming solution that turns color coated steel coils into premium wall panels — without compromising surface finish or profile accuracy?
Our Automatic Wall Panel Roll Forming Machine for Color Coated Steel Production is engineered for manufacturers who need high output, consistent quality, and minimal manual intervention. Whether you produce corrugated wall sheets, concealed-fix cladding, standing seam panels, or decorative facade profiles, this line delivers smooth forming, precise cutting, and excellent surface protection for color coated steel.
From coil loading to finished panel stacking, the entire process is controlled automatically — helping you reduce labor costs, improve productivity, and meet the demanding standards of modern building exterior projects.
What Is an Automatic Wall Panel Roll Forming Machine?

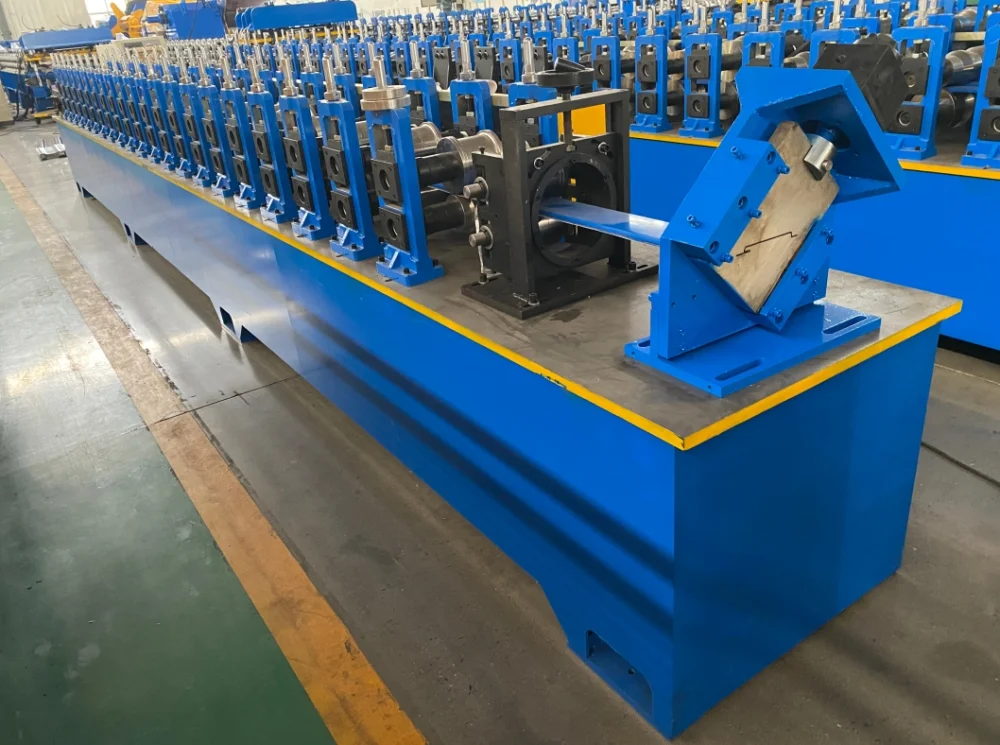

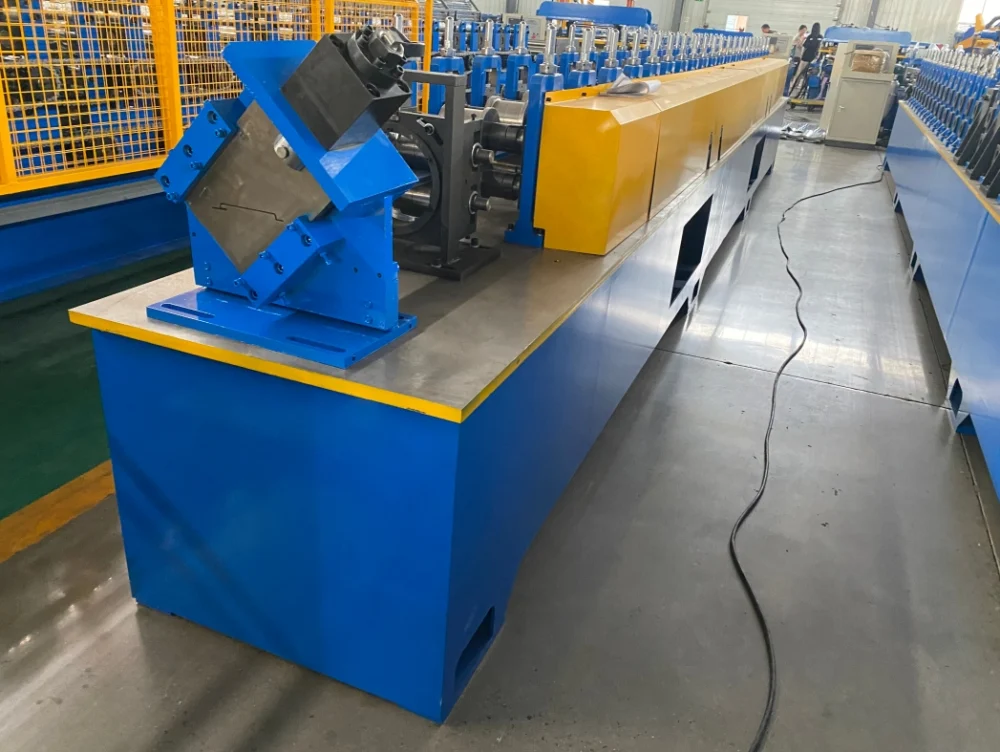

An automatic wall panel roll forming machine is a dedicated production line that converts color coated steel coils into finished wall panels for building exteriors and interiors. The machine integrates uncoiling, feeding, roll forming, cutting, and stacking into one continuous, PLC-controlled workflow.
A typical automatic line includes:
-
Hydraulic decoiler with coil car (optional)
-

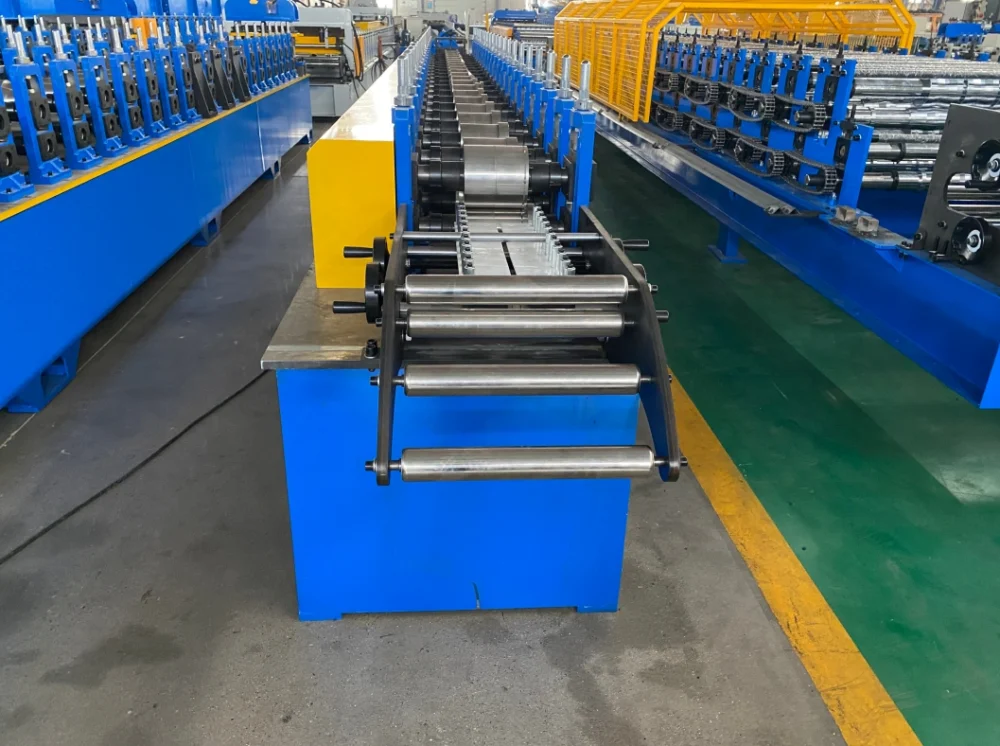

Feeding and guiding system
-
Precision roll forming stations
-
Hydraulic cutting system
-
PLC control system
-

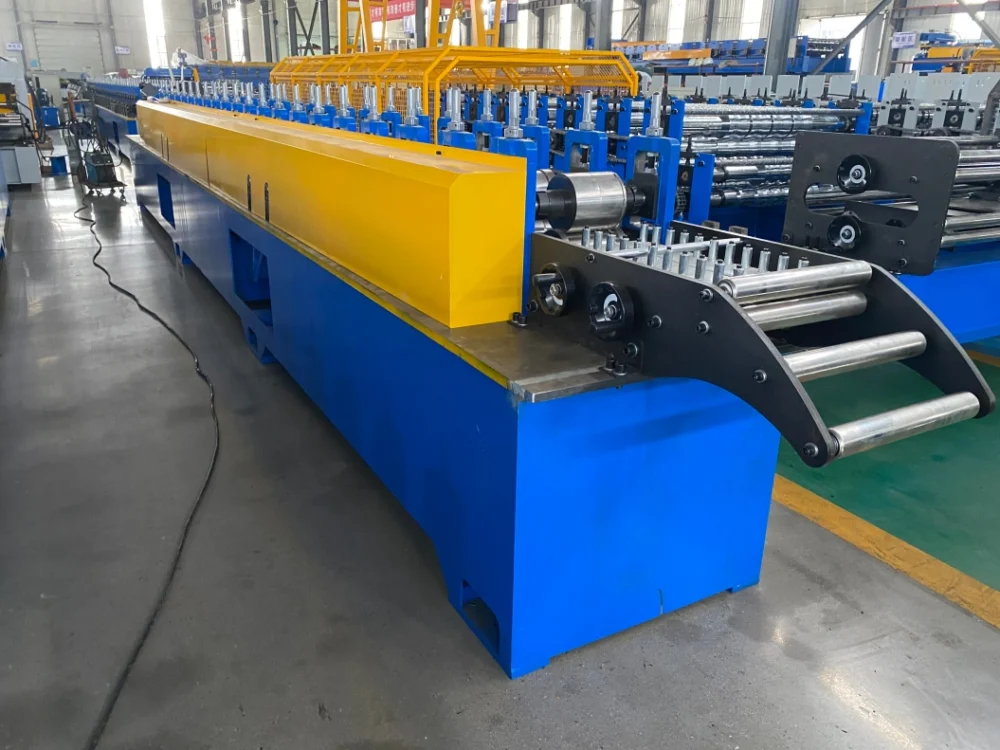

Automatic stacking or receiving table
-
Optional: protective film application, embossing, punching, and edge trimming
The line is designed specifically for color coated steel, which requires careful handling to prevent scratches, coating damage, and surface defects. Every contact point is engineered to protect the painted surface while maintaining precise profile dimensions.
Key Features & Benefits
1. Fully Automatic Operation for High Efficiency
The line runs automatically from coil loading to finished panel stacking. The PLC control system manages feeding, forming, cutting, and stacking with minimal operator intervention. This reduces labor costs, improves consistency, and allows continuous production with high output.
2. Precision Roll Forming for Wall Panel Profiles
High-quality forming rollers and a rigid main frame ensure accurate profile dimensions, smooth transitions, and minimal material stress. Each roller station is precisely machined and assembled so that color coated steel is formed smoothly without cracking, flaking, or coating damage.
3. Surface Protection for Color Coated Steel
Color coated steel is sensitive to scratches and pressure marks. The machine is equipped with protective rollers, guide pads, and optional protective film application to safeguard the painted surface throughout the production process. This ensures your finished wall panels arrive on site with a flawless appearance.
4. Hydraulic Cutting for Clean, Accurate Panel Lengths
The hydraulic cutting system delivers fast, powerful, and burr-free cuts. It minimizes deformation and ensures each panel is cut to the exact required length. Clean edges are essential for exterior wall panels where fit and appearance matter.
Product Attributes :
|
1.Formed Material
|
PPGI,PPGL,AI,Etc.
|
Material Thickness:0.35-0.6mm
|
||
|
2.Decoiler
|
Hydraulic decoiler(optional)
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
15 rollers stations
|
||
|
Diameter of shaft
|
50mm,solid shaft
|
|||
|
Material of rollers
|
GB-Cr12 mould steel with quenched treatment
|
|||
|
Machine body frame
|
Memorial arch frame
|
|||
|
Drive
|
By chain
|
|||
|
Dimension(L*W*H)
|
Due to design
|
|||
|
Weight
|
Due to design
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
5.5KW(normally)
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
As your requirement
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
Support multiple languages
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
8.Forming Speed
|
0-20m/min
|
Provide customized
|
||

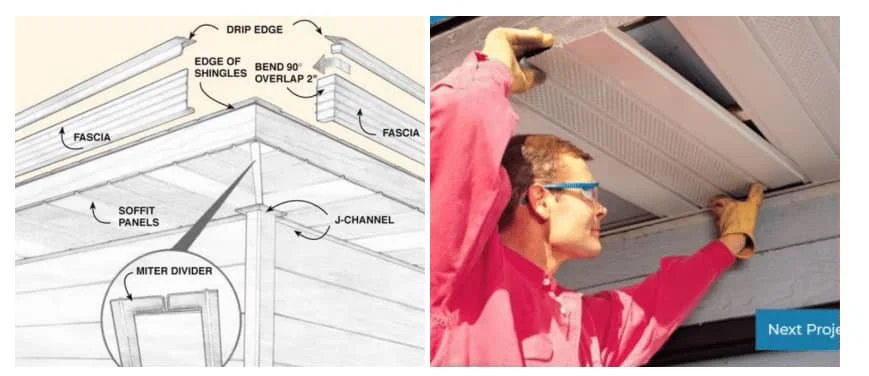

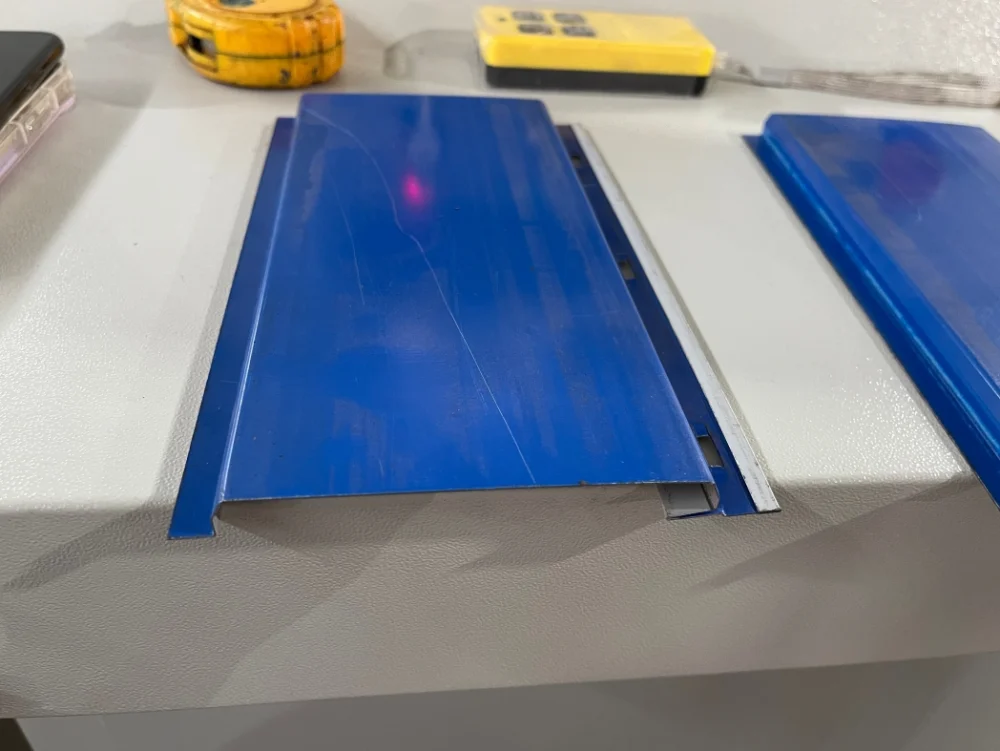

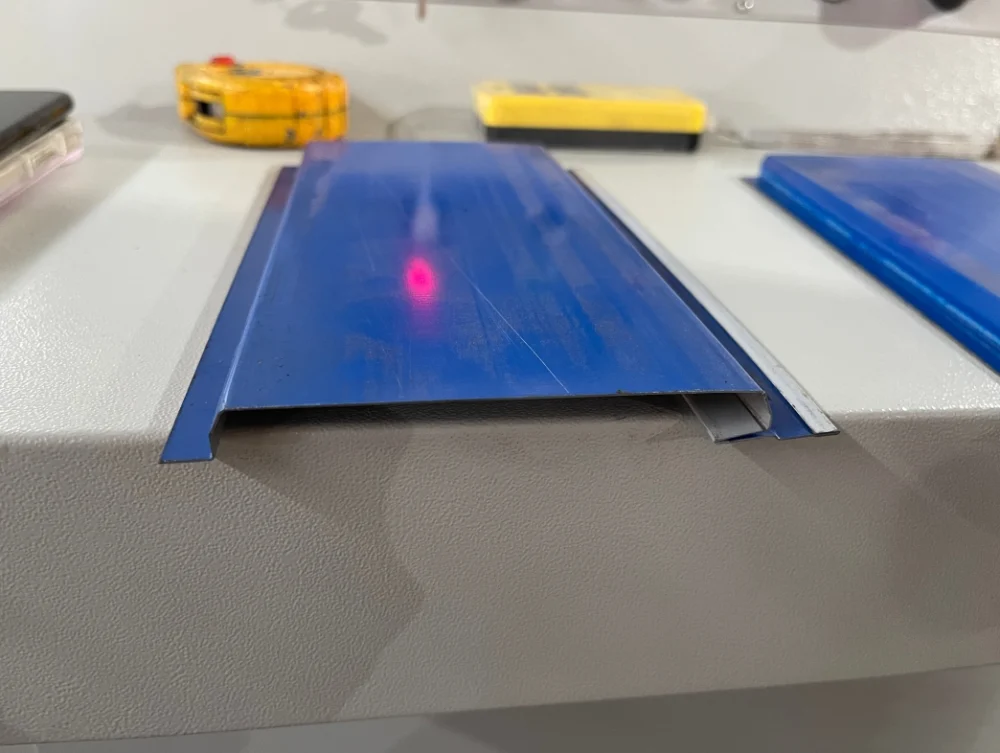

Applications of Color Coated Wall Panels
Wall panels produced on this automatic roll forming machine are widely used in:
-
Industrial buildings and factories
-
Warehouses and logistics centers
-
Commercial buildings and shopping malls
-
Office buildings and corporate campuses
-
Sports facilities and exhibition centers
-
Prefabricated and modular construction
-
Architectural facade systems
-
Renovation and retrofit projects
Color coated steel wall panels offer excellent weather resistance, aesthetic appeal, fast installation, and long service life — making them a preferred choice for modern building exteriors.
Why Choose Our Automatic Wall Panel Roll Forming Machine?
• Automatic efficiency: Fully integrated PLC control from coil to stacked panel.
• Surface-safe design: Engineered to protect color coated steel from scratches and coating damage.
• Precision forming and cutting: Accurate profiles, clean edges, and reduced material waste.
• Stable production: Reliable drive system and robust frame for continuous operation.
• Labor savings: Automatic stacking and user-friendly controls reduce manual work.
• Custom engineering: Tailored configurations to match your profile, material, and capacity.
• Factory support: Professional technical guidance, installation support, and after-sales service.
• Cost-effective investment: High output, low maintenance, and long service life help maximize return on investment.
Upgrade Your Wall Panel Production Today
In the competitive construction materials market, efficiency and surface quality make the difference. The Automatic Wall Panel Roll Forming Machine for Color Coated Steel Production is built to help you produce accurate, durable, and market-ready wall panels with less effort and greater consistency.
Contact us today to discuss your wall panel profile requirements, color coated steel specifications, and production capacity. Our team can provide a customized solution, detailed quotation, and technical support for your next project.
Let’s build better walls — and a smarter production line — together.
