Metal Wall Cladding Roll Forming Production Line for Building Exterior Panels: Durable, Precise, and Built for Modern Facades
Looking for a reliable production line to manufacture high-quality metal wall cladding panels for building exteriors?
Our Metal Wall Cladding Roll Forming Production Line is engineered for manufacturers of architectural panels, steel structure suppliers, and facade specialists who need consistent profile quality, efficient production, and long-term durability in the finished product.
Whether you are producing concealed-fix wall cladding, corrugated wall sheets, standing seam panels, or decorative exterior profiles, this production line delivers smooth forming, precise dimensions, and stable automatic operation — helping you meet the demanding standards of modern construction projects.
What Is a Metal Wall Cladding Roll Forming Production Line?
A metal wall cladding roll forming production line is a dedicated system that turns metal coils into finished exterior wall panels. These panels are widely used for building facades, industrial buildings, commercial centers, warehouses, and architectural cladding systems.
A typical production line includes:
-
Hydraulic or manual decoiler
-
Feeding and guiding system
-
Precision roll forming stations
-
Hydraulic cutting system
-
PLC control system
-
Output table or automatic stacking system
-
Optional: embossing, punching, bending, and protective film application
The line is designed to produce wall cladding profiles with accurate dimensions, clean edges, and excellent surface quality — ready for installation or further processing.
Key Features & Benefits
1. Precision Roll Forming for Exterior Cladding Profiles
The machine uses high-quality forming rollers and a rigid main frame to produce accurate wall cladding profiles. Each roller station is precisely machined and assembled to ensure smooth material flow, minimal deformation, and consistent profile dimensions — critical for exterior panels that must fit together perfectly on site.
2. Hydraulic Cutting for Clean, Accurate Panel Lengths
The hydraulic cutting system delivers fast, powerful, and burr-free cuts. It helps avoid profile deformation and ensures each panel is cut to the required length with clean edges. This is especially important for exterior cladding where appearance and fit are essential.
3. Stable Automatic Production
With PLC control, the line can run continuously and reliably. Production speed can be adjusted according to material thickness and profile requirements. Automatic operation reduces labor costs and helps manufacturers meet tight project schedules.
4. Durable Structure & Reliable Components
The main frame is built with strong welded steel for stability under continuous operation. Key electrical and hydraulic components are selected for dependable performance, making the machine suitable for daily industrial production.
Product Attributes :
|
1.Formed Material
|
PPGI,PPGL,AI,Etc.
|
Material Thickness:0.5-0.7mm
|
||
|
2.Decoiler
|
Hydraulic decoiler(optional)
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
29 rollers stations
|
||
|
Diameter of shaft
|
75mm,solid shaft
|
|||
|
Material of rollers
|
High grade 45# steel,surface chromed thickness 0.3mm
|
|||
|
Machine body frame
|
350H steel welded and middle plate welded
|
|||
|
Drive
|
By chain
|
|||
|
Dimension(L*W*H)
|
Due to design
|
|||
|
Weight
|
Due to design
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5KW(normally)
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
As your requirement
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
Support multiple languages
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
8.Forming Speed
|
0-20m/min
|
Provide customized
|
||

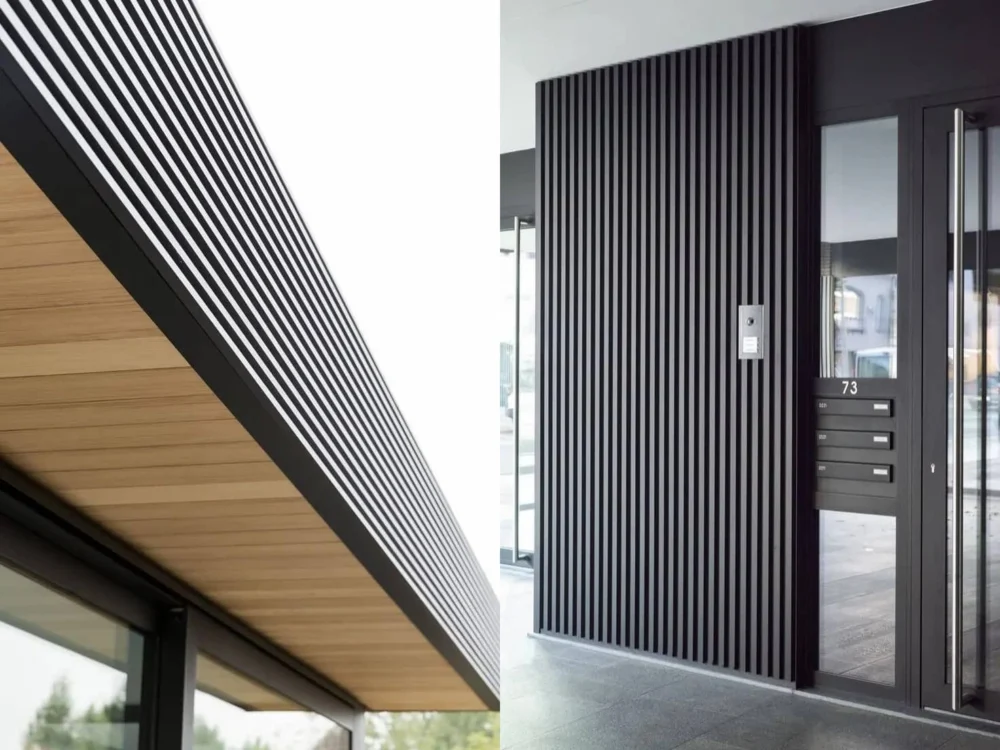

Applications of Metal Wall Cladding Panels
Metal wall cladding panels produced on this line are widely used in:
-
Industrial buildings and factories
-
Warehouses and logistics centers
-
Commercial buildings and shopping malls
-
Office buildings and corporate campuses
-
Sports facilities and exhibition centers
-
Prefabricated and modular construction
-
Architectural facade systems
-
Renovation and retrofit projects
The panels offer excellent weather resistance, aesthetic appeal, fast installation, and long service life — making them a preferred choice for modern building exteriors.
Why Choose Our Metal Wall Cladding Roll Forming Production Line?
• Construction-focused design: Built for producing high-quality exterior panels for demanding building projects.
• Precision forming and cutting: Clean edges, accurate lengths, and reduced material waste.
• Stable automatic production: PLC control and reliable drive system for continuous operation.
• Surface protection options: Protective film, embossing, and punching available.
• Customized solutions: Machines can be tailored to your profile, material, voltage, and capacity.
• Factory support: Professional technical guidance, installation support, and after-sales service.
• Cost-effective investment: High output, low maintenance, and long service life help maximize return on investment.
