In modern architectural decoration, drywall systems have become the mainstream solution for indoor partitions and ceilings due to their advantages of fast construction, fire and sound insulation, and flexible space. The indispensable “Wall Angle” in the drywall system is an L-shaped galvanized light steel profile, mainly used for fixing the edges around the suspended ceiling, providing a horizontal reference, and reinforcing support at the junction of the wall panels.

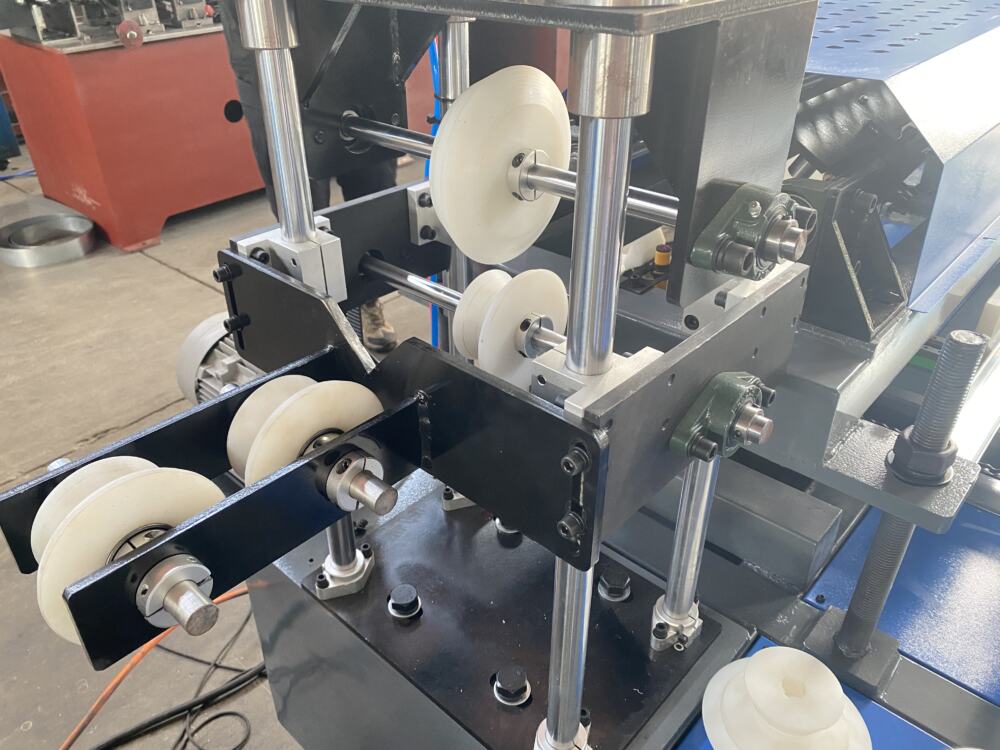

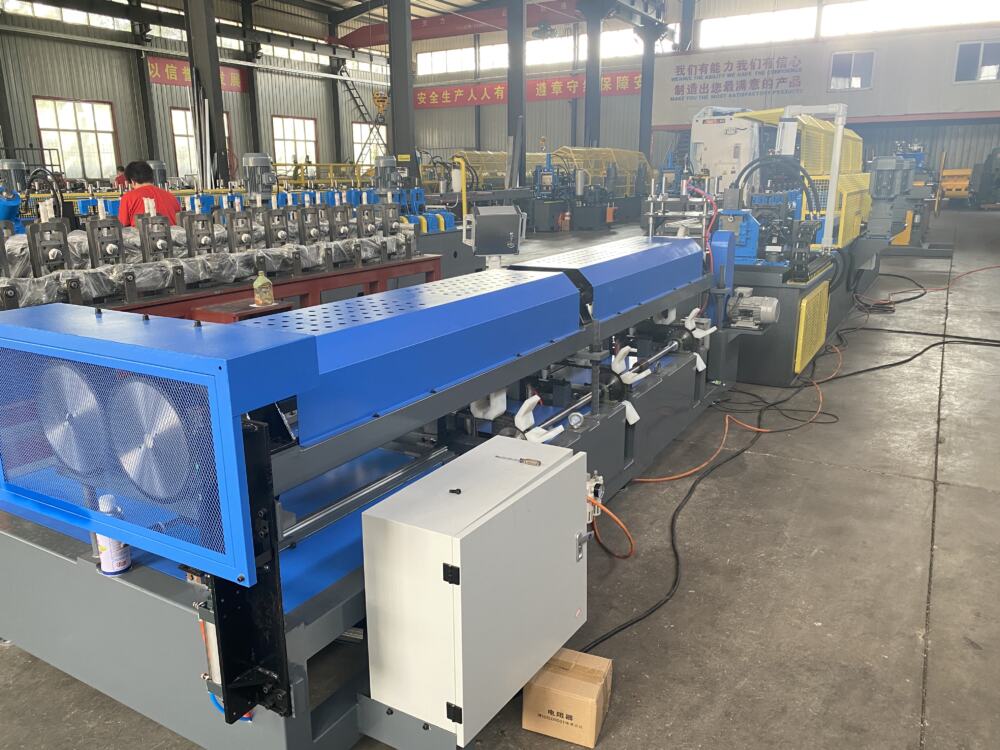

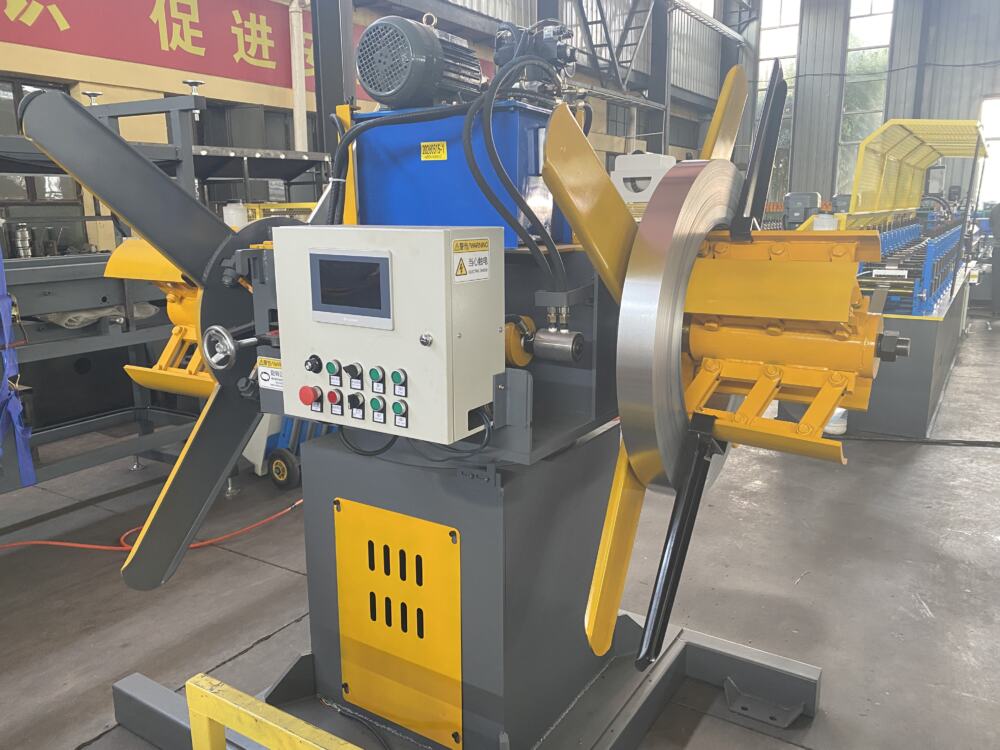

The Automatic Steel Wall Angle Roll Forming Machine is a specialized cold bending equipment designed for mass and efficient production of this key component. This equipment uses galvanized steel coils (GI) or color coated coils (PPGI) as raw materials, and processes metal coils into finished angle steel in one go through a series of automated processes such as unwinding, leveling, feeding, continuous roll forming, online punching, and cutting to length. The entire production line is intelligently controlled by a PLC system, truly achieving “one person on duty, continuous output”, helping manufacturers meet the continuous demand for drywall auxiliary materials in the construction market at lower costs and higher precision.

The advantage of Automatic Steel Wall Angle Roll Forming Machine：

1. High speed continuous production
2. Integrated automatic assembly line
3. High-precision machining

Application scenarios：

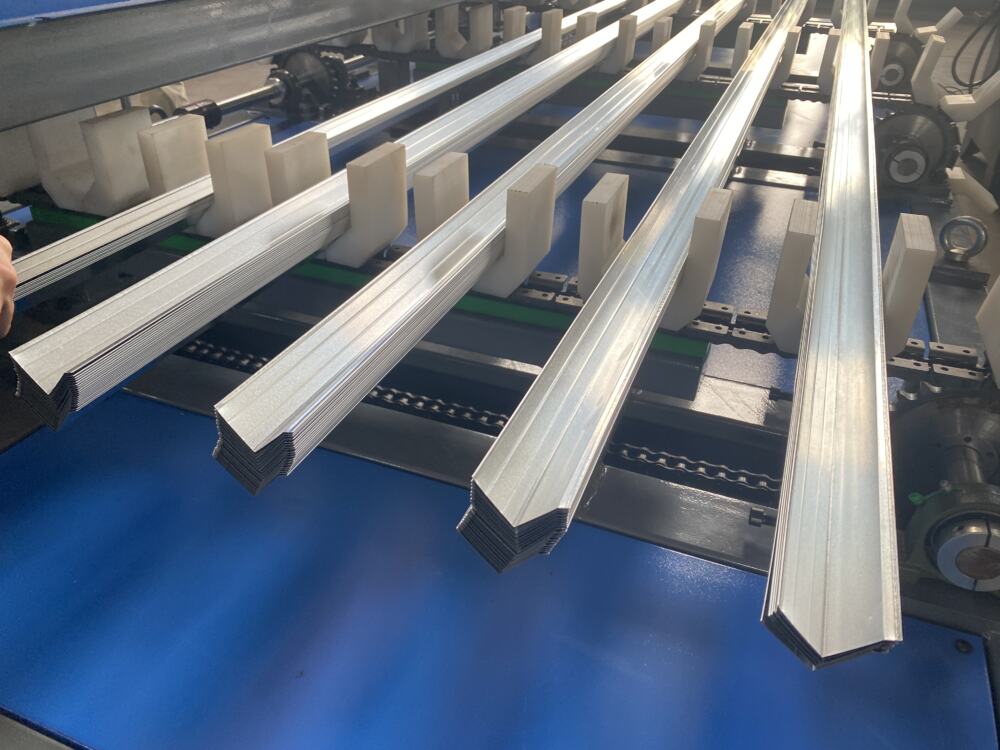

The Steel Wall Angle produced by this equipment is widely used in various construction projects, including:

• Commercial office buildings and public spaces:
used for trimming around suspended ceilings to form clean and straight decorative lines, while providing basic support for light steel keel partitions.

• Residential precision decoration:
In modern residential ceiling and partition systems such as kitchens, bathrooms, and living rooms, high-precision and corrosion-resistant angle steel fittings are provided to ensure decoration quality.

• Medical and cleanroom:
places with extremely high environmental hygiene requirements such as hospital operating rooms, electronic factories, and food workshops use galvanized angle steel without welding, with a complete surface coating, no risk of corrosion, and easy cleaning and disinfection.

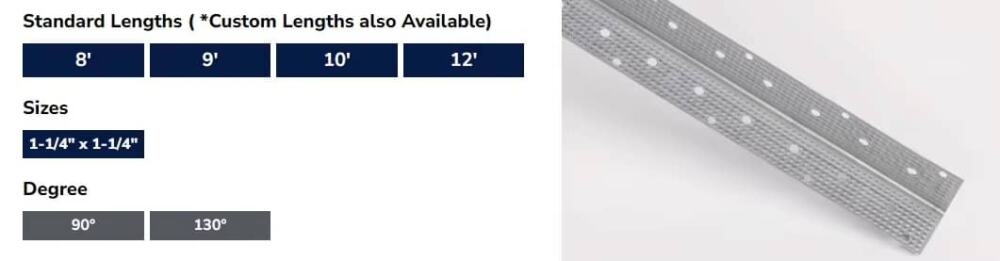

Product Attributes :

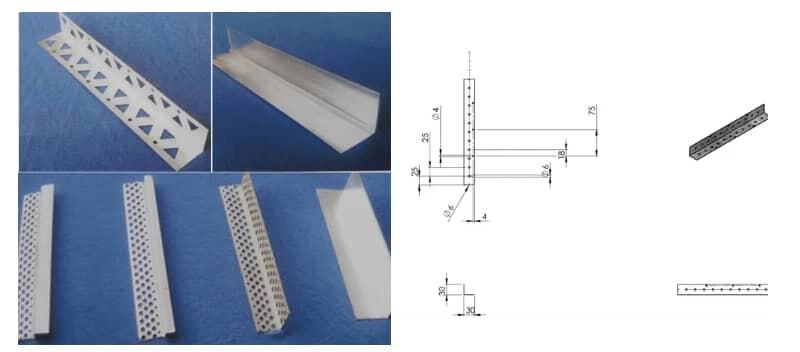

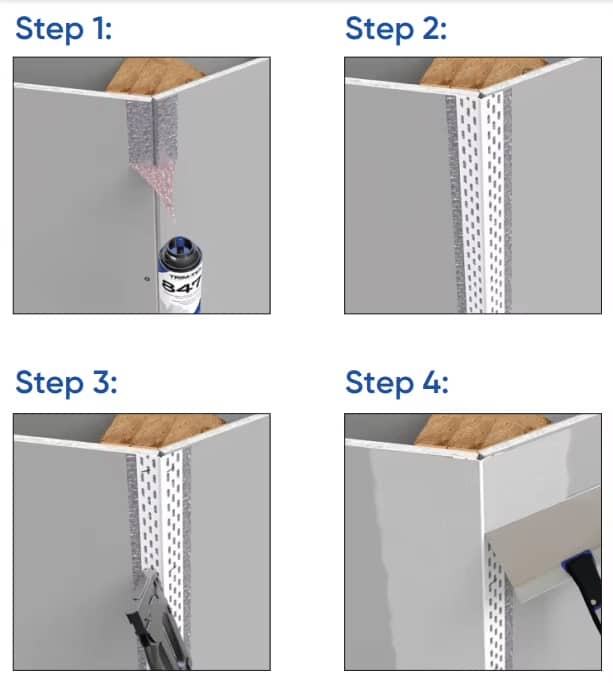

Pattern diagram：

Core Features：

1.Fully automatic intelligent control, easy to operate
The equipment is equipped with a high reliability PLC control system and a touch screen human-machine interface, allowing operators to easily set parameters such as product length, production quantity, punching spacing, etc. The system has real-time fault diagnosis and automatic shutdown protection functions, greatly reducing the dependence on skilled workers, even small and medium-sized factories can quickly get started.

2.High precision cold bending forming, stable quality

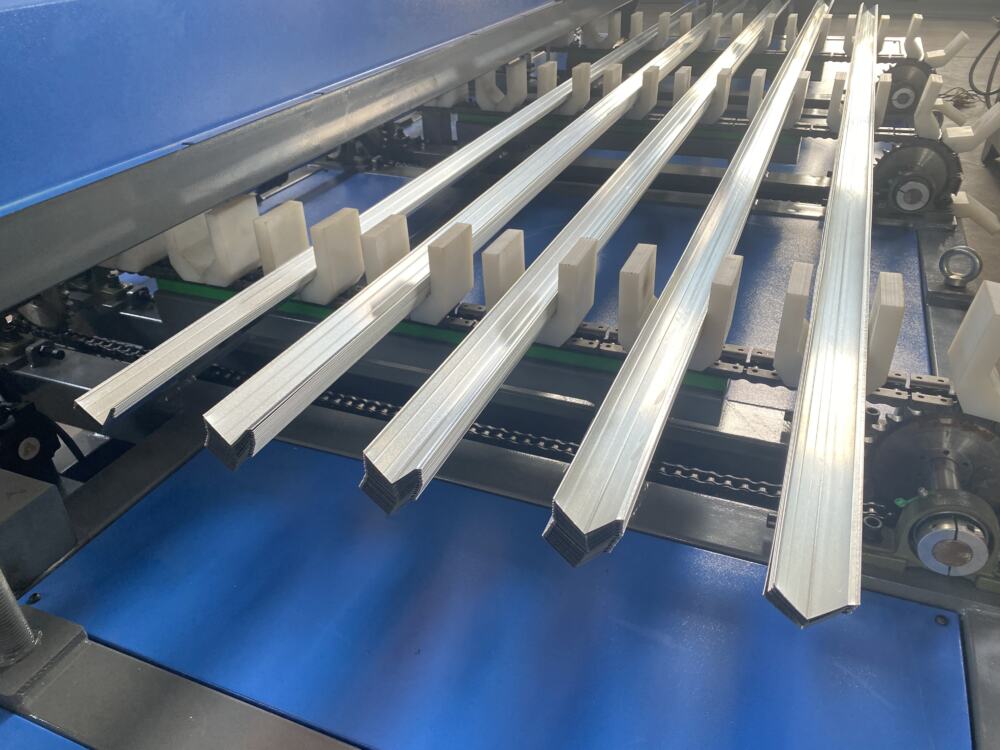

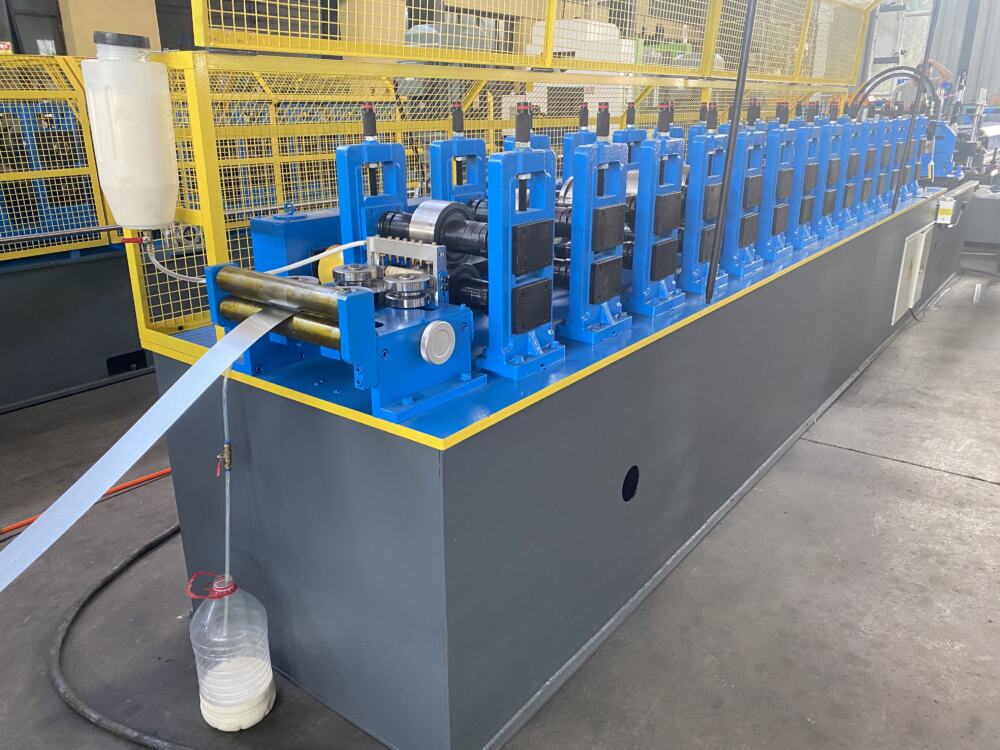

A multi pass rolling mill (usually 12 passes) made of high-quality alloy steel (such as Cr12MoV), which is precision machined, undergoes heat treatment and hard chromium coating treatment to ensure that the mold is wear-resistant and does not deform. The angle error of the formed angle steel is ≤± 0.5 °, the accuracy of the cross-sectional dimensions is ± 0.1mm, and the straightness per meter does not exceed 1mm. The product has no distortion or wavy edges, fully meeting the strict requirements of drywall installation.

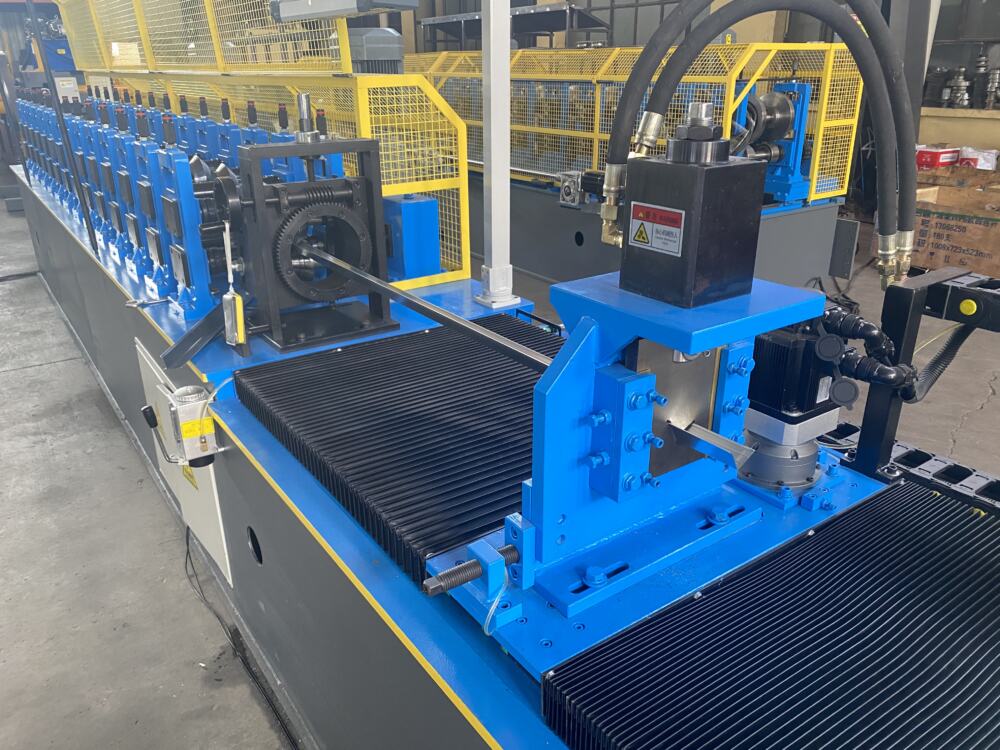

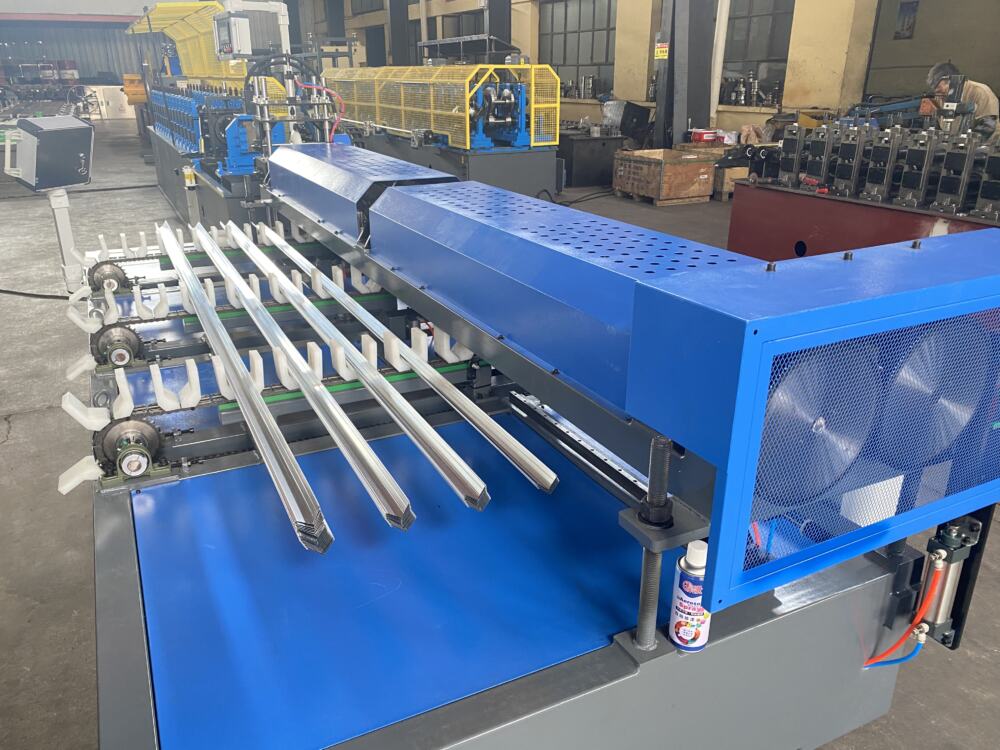

3.Integrated online punching and cutting, eliminating the need for secondary processing

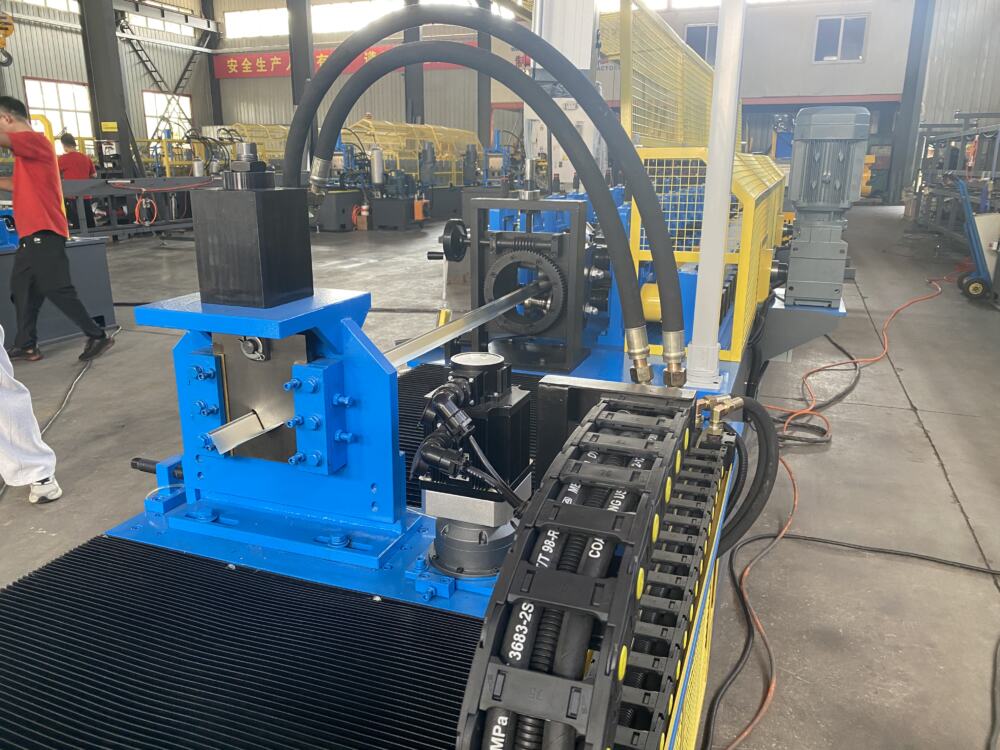

The traditional process requires forming first and then punching separately, which not only has low efficiency, but also has large hole position errors. This machine synchronously completes punching during the forming process (hydraulic or high-speed rotary punching methods can be used), and the long and round holes punched out are smooth and free of burrs, which can be directly used for connecting rods. Cutting is done using servo cutting or hydraulic cutting, with high length accuracy and a smooth cut. The finished product can be directly packaged and stored without further processing.

4.Efficient continuous production with low energy consumption
The molding speed can reach 0-20 meters per minute, and the single shift production capacity (8 hours) can reach 5-20 tons. The cold bending process does not require heating and is more energy-efficient than traditional hot rolling or bending methods. At the same time, the continuous coil feeding method significantly reduces head and tail waste, and the material utilization rate is close to 100%.

5.One machine for multiple uses, flexible changeover
By replacing the roller box or some of the rollers, the same host can produce various drywall profiles such as equal/unequal angle steel, Ω – groove, U-shaped keel, etc. Advanced models can shorten the changeover time to 0-20 minutes, suitable for multi variety and small batch production modes, helping manufacturers flexibly respond to market changes.

6.Durable and easy to maintain
The rack adopts a high-strength integral welding structure, which runs smoothly without vibration. The main transmission components adopt hard tooth surface reducers and variable frequency motors to ensure long-term heavy-duty stability. Centralized oil supply for each lubrication point, simple and fast daily maintenance, effectively reducing the overall life cycle cost of equipment.

Contact Us：

Automatic Steel Wall Angle Roll Forming Machine for Drywall With automation, high precision, and high flexibility as the core, we provide highly competitive solutions for the production of drywall auxiliary materials. Whether you are a profile processing factory seeking to expand production capacity or a construction supply chain enterprise looking to optimize costs and improve product consistency, this equipment will be your trusted revenue generating tool. Choosing an automated drywall angle steel forming machine means choosing efficiency, quality, and future.
