Build Faster. Produce Stronger. Profit More.
In today’s competitive steel construction market, C purlins are essential for warehouses, factories, prefabricated buildings, roof and wall systems, solar mounting structures, and more. To meet growing demand, manufacturers need a production line that delivers high speed, high precision, and full automation.
Our Automatic High-Speed C Purlin Roll Forming Machine is designed for continuous, intelligent, and efficient C purlin production. From steel coil to finished C purlin, the line completes decoiling, leveling, feeding, punching, roll forming, cutting, and stacking in one smooth automatic process.
Whether you are a steel structure manufacturer, building material supplier, or construction company, this line helps you reduce labor costs, improve product consistency, and increase daily output.
Why Choose Our Automatic High-Speed C Purlin Production Line?
1. High-Speed Continuous Production
With optimized roll forming stations and servo-driven feeding, the line can achieve stable high-speed production. Typical speed can reach 0–20 m/min, with customized high-speed configurations available depending on thickness and profile.
2. Fully Automatic Operation
The PLC control system enables one-touch operation, automatic length setting, automatic punching, automatic cutting, and optional automatic size adjustment. Only 1–2 operators are needed for normal production.
3. Precise and Consistent Quality
Precision rollers, servo feeding, and stable hydraulic cutting ensure accurate hole positions, smooth edges, and consistent dimensions. Tolerance can be controlled within ±0.5–1.0 mm depending on configuration.
4. Strong and Durable Structure
The main frame is welded with high-strength steel and machined for stability. Rollers are made of high-quality alloy steel, heat-treated, and chrome-plated for long service life.
Core Components of the C Purlin Production Line
1.Hydraulic Decoiler – supports steel coil loading and unwinding.
2.Leveling Unit – ensures flat and stress-free material.
3.Servo Feeding System – accurate length and feeding control.
4.Hydraulic Punching Unit – multi-hole punching before forming.
5.Roll Forming Station – progressive forming for precise C profile.
6.Hydraulic Cutting Unit – clean and stable cutting after forming.
7.PLC Control Cabinet – intelligent operation and parameter setting.
8.Run-Out Table / Stacker – optional automatic collection system.

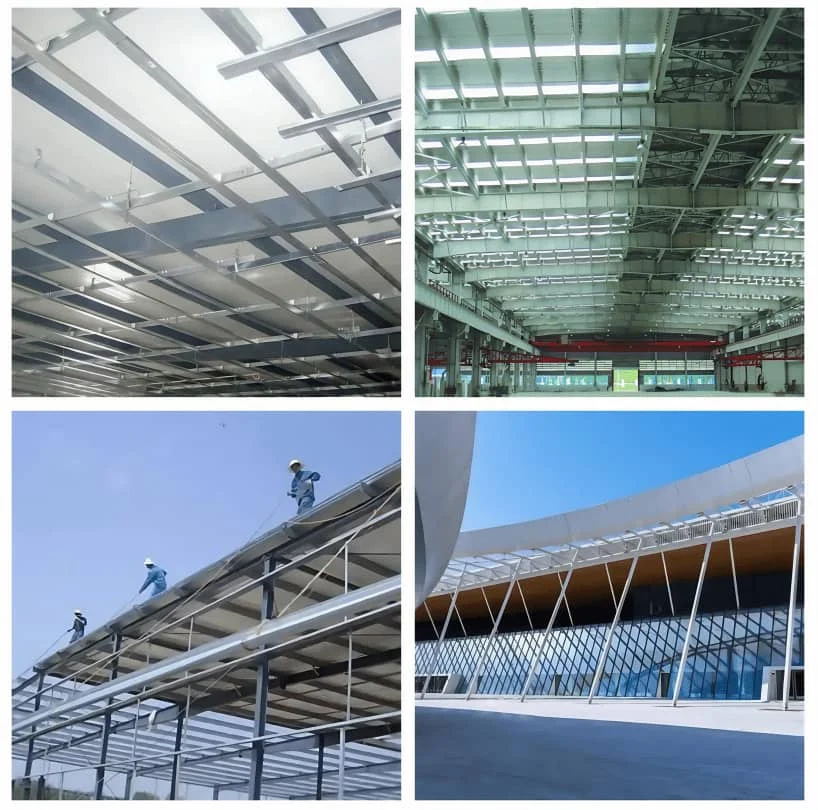

Applications
Our automatic C purlin roll forming machine is widely used for:
• Steel structure buildings
• Warehouse and workshop construction
• Prefabricated buildings
• Roof and wall purlin systems
• Solar mounting brackets
• Logistics and storage racks
• Industrial steel frames
• Construction material production
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:1.5-3.0mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free)
|
||
|
3.Main body
|
Roller station
|
12 rows(As your requirement)
|
||
|
Diameter of shaft
|
80mm solid shaft
|
|||
|
Material of rollers
|
Gcr 15 with quenched teeatment
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
Chains transmission
|
|||
|
Dimension(L*W*H)
|
9500*800*1200(customize)
|
|||
|
Weight
|
About 4.5T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
15KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
8.Forming Speed
|
0-20m/min(customized)
|
The speed depends on the shape of the tile and the thickness of the material.
|
||

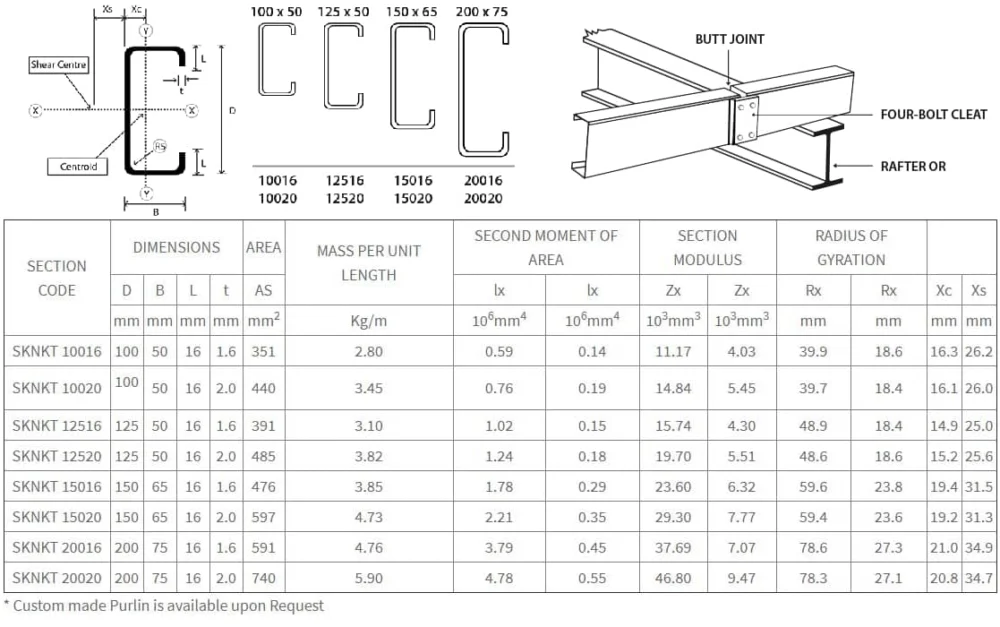

Pattern diagram:

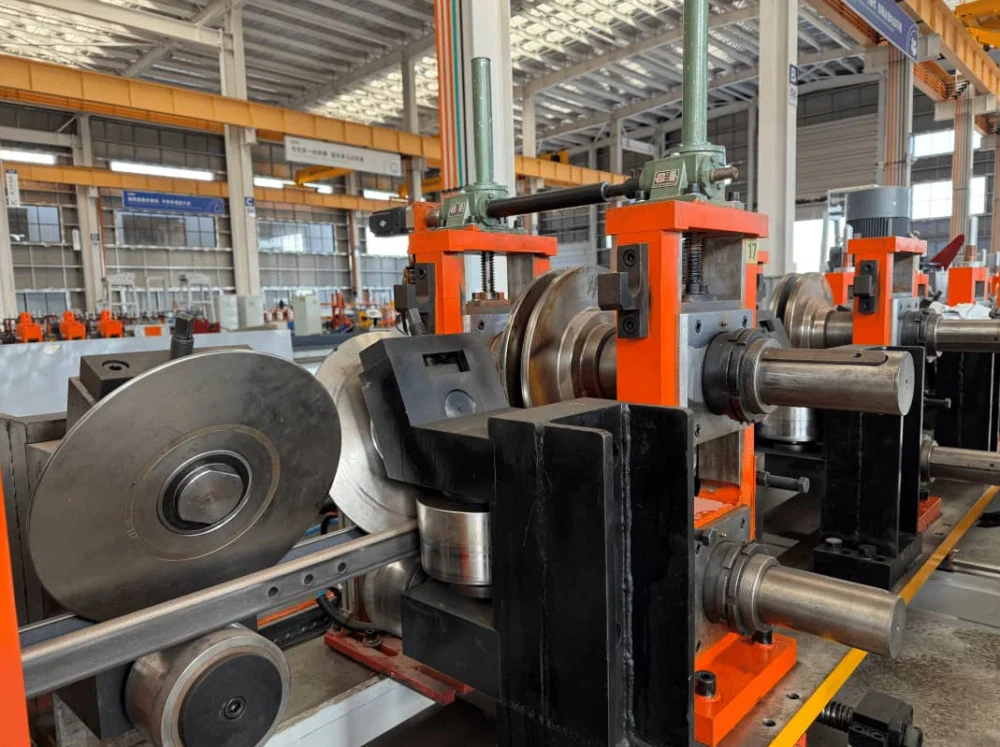

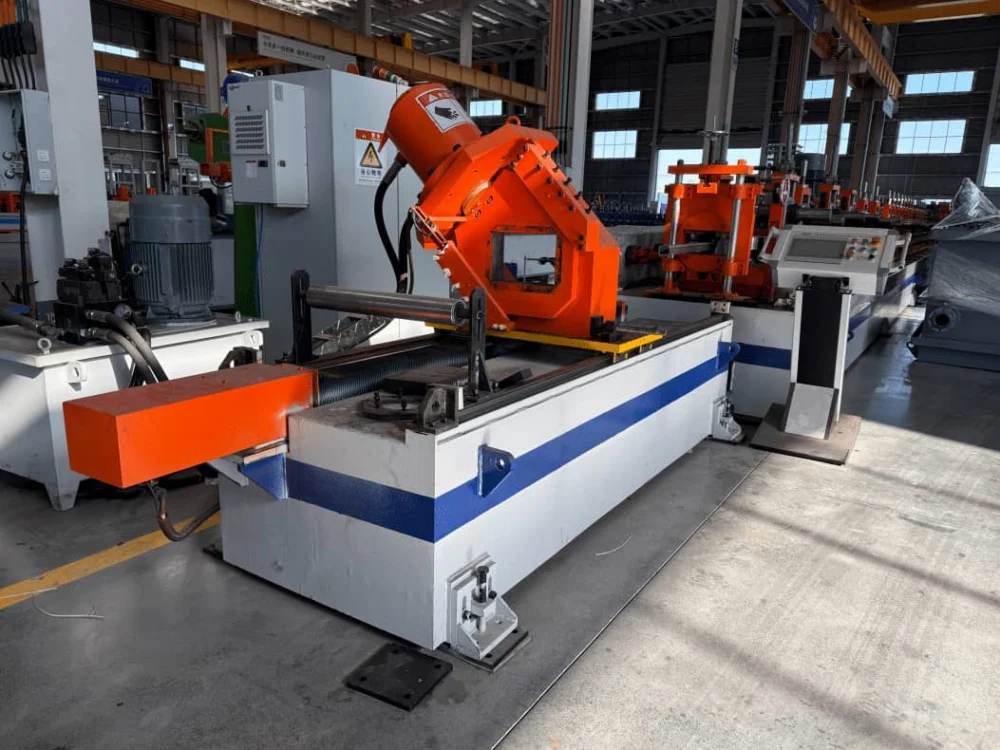

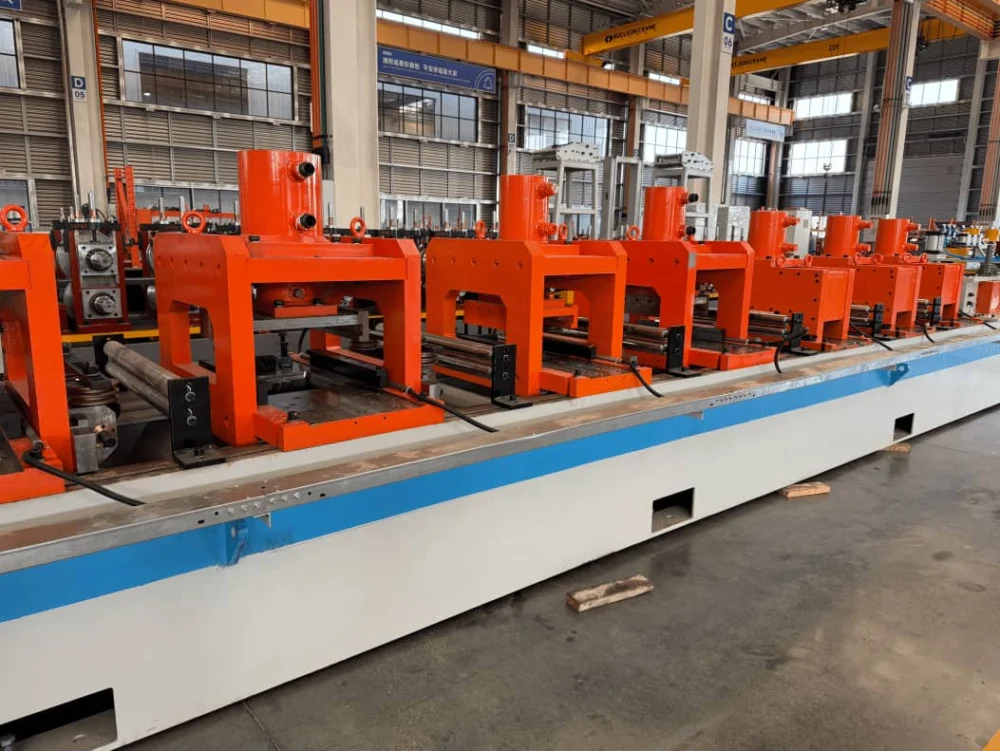

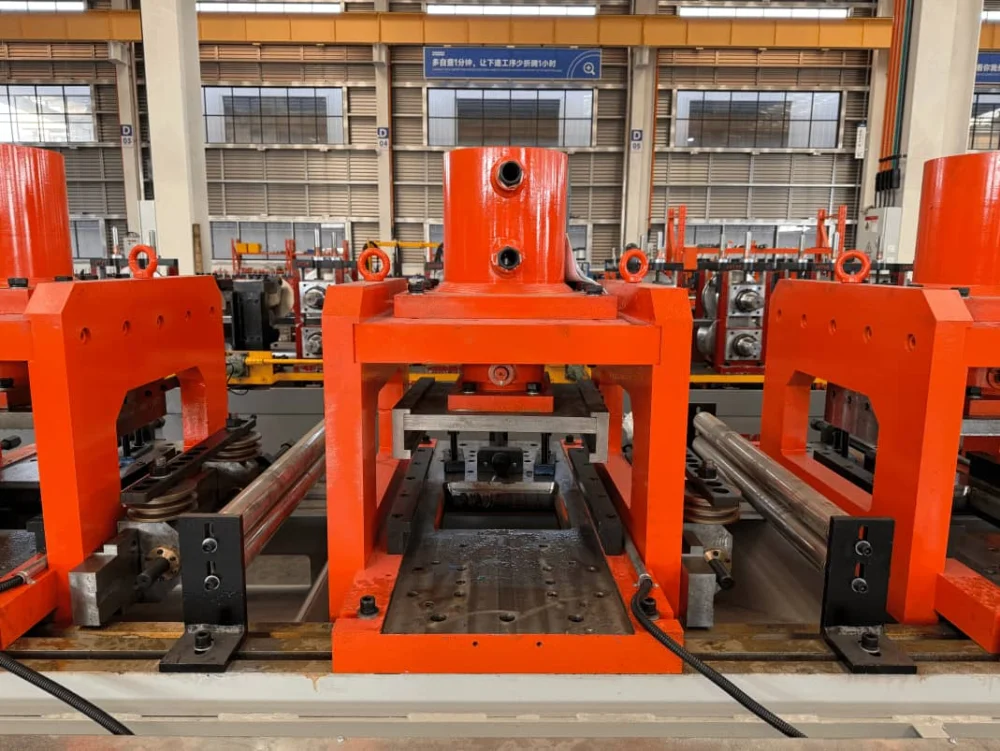

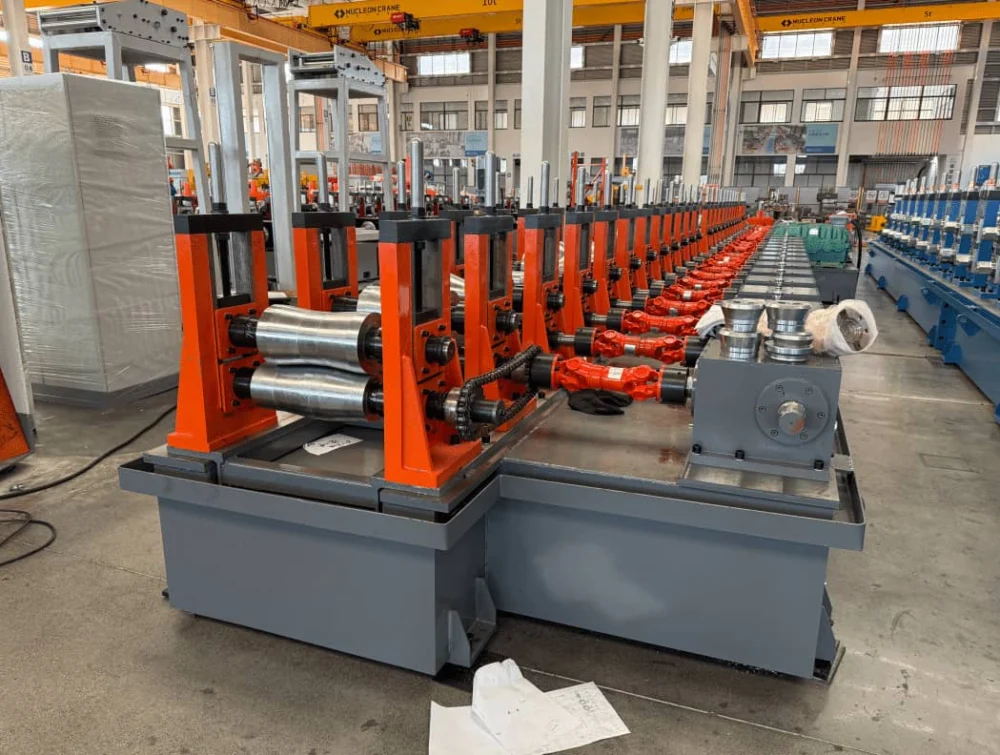

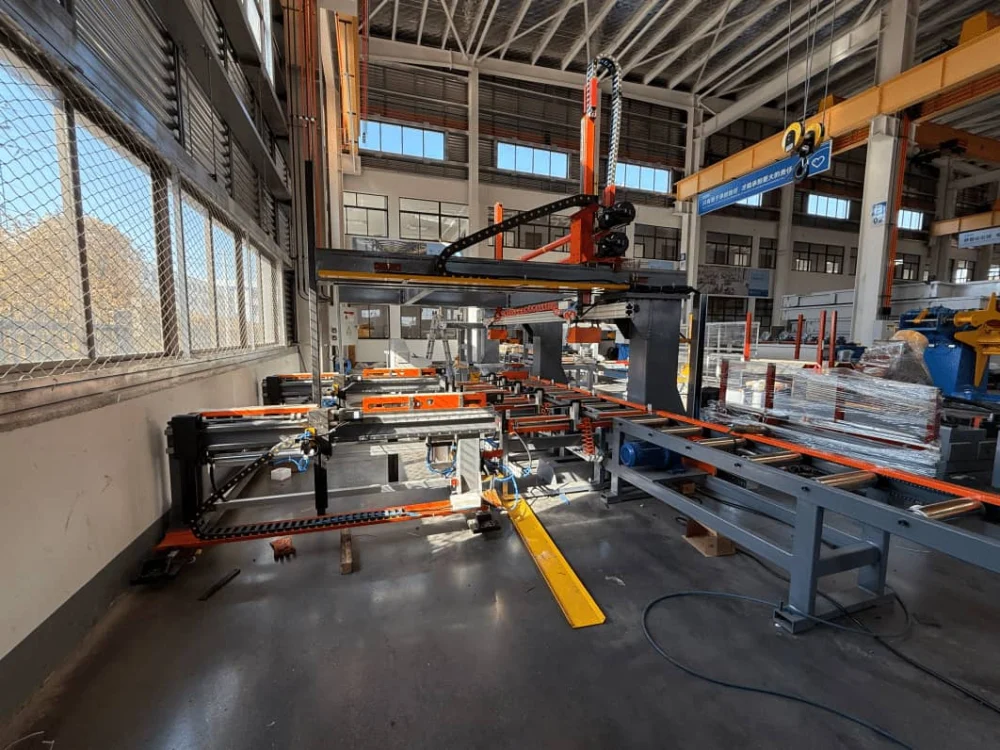

Machine photos:
FAQ – Frequently Asked Questions
Q1: What is a C purlin roll forming machine?
A C purlin roll forming machine is a production line that takes steel coil and continuously forms it into C-shaped purlins. It usually includes decoiling, leveling, feeding, punching, roll forming, cutting, and control systems.
Q2: What thickness can this machine process?
Typically 1.0–3.0 mm, depending on machine model and material. We can customize the line for thinner or thicker requirements.
Q3: What is the production speed?
Standard speed is about 0–20 m/min. High-speed models can be customized based on profile, thickness, and punching requirements.
Q4: Can it produce different C purlin sizes automatically?
Yes. We offer semi-automatic and fully automatic size adjustment systems. Automatic size change reduces downtime and improves efficiency.
Q5: Does the machine include punching?
Yes. Hydraulic punching is integrated into the line. Hole quantity, position, and diameter can be customized.
Get a Customized C Purlin Production Solution
If you are looking for a reliable C Purlin Roll Forming Machine or a complete Automatic High-Speed C Purlin Production Line, our engineering team can recommend the right configuration based on your profile, thickness, speed, and budget.
Contact us today to get the latest price, technical proposal, and video demonstration.
High speed. High precision. High profit. Let’s build your production line together.
