The Corrugated roof tile machine is a mechanical equipment specifically used for producing Corrugated roof tiles, which has significant advantages in production efficiency, product quality, applicability, and other aspects. It can be used for roofs, walls, and interior and exterior wall decoration of industrial and civil buildings, warehouses, special buildings, and large-span steel structure houses.
The profile drawing:
The pictures for the product:
Production process:
Uncoiler-Feeding material into machine→Roll forming→hydraulic cutting→ Products receiving
Packing list of the Corrugated Roof Tile Machine :
| No. | Name | Quantity |
| 1 | Manual/hydraulic Decoiler | 1 set |
| 2 | Main roll former | 1 set |
| 3 | Control system | 1 set |
| 4 | Hydraulic system | 1 set |
| 5 | Product Run-out table | 1 set |
The technical specifications of the Corrugated Roof Tile Machine :
| Item | Name | Specifications |
| 1 | Raw material | Galvanized steel,Q235 |
| 2 | Raw material thickness | 0.18-0.28mm |
| 3 | Decoiler | 5T |
| 4 | Felt device | Available |
| 5 | Roller station | 19stations |
| 6 | Roller material | 45# steel |
| 7 | Shaft diameter | 80mm |
| 8 | Shaft material | 45# steel |
| 9 | Transmission | By Gearbox |
| 10 | Motor power | 7.5kw |
| 11 | Machine frame | 400mm H beam structure |
| 12 | Cutting type | Electric cut-off |
| 13 | Hydraulic power | 5.5kw |
| 14 | Cutting blade material | Gcr12 quenched treatment |
| 15 | Cutting tolerance | +/1mm |
| 16 | Control system | Delta/ Siemens PLC |
The function of the Corrugated Roof Tile Machine :

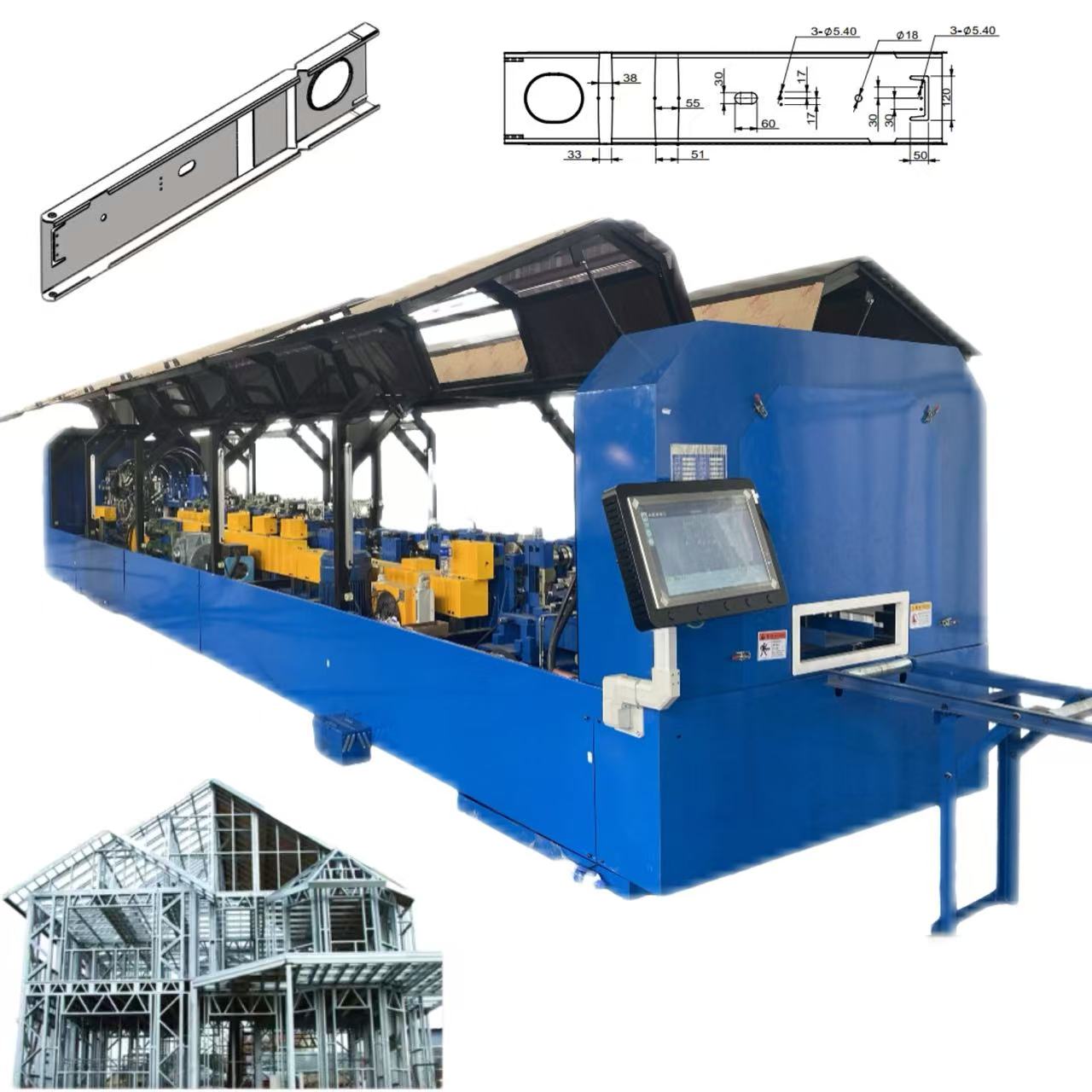

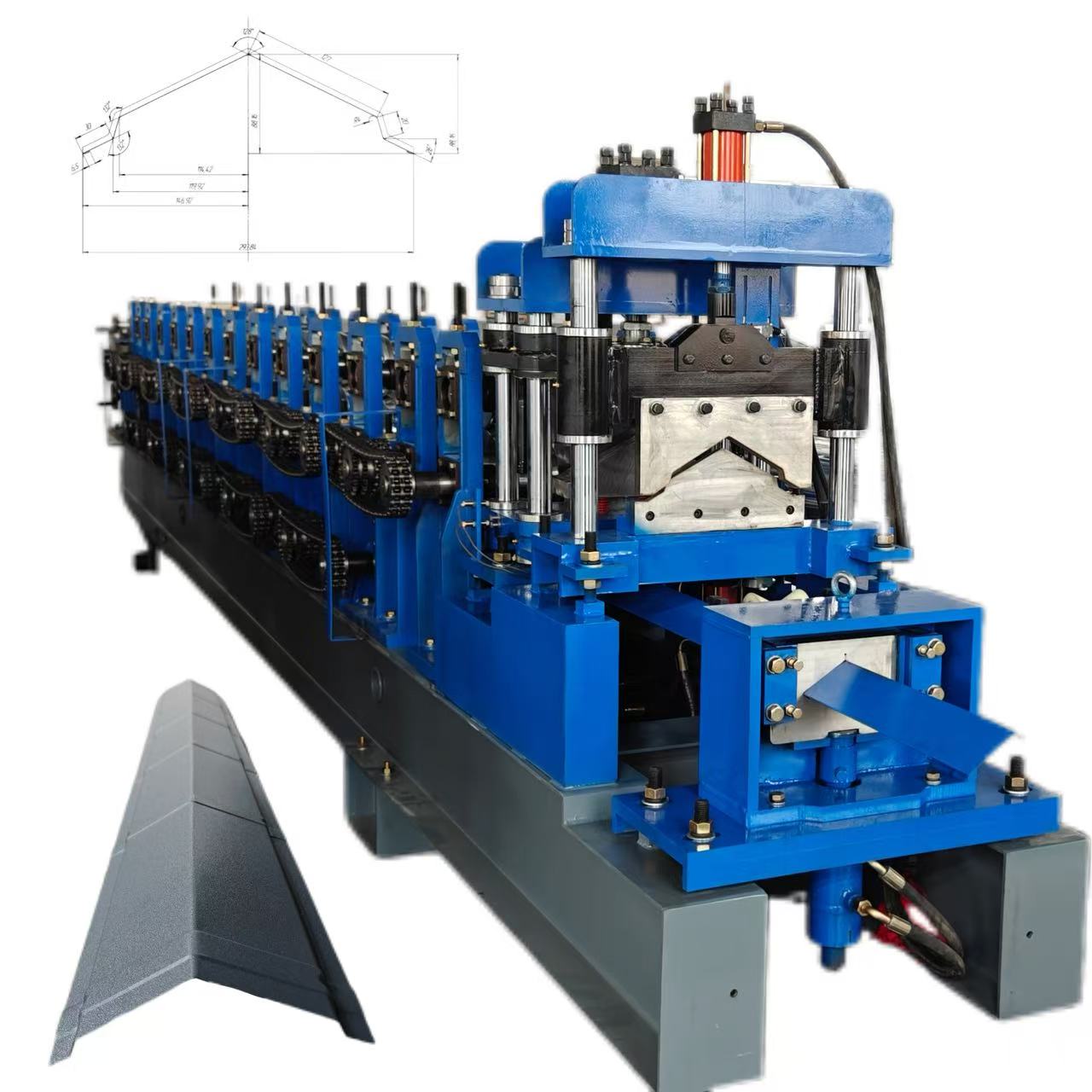

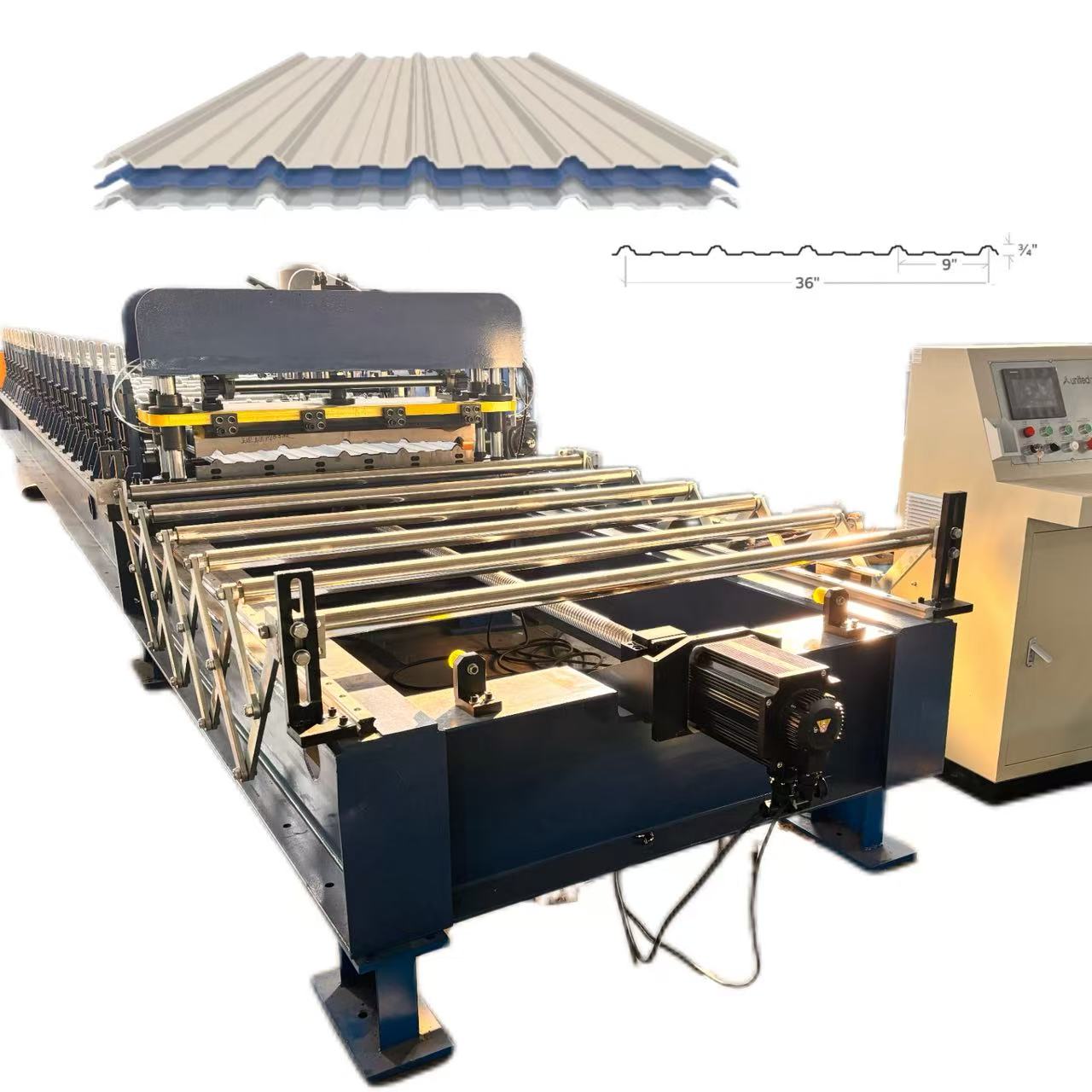

Machine photos:
