Why choose our C & Z Purlin Roll Forming Machine?
• Mature solution:
With over ten years of deep cultivation in the cold bending industry, we have sold over a thousand units of equipment and achieved mature and stable technology.
• Factory direct sales:
self-produced, decentralized, with better prices for the same configuration.
• Worry free after-sales service:
providing on-site installation and debugging, operation training, and long-term technical support services.
• On demand customization:
Additional configurations such as punching molds, discharge racks, and palletizing systems can be customized according to customer needs.

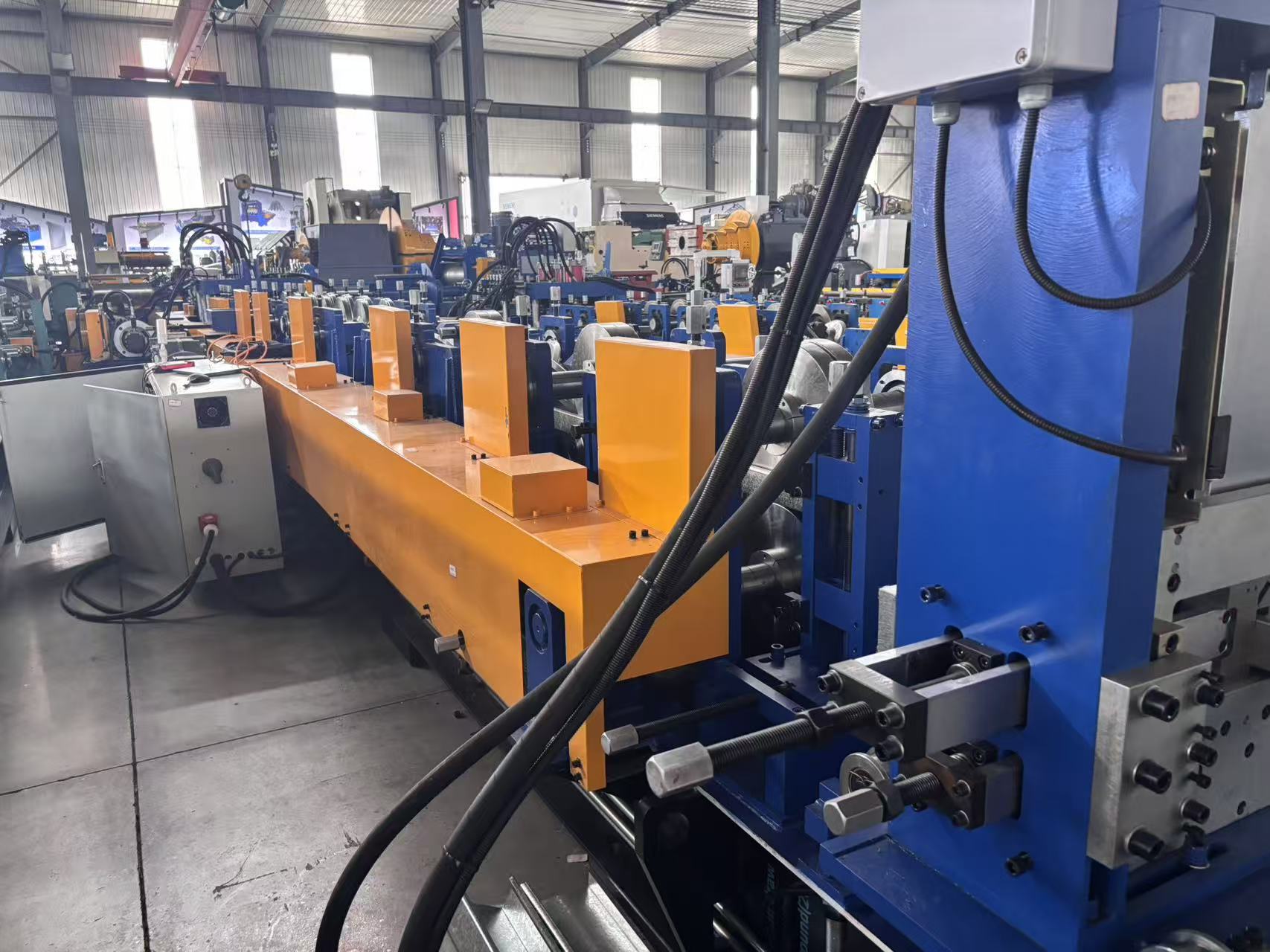

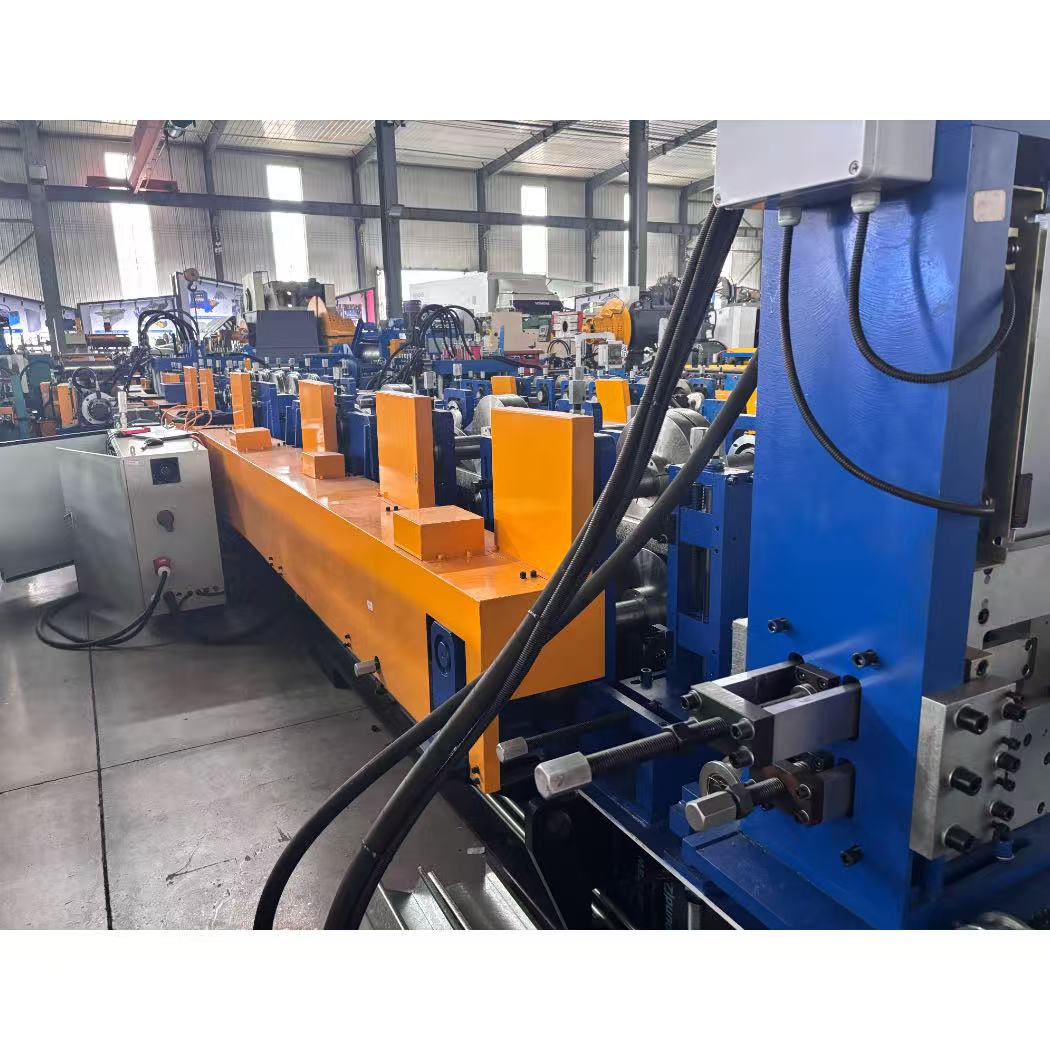

Equipment Introduction:
In today’s booming development of steel structure buildings, purlins serve as an indispensable “skeleton” for roofs and walls, and their production quality and efficiency directly affect the progress and safety of the entire project. Faced with the urgent demand for diversified and high-strength purlins in the market, traditional single switching mode equipment is no longer able to meet the rapidly changing pace of engineering.
The birth of the Customized C & Z Purlin Roll Forming Machine has completely broken down the barrier between the production of C-shaped steel and Z-shaped steel. It has become an indispensable tool in the field of steel structure processing with its excellent performance of “one machine, two types, and intelligent roll changing”, opening up a new era of efficient, precise, and low-cost intelligent production for you.

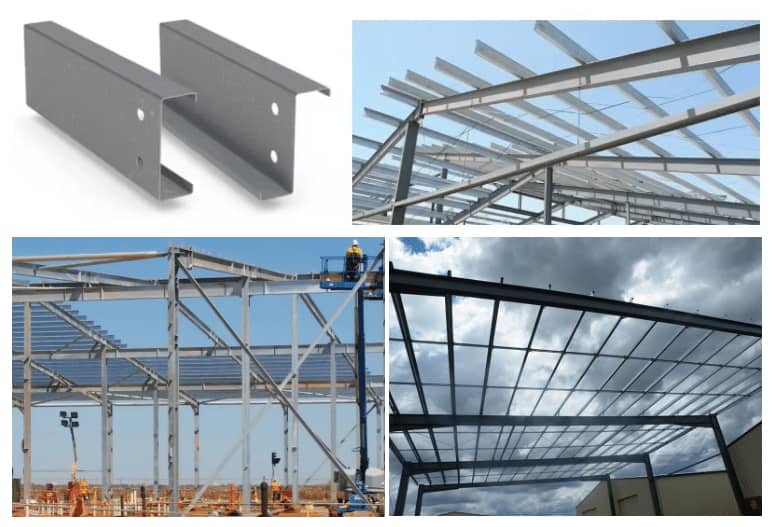

Application scenario: A versatile partner for steel structure engineering
The purlin products produced by fully automatic CZ steel machines are widely used in various steel structure construction fields and are indispensable basic components for modern building industrialization.
• Industrial plants and warehouses
Roof and wall purlin systems for large-span industrial plants and warehousing logistics centers. C-shaped steel is used for wall maintenance, while Z-shaped steel is suitable for roof overlap. The combination of the two can form a stable load-bearing system.
• Agricultural greenhouses and breeding farms
The skeleton support of modern greenhouses and livestock breeding houses. Galvanized CZ steel has excellent anti-corrosion performance, maintains long-term service life in humid and corrosive environments, and is easy to install and cost-effective.
• Commercial exhibition halls and sports venues
Secondary structural support for large exhibition centers and sports venues. The equipment can produce high-strength, thin-walled purlins, which not only meet structural safety requirements but also reduce building weight and save foundation costs.
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:1.5-3mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|

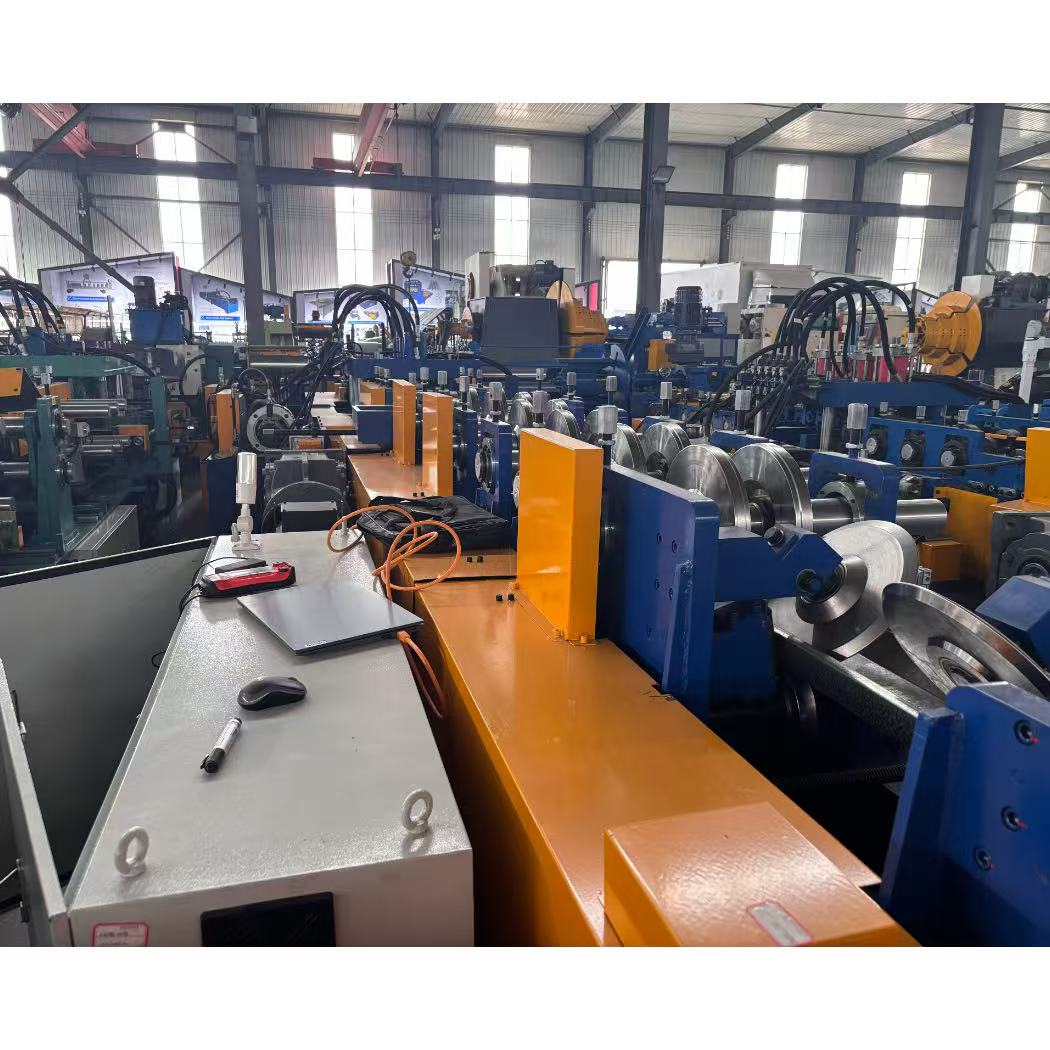

3.Main body
|
Roller station
|
12 rows(As your requirement)
|
||
|
Diameter of shaft
|
80mm solid shaft
|
|||
|
Material of rollers
|
Gcr 15 with quenched teeatment
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
Chain transmission
|
|||
|
Dimension(L*W*H)
|
9500*800*1200(customize)
|
|||
|
Weight
|
About 7T
|
|||
|

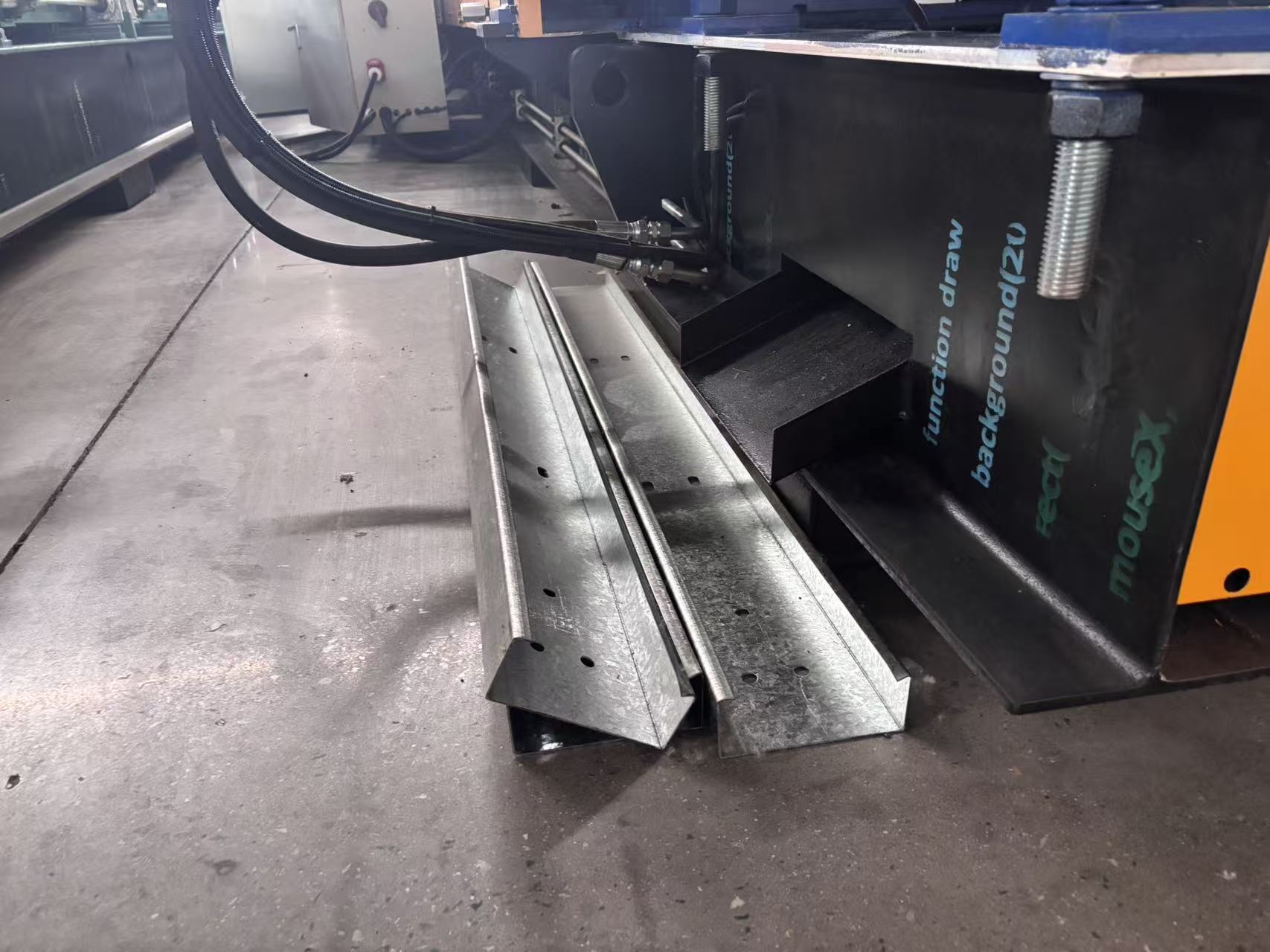

4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
15KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
60-70m/min(customized)
|
The speed depends on the shape of the tile and the thickness of the material.
|
||

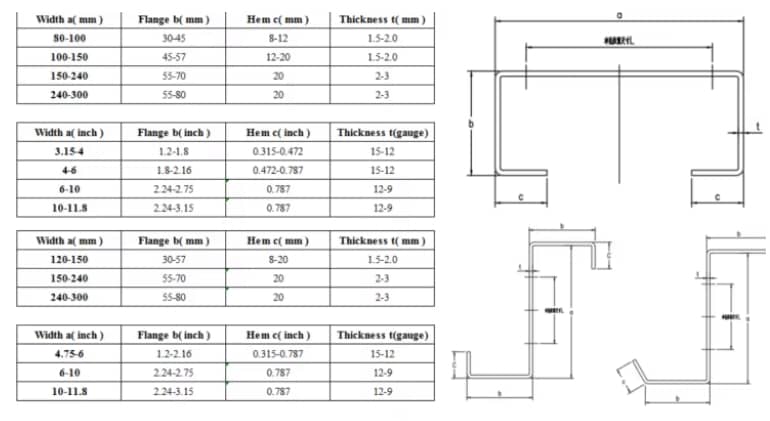

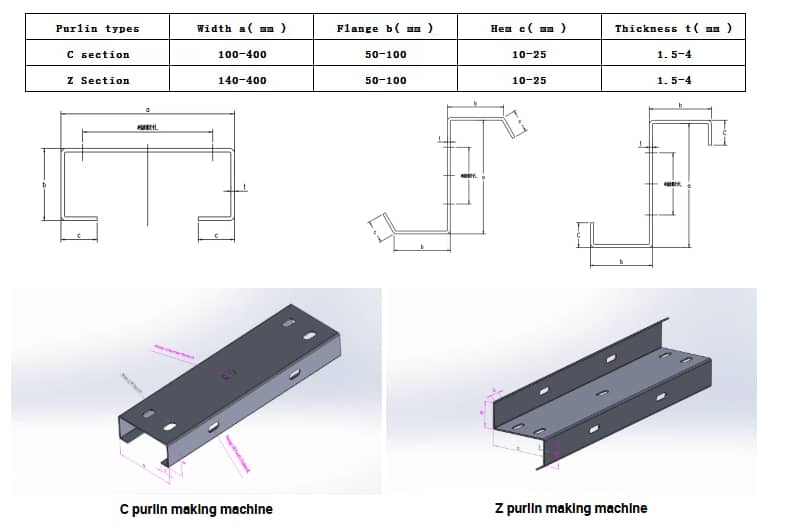

Pattern diagram:
Core features: efficient, precise, and cost-effective

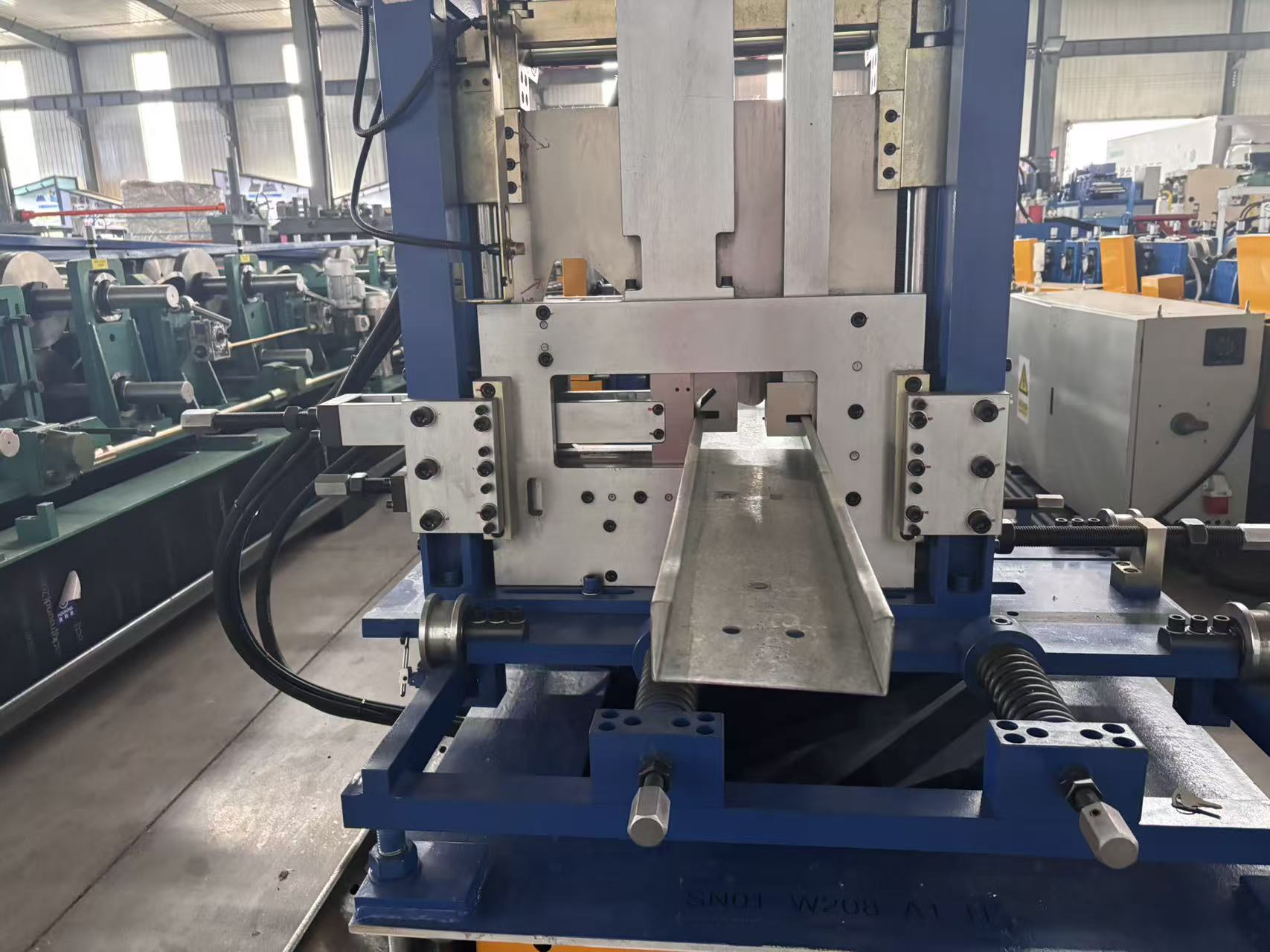

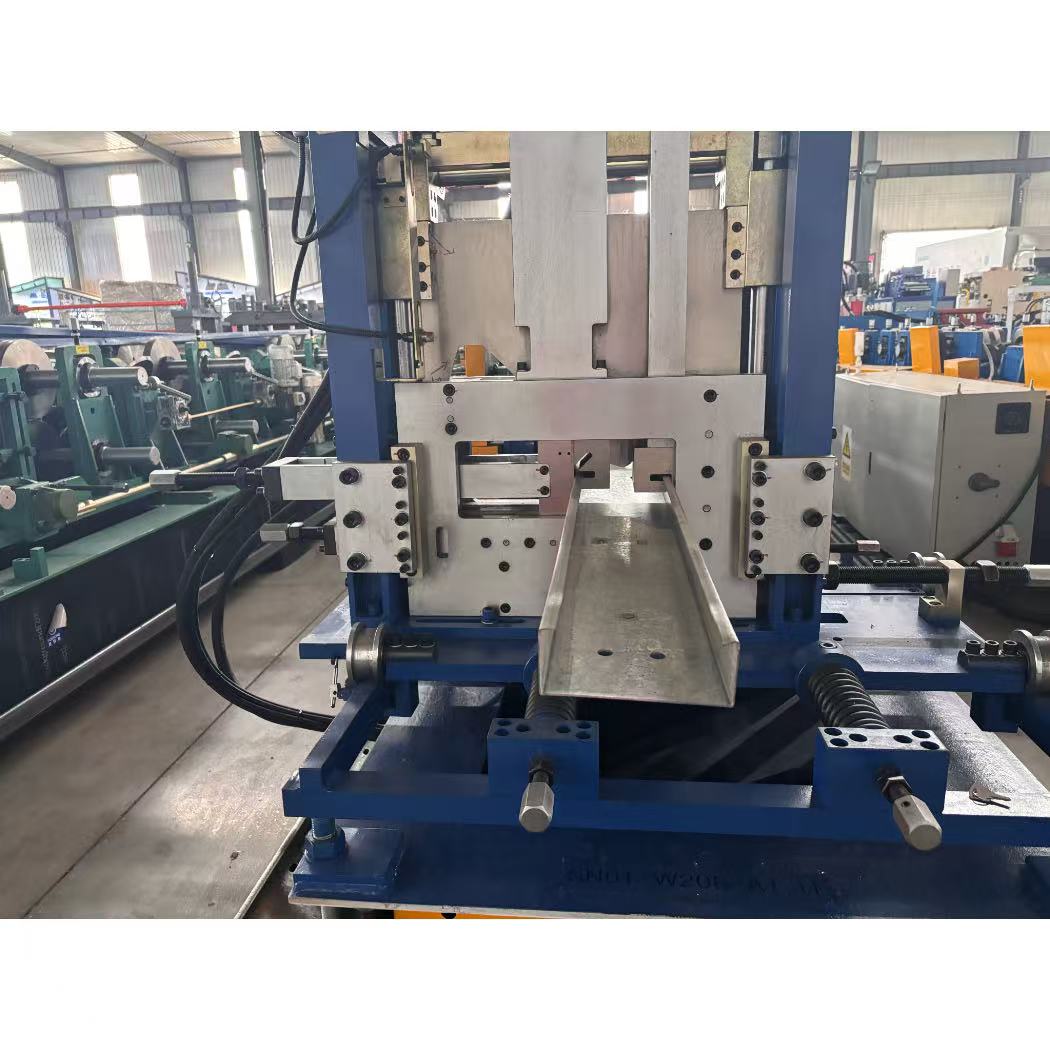

1. Dual use, quick switching

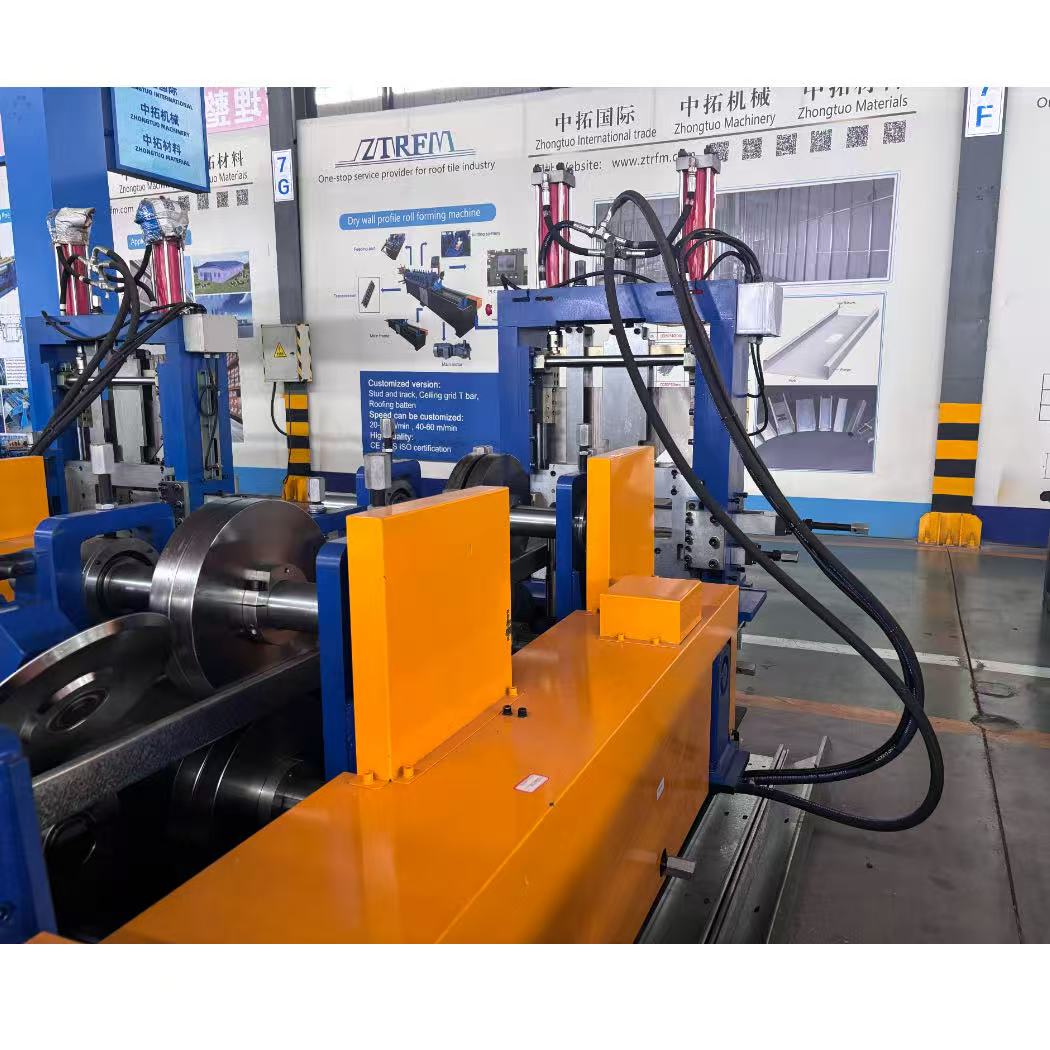

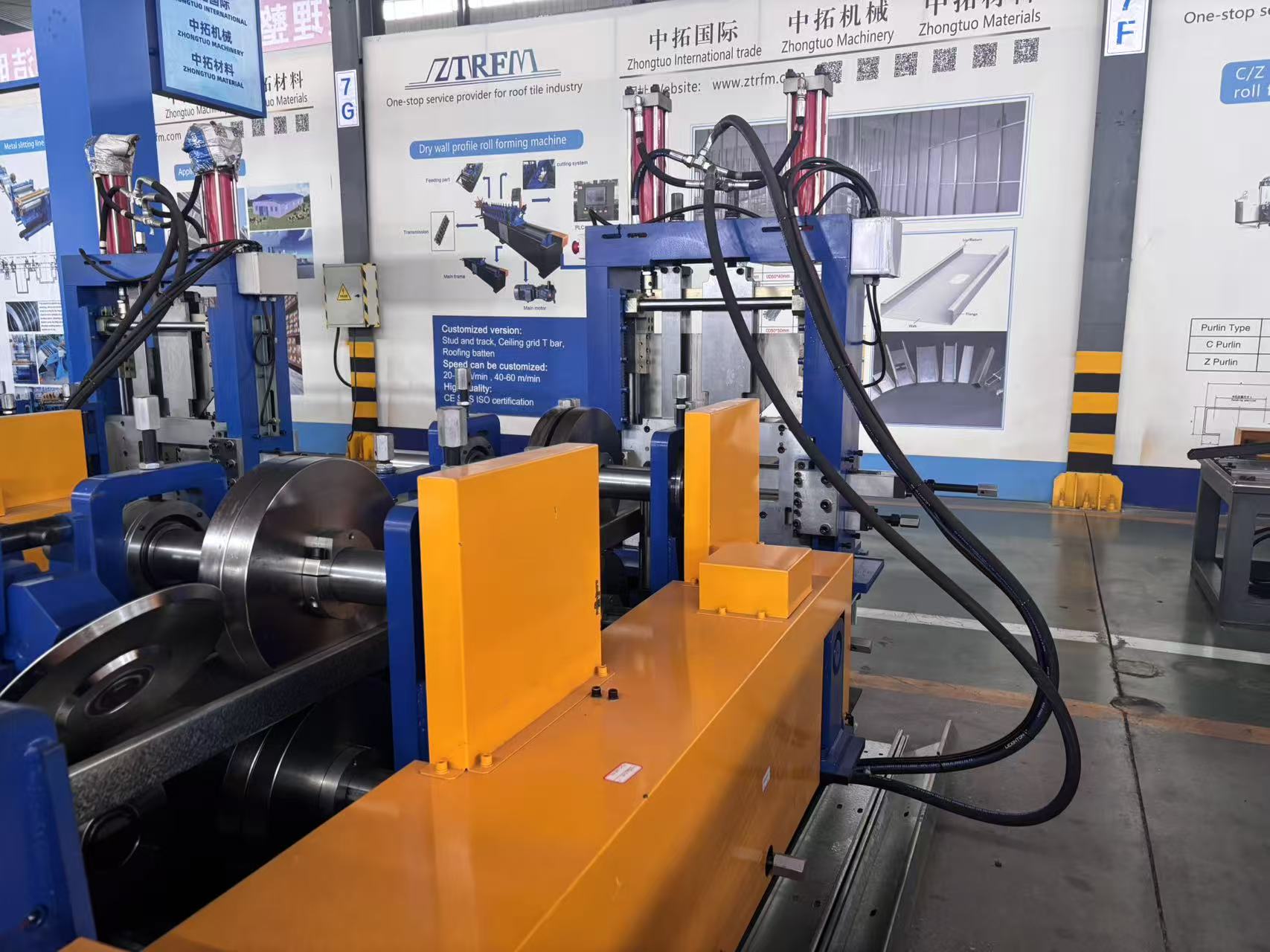

Traditional equipment replacement takes several hours and even requires lifting assistance. This equipment is equipped with a hydraulic automatic vertical roller conversion mechanism, which only takes 3-5 minutes to switch between C-type and Z-type, completely eliminating tedious manual operation and greatly improving equipment utilization.
2. Servo control, precise punching
Adopting high-precision servo motor driven feeding system, combined with mold punching or hydraulic punching device, the hole positioning error is controlled within ± 1mm. Whether it is an elliptical hole, circular hole, or irregular hole, it can be accurately completed according to the set program to meet the assembly needs of different connectors.
3. High strength materials with large bearing capacity
The equipment body adopts a heavy-duty H-beam welded structure, which has undergone aging annealing treatment and has good rigidity and wear resistance. The configured rolling mill adopts Gcr15 bearing steel quenching treatment, with a hardness of HRC58-62, ensuring that the formed purlins have clear edges and size standards, and the bending bearing capacity far exceeds the level of peers.
4. High degree of automation, saving labor and materials
Equipped with industrial grade PLC and human-machine interface, the equipment can automatically complete the entire process of feeding, leveling, punching, forming, shearing, and receiving by inputting parameters such as length, hole spacing, and quantity. Compared to traditional production methods, it can save 2-3 people in labor and reduce waste of tailings by more than 5%.
