The Full Automatic Corrugated Iron Sheet Producing Line with Decoiler and Stacker is a specialized cold bending equipment for producing arc-shaped metal tiles for construction. It can continuously roll shape metal coils such as color steel plates and galvanized plates into roof panels or ridge tiles with specific curvature. This type of equipment belongs to a type of cold bending forming machine, mainly composed of a feeding rack, a forming host, a hydraulic cutting device, and a PLC electronic control system. During work, the metal sheet is gradually bent into a set circular arc shape under the continuous extrusion of rows of rollers, and then automatically cut to a fixed length by a hydraulic shear. Common models include 780 and 828, which can produce various board types such as glazed tiles and corrugated boards.

Main application scenarios:

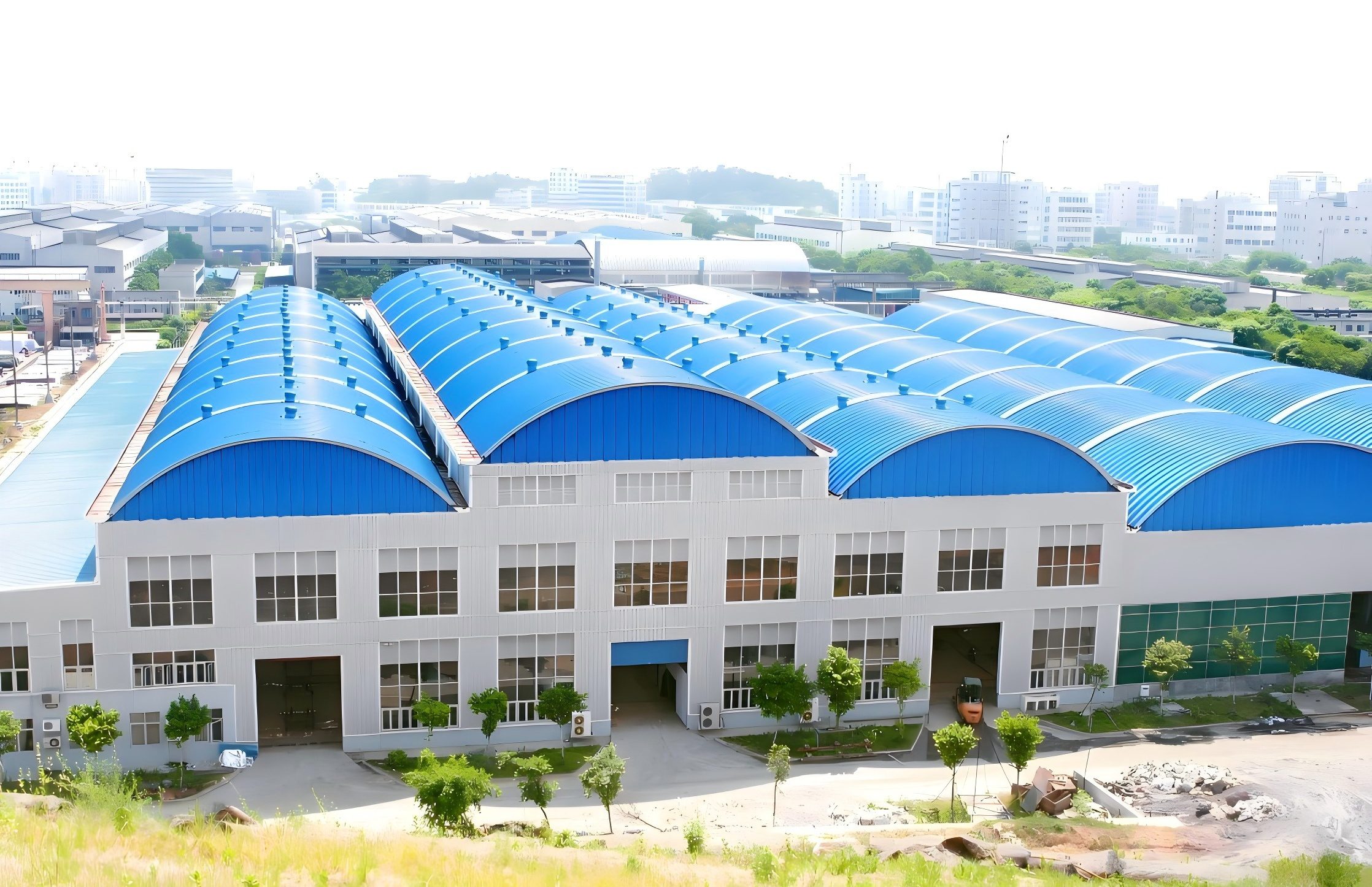

• Industrial and civil building roofs:
widely used for the construction of new roofs in large-span buildings such as steel structure factories, warehouses, and markets, as well as the renovation of sloping roofs in residential areas.

• Specific shaped buildings:
suitable for large public buildings with special requirements for curvature, such as theaters, gyms, and arched roofs, with smooth and beautiful lines.

• Decoration and supporting purposes:
The produced glazed tile boards can be used for wall decoration, garden landscape pavilions and corridors; Circular roof tiles are specifically designed for the connection of roof ridges, serving both sealing and aesthetic purposes.

Product Attributes :

Pattern diagram:

Core Features：

1.Accurate molding and high strength:
Through multiple passes of rolling and gradual cold bending, the plate deformation is uniform, the arc transition is natural, and the formed tiles have high strength and neat appearance.

2.High degree of automation:
The whole machine adopts PLC automatic control, which can achieve fixed length cutting and automatic counting. Some models support unmanned batch production, and the operation is simple.

3.The cost advantage is obvious:
compared with traditional aluminum-plastic panels and other materials, color steel profiled panels have lower production costs and are durable; The machine operates with low energy consumption and is easy to maintain.

4.Good sealing and waterproof performance:
The produced roof panels can be overlapped through biting, hidden screws, and other methods, combined with a large curved wave crest design, ensuring smooth drainage and effectively solving the problem of roof leakage.
