Hevey Duty Z Purline with Multi-punching stations Z purlin making machine, also known as Z-shaped purlin machine, is an automated cold bending equipment specifically used for producing Z-shaped steel. It uses rolling technology to continuously process steel strip coils into section steel with a “Z” shape, which is a key supporting component in steel structure buildings.
Equipment Introduction:
The Hevey Duty Z Purline with Multi-punching stations Z purlin making machine has achieved fully automated production from raw materials to finished products. The standard process flow mainly includes the following steps:
1.Automatic feeding: Roll up steel strips (such as galvanized steel strips) are loaded into passive loading racks, automatically unfolded, and fed into the main machine.
2.Leveling and Forming: The steel strip is first subjected to a leveling device to eliminate internal stress, and then continuously rolled by multiple sets of precision designed forming rollers to be precisely bent into a Z-shaped cross-section.

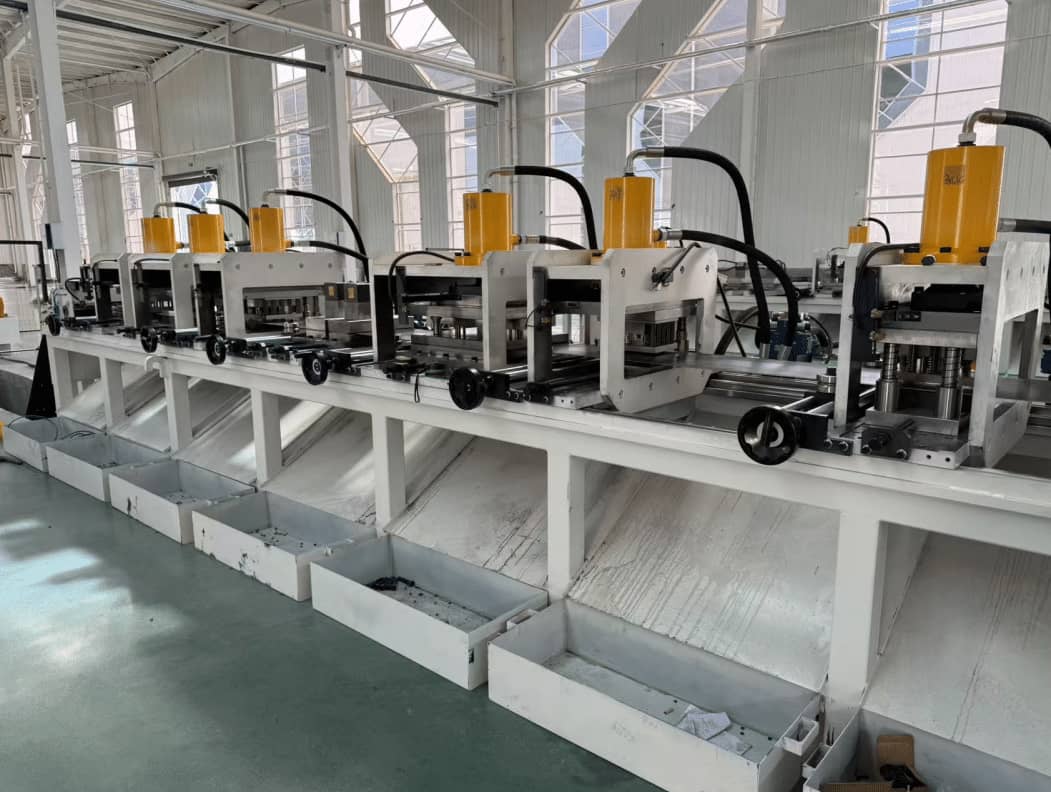

3.Automatic punching (optional): According to the preset program, automatically punch connection holes for installation on the formed Z-shaped steel.

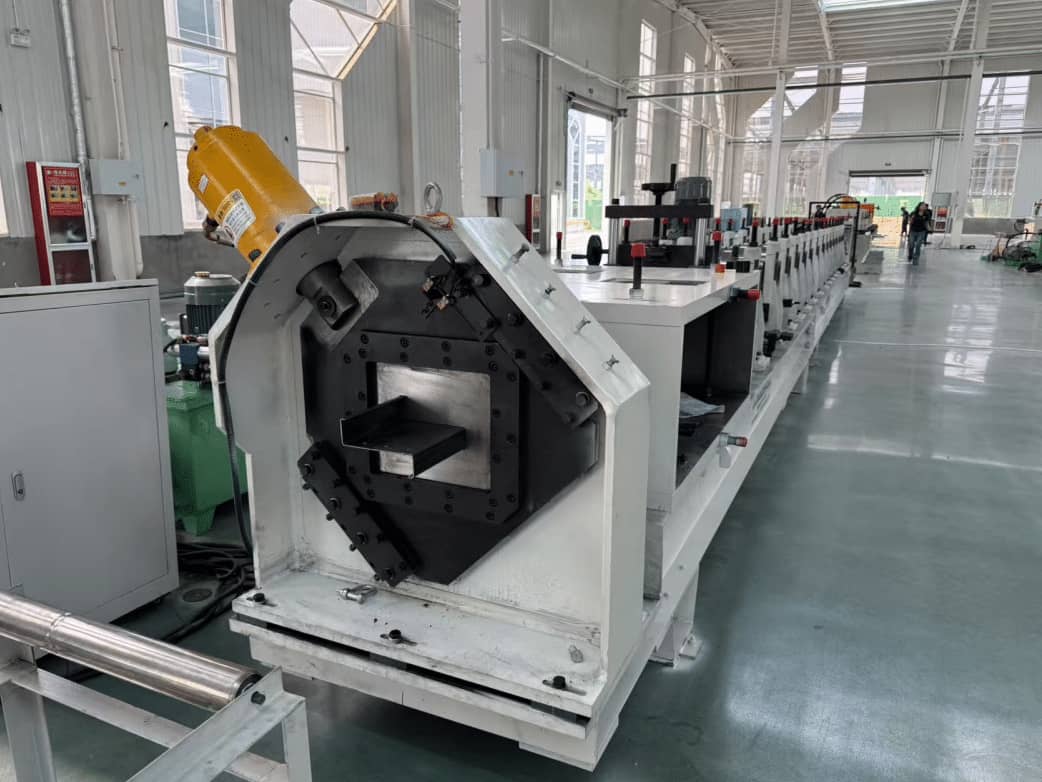

4.Cut to length: The equipment automatically cuts the steel section according to the set length through hydraulic or servo system, and the cut is flat.
5.Finished product output: The processed Z-shaped steel is automatically transported and stacked, waiting for transportation or installation.
The entire process is centrally managed by a PLC (Programmable Logic Controller) intelligent control system, and operators only need to input parameters on the console, greatly reducing manual intervention and ensuring product consistency and accuracy.
Application scenarios:
The Z-shaped steel produced by the Z-shaped steel machine has excellent mechanical properties due to its unique “Z” shaped cross-section, making it particularly suitable for large-span structures and widely used in the field of construction.
• Large steel structure factory building:
mainly used as roof purlins. Compared with C-shaped steel, the beveled edge design of Z-shaped steel enables it to form a tighter connection during overlapping, and can be calculated as a continuous beam with stronger bending resistance, making it particularly suitable for roofs with steep slopes.
• Warehouse and Logistics Center:
A support system for large-span roofs that provides spacious, column free interior space to meet the needs of warehousing and logistics operations.
• Public buildings:
widely used as roof load-bearing structures in large-span buildings such as sports halls, exhibition halls, airport terminals, cinemas, etc.
• Other fields:
In addition to the main structure of buildings, Z-shaped steel is also commonly used in fields such as solar photovoltaic brackets, vehicle manufacturing, shelves, bridges, etc. that require lightweight and high-strength components.
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:1.5-3mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
12 rows(As your requirement)
|
||
|
Diameter of shaft
|
80mm solid shaft
|
|||
|
Material of rollers
|
Gcr 15 with quenched teeatment
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
Chain transmission
|
|||
|
Dimension(L*W*H)
|
9500*800*1200(customize)
|
|||
|
Weight
|
About 7T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
15KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
60-70m/min(customized)
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
