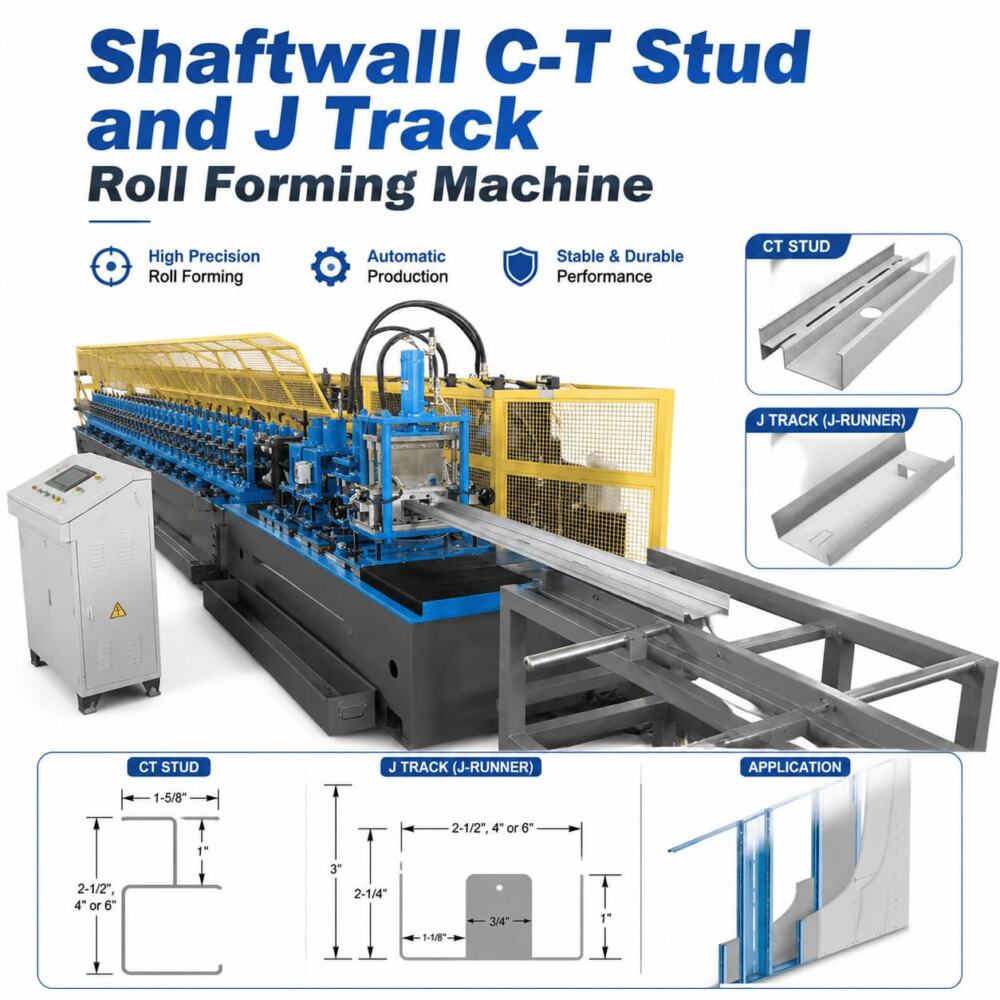

The Adjustable Steel Stud Shaftwall C-T Stud and J Track Roll Forming Machine is a fully automatic production line based on continuous cold bending forming technology, specifically designed for processing galvanized steel strip and cold-rolled steel strip, producing C-T vertical edge keel (C-T Stud) and J-track (J Track/J-Runner) required for vertical shaft wall systems. The equipment integrates automatic feeding, precision roll forming, online punching, hydraulic cutting and other processes, which can continuously produce high-quality profiles with precise dimensions and smooth edges at a stable speed.
Typical application scenarios
The vertical shaft wall keel system produced by this equipment is widely used in:
• High rise building elevator shaft partition wall
• Staircase fireproof partition wall
• Equipment room and pipe well enclosure
• Vertical pipeline channel
• Fire partition wall system
• Commercial and residential super high-rise buildings
Market value：
With the continuous improvement of lightweight, fire safety, and construction efficiency requirements in the global construction industry, the market demand for vertical shaft wall light steel keel systems continues to grow. The Shaftwall C-T Stud and J Track cold bending machines provide profile manufacturers with an efficient, flexible, and reliable production solution:
1.Reduce investment costs: One device covers multiple specifications, reducing equipment procurement investment.
2.Improve production efficiency: fully automatic continuous production, adjustable speed, sufficient production capacity.
3.Ensure product quality: precision molding process, good dimensional consistency, in compliance with international fire standards.
4.Expand market space: meet the supply demand of vertical shaft wall system components at home and abroad, and the products have been exported to more than 140 countries and regions around the world.
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:0.3-0.8mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
As your requirement
|
||
|
Diameter of shaft
|
50mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
Gear transmission
|
|||
|
Dimension(L*W*H)
|
7800*800*1200(customize)
|
|||
|
Weight
|
About 4.5T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
40-100m/min(customized)
|
Different speed designs for options.
|
||
Core advantages：
1. Adjustable width, versatile for one machine
The most prominent advantage of this device is its automatic width adjustment function. Traditional production lines often need to replace the entire set of rollers or even purchase multiple equipment to produce different specifications of dragon bones. And this equipment is controlled by a PLC system, allowing operators to quickly adjust the molding width and produce C-T Stud and J Track of different sizes on one device. This not only significantly improves production flexibility, but also effectively reduces mold investment and inventory costs.
2. Precision molding, reliable quality

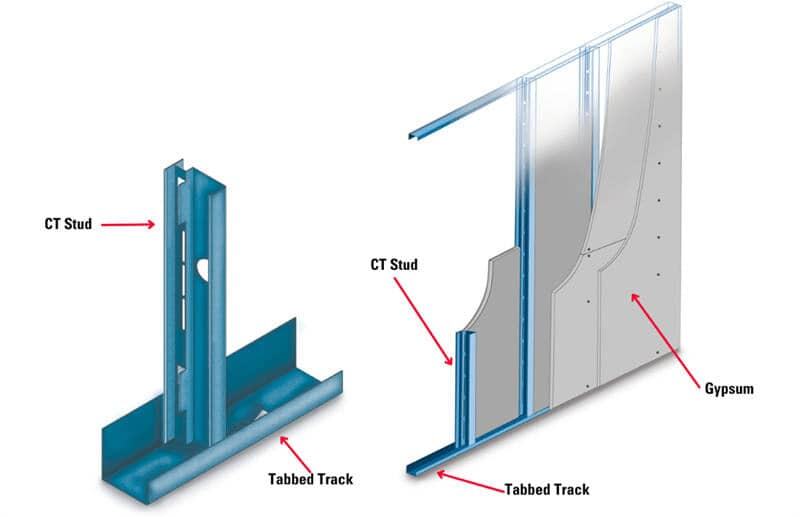

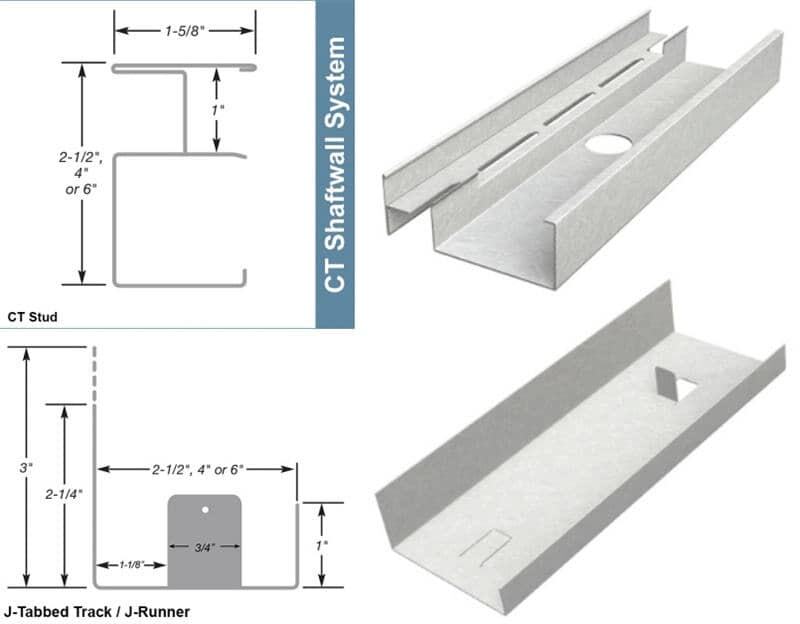

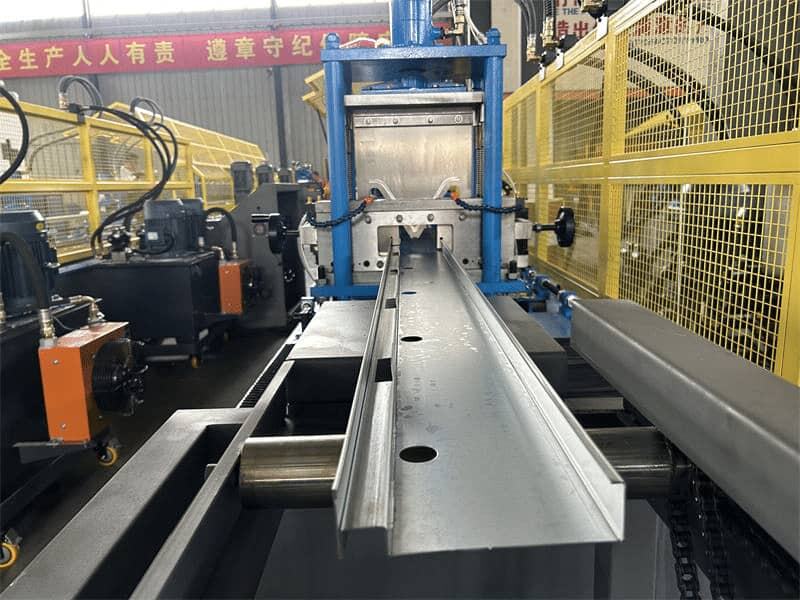

The equipment adopts high-precision roll forming technology, and the produced profiles have the characteristics of neat edges, consistent dimensions, and excellent straightness. The unique cross-sectional design of C-T Stud can firmly fix 1-inch thick gypsum lining board through friction fit, without the need for additional mechanical fasteners, which not only accelerates on-site installation speed but also ensures excellent fire resistance and structural stability. J Track adopts an unequal leg design, with the long side installed on the side of the shaft, providing convenient backrest support for lining installation.
3. Fully automatic control, efficient production

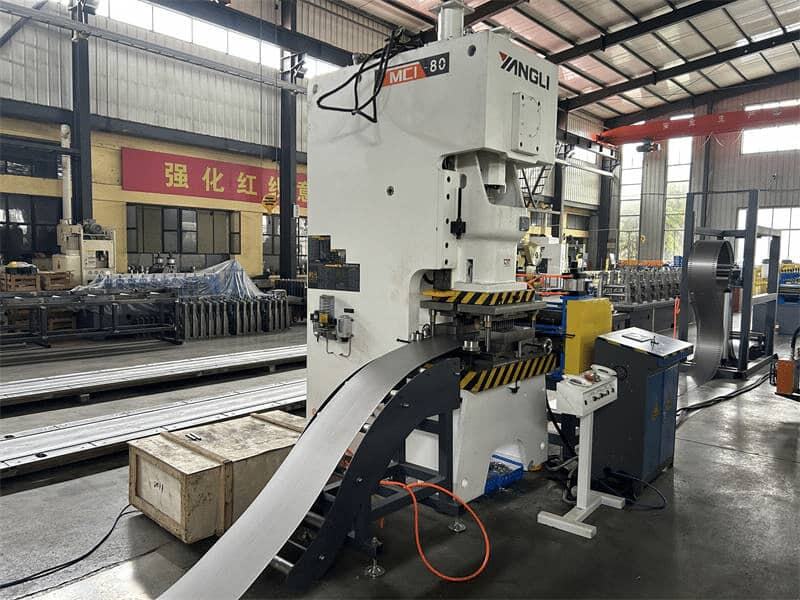

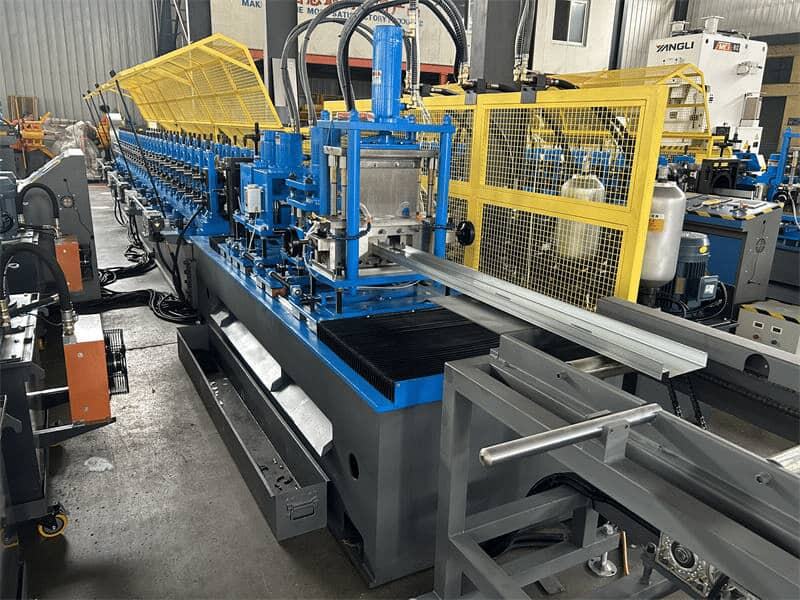

The equipment is equipped with a PLC fully automatic control system and a hydraulic cutting device, which operates automatically throughout the entire process from unwinding, forming, punching to cutting to a fixed length. The production line speed can be customized according to customer needs to meet the production capacity requirements of projects of different scales. The user-friendly interface allows one person to monitor and manage the entire production line.
4. Durable and adaptable

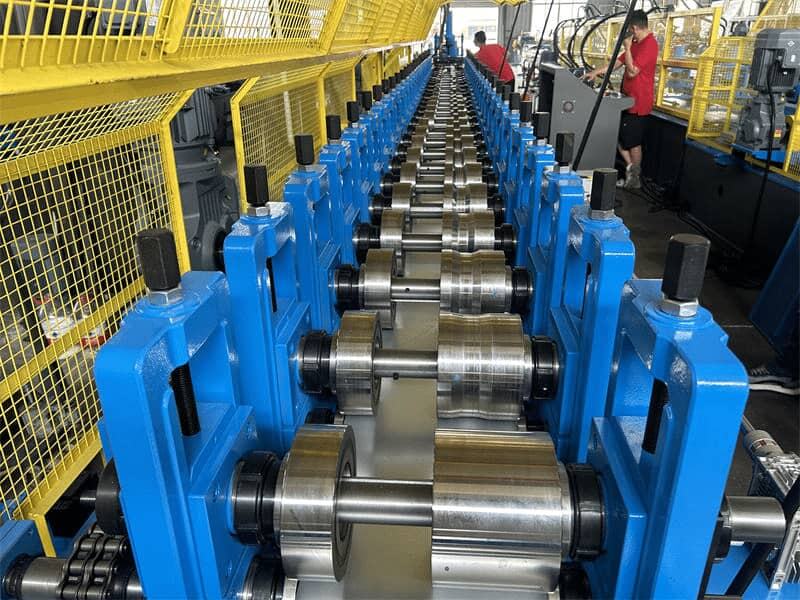

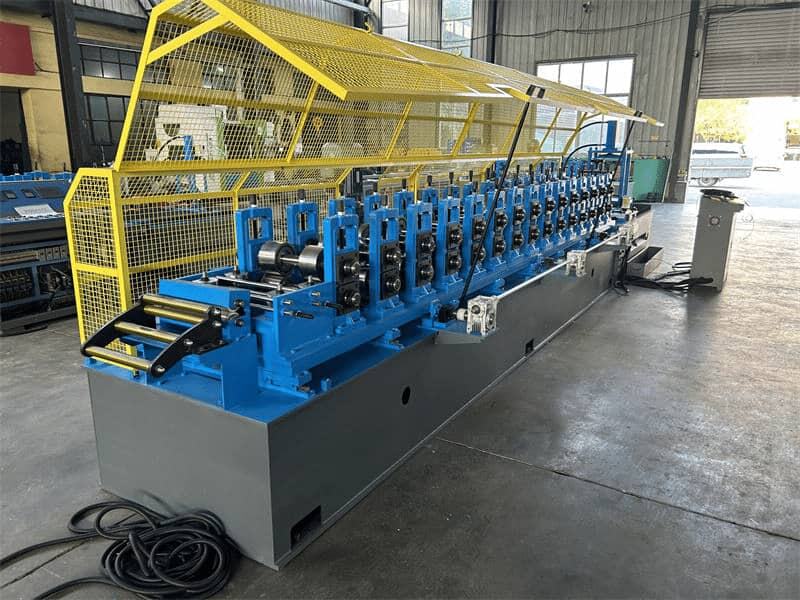

The core components of the equipment are made of high-quality materials – the rollers are made of 45 # steel and treated with hard chrome on the surface, and the main shaft is made of solid 45 # steel quenched and tempered to ensure accuracy retention and service life under long-term heavy load operation. The equipment can process galvanized steel strip and cold-rolled steel strip, with a wide range of profile thickness, which can meet different fire protection levels and structural strength requirements.
Contact Us：
The Shaftwall C-T Stud and J Track cold bending forming machines are not only specialized equipment for producing vertical shaft wall keels, but also an important force in promoting the industrialization of construction and popularizing light steel partition systems. Whether you are a profile manufacturer seeking capacity upgrades or an investor laying out in the building components market, this equipment will become your trusted production partner.
