The Step Tile Roll Forming Machine is an advanced and efficient solution for manufacturing step tiles. This cutting-edge machine is specifically designed to produce high-quality step tiles, known for their distinctive appearance and excellent durability. With precision engineering and automated controls, the machine ensures seamless and accurate roll forming, resulting in consistent and precise step tiles. It is versatile and capable of handling various materials, such as steel, aluminum, or other alloys, making it ideal for a wide range of roofing applications. Experience top-notch step tile production and enhance your roofing projects with this reliable and high-performance Step Tile Roll Forming Machine.

Excellent characteristics of resin tile:

  1. Waterproof. The resin tile itself will not absorb water, so the waterproof layer can be omitted. Hongxin resin tile has a “lotus leaf effect”, and the tile surface can be self-cleaning after rain without water stains.
  2. Corrosion resistance. The resin tile can still be used for 30 years or more in acidic or corrosive environments after verification by the organization.
  3. Fire resistance, reaching V-0 fire resistance.
  4. Insulation. resin tile is an insulation product, which will be intact in case of accidental discharge.
  5. Green and environment-friendly, in line with the mainstream of green and environment-friendly in modern society, and recyclable. The synthetic resin tiles are rich in varieties and colors, which can meet the needs of different customers. ASA synthetic resin tile has the advantages of light weight, waterproof, tenacity, thermal insulation, sound insulation, corrosion resistance, wind resistance, earthquake resistance, pollution resistance, green environmental protection, fire protection, insulation, super long life, simple installation, etc. It is characterized by rich colors and long-term fastness, beautiful shape and strong three-dimensional sense, and conforms to the characteristics of Chinese architectural culture. At the same time, it is also an ideal material for roof decoration and fire protection of all kinds of buildings, especially for the “urban image project transformation” and “new rural roof tile project” that are vigorously promoted in China.

Step Tile Roll Forming Machine

Zhongtuo Resin design metal step tile has the resin tile advantages and metal step tile functions both.

As it uses the following layer of design metal material.

Step Tile Roll Forming Machine

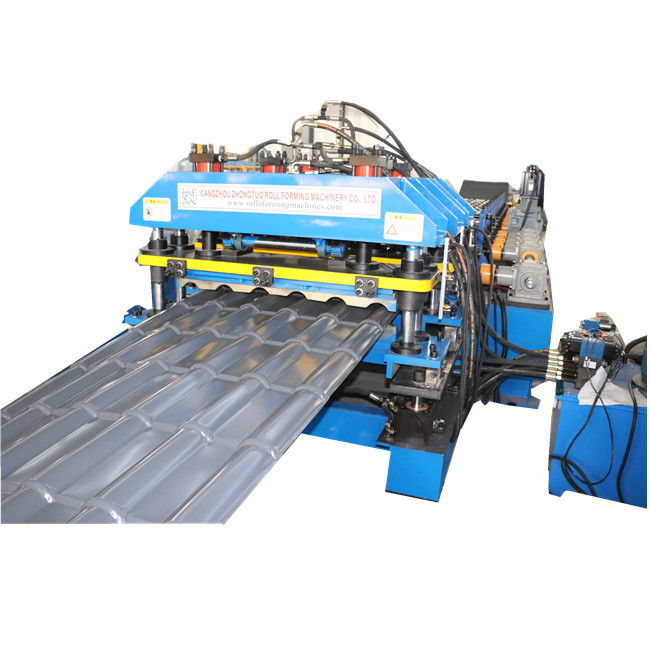

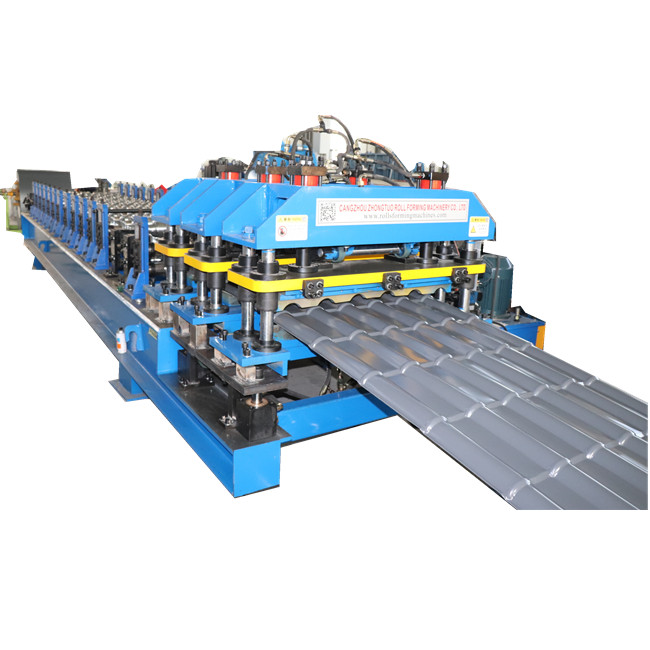

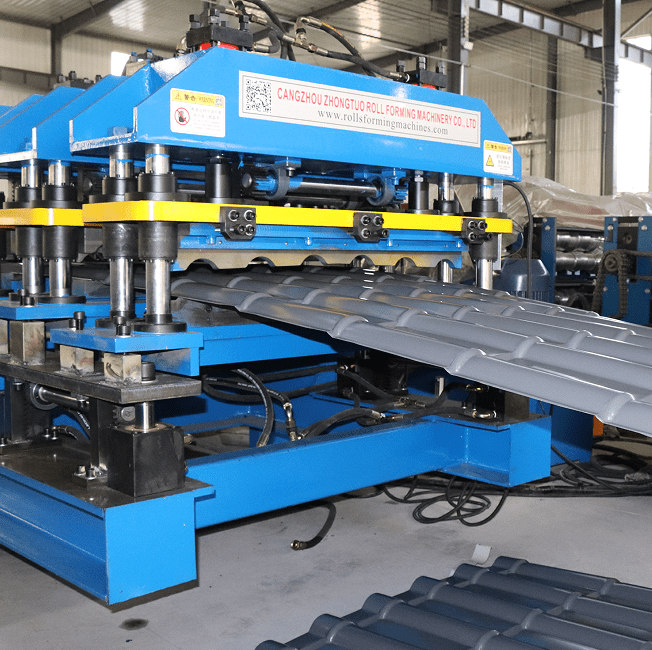

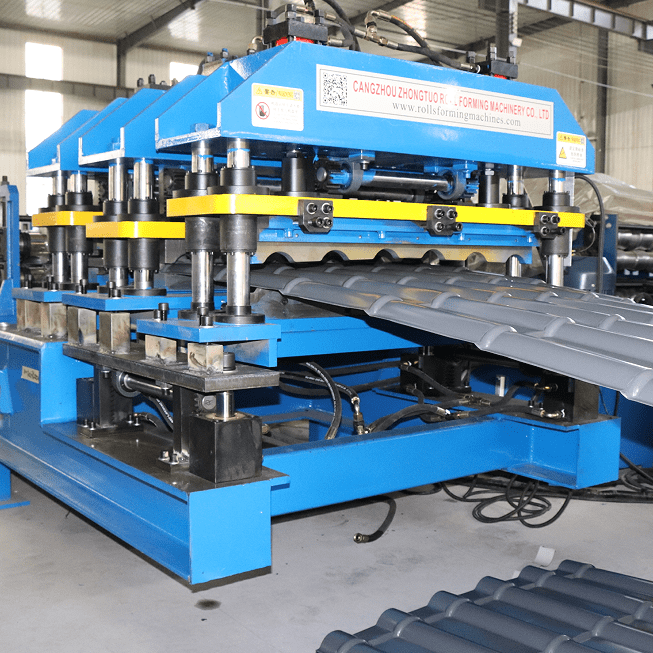

Resin design high speed step tile rolling forming machine

This machine can be used to support both normal material and the filmed PPGI coil.

Step Tile Roll Forming Machine

Features of Resin design high speed step tile rolling forming machine


【High Efficiency】8 to 12 meter per minute. And it allows you to make machine working long time.

【Two types material supported】You can use normal PPGI and the filmed resin coil.
【Long Life Machine】Rollers of machine are CNC machine tooled, plated with 0.05mm hard chrome on surface.Heat treatment for cutting frame to remove the steel stress, to avoid deformation. Cutting material is Cr12 mould steel with quenched treatment, all these processing steps ensure machine long life time.

【Two types roofing tile made】you can choose to make any type tile as it has two stepping devices.

Step Tile Roll Forming Machine

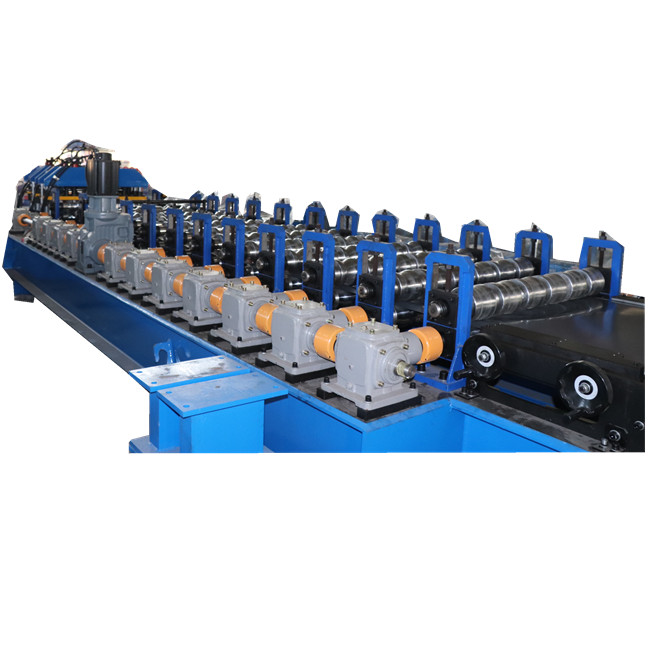

【High Precision】Shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.

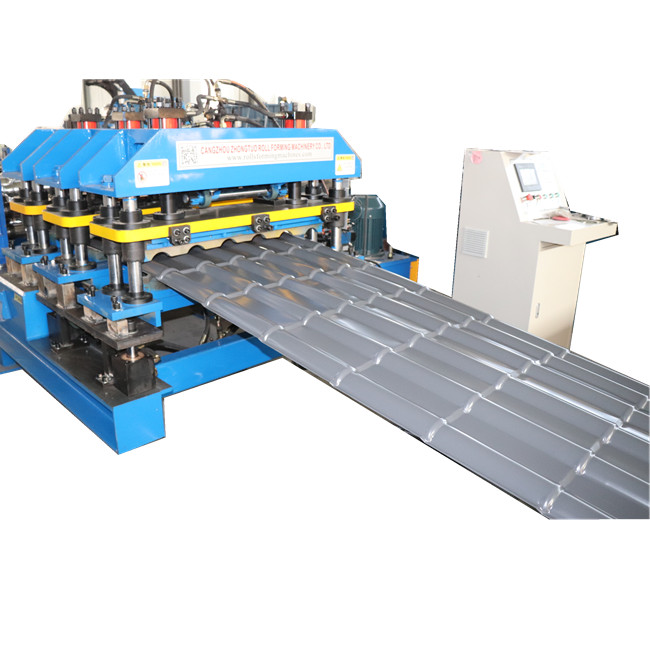

【Automatic & Easy Operate】Safe and easy to operate with Mitsubishi PLC touch screen operating system.Friendly man-machine interaction.

【High Quality】We use the molding frame and gearbox as transmission.

Step Tile Roll Forming Machine

【Excellent Services】Technician can be sent to your factory to install the machine and train your workers. Engineers are able to service overseas.We supply lifetime services for our machines.

Resin design high speed step tile rolling forming machine working video for your reference:
