The Metal Roofing Self Lock Standing Seam Roll Forming Machine is a specialized cold bending forming equipment used for producing the core plate of the vertical locking edge metal roof system. The roof panels produced by it have become one of the preferred roofing solutions for modern large public buildings and high-end residences due to their excellent waterproof, wind resistant performance, and beautiful visual effects.

Machine workflow：

The workflow of a complete self-locking upright lock edge press is usually as follows:

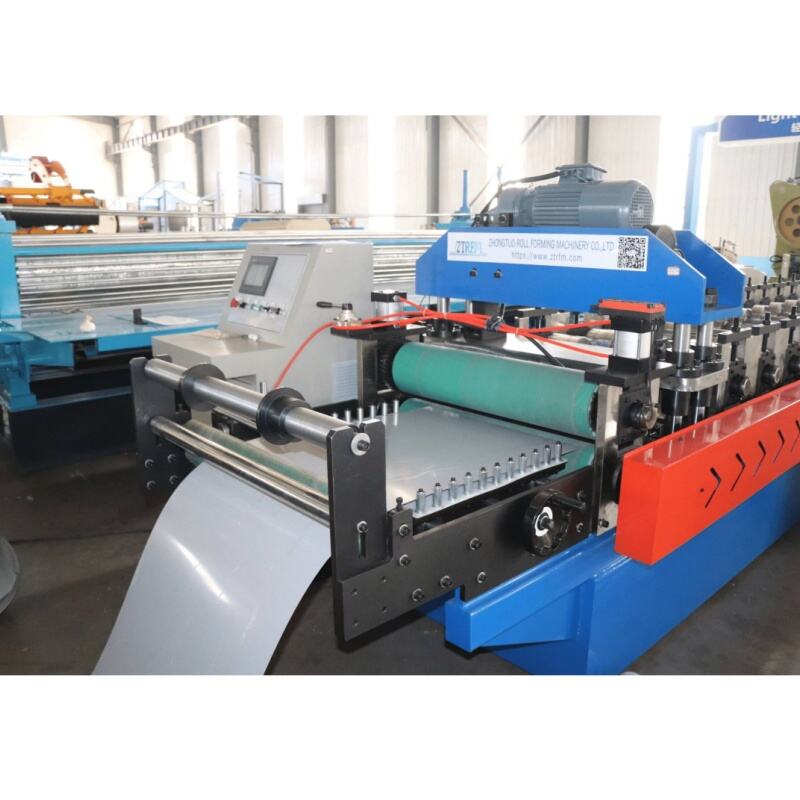

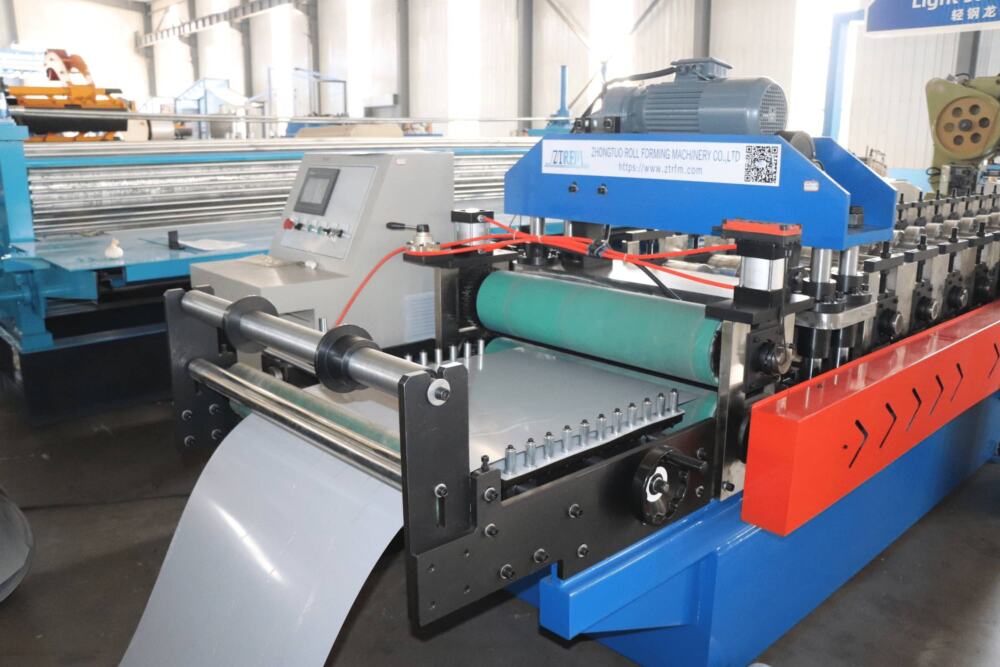

1.Feeding: Place coiled metal coils (steel coils, aluminum coils, etc.) on the feeding rack.

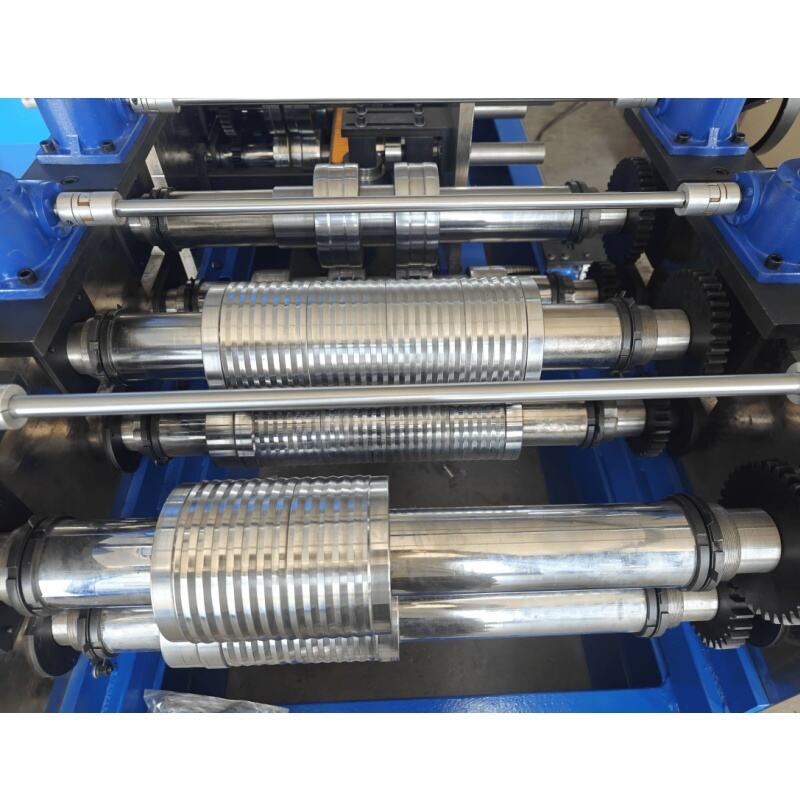

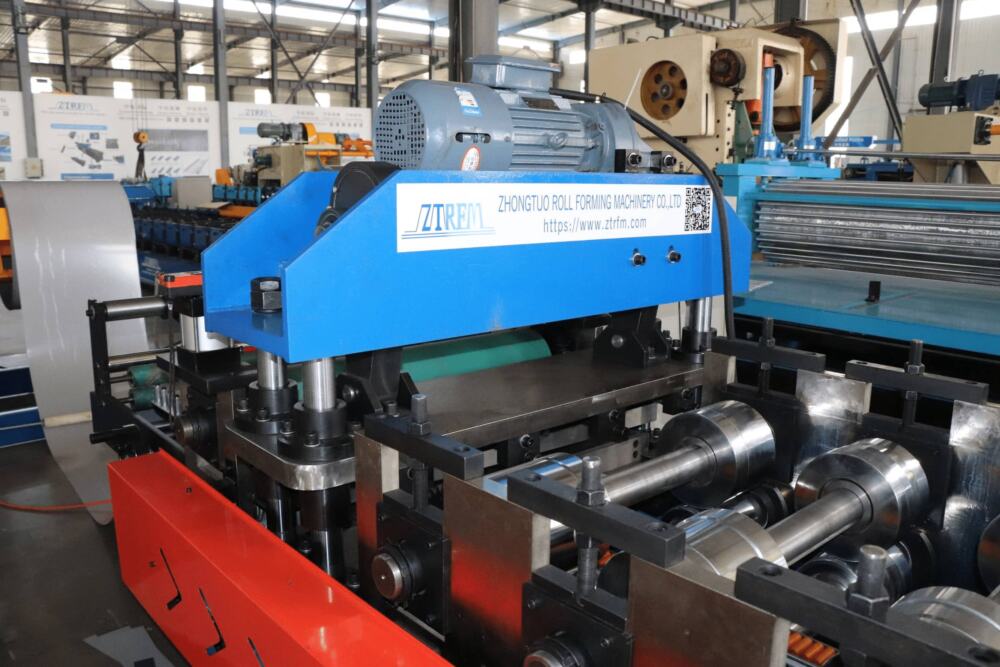

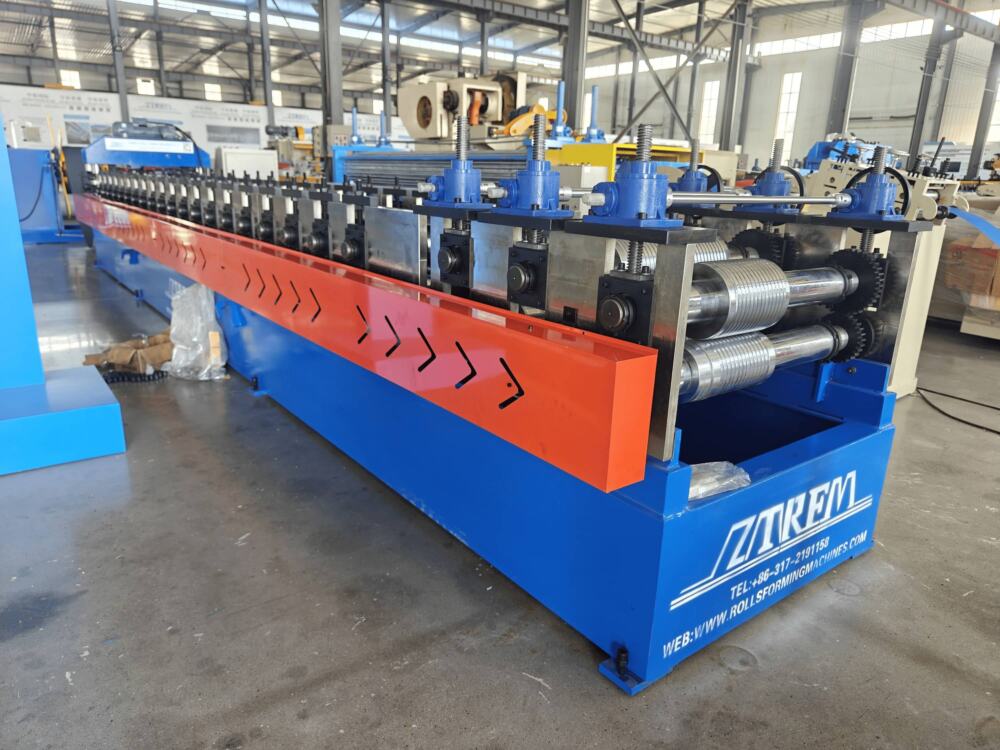

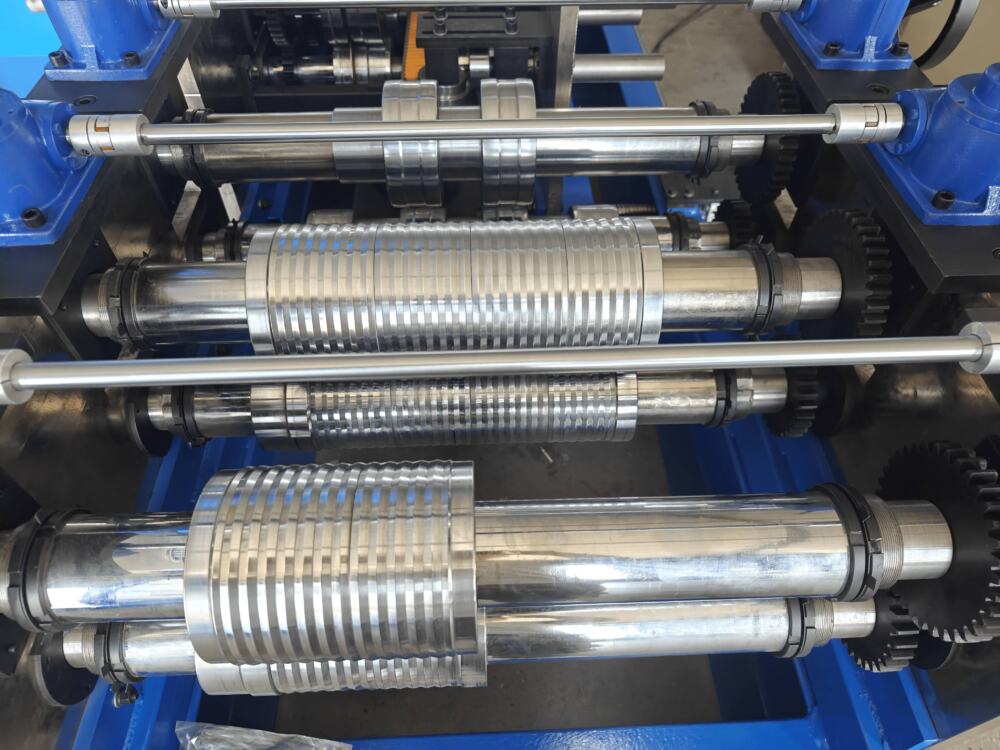

2.Feeding and Forming: The metal strip is fed into the forming host. There are more than 18-20 (or even more) rolling rolls inside the machine, which gradually cold bend the sheet and press it into a specific plate shape with upright ribs and self-locking buckle structure.

3.Cutting: According to the preset length, the flying shear or rotating shear will cut the continuously formed sheet online.

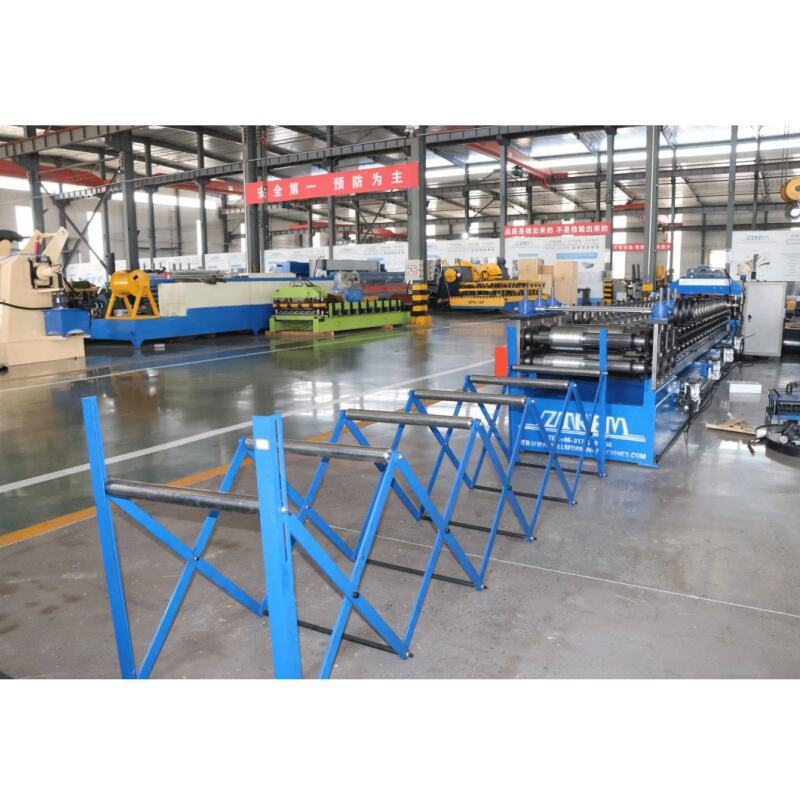

4.Discharge: The cut finished roof panels are sent out through the discharge platform and can be used for installation

Main application scenarios：

Due to its excellent performance, the roof panels produced by this equipment are widely used in:

• Large public buildings:
sports venues, convention centers, theaters, airport terminals, etc.

• Commercial and industrial buildings:
large shopping centers, industrial plants, warehouses, etc.

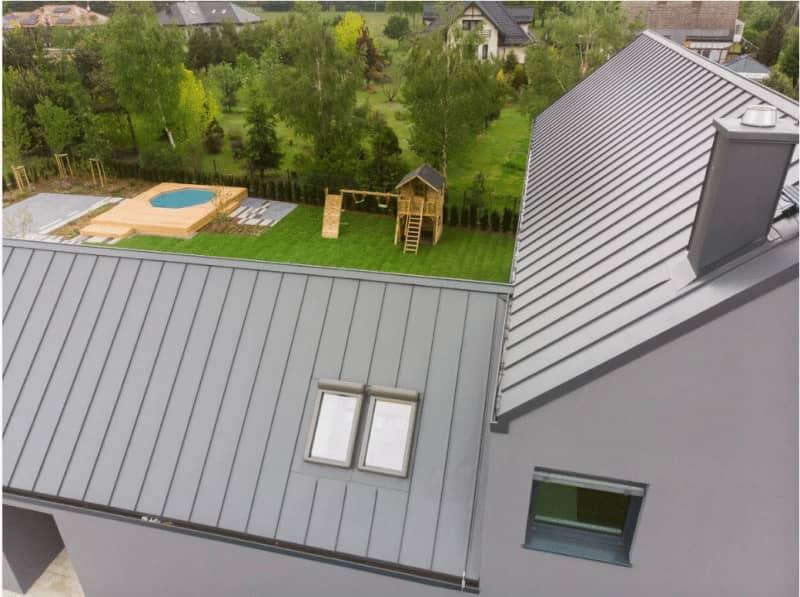

• High end residential and special buildings:
villas, private residences, and exterior decoration of buildings, etc.

Product Attributes :

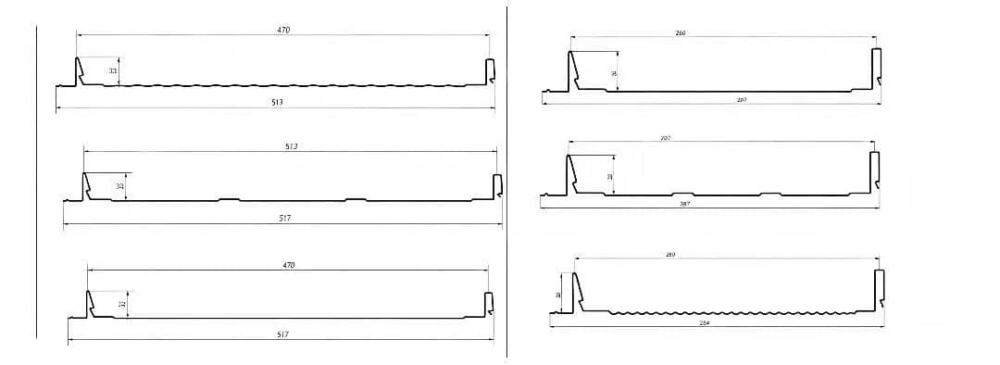

Pattern drawing：

Core advantages：

1. On site production, cost reduction and efficiency improvement:
The equipment can be placed in a container and the metal coil can be directly processed into the required length of roof panels on the construction site. This eliminates the need for factory prefabrication, long-distance transportation, and on-site secondary handling, significantly reducing logistics costs and storage pressure.

2. Excellent waterproof performance:

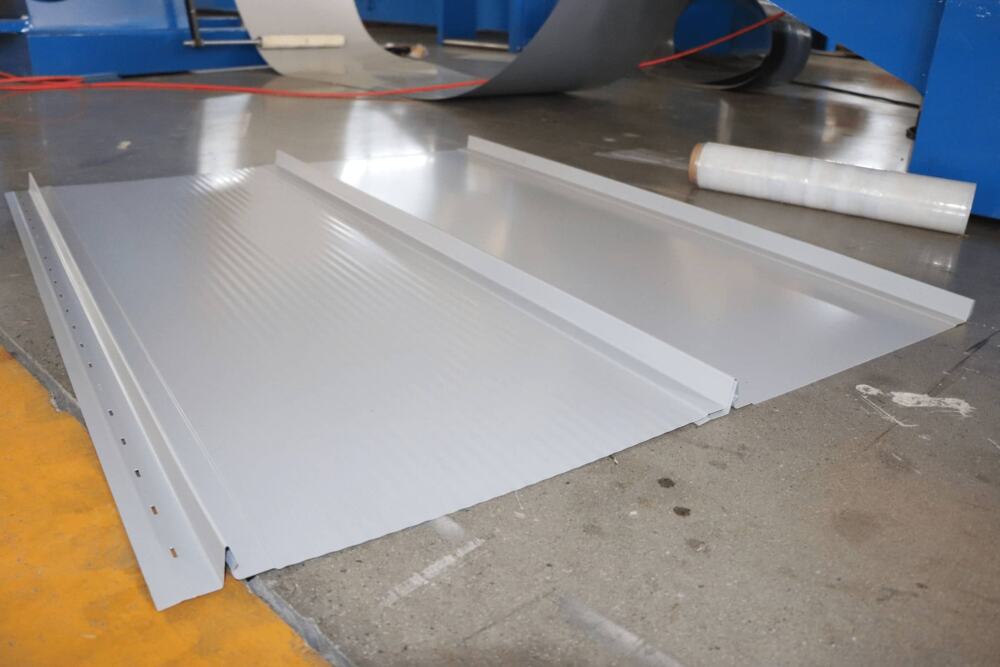

The “upright locking edge” and “self-locking” structure of the finished roof panel form continuous and precise interlocking seams. Combined with the fixed seat hidden under the panel, it avoids the water leakage hazard caused by traditional screw penetration fixation, and the roof itself forms a tight waterproof layer.

3. Highly automated and precise:
Equipment is typically equipped with a PLC (Programmable Logic Controller) control system to ensure dimensional accuracy and consistency in production. Some high-end models can achieve automation and even AI assisted production. At the same time, its real-time thickness monitoring and automatic compensation functions can effectively respond to subtle differences in materials and ensure stable product quality.

4. Quick installation:
Due to its “self-locking” feature, on-site installation only requires pressing and biting the board, without the need for additional electric locking machines or manual tools, significantly improving construction speed. For example, a self-propelled edge locking machine can automatically move from the eaves to the ridge to complete the edge locking.

5. Wide material adaptability:
can process various materials such as aluminum magnesium manganese alloy, galvanized steel, color coated steel, etc., with plate thickness usually between 0.3mm and 1.0mm.

Contact Us：

The metal roof self-locking upright locking edge press represents an efficient and high-quality production method for metal roofs. It perfectly solves the pain points of traditional roof systems in waterproofing, wind resistance, and construction efficiency through its core advantages of “on-site production, self-locking connection, and high automation”, and is an indispensable key equipment in modern metal roof engineering.
