As the core load-bearing and reinforcement component in various structures, the forming accuracy and strength stability of slant support directly determine the safety performance of the overall project and equipment. From storage shelves to photovoltaic brackets, from building structures to industrial equipment, the application scenarios of slant support cover many fields, which puts forward strict requirements on the efficiency, adaptability and accuracy of processing equipment. The Industrial Shelving C Stud Shelf Diagonal Brace Roll Forming Machine, supported by the core technology of cold bending forming, integrates the whole process automation module, specifically solves the pain points of the traditional slant support, such as low processing efficiency, poor precision, and difficulty in changing the model, and provides an integrated solution for large-scale and high-quality production of slant support.
Application Scenario:
• In the field of photovoltaic new energy
Adapt to the processing needs of photovoltaic support slant support. In distributed photovoltaic power stations and large-scale ground photovoltaic projects, customized slant support components are provided for photovoltaic support systems. By virtue of accurate molding quality and excellent weather resistance, they are suitable for complex installation scenarios such as roofs, mountains, deserts, etc., providing reliable structural support for photovoltaic supports and ensuring long-term stable • operation of the power station.
• In the field of architecture and steel structures
Assist in structural reinforcement and protection. It can produce the anti-seismic slant support bracing and wind proof slant support components required for the main structure of buildings, prefabricated steel structures and industrial plants, improve the impact resistance and load-bearing capacity of slant support through high-strength molding process, adapt to the structural reinforcement requirements of high-rise buildings, industrial sheds, municipal infrastructure and other projects, and escort the safety of the project.
• Industrial equipment and infrastructure field
The application scenarios are diverse. Machinable electrical cable tray support slant support, HVAC system support slant support, sports equipment (such as football gate) slant support and other components, which are widely used in power engineering, machinery manufacturing, sports facilities construction and other industries. With efficient production capacity and stable quality, it has become the core equipment for slant support processing in various industries.
Key Features:
Precise limit molding ensures consistent quality. In response to issues such as feeding deviation and end forming deviation in traditional equipment, the equipment is equipped with a comprehensive limit and guidance system: the feeding end adopts an “eight shaped” guide plate and adjustable limit components, which are accurately positioned with a scale to ensure that the material maintains a preset angle and position before entering the forming area, avoiding offset problems from the source; During the forming process, the imported PLC intelligent control system and closed-loop detection module are used to achieve millimeter level precision control, ensure that the section size, wall thickness uniformity and bending angle of each slant support are accurate and consistent, and the qualified rate of finished products is up to 99.8%, effectively eliminating assembly problems caused by size deviation.

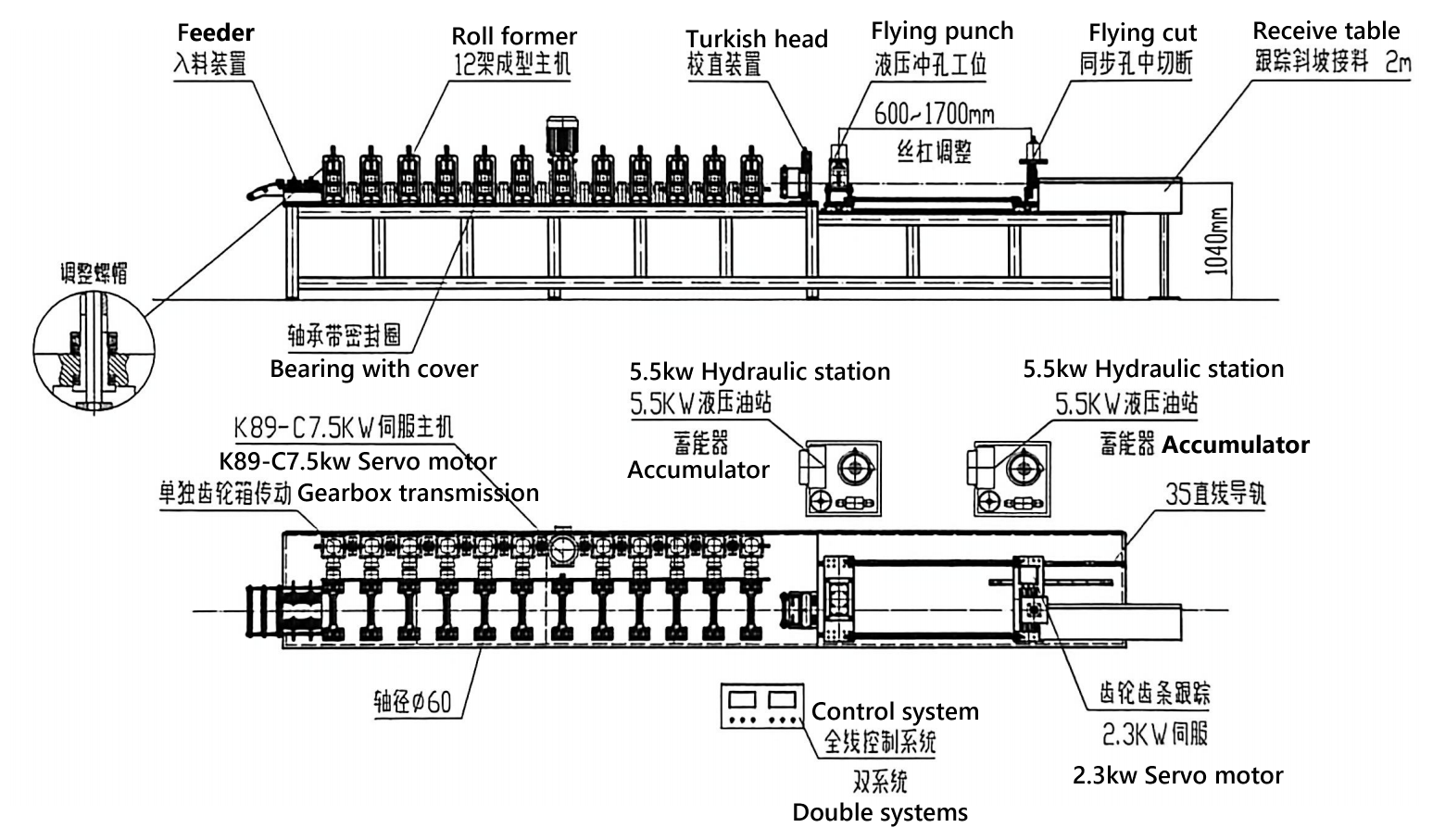

Process flow:

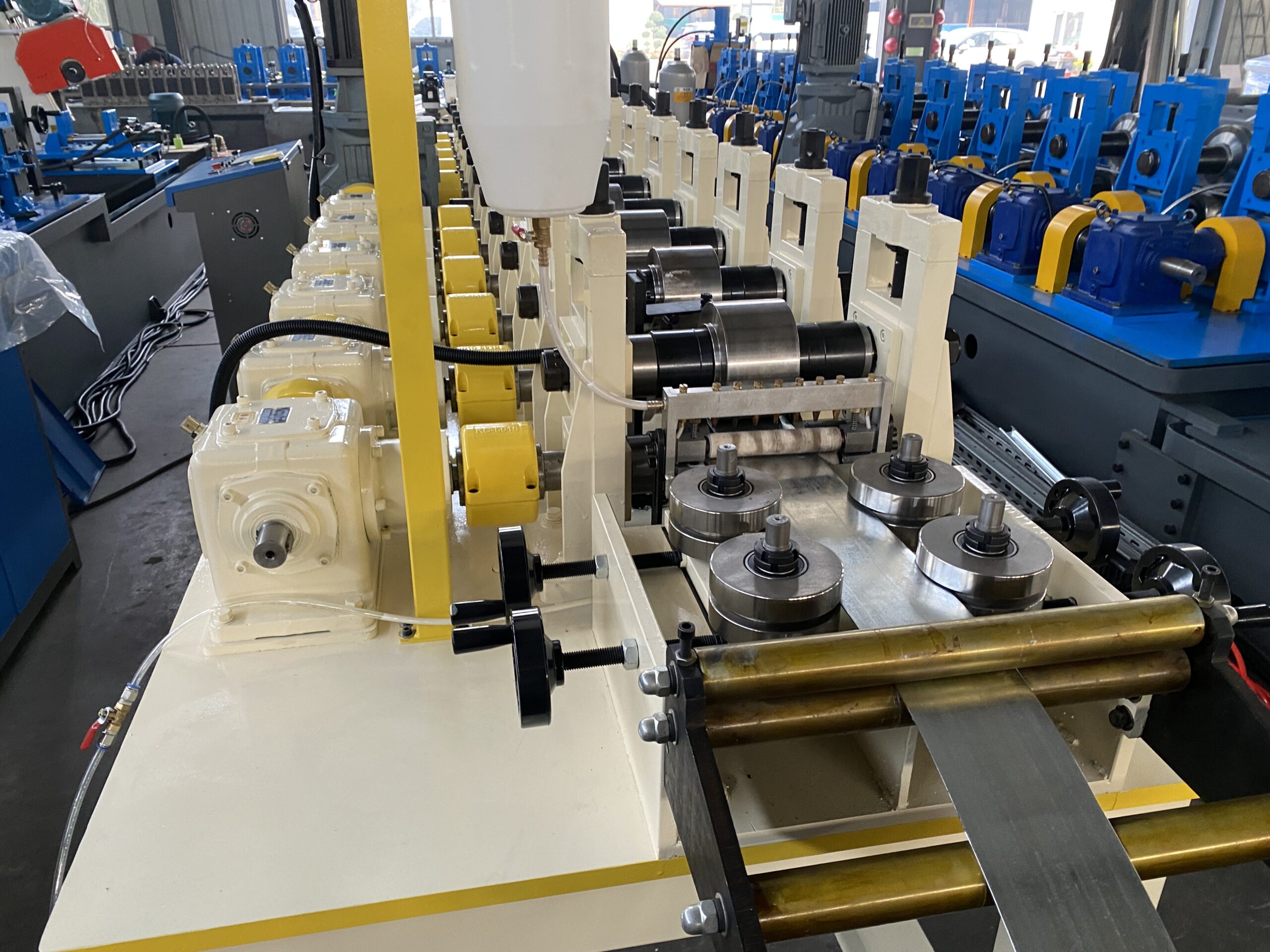

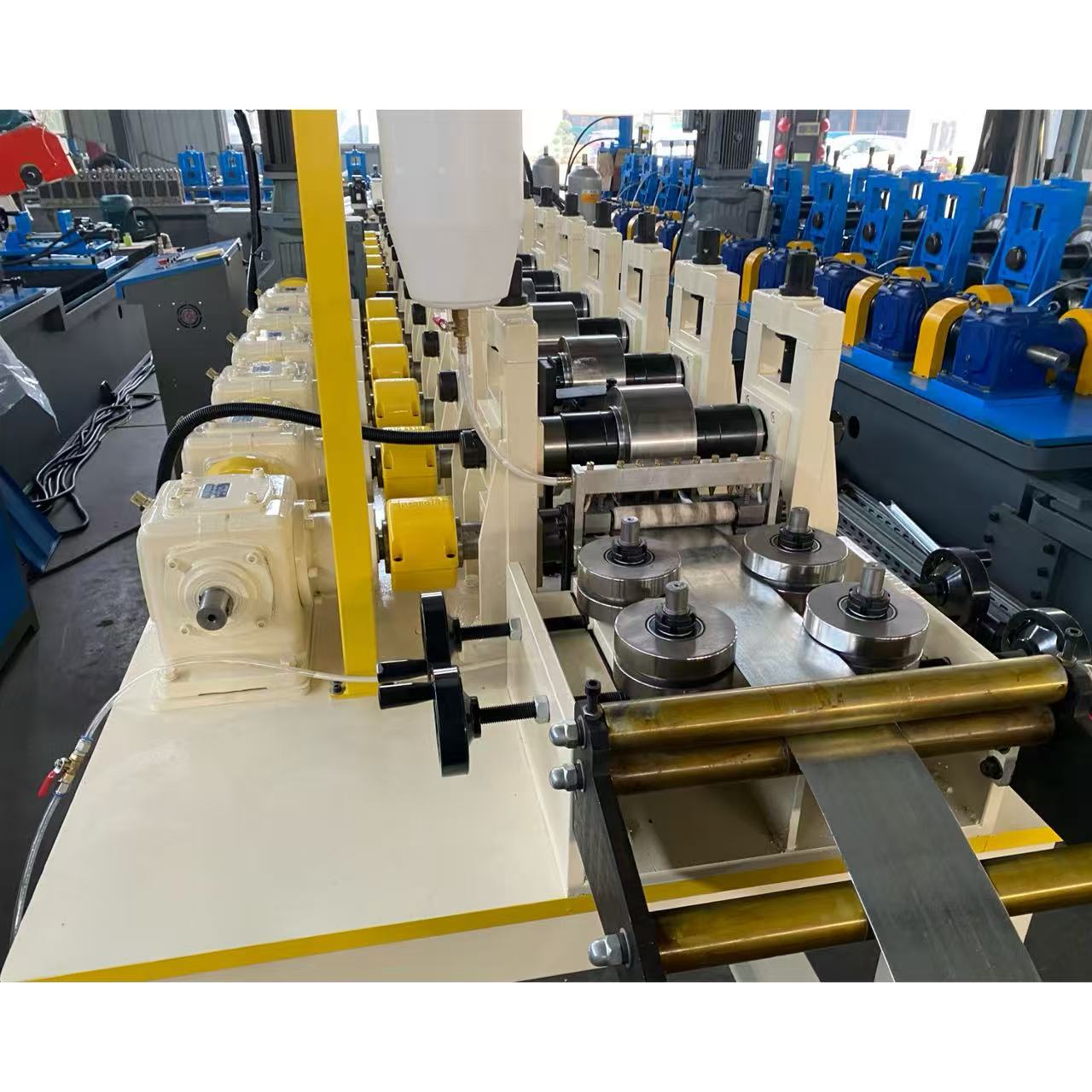

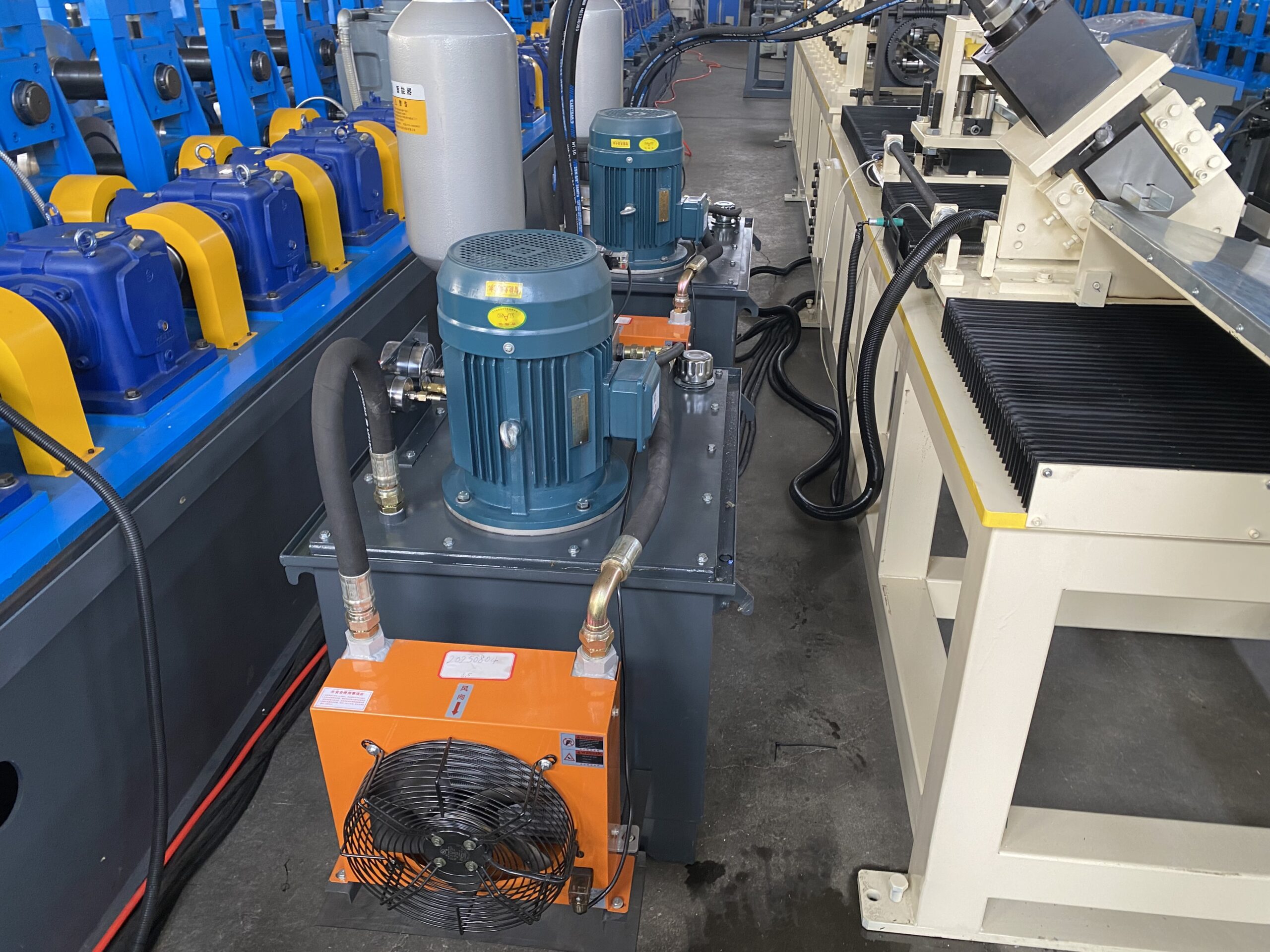

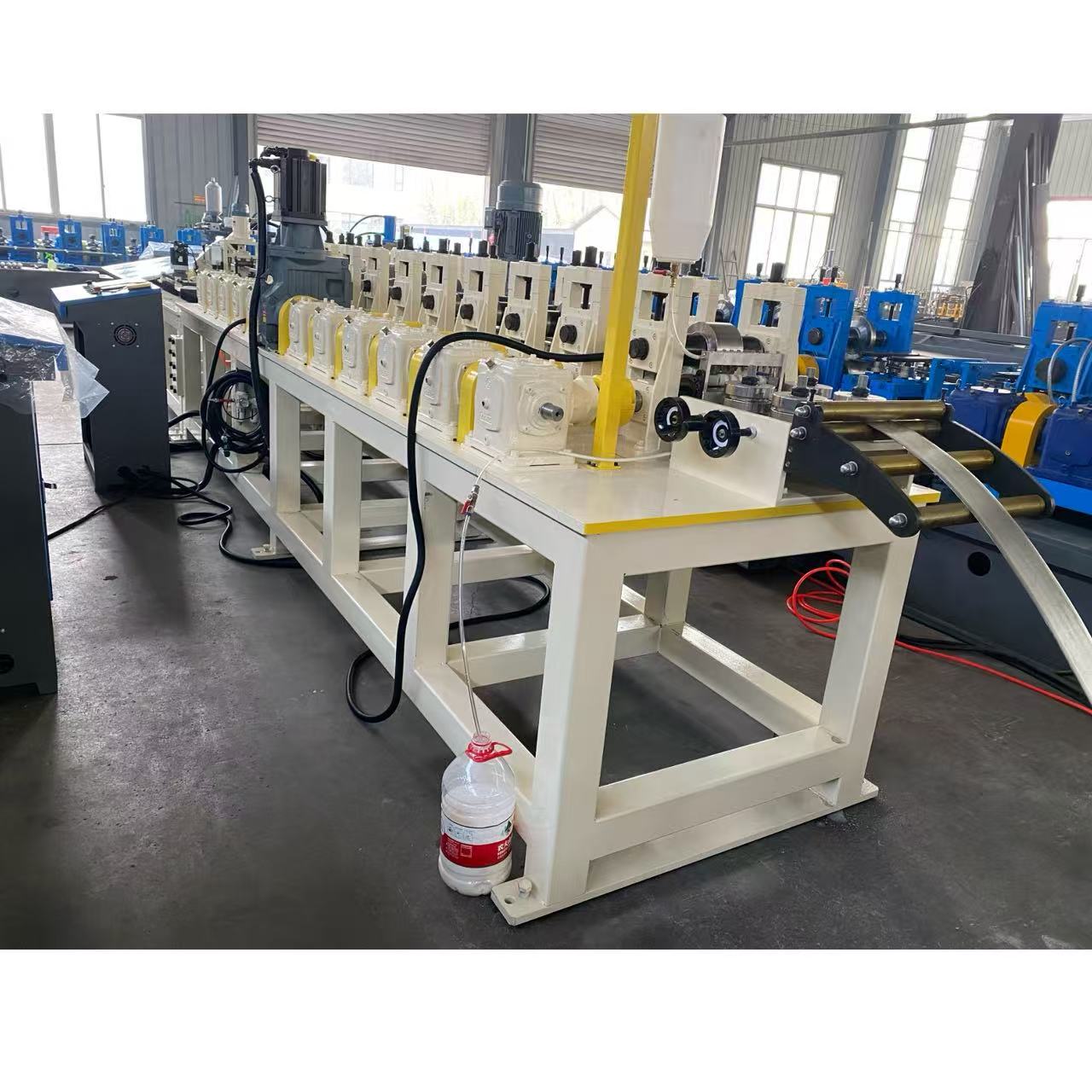

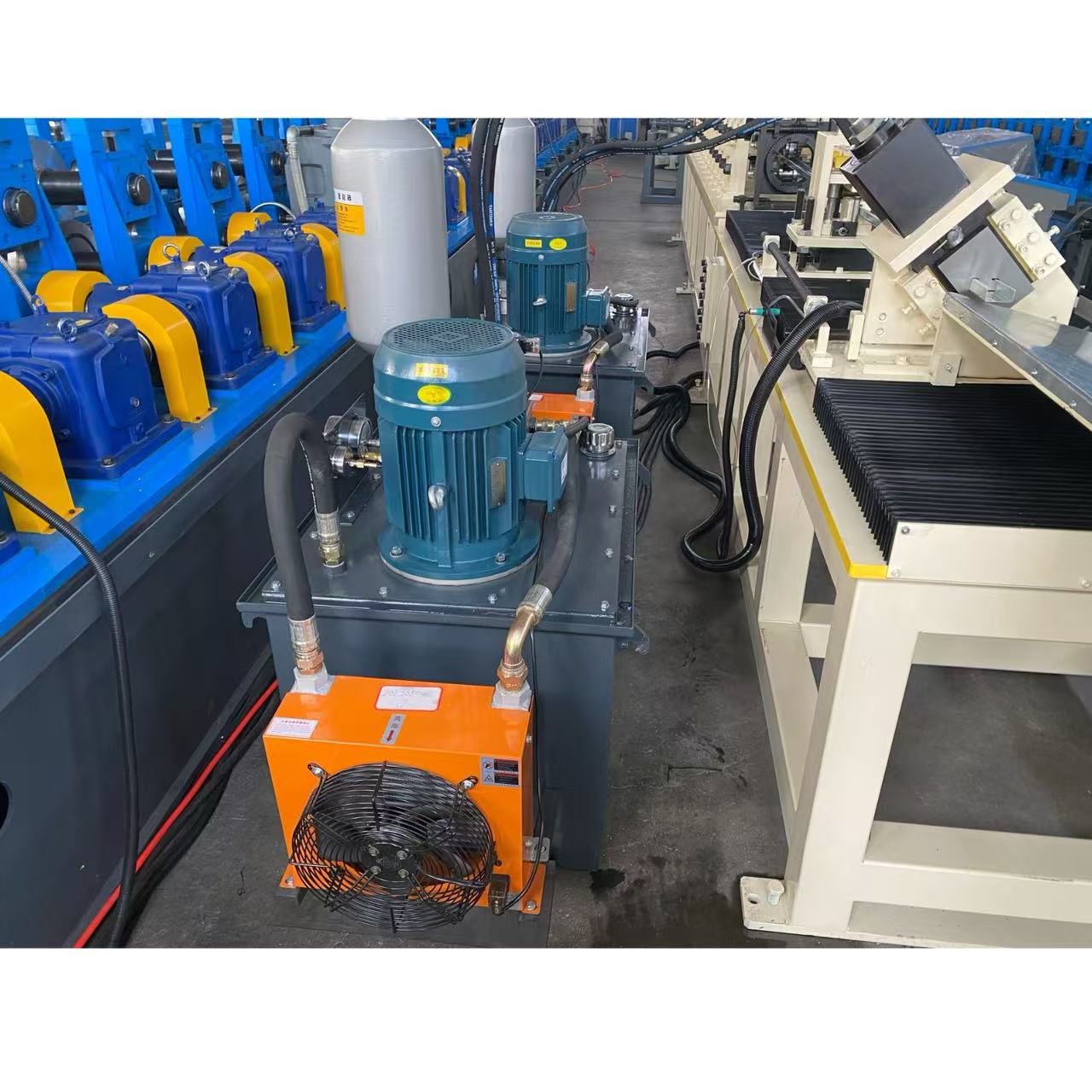

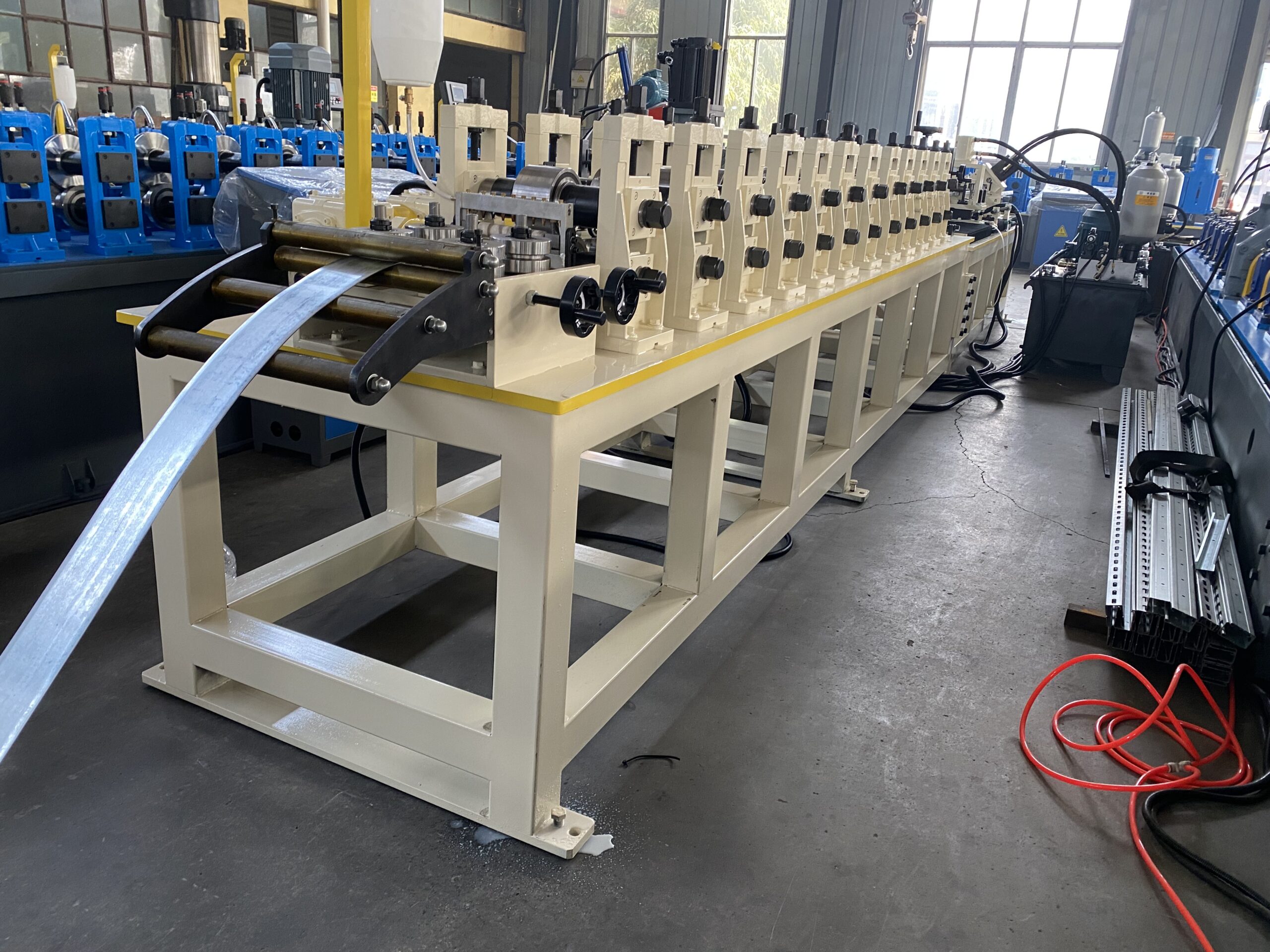

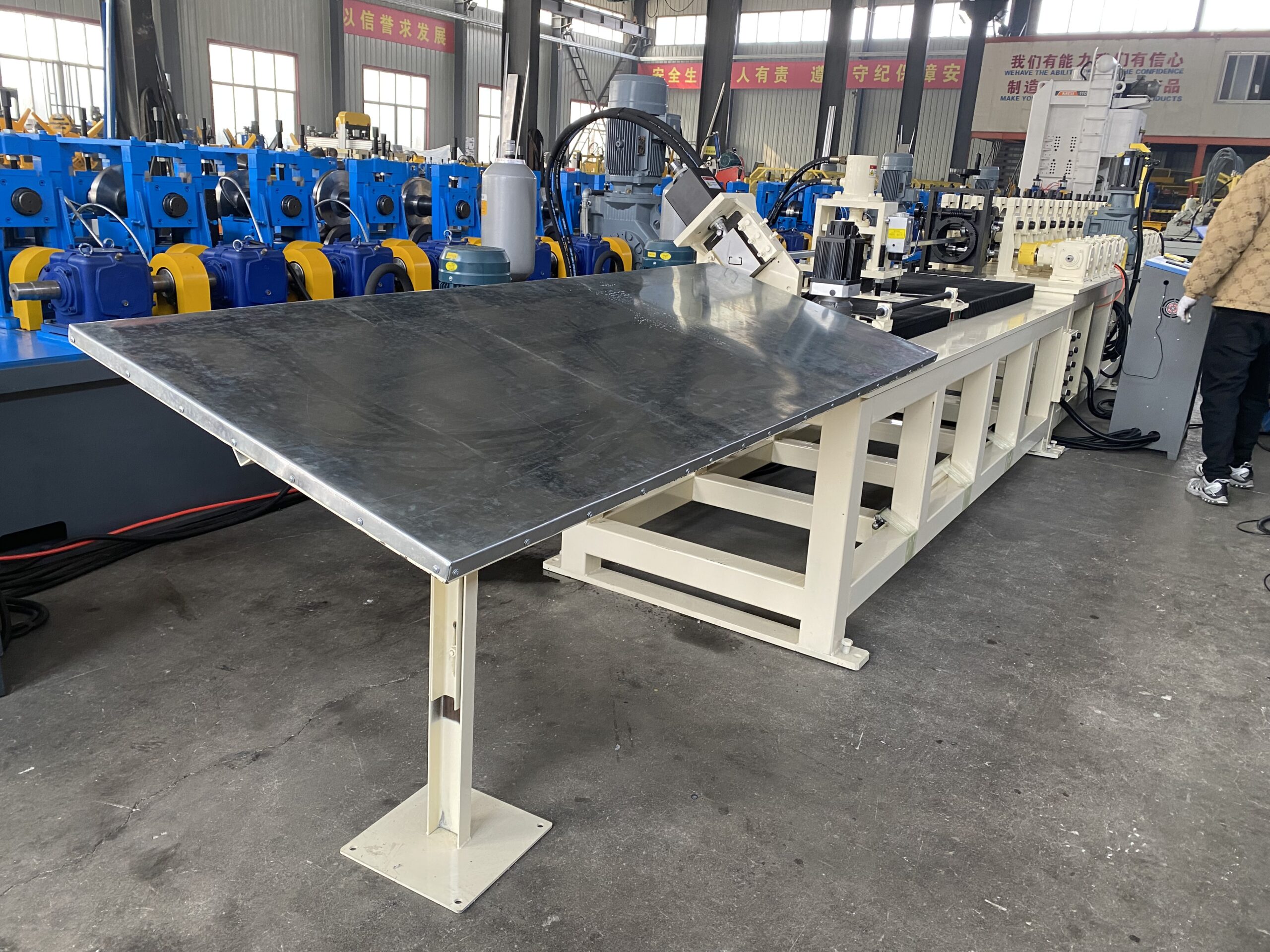

Machine image:
