HB55 Metal Floor Deck Roll Forming Machine with Hydraulic Cutting: The Smart Choice for Modern Construction
Looking for a reliable, high-efficiency solution for producing HB55 metal floor decking?
Our HB55 Metal Floor Deck Roll Forming Machine with Hydraulic Cutting is designed to help construction material manufacturers, steel structure suppliers, and roofing/decking factories produce precise, strong, and installation-ready floor deck panels — faster and more profitably.
Whether you are supplying composite floor deck for high-rise buildings, industrial plants, shopping centers, or prefabricated steel structures, this machine delivers consistent profile quality, smooth hydraulic cutting, and stable automatic production.
What Is the HB55 Metal Floor Deck Roll Forming Machine?

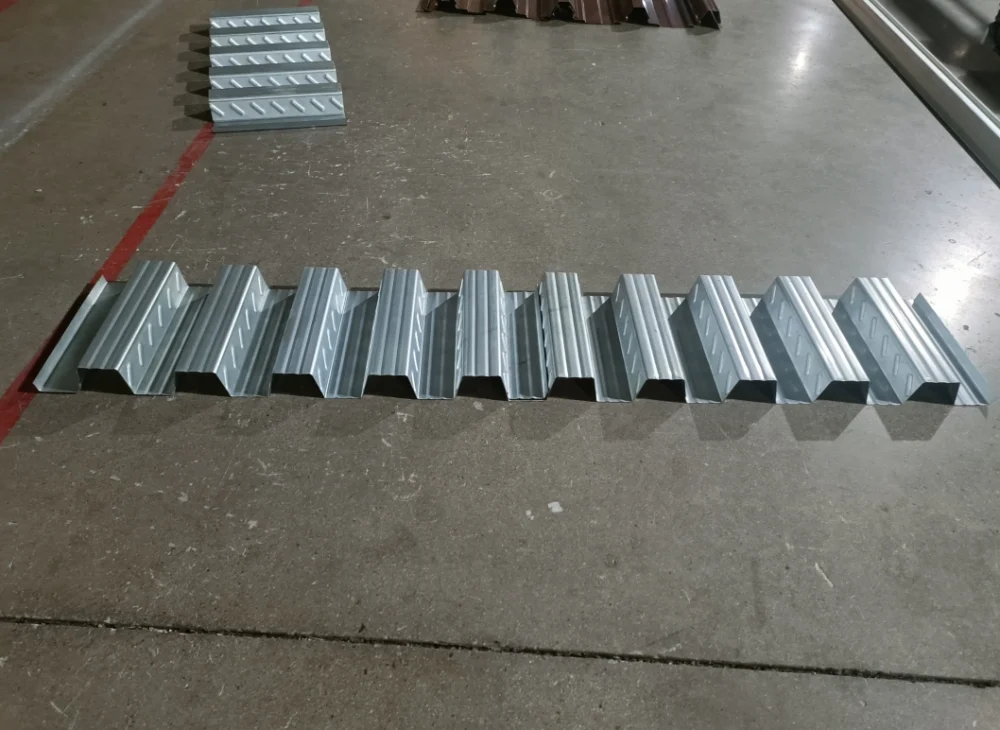

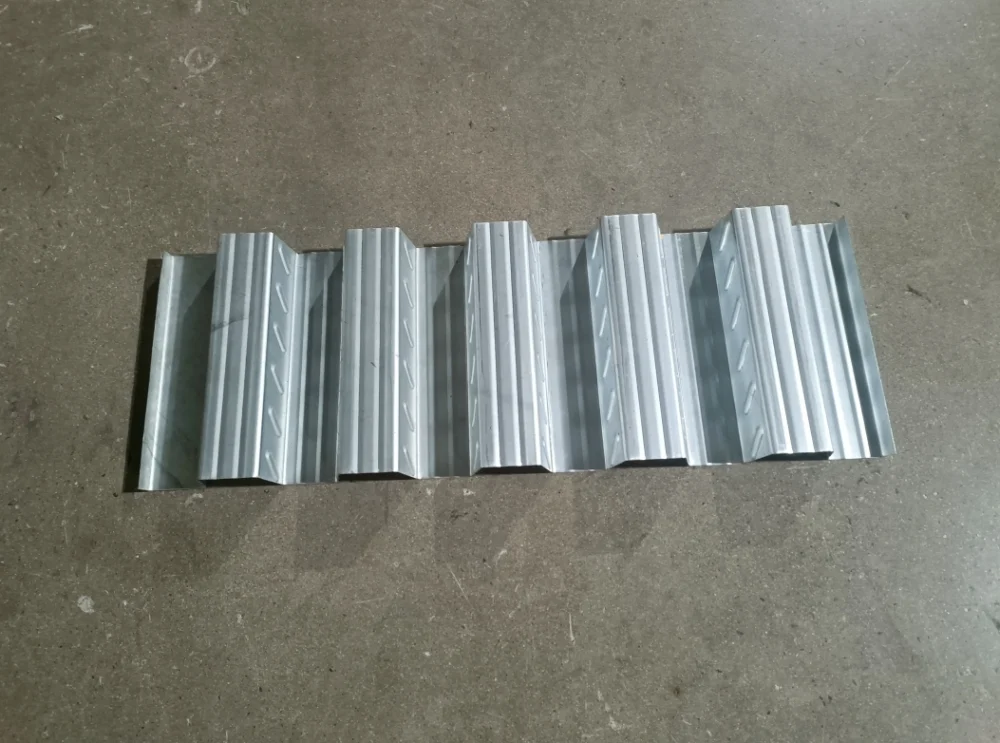

The HB55 floor deck roll forming machine is a dedicated production line for manufacturing HB55 metal floor deck panels used in composite floor systems. The finished decking provides excellent structural support for concrete slabs and is widely used in modern steel construction.
This production line typically includes:
-
Hydraulic decoiler
-
Feeding and guiding system
-
Precision roll forming station
-
Hydraulic cutting system
-
PLC control system
-

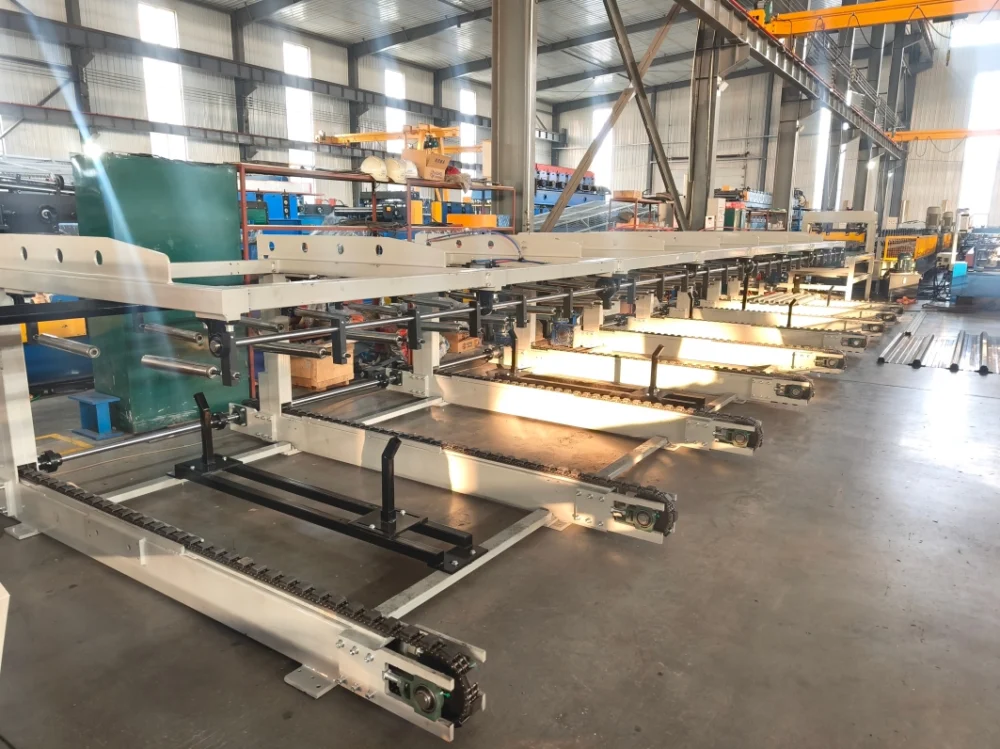

Output table or stacking system
With hydraulic cutting, the machine cuts the formed panel cleanly and accurately without deformation, ensuring smooth edges and consistent lengths for fast on-site installation.
Key Features & Benefits
1. Precision Roll Forming for HB55 Profile

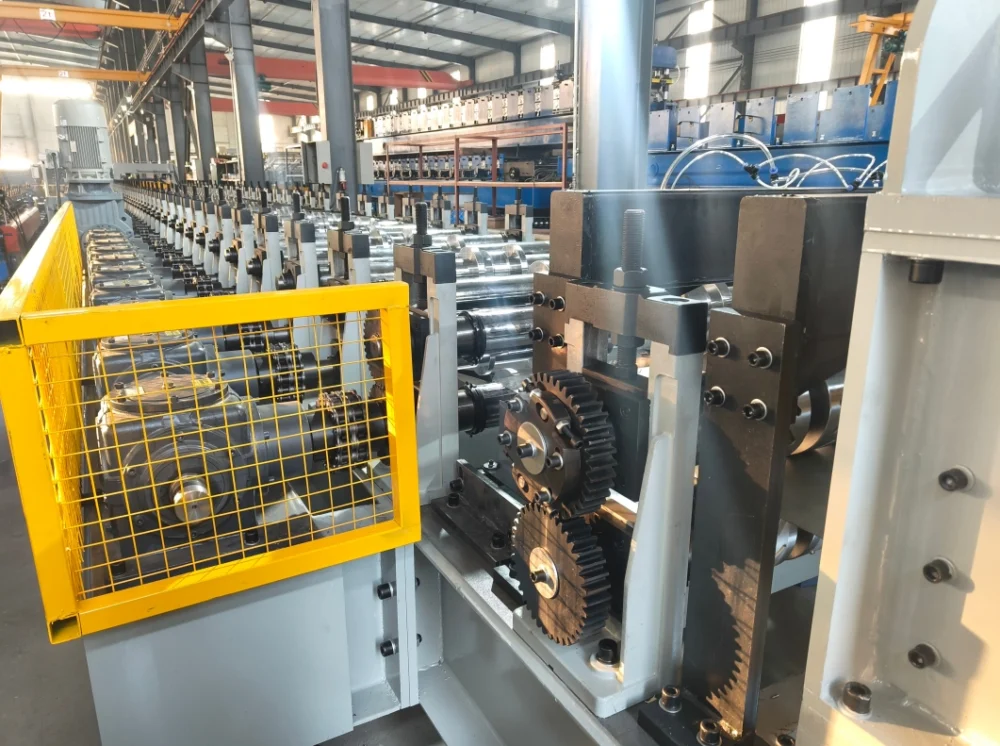

The machine is engineered with high-quality forming rollers and a robust main frame to produce accurate HB55 floor deck profiles with stable dimensions. Each roller station is precisely machined and assembled to ensure smooth feeding, minimal material stress, and long service life.

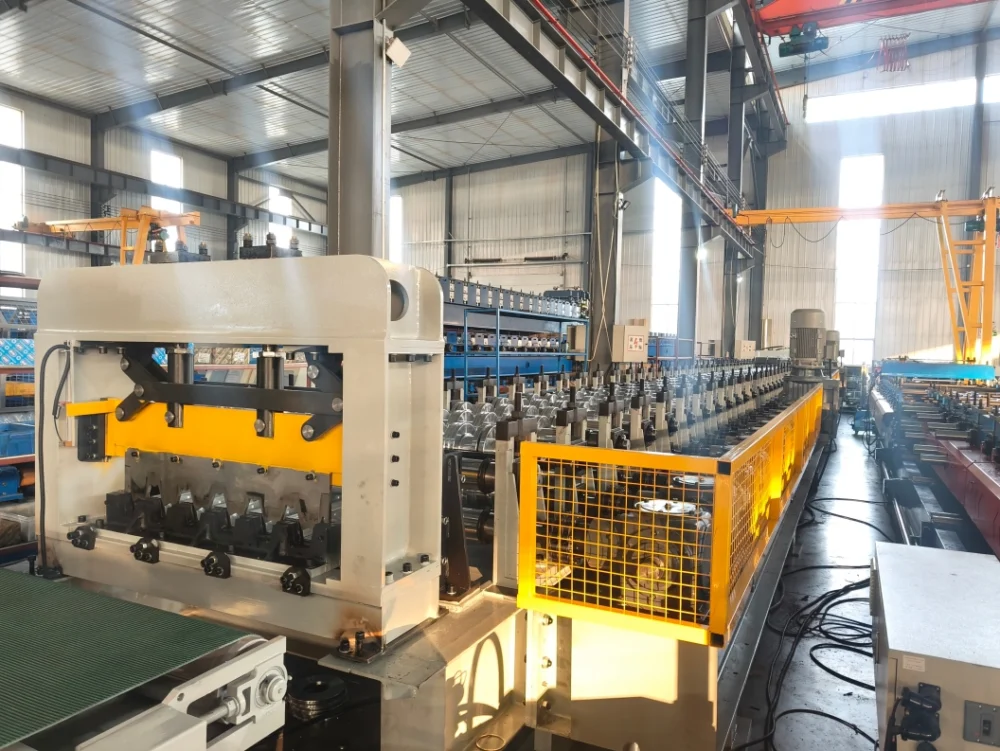

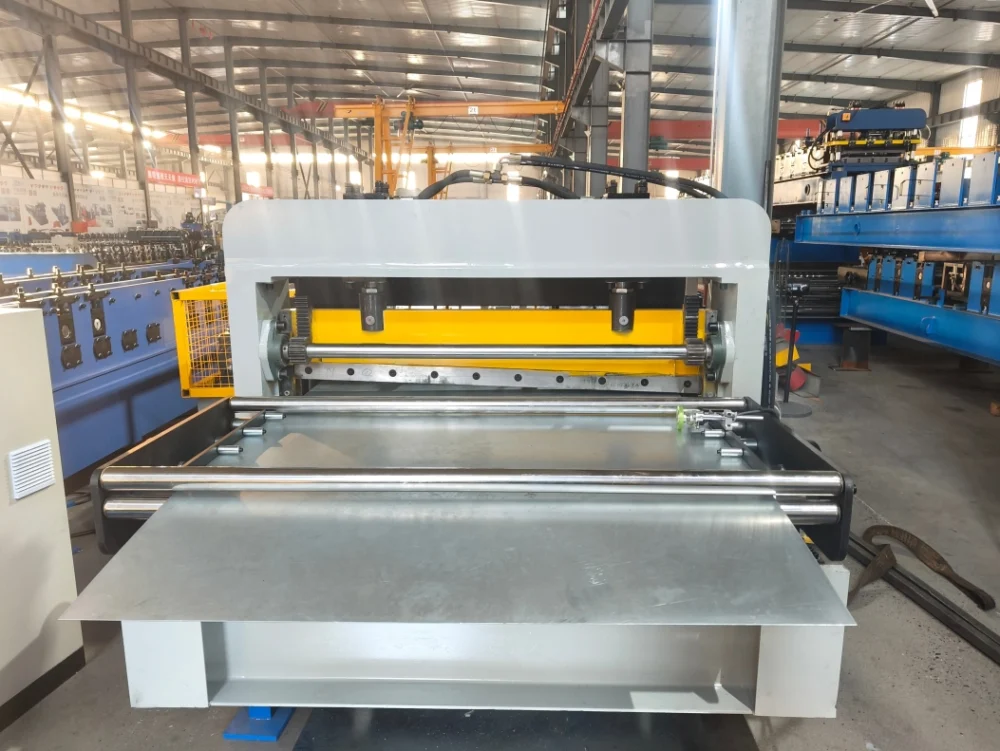

2. Hydraulic Cutting for Clean, Accurate Cuts
The hydraulic cutting system delivers fast, powerful, and burr-free cutting. It helps avoid profile deformation and ensures each panel is cut to the required length. This is especially important for construction projects that demand strict tolerances and fast assembly.
3. High Production Efficiency
With automatic PLC control, the machine can run continuously and reliably. Production speed can be adjusted according to material thickness and profile requirements. This helps manufacturers improve output, reduce labor costs, and meet tight project schedules.
4. Durable Structure & Reliable Components
The main frame is built with strong welded steel for stability under continuous operation. Key electrical components and hydraulic parts are selected for dependable performance, making the machine suitable for daily industrial production.
5. Easy Operation & Maintenance
The PLC control system makes length setting, batch production, and machine operation simple and user-friendly. Modular design and accessible components help reduce maintenance time and improve uptime.
Product Attributes :
|
1.Formed Material
|
PPGI,PPGL,AI,Etc.
|
Material Thickness:0.7-1.5mm
|
||
|
2.Decoiler
|
Hydraulic decoiler(optional)
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
36 rollers stations
|
||
|
Diameter of shaft
|
95mm,solid shaft
|
|||
|
Material of rollers
|
High grade 45# steel,surface chromed thickness 0.05mm
|
|||
|
Machine body frame
|
350H steel welded and middle plate welded
|
|||
|

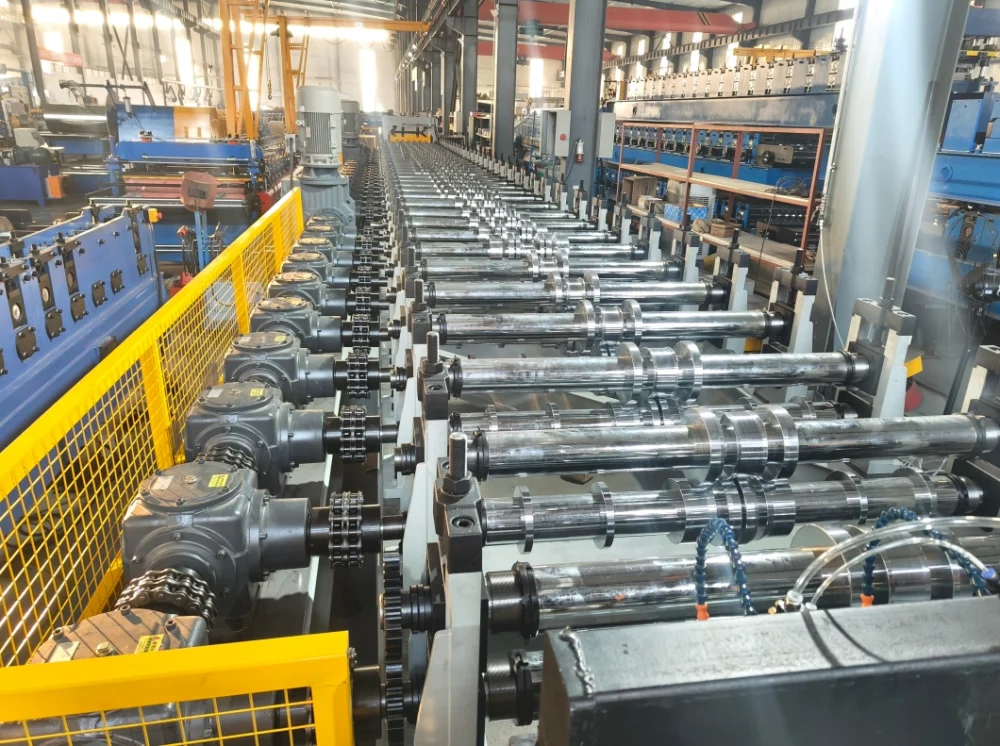

Drive
|
By double chains
|
|||
|
Dimension(L*W*H)
|
Due to design
|
|||
|
Weight
|
Due to design
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5KW(normally)
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
As your requirement
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
Support multiple languages
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
8.Forming Speed
|
0-20m/min
|
Provide customized
|
||

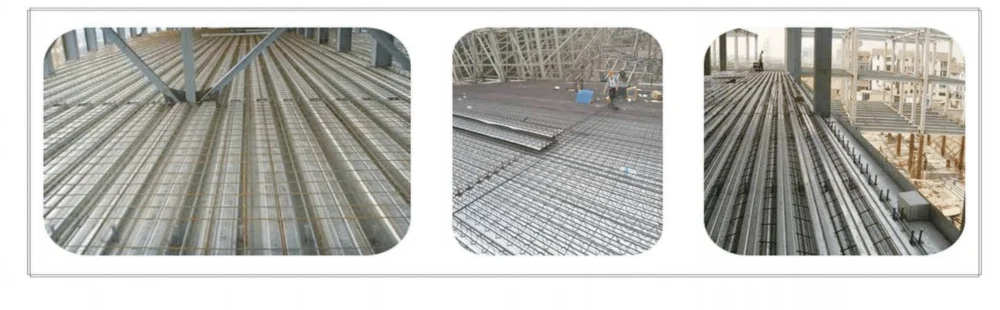

Applications of HB55 Floor Decking
HB55 metal floor deck is widely used in:
-
Steel structure buildings
-
High-rise commercial buildings
-
Industrial workshops and warehouses
-
Shopping malls and exhibition centers
-
Prefabricated construction projects
-
Composite floor slab systems
-
Multi-story parking structures
The HB55 profile offers strong load-bearing capacity, efficient concrete composite performance, and fast installation — making it a popular choice in modern construction.
Why Choose Our HB55 Floor Deck Roll Forming Machine?
• Construction-focused design: Built for producing high-quality floor deck panels for demanding building projects.
• Hydraulic cutting precision: Clean cuts, accurate lengths, and reduced material waste.
• Stable automatic production: PLC control and reliable drive system for continuous operation.
• Customized solutions: Machines can be tailored to your profile, material, voltage, and capacity.
• Factory support: Professional technical guidance, installation support, and after-sales service.
• Cost-effective investment: High output, low maintenance, and long service life help maximize return on investment.
Boost Your Floor Deck Production Today
In the competitive construction materials market, efficiency and quality make the difference. The HB55 Metal Floor Deck Roll Forming Machine with Hydraulic Cutting is built to help you produce accurate, durable, and market-ready floor deck panels with less effort and greater consistency.
Contact us today to discuss your HB55 profile requirements, material specifications, and production capacity. Our team can provide a customized solution, detailed quotation, and technical support for your next project.
Let’s build stronger floors — and a more efficient production line — together.
