Photovoltaic Bracket Strut Channel Solar Panel Structure Roll Forming Machine is a precision mechanical system specifically designed for manufacturing the support structure of solar photovoltaic power generation systems, and is known as the “skeleton” manufacturer of the photovoltaic industry. It integrates multiple complex process steps such as cutting, stamping, roll forming, welding, and surface treatment (such as galvanizing).

Pattern diagram:

Core strengths：

1.Excellent weather resistance and reliability
• Wind and earthquake resistance: The brackets produced by high-quality equipment are made of high-strength steel (such as Q355B, galvanized aluminum magnesium high-strength steel), combined with finite element node analysis, which can withstand typhoons and sandstorms above level 12.
• Long life anti-corrosion: Through advanced galvanizing or zinc aluminum magnesium coating processes, the bracket ensures a service life of over 25 years in coastal high salt alkali or desert environments.
2.Intelligent operation and protection
• Extreme weather strategy: The intelligent control system has a “self-protection” function, such as automatically adjusting the angle to make hail slide during hail weather, reducing the risk of component damage.
• Digital management: With the solution of “electronic control+algorithm+platform”, remote monitoring and intelligent operation and maintenance of power plants can be achieved, reducing maintenance costs in the later stage.

Application scenarios：

The products of photovoltaic bracket equipment cover a wide range of photovoltaic construction scenarios, from flat ground to extreme environments

• Mountain photovoltaic:
solving the construction problem of loess hills with a slope of 25 °~35 ° and reducing vegetation damage.
• Fishery light/agricultural light complementarity:
Flexible supports can achieve components that are more than 8 meters above the ground, without affecting fish pond farming or crop planting below, achieving “multiple uses in one place”.
• Desert management:
In ecologically fragile areas such as the Mu Us Desert, sand dunes can be constructed without leveling, and sand plants can be planted under the support.• Flat ground power station: Utilizing tracking brackets to maximize light reception and improve return on investment.
• Industrial and commercial roofs:
Fixed brackets are widely used in factory buildings and large warehouse roofs due to their simple structure and good load-bearing adaptability.

working flow :

Uncoiling with feeding & Leveler feeder → Punch press with servo feeder → Roll former →Hydraulic flying cut →Auto stacker

 Product Attributes:

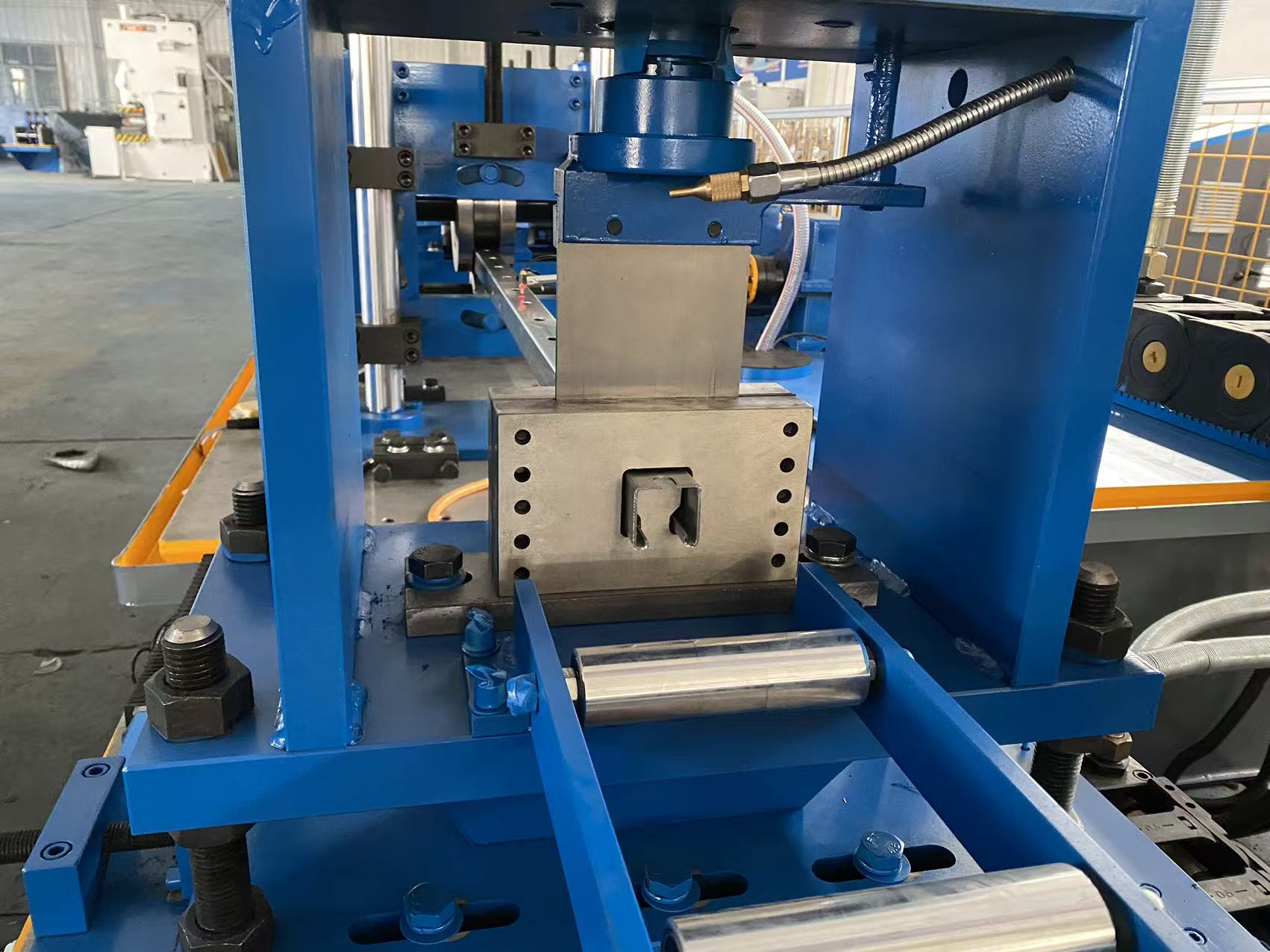

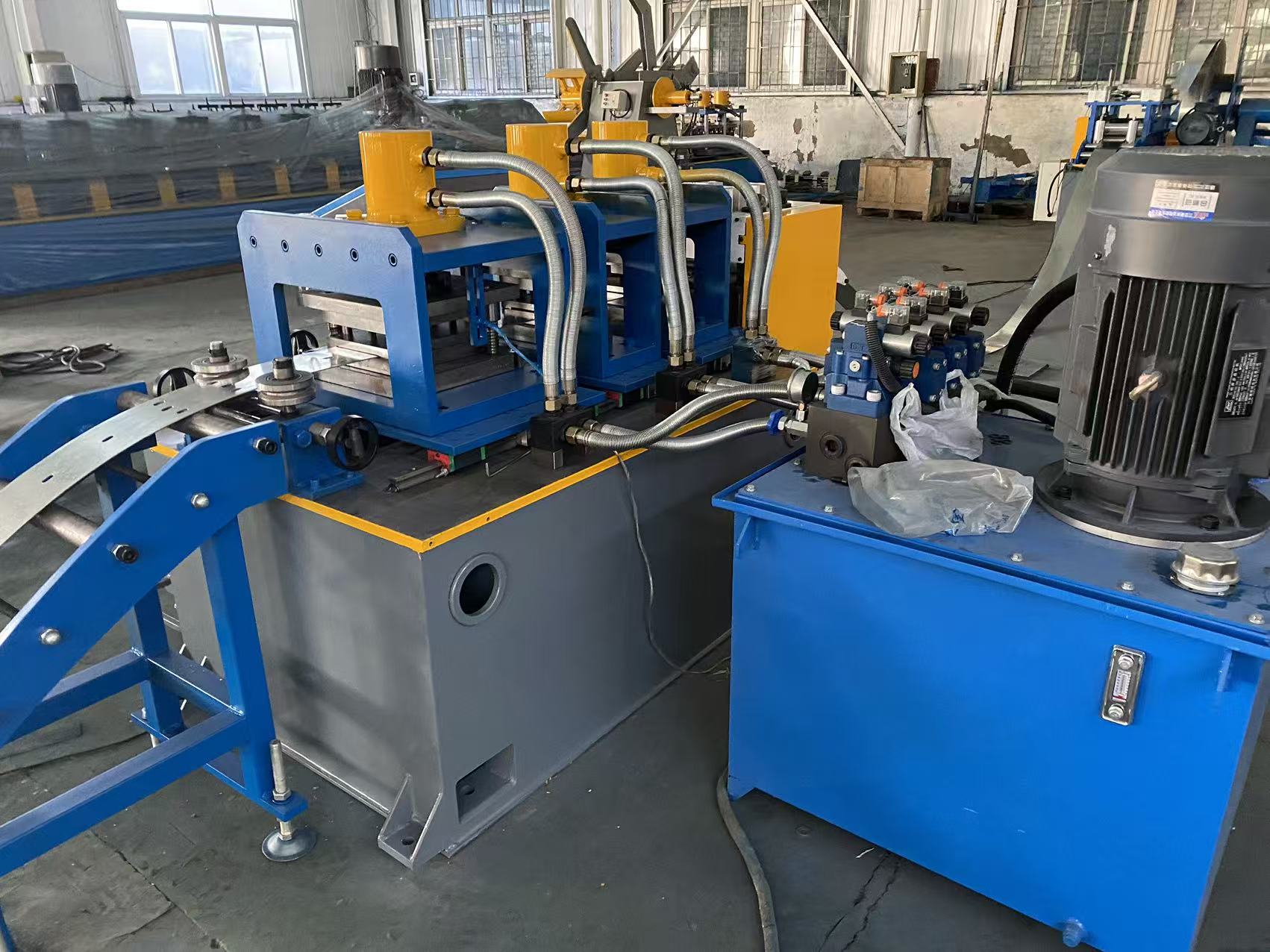

Products Display:
