Solar PV Mounting Structure are known as the “backbone” of photovoltaic power plants. The High Precision & Durable Solar PV Mounting Structure Roll Forming Machine is a specialized cold bending equipment used for producing bracket profiles required for supporting, installing, and fixing photovoltaic modules in solar photovoltaic power generation systems.

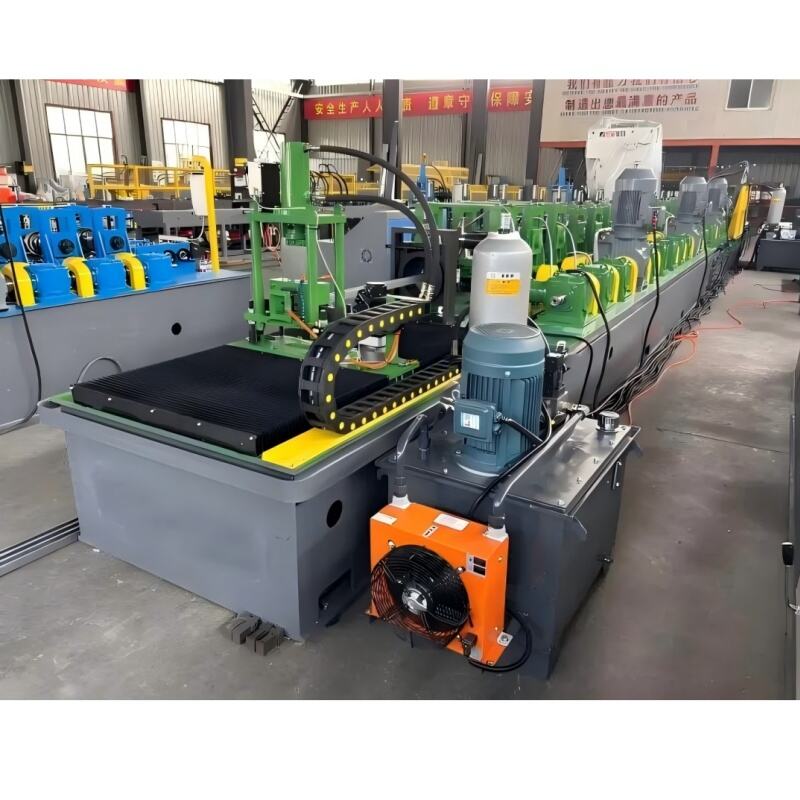

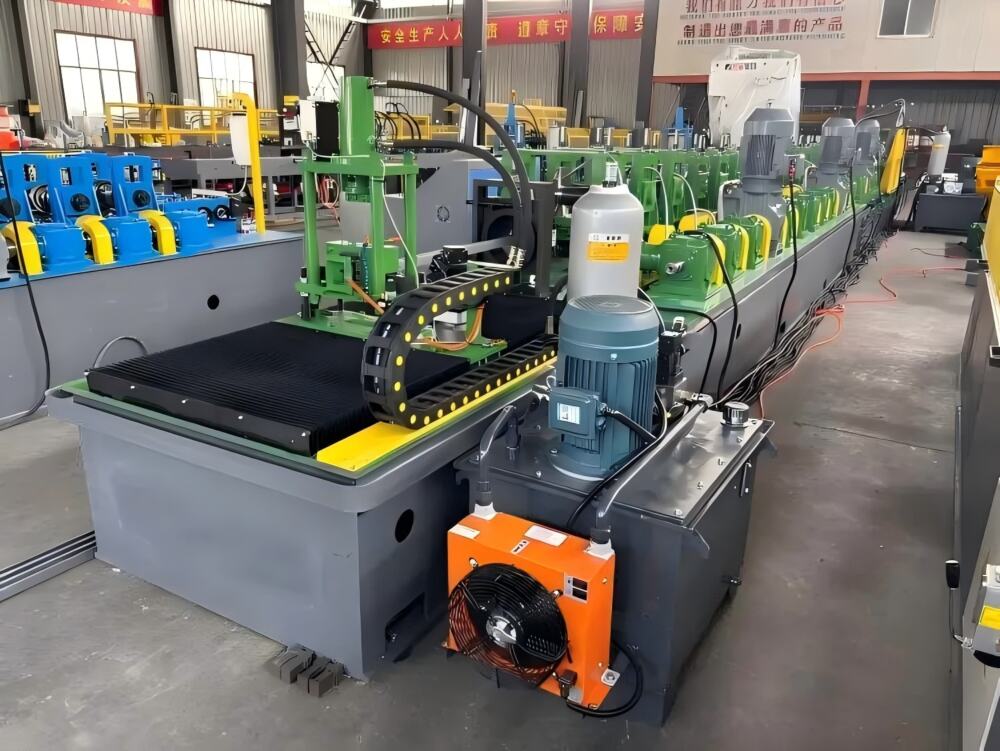

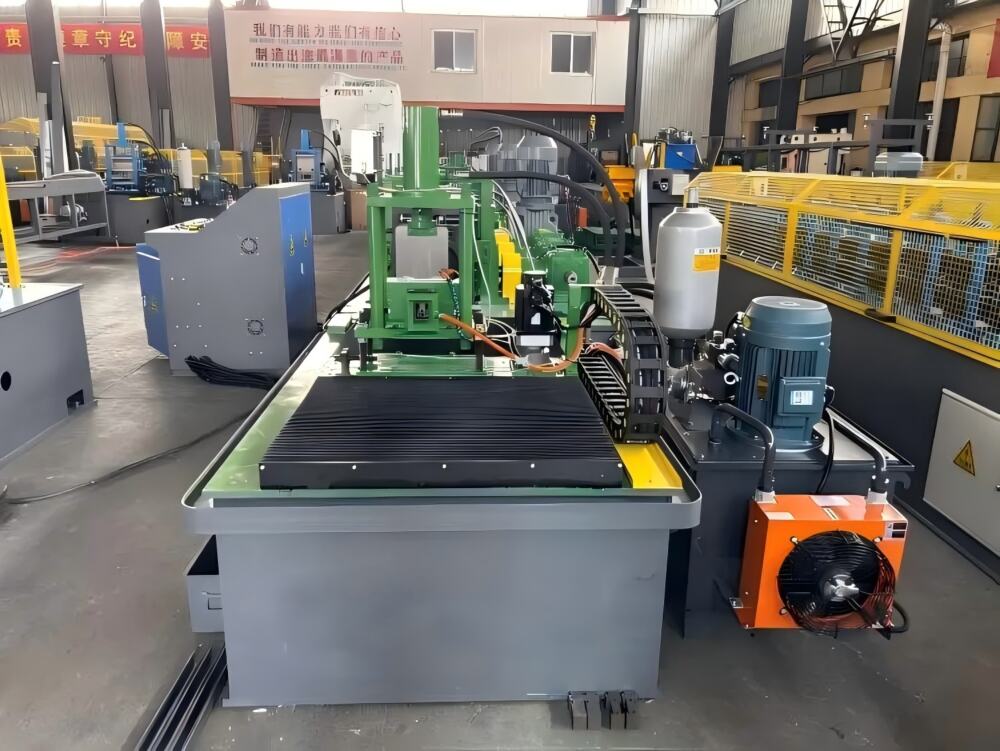

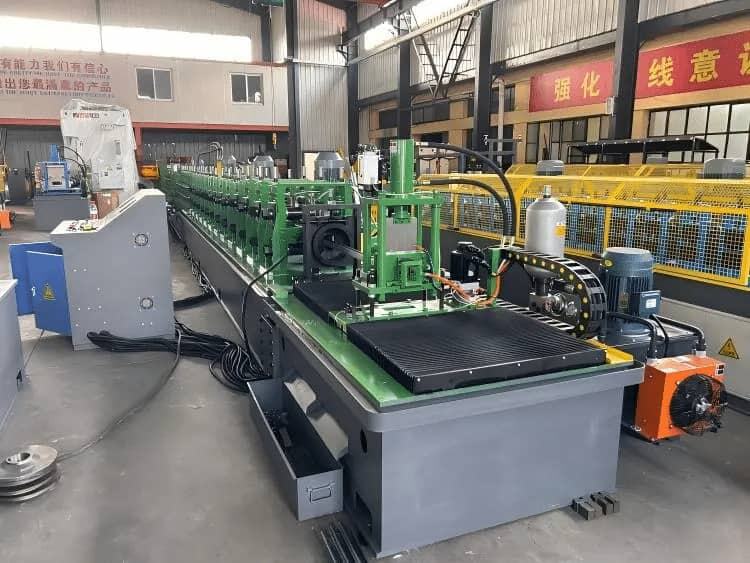

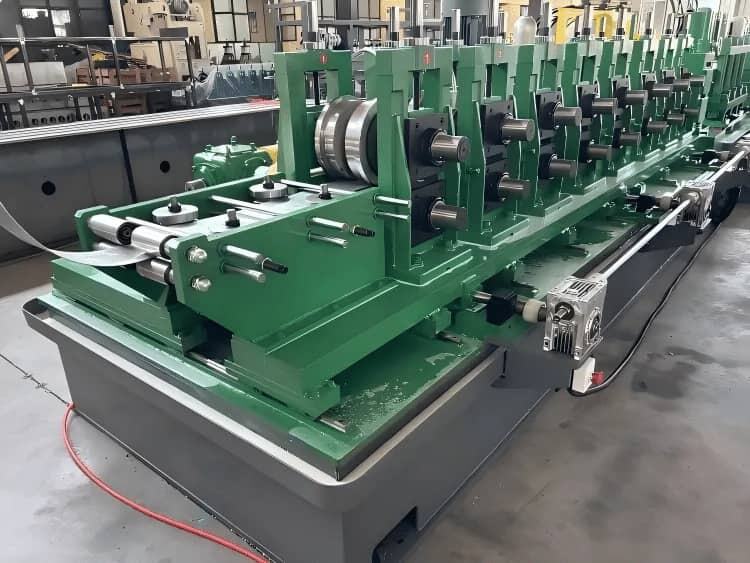

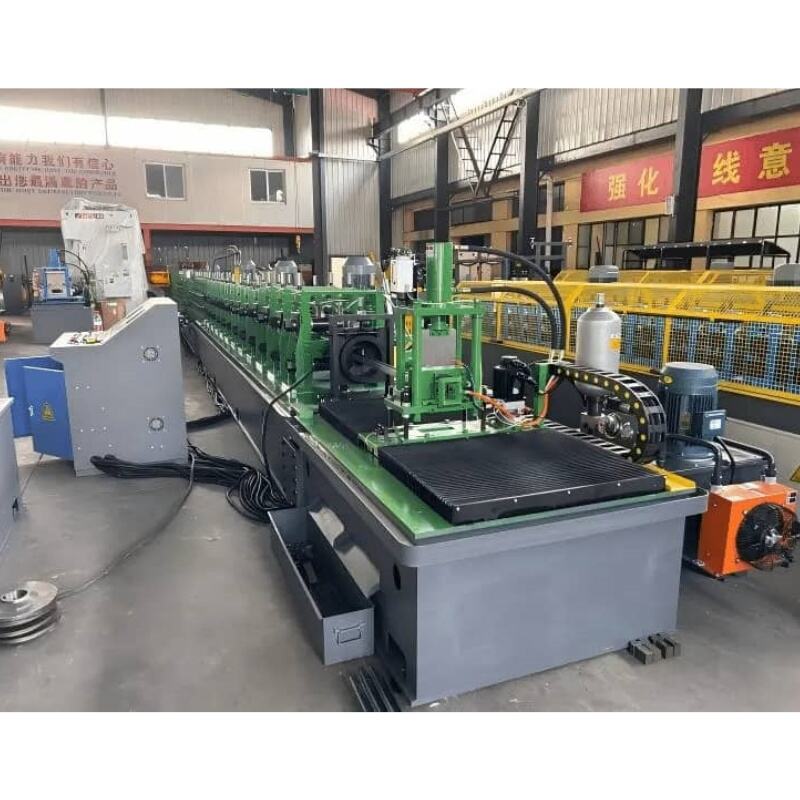

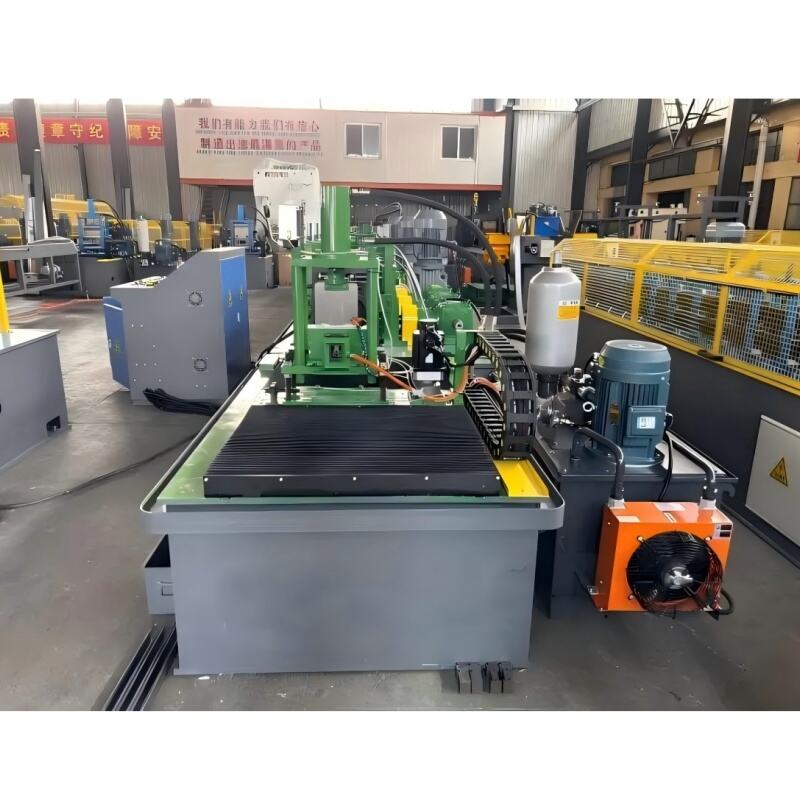

A completeHigh Precision & Durable Solar PV Mounting Structure Roll Forming Machine production line mainly consists of the following core units: unwinding and discharging device, leveling device, servo feeding device, punching device, roll forming host, cutting system, PLC control system, and receiving platform.

Application scenarios：

The bracket products produced by the photovoltaic bracket forming machine are widely used in various solar photovoltaic power generation systems, including:

• Ground mounted photovoltaic power station
Ground mounted photovoltaic power stations are the main application area of photovoltaic brackets. The equipment can produce high-strength support structures suitable for large ground power stations. These supports need to have high strength and stability to support large areas of photovoltaic modules, resist the effects of natural forces such as strong winds and snow, and ensure the long-term stable operation of photovoltaic power stations under various harsh environmental conditions.

• Distributed photovoltaic on the roof
Suitable for photovoltaic installation systems on commercial and residential roofs. The bracket product has a lightweight design, easy installation, no need for welding or drilling, 100% adjustable, and 100% reusable.

• Photovoltaic projects in high-altitude and complex terrain
In harsh environments such as high altitude, strong ultraviolet radiation, large temperature differences, and complex terrain, photovoltaic brackets need to have higher weather resistance and adaptability. On site production can significantly reduce transportation costs and supply cycles.

Product Attributes :

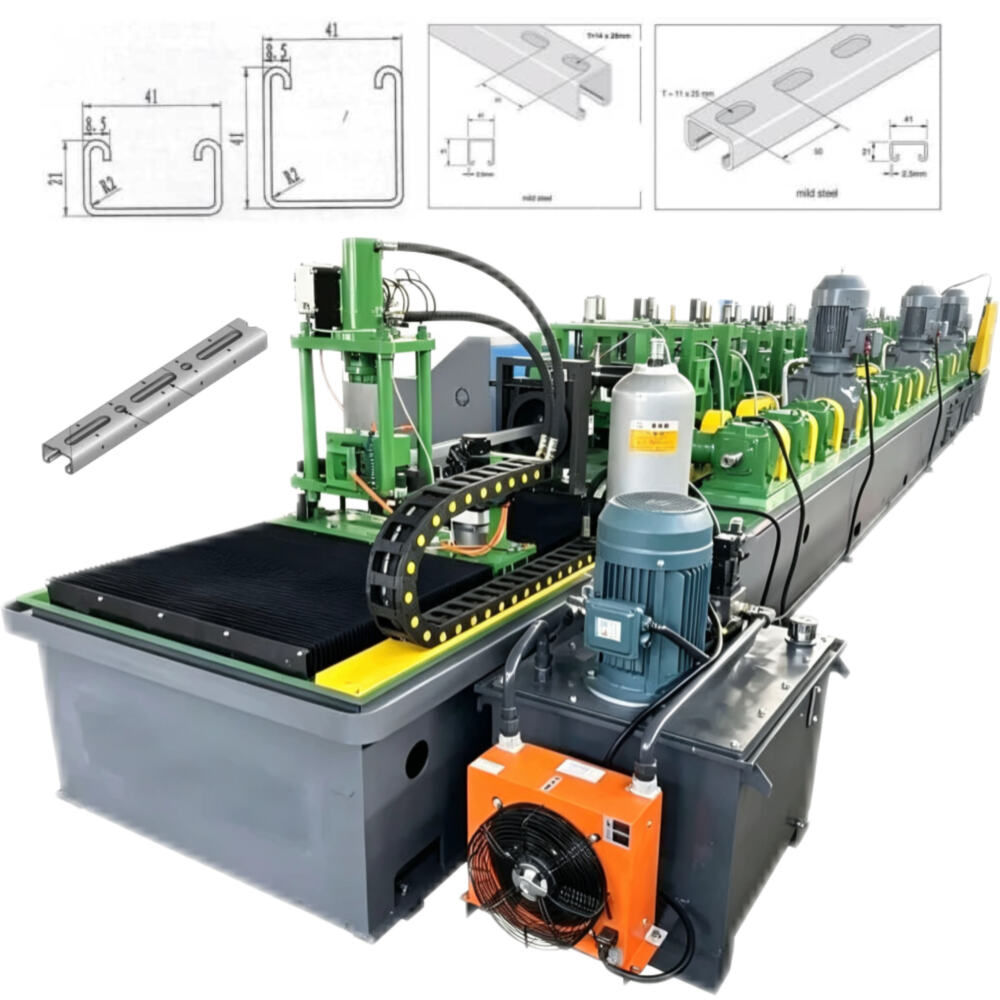

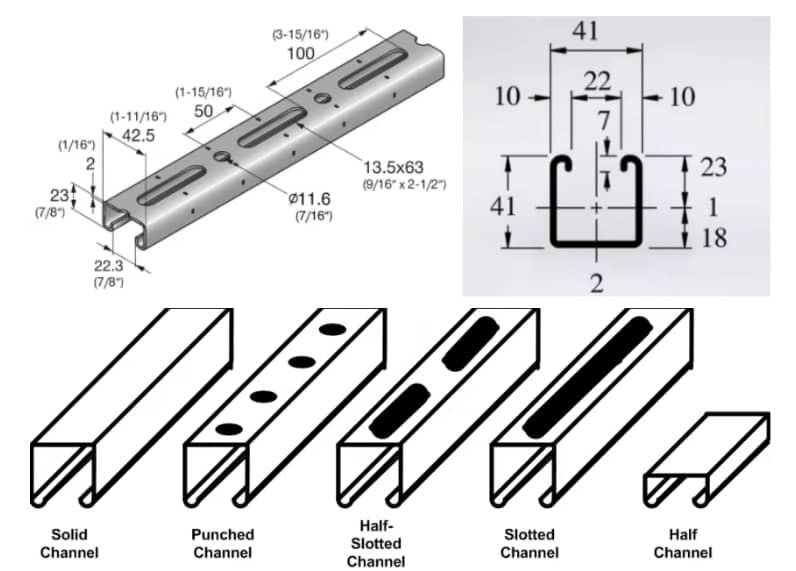

Pattern drawing：

Core advantages：

1. Fully automatic intelligent control, one person can operate it
The equipment adopts PLC programmable logic controller to centrally control the entire process of unwinding, leveling and feeding, fixed length punching, roll forming, follow-up cutting and discharging of the entire line. The entire production line has a high degree of automation, and only one person is needed to complete all operations. The PLC system can set multiple component data tasks at once, achieve automated continuous production, and can be equipped with remote control operation function.

2. Multi functional and flexible production with one machine
The High Precision & Durable Solar PV Mounting Structure Roll Forming Machine can produce various cross-sectional specifications of bracket profiles by switching, making it quick and convenient to change the pattern. The equipment supports the production of multiple specifications of profiles such as C-shaped, U-shaped, and clamp, and is compatible with various materials such as 0.5-3.5mm thick galvanized steel strip, carbon steel, aluminum magnesium zinc plating, aluminum alloy, etc. Modular quick change mold technology can achieve rapid mold changes and effectively meet diverse project requirements.

3. Efficient and energy-saving, significantly increasing production capacity
The energy consumption of cold bending forming process is reduced by about 40% compared to traditional hot processing methods, and the material utilization rate can reach 98%. Compared with traditional punching and bending processes, the production efficiency of High Precision & Durable Solar PV Mounting Structure Roll Forming Machine can be increased by 6-8 times, and investment costs can be saved by about 50%. The production line speed can reach 6-20 meters per minute, and the designed annual production capacity can reach over 14000 tons. The servo cutting system can achieve a cutting accuracy of ± 0.1mm, ensuring precise product size.

4. Safe and reliable, with a long service life
The equipment is equipped with comprehensive multiple security protection mechanisms. The highly rigid body structure and high-quality material selection ensure the long-term stable operation of the equipment. The mechanical, electrical, and hydraulic parts of the equipment have sufficient rigidity and toughness, sufficient power, and easy maintenance.

5. Advanced technology and excellent quality

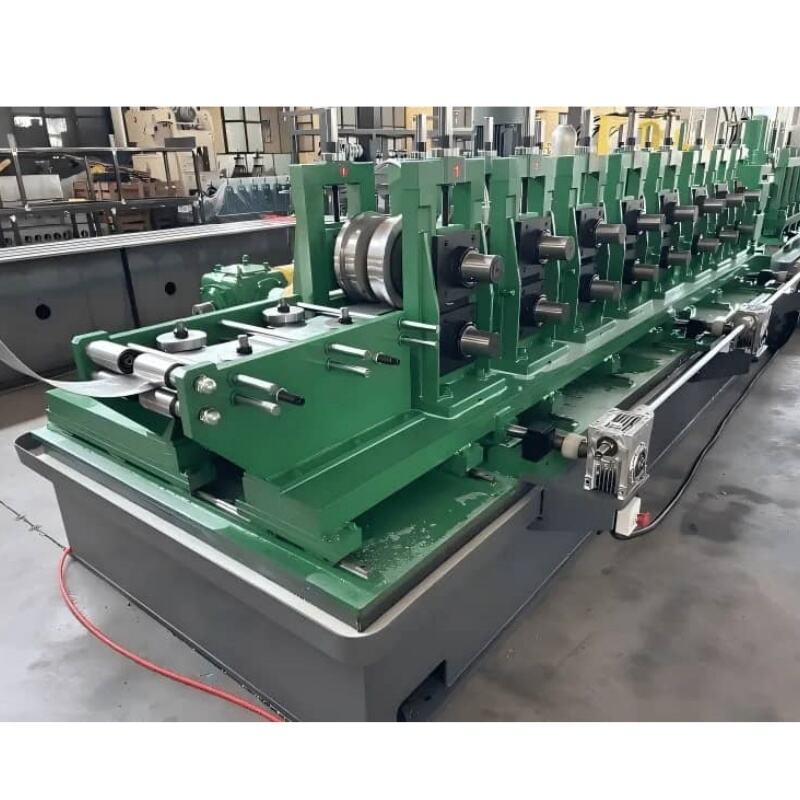

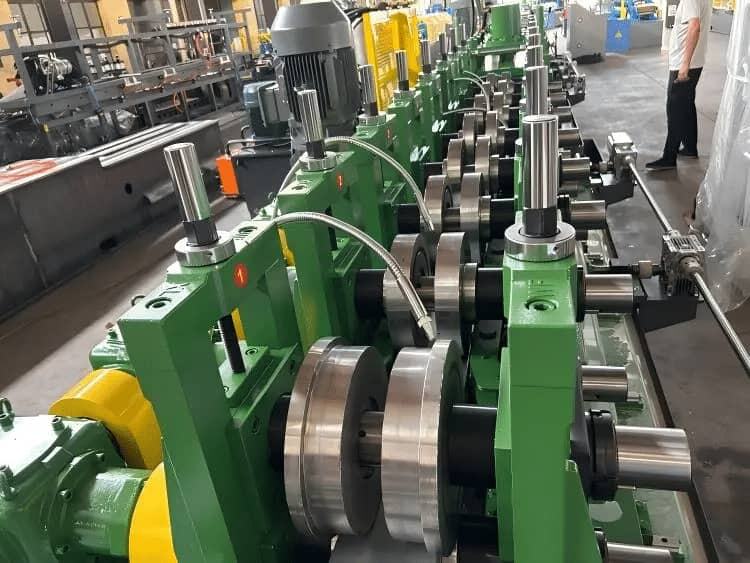

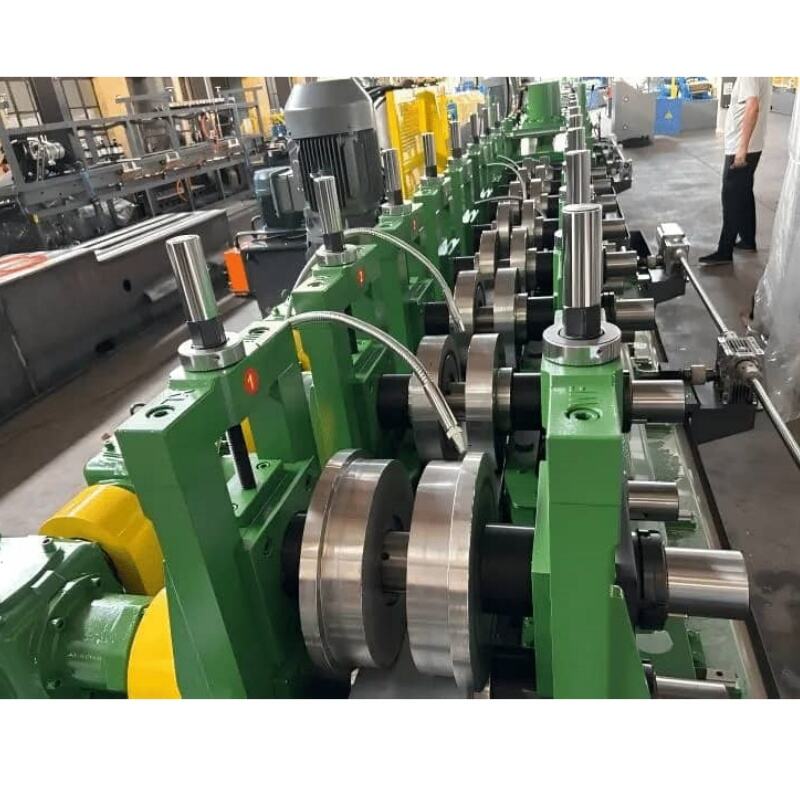

The equipment integrates advanced cold bending and rolling technology, servo feeding technology, precision punching and gear making technology, and can complete the processing of complex features such as bite teeth, connection holes, installation holes, and reinforcement ribs in one go. The layout of cold bending forming passes is scientifically reasonable, with a wide range of adaptability to the softness and hardness of galvanized steel strips, and the zinc layer is not easily damaged during the rolling process. High punching accuracy and precise size.

Contact Us：

As an important equipment in the field of new energy equipment manufacturing, the High Precision & Durable Solar PV Mounting Structure Roll Forming Machine is providing solid equipment support for the development of the global photovoltaic industry with its outstanding advantages of high automation, high precision, high efficiency, and low energy consumption. From deserts and Gobi to plateau hills, from industrial and commercial rooftops to residential buildings, the high-quality bracket products produced by photovoltaic bracket forming machines continuously support photovoltaic power plants, contributing to the development of green energy.
